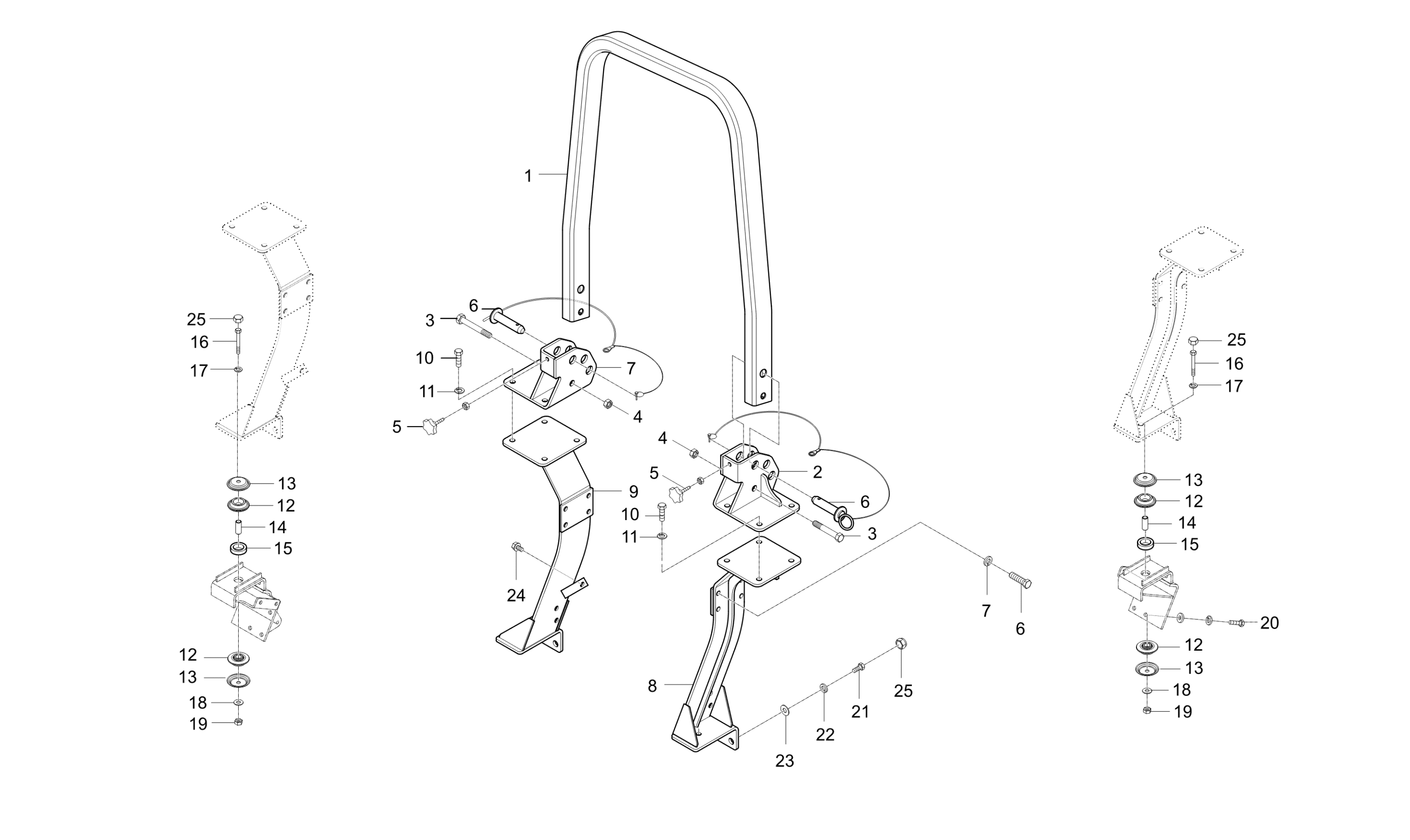

ROPS GROUP - DK55HSE-T975A

Kioti TRACTOR | DK Series | DK60HSE

1
TRK – ROPS v, Replaced by T4125-97112BB
- Part No. T4125-97112
- 75*50*T5.0
- 1 shown on diagram
$0.00

TRK - ROPS v, Replaced by T4125-97112BB quantity
2
ASS’Y, ROPS SUPPORT(LH)
- Part No. T4025-97121
- 1 shown on diagram
$229.99

ASS'Y, ROPS SUPPORT(LH) quantity
3
BOLT,HINGE
- Part No. T4687-88041
- 1 shown on diagram
$17.99

BOLT,HINGE quantity
4
NUT
- Part No. T4687-88051
- 1 shown on diagram
$9.49

NUT quantity
5
BOLT V
- Part No. T2185-97182
- 1 shown on diagram
$34.99

BOLT V quantity
6
ASSY PIN
- Part No. T4125-97161
- 1 shown on diagram
$57.99

ASSY PIN quantity
7
ASS’Y, ROPS SUPPORT(RH)
- Part No. T4025-97131
- 1 shown on diagram
$229.99

ASS'Y, ROPS SUPPORT(RH) quantity
8
SUPPORT FENDER (LH) v, Replaced by T4125-95035BB
- Part No. T4125-95035
- 1 shown on diagram
$0.00

SUPPORT FENDER (LH) v, Replaced by T4125-95035BB quantity
9
SUPPORT, FENDER (RH) v, Replaced by T4125-95046
- Part No. T4125-95045
- 1 shown on diagram
$0.00

SUPPORT, FENDER (RH) v, Replaced by T4125-95046 quantity
10
Bolt M14 P1.50x40mm
- Part No. 01173-51440
- M14XP1.5
- 8 shown on diagram
$3.49

Bolt M14 P1.50x40mm quantity
11
M14 Spring Lock Washer 04512-50140
- Part No. 04512-50140
- M14
- 8 shown on diagram
$0.90

M14 Spring Lock Washer 04512-50140 quantity
12
CUSHION T2670-74432
- Part No. T2670-74432
- 4 shown on diagram
$19.99

CUSHION T2670-74432 quantity
13
STOPPER dnr v T2350-85151
- Part No. T2350-85151
- T2.6
- 4 shown on diagram
$16.99

STOPPER dnr v T2350-85151 quantity
14
Spacer (T2350-85171)
- Part No. T2350-85171
- DIA22.4*T4.0
- 2 shown on diagram
$12.99

Spacer (T2350-85171) quantity
15
COLLAR
- Part No. T4125-74451
- T3.0
- 2 shown on diagram
$7.49

COLLAR quantity
16
Bolt M14 P1.50x100mm
- Part No. 01173-51400
- M14XP1.5
- 2 shown on diagram
$8.49

Bolt M14 P1.50x100mm quantity
17
M14 Spring Lock Washer 04512-50140
- Part No. 04512-50140
- M14
- 2 shown on diagram
$0.90

M14 Spring Lock Washer 04512-50140 quantity
18
Flat Washer M14
- Part No. 04014-50140
- M14
- 2 shown on diagram
$1.29

Flat Washer M14 quantity
19
NUT
- Part No. 02076-50140
- M14XP1.5
- 2 shown on diagram
$1.79

NUT quantity
20
Bolt M14 P1.50x40mm
- Part No. 01173-51440
- M14XP1.5
- 6 shown on diagram
$3.49

Bolt M14 P1.50x40mm quantity
21
Bolt M14 P1.50x45mm
- Part No. 01173-51445
- M14XP1.5
- 2 shown on diagram
$7.99

Bolt M14 P1.50x45mm quantity
22
M14 Spring Lock Washer 04512-50140
- Part No. 04512-50140
- M14
- 8 shown on diagram
$0.90

M14 Spring Lock Washer 04512-50140 quantity
23
Flat Washer M14
- Part No. 04014-50140
- M14
- 8 shown on diagram
$1.29

Flat Washer M14 quantity
24
BOLT, FLANGE
- Part No. 01754-50816
- M8XP1.25
- 2 shown on diagram
$1.79

BOLT, FLANGE quantity
25
NUT CAP
- Part No. T4125-93312
- 2 shown on diagram
$4.99

NUT CAP quantity

ROPS GROUP - DK55HSE-T975A

Kioti TRACTOR | DK Series | DK60HSE
