BONNET SUPPORT GROUP - TC2-G616005

Kioti TRACTOR | CK Series | CK3520HSEB

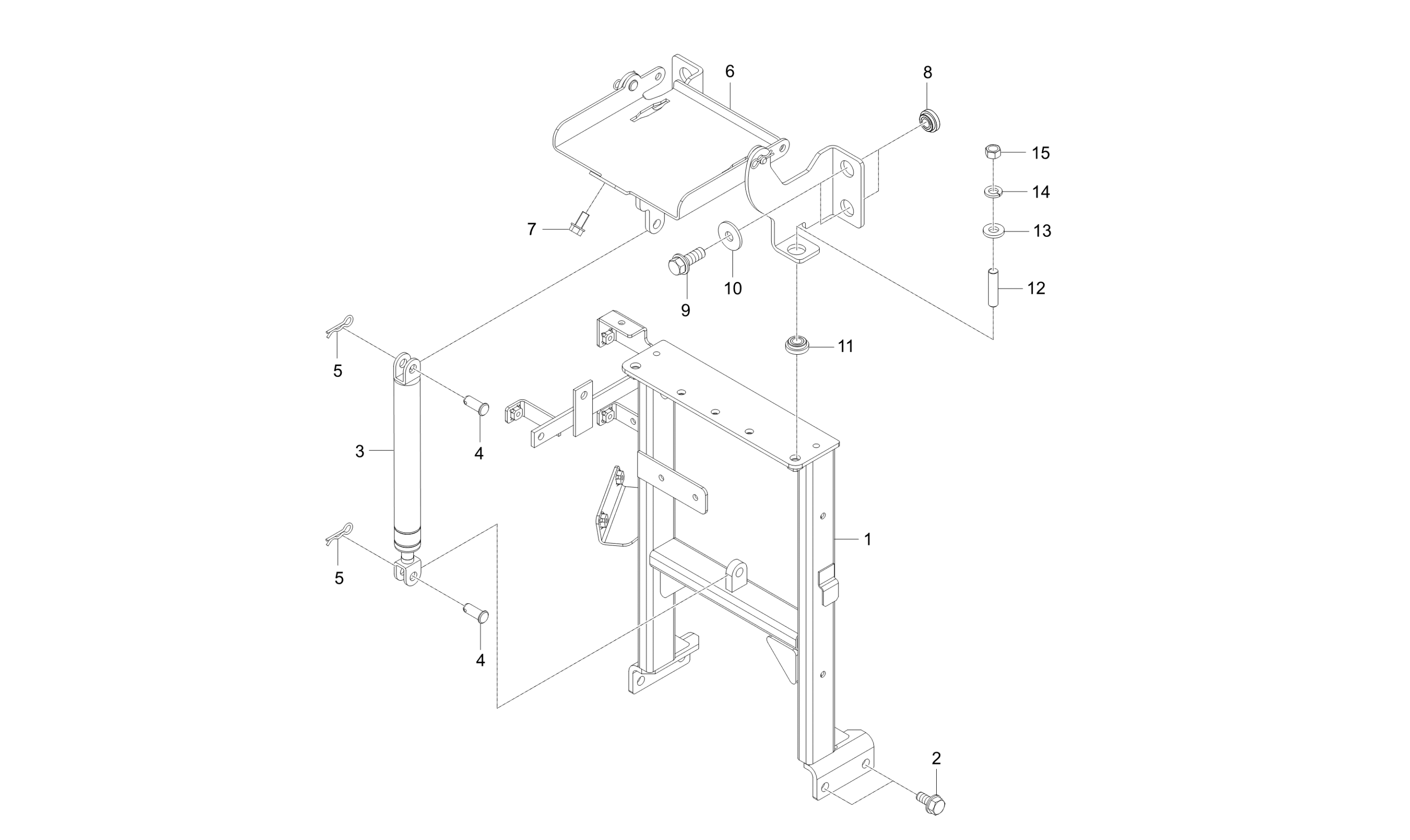

Diagram for BONNET SUPPORT GROUP - TC2-G616005
  • 1

    SUPPORT, BONNET dnr v

    • Part No. TC26-0695C
    • * multiple options for #1
    • 1 shown on diagram
    $259.99
  • 1

    SUPPORT, BONNET

    • Part No. TC26-0695D
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $259.99
  • 2

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 3

    CYLINDER,AIR

    • Part No. TD26-0857A
    • 1 shown on diagram
    $81.99
  • 4
    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
  • 5

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 6

    ASSY BRACKET, HINGE BONNET

    • Part No. TC26-0942B
    • 1 shown on diagram
    $114.99
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 8

    BUSHING

    • Part No. T5520-80531
    • 4 shown on diagram
    $7.49
  • 9

    Bolt With Washer, M10 P1.50 x 30mm

    • Part No. 01123-51030
    • M10*1.5
    • * multiple options for #9
    • 4 shown on diagram
    $3.49
  • 9 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • Compatibility Interchngable
    • M10XP1.25
    • * multiple options for #9
    • 4 shown on diagram
    $2.99
  • 10

    Flat Washer M10

    • Part No. 04015-50100
    • M10
    • 4 shown on diagram
    $1.09
  • 11

    BUSHING

    • Part No. T5520-80531
    • 2 shown on diagram
    $7.49
  • 12

    STUD

    • Part No. 01517-51030
    • 2 shown on diagram
    $4.99
  • 13
    • Part No. 76KB-0512
    • 10.5*22*T3.2
    • 2 shown on diagram
  • 14 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 15 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
