POSITION DRAFT CONTROL LEVER GROUP - TC2-G641008

Kioti TRACTOR | CK Series | CK3520HSEB

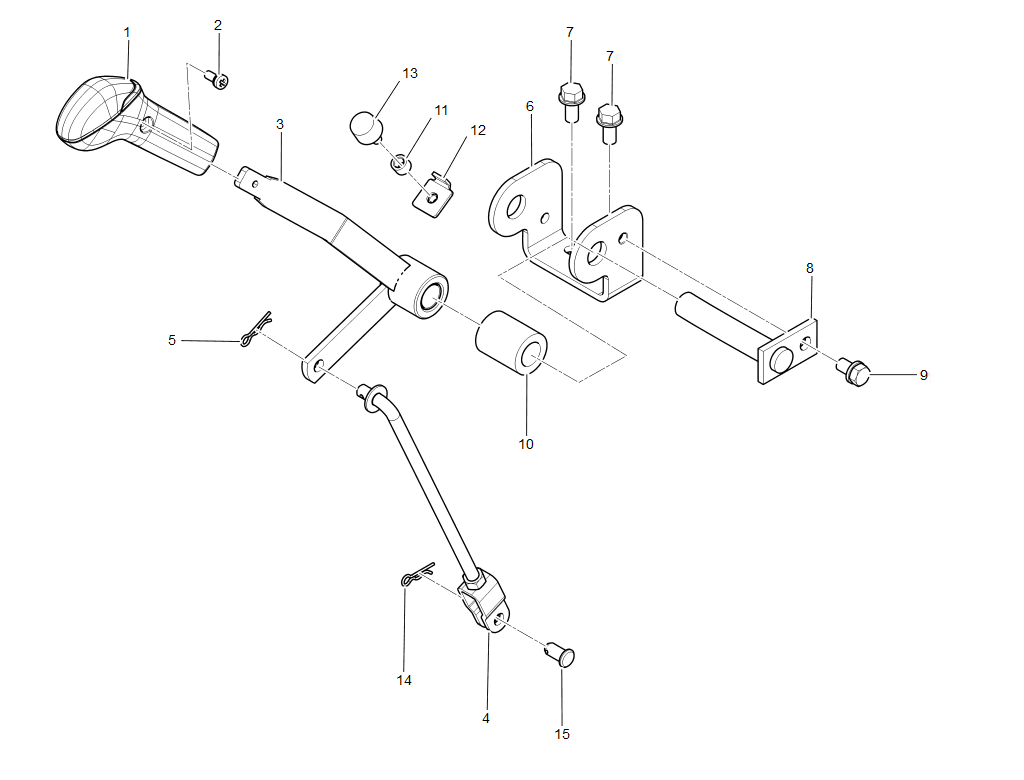

Diagram for POSITION DRAFT CONTROL LEVER GROUP - TC2-G641008
  • 1
    • Part No. TF26-1819B
    • 1 shown on diagram
  • 2
    • Part No. 03024-50512
    • M5XP0.8
    • 1 shown on diagram
  • 3
    • Part No. TC26-2279A
    • 1 shown on diagram
  • 4

    ROD, CONTROL POSITION v

    • Part No. TC26-0480A
    • 1 shown on diagram
    $29.99
  • 5
    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
  • 6

    BRACKET

    • Part No. TC26-0478B
    • T4.5
    • 1 shown on diagram
    $28.99
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 8

    SHAFT

    • Part No. TC26-0578A
    • 1 shown on diagram
    $14.99
  • 9

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 10
    • Part No. T5715-53471
    • OD28,ID16.5
    • 1 shown on diagram
  • 11

    SPACER

    • Part No. T4520-83301
    • DIA10.5*T2.0
    • 1 shown on diagram
    $4.99
  • 12
    • Part No. T2350-95472
    • Serial No. RA4AA0036 to SA4AA0142
    • 1 shown on diagram
  • 13
    • Part No. 53415-4128-1
    • 1 shown on diagram
  • 14
    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
  • 15

    Pin, Joint M8x16mm

    • Part No. 05122-50816
    • DIA8XL16
    • 1 shown on diagram
    $2.49
