BRAKE PEDAL GROUP - TC2-G646509

Kioti TRACTOR | CK Series | CK3520HSEB

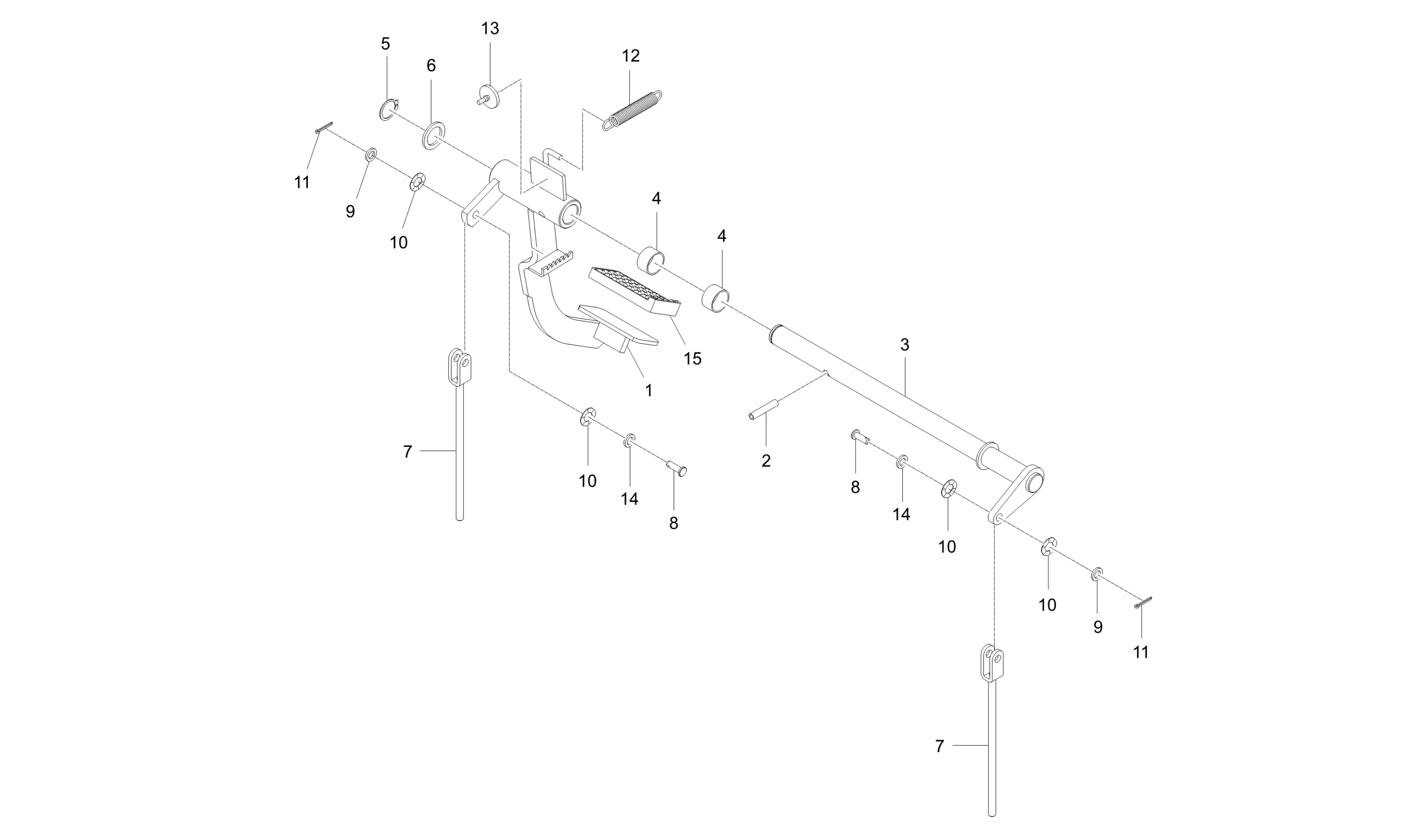

Diagram for BRAKE PEDAL GROUP - TC2-G646509
  • 1

    PEDAL, BRAKE-HST

    • Part No. TC26-1950A
    • 1 shown on diagram
    $99.99
  • 2 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 3

    SHAFT,PEDALBRAKE-NONECLUTCH

    • Part No. TC26-1356A
    • 1 shown on diagram
    $69.99
  • 4

    NEEDLE BEARING

    • Part No. 08822-53017
    • Inner diameter 25
    • 2 shown on diagram
    $19.99
  • 5 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 6

    COLLAR dnr v

    • Part No. 84612-1445-0
    • DIA36*8
    • 1 shown on diagram
    $11.99
  • 7

    ROD2,BRAKE

    • Part No. T4620-55762
    • 2 shown on diagram
    $18.99
  • 8
    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
  • 9

    WASHER 1

    • Part No. T4930-66731
    • 2 shown on diagram
    $3.49
  • 10
    • Part No. T4157-56111
    • 4 shown on diagram
  • 11
    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
  • 12

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 1 shown on diagram
    $6.49
  • 13

    CUSHION v

    • Part No. T4520-26931
    • 1 shown on diagram
    $6.49
  • 14

    WASHER 3

    • Part No. T4682-65311
    • 2 shown on diagram
    $0.79
  • 15 COVER,PEDAL

    COVER,PEDAL

    • Part No. T2670-55531
    • 1 shown on diagram
    $23.99
