DUST SHIELD PLATE GROUP - TC2-G6F4005

Kioti TRACTOR | CK Series | CK3520HSEB

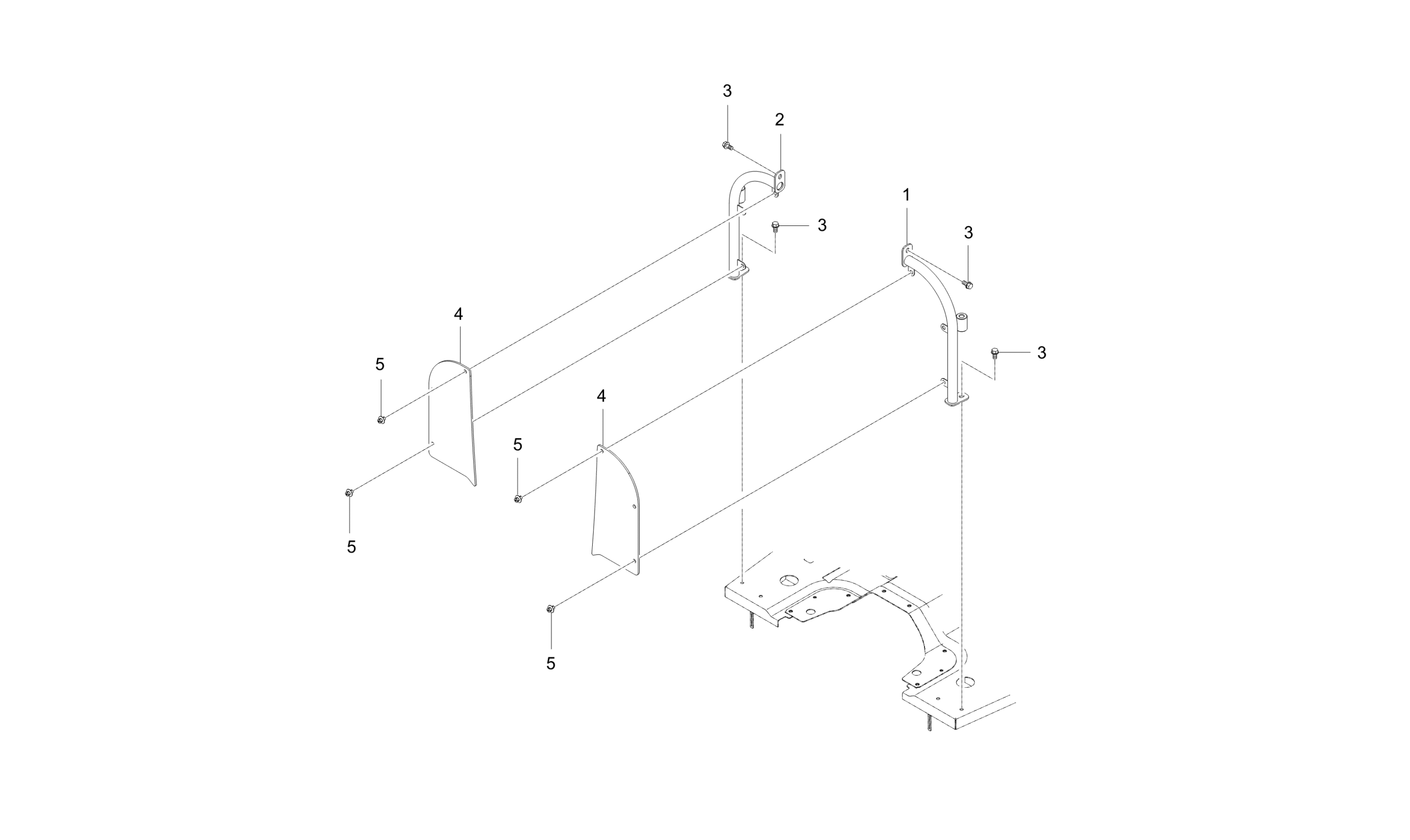

Diagram for DUST SHIELD PLATE GROUP - TC2-G6F4005
  • 1
    • Part No. TC26-1958A
    • 1 shown on diagram
  • 2
    • Part No. TC26-1959A
    • 1 shown on diagram
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 4
    • Part No. TC26-0703A
    • T4.0
    • 2 shown on diagram
  • 5

    RIVET, BOLT, Replaced by 53650-61271

    • Part No. 53650-6127-1
    • 6 shown on diagram
    $.00
