STEERING CYLINDER GROUP - CK30M-T580A

Kioti TRACTOR | CK Series | CK25

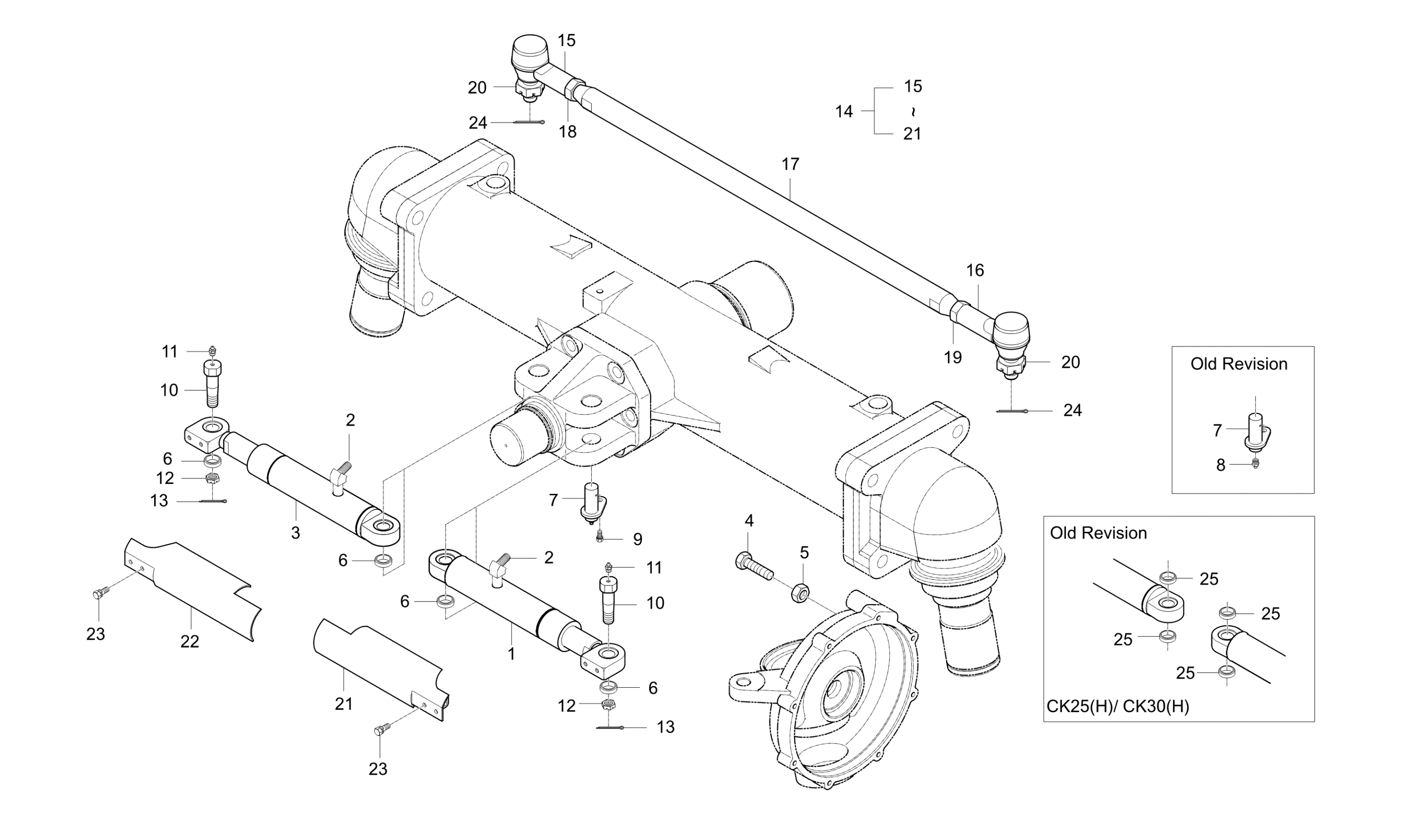

Diagram for STEERING CYLINDER GROUP - CK30M-T580A
  • 1

    Steering Cylinder, Replaced by T2185-32201

    • Part No. T2185-31201
    • Applied Dates Up to 2005-07-04
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    CYL. ASS’Y-STEERING

    • Part No. T2185-31202
    • Compatibility Interchngable
    • Applied Dates 2005-07-05 to 2008-11-07
    • Serial No. E70100251 and up
    • * multiple options for #1
    • 1 shown on diagram
    $529.99
  • 2

    USE 56713 28131

    • Part No. T4520-63381
    • Applied Dates 2005-07-05 and up
    • PF1/4
    • 1 shown on diagram
    $18.99
  • 3

    CYL. ASSY-STEERING dnr v

    • Part No. T2185-31301
    • Applied Dates Up to 2005-07-04
    • * multiple options for #3
    • 1 shown on diagram
    $524.99
  • 3

    CYL. ASSY-STEERING v

    • Part No. T2185-31302
    • Compatibility Interchngable
    • Applied Dates 2005-07-05 to 2008-11-07
    • Serial No. E70100251 and up
    • * multiple options for #3
    • 1 shown on diagram
    $529.99
  • 4

    Bolt M12 P1.25x55mm

    • Part No. 01175-51255
    • Applied Dates Up to 2004-03-31
    • * multiple options for #4
    • 2 shown on diagram
    $2.49
  • 4

    BOLT

    • Part No. 01175-51250
    • Compatibility Interchngable
    • Applied Dates 2004-04-01 to 2008-07-08
    • Serial No. D70100001 and up
    • 7T
    • * multiple options for #4
    • 2 shown on diagram
    $4.49
  • 5 NUT, M12 P1.25

    NUT, M12 P1.25

    • Part No. 02076-50120
    • Applied Dates Up to 2008-07-08
    • 2 shown on diagram
    $1.19
  • 6

    SPACER

    • Part No. T4625-31151
    • Applied Dates 2007-04-13 and up
    • 4 shown on diagram
    $8.99
  • 7

    PIN,CYLINDER SUPPORT dnr v

    • Part No. T4625-31162
    • Applied Dates 2003-07-21 to 2006-06-11
    • Serial No. Up to F70100560
    • * multiple options for #7
    • 2 shown on diagram
    $24.99
  • 7

    PIN

    • Part No. T4625-31163
    • Compatibility Interchngable
    • Applied Dates 2006-06-12 and up
    • Serial No. F70100561 and up
    • * multiple options for #7
    • 2 shown on diagram
    $46.99
  • 7

    PIN,CYLINDER SUPPORT

    • Part No. T4625-31361
    • Compatibility New repl old
    • Applied Dates 2010-02-16 to 2011-01-10
    • * multiple options for #7
    • 2 shown on diagram
    $48.99
  • 8 Grease Zerk 45� 1/8″ BSPT

    Grease Zerk 45� 1/8″ BSPT

    • Part No. 06613-20010
    • Applied Dates 2003-07-21 to 2004-03-31
    • * multiple options for #8
    • 2 shown on diagram
    $4.49
  • 8 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • Compatibility Interchngable
    • Applied Dates 2004-04-01 to 2003-12-09
    • Serial No. D70100001 and up
    • PT1/8
    • * multiple options for #8
    • 2 shown on diagram
    $3.49
  • 9

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • Applied Dates 2003-07-20 to 2004-11-11
    • Serial No. Up to D70100194
    • M8XP1.25
    • * multiple options for #9
    • 2 shown on diagram
    $2.49
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Compatibility New repl old
    • Applied Dates 2004-11-12 to 2007-02-10
    • Serial No. D70100001 to G70100040
    • M8XP1.25
    • * multiple options for #9
    • 2 shown on diagram
    $1.09
  • 10

    PIN, SUPPORT IA

    • Part No. T2620-31181
    • Applied Dates Up to 2006-06-11
    • * multiple options for #10
    • 2 shown on diagram
    $22.99
  • 10

    PIN,STAY v

    • Part No. T2620-31182
    • Compatibility Interchngable
    • Applied Dates 2006-06-12 to 2008-05-20
    • Serial No. F70100461 and up
    • * multiple options for #10
    • 2 shown on diagram
    $22.99
  • 11 NIPPLE, GREASE M6 P1.0

    NIPPLE, GREASE M6 P1.0

    • Part No. 06611-15675
    • Applied Dates Up to 2008-05-20
    • A-M6F
    • 2 shown on diagram
    $1.69
  • 12 Nut, Castle M18 P1.50

    Nut, Castle M18 P1.50

    • Part No. T2610-31311
    • 2 shown on diagram
    $4.49
  • 13

    PIN, SPLIT

    • Part No. 05511-50335
    • DIA3*35
    • 2 shown on diagram
    $0.68
  • 14

    ASS’Y TIE ROD v

    • Part No. T2185-31131
    • Applied Dates Up to 2005-09-13
    • * multiple options for #14
    • 1 shown on diagram
    $239.99
  • 14

    TIE ROD ASSY V, Replaced by T2185-31132BB

    • Part No. T2185-31132
    • Compatibility New repl old
    • Applied Dates 2005-09-14 and up
    • Serial No. E70100351 and up
    • * multiple options for #14
    • 1 shown on diagram
    $0.00
  • 14

    TIE ROD ASSY

    • Part No. T2185-31132BB
    • Compatibility No interchange
    • * multiple options for #14
    • 1 shown on diagram
    $294.99
  • 15 ASS Y END, TIE ROD RH

    ASS Y END, TIE ROD RH

    • Part No. T2240-12602
    • 1 shown on diagram
    $76.99
  • 16 Tie Rod End Ass’y Lh V

    Tie Rod End Ass’y Lh V

    • Part No. T2240-12702
    • 1 shown on diagram
    $78.99
  • 17

    TIE ROD V, Replaced by T2185-31142

    • Part No. T2185-31141
    • Applied Dates Up to 2005-09-13
    • DIA22
    • * multiple options for #17
    • 1 shown on diagram
    $0.00
  • 17

    TIE ROD V

    • Part No. T2185-31142
    • Compatibility New repl old
    • Applied Dates 2005-09-14 and up
    • Ø30 × t9.0
    • * multiple options for #17
    • 1 shown on diagram
    $149.99
  • 18

    NUT, M16 P1.50

    • Part No. 02174-50160
    • M16XP1.5
    • 1 shown on diagram
    $1.49
  • 19

    NUT, M16 P1.50 LH Thread

    • Part No. 37650-1128-1
    • M16*1.5 (Left Thread)
    • 1 shown on diagram
    $12.99
  • 20

    NUT

    • Part No. 34150-1283-1
    • 2 shown on diagram
    $6.99
  • 21

    CYLINDER COVER LH v

    • Part No. T2185-31332
    • Applied Dates 2004-01-26 to 2008-10-29
    • 1 shown on diagram
    $32.99
  • 22

    CYLINDER COVER RH V

    • Part No. T2185-31342
    • Applied Dates 2004-01-26 to 2008-10-29
    • 1 shown on diagram
    $24.99
  • 23 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01023-50610
    • M6XP1.0
    • 4 shown on diagram
    $1.29
  • 24

    PIN, SPLIT

    • Part No. 05511-50335
    • Applied Dates 2008-07-03 to 2008-06-17
    • DIA3*35
    • 2 shown on diagram
    $0.68
  • 25

    SPACER

    • Part No. T2185-31151
    • Applied Dates Up to 2006-02-09
    • 4 shown on diagram
    $6.49
