REMOTE HYDRAULIC VALVE GROUP - CK30M-T760A

Kioti TRACTOR | CK Series | CK25

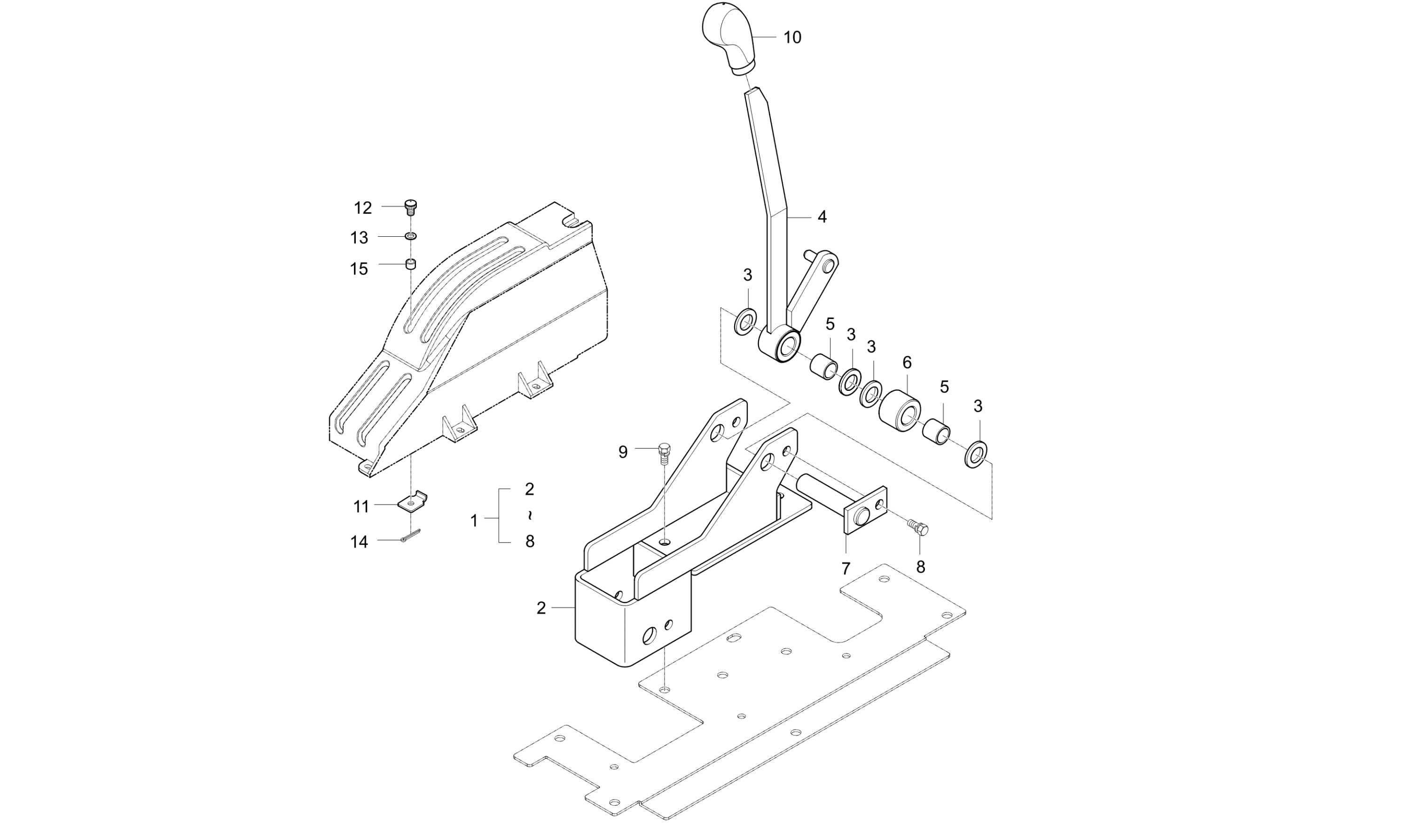

Diagram for REMOTE HYDRAULIC VALVE GROUP - CK30M-T760A
  • 1

    ASS’Y,HYD. LEVER

    • Part No. T2185-65204
    • Applied Dates 2004-02-19 to 2004-06-29
    • Serial No. D70100001 to E70100080
    • * multiple options for #1
    • 1 shown on diagram
    $99.99
  • 1

    ASS’Y, HYD. LEVER

    • Part No. T2185-65205
    • Compatibility New repl old
    • Applied Dates 2004-06-30 to 2008-03-03
    • Serial No. E70100081 and up
    • * multiple options for #1
    • 1 shown on diagram
    $129.99
  • 2

    BRACKET(DRAFT, POSITION)

    • Part No. T2185-65433
    • Applied Dates 2004-01-19 and up
    • 1 shown on diagram
    $51.99
  • 3 WASHER

    WASHER

    • Part No. T4810-66721
    • Applied Dates Up to 2008-03-03
    • 4 shown on diagram
    $1.39
  • 4

    LEVER, POSITION CONTROL

    • Part No. T2185-65412
    • Applied Dates Up to 2004-06-29
    • * multiple options for #4
    • 1 shown on diagram
    $29.99
  • 4

    LEVER, POSITION CONTROL obs v

    • Part No. T2185-65413
    • Compatibility New repl old
    • Applied Dates 2004-06-30 and up
    • * multiple options for #4
    • 1 shown on diagram
    $42.99
  • 5 BUSH

    BUSH

    • Part No. 08511-01620
    • MB1620DU
    • 1 shown on diagram
    $8.99
  • 6

    Spacer

    • Part No. T2185-65422
    • Applied Dates 2004-02-19 to 2008-03-03
    • 1 shown on diagram
    $14.99
  • 7 SHAFT POSITION DRAFT

    SHAFT POSITION DRAFT

    • Part No. T2185-66531
    • 1 shown on diagram
    $15.99
  • 8 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 9 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates 2004-03-25 and up
    • M8XP1.25
    • 3 shown on diagram
    $2.49
  • 10 GRIP

    GRIP

    • Part No. T2610-24461
    • Applied Dates 2003-12-21 to 2011-06-30
    • Serial No. 370100001 and up
    • * multiple options for #10
    • 1 shown on diagram
    $12.99
  • 10

    GRIP

    • Part No. T2198-24461
    • Compatibility New repl old
    • Applied Dates 2011-07-01 and up
    • * multiple options for #10
    • 1 shown on diagram
    $9.99
  • 11

    Lever Stopper Replaced by T2350-95472

    • Part No. T2350-95471
    • Applied Dates 2003-11-21 to 2005-01-18
    • Serial No. 370100001 to E70100080
    • * multiple options for #11
    • 1 shown on diagram
    $3.99
  • 11

    Lever Stopper (T2350-95472)

    • Part No. T2350-95472
    • Compatibility Interchngable
    • Applied Dates 2005-01-19 and up
    • Serial No. E70100081 to G70100244
    • * multiple options for #11
    • 1 shown on diagram
    $3.49
  • 12

    BOLT, Replaced by 55571-32381

    • Part No. 55571-3238-1
    • 1 shown on diagram
    $0.00
  • 13 Flat Washer M6, Replaced by 04012-50060

    Flat Washer M6, Replaced by 04012-50060

    • Part No. 04015-50060
    • M6
    • 1 shown on diagram
    $0.00
  • 14 Split Pin (05511-50215)

    Split Pin (05511-50215)

    • Part No. 05511-50215
    • DIA1.8XL15
    • 1 shown on diagram
    $0.62
  • 15

    SPACER

    • Part No. T4520-83301
    • Applied Dates 2005-01-19 and up
    • DIA10.5*T2.0
    • 1 shown on diagram
    $4.99
