INLET TUBE GROUP - CK30M-T720-1A

Kioti TRACTOR | CK Series | CK25

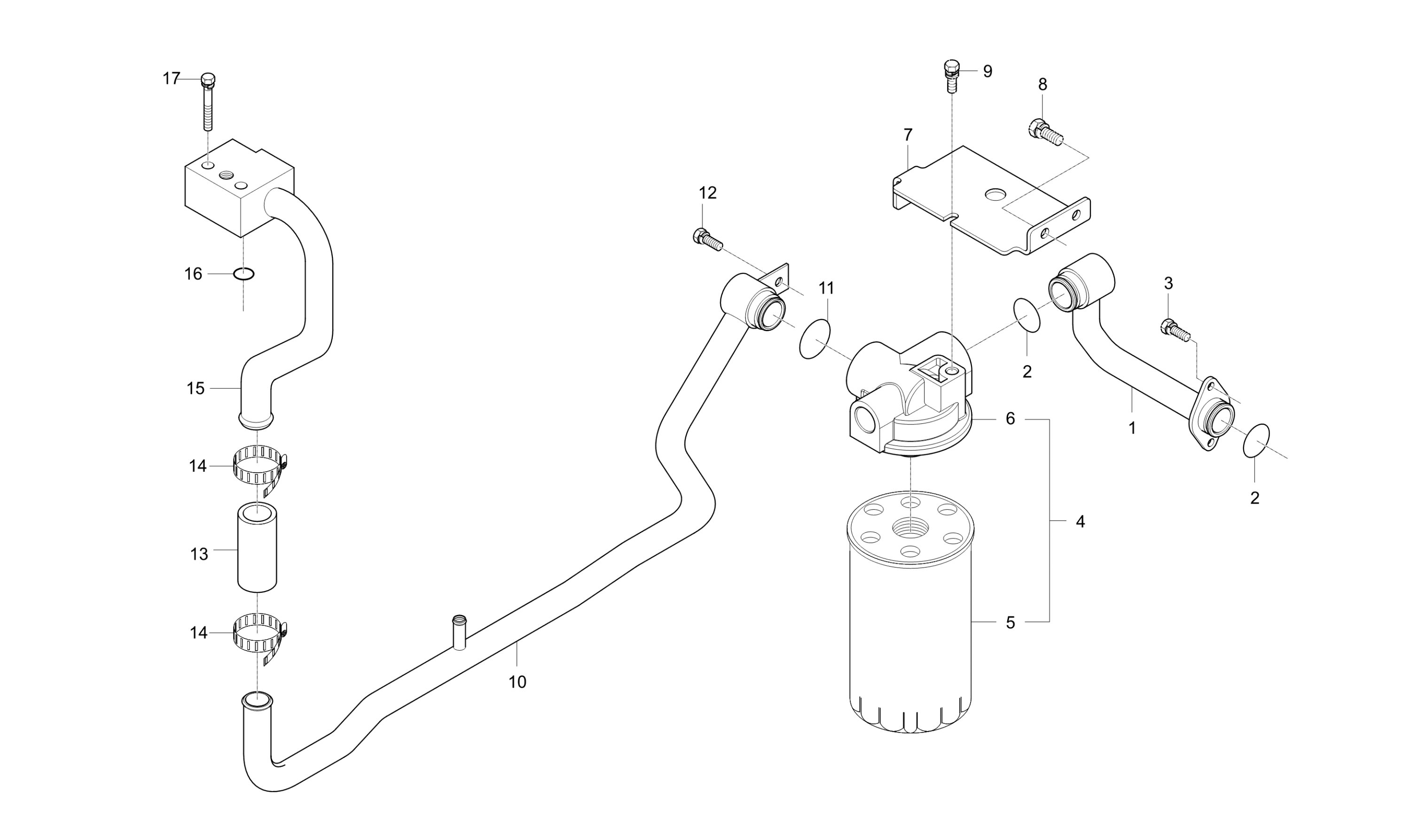

Diagram for INLET TUBE GROUP - CK30M-T720-1A
  • 1

    TUBE 1, INLET v

    • Part No. T2185-38002
    • Applied Dates 2005-01-11 to 2005-01-11
    • * multiple options for #1
    • 1 shown on diagram
    $68.99
  • 1

    PIPE, SUCTION 1

    • Part No. T2185-38003
    • Compatibility Interchngable
    • Applied Dates 2005-03-14 and up
    • Serial No. E70100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $67.99
  • 2 O-ring

    O-ring

    • Part No. 04810-00320
    • 2 shown on diagram
    $1.39
  • 3 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 4

    FILTER ASS Y HYD.

    • Part No. T2185-38121
    • 1 shown on diagram
    $97.99
  • 5 Hydraulic Filter

    Hydraulic Filter

    • Part No. T2185-38031
    • 1 shown on diagram
    $37.99

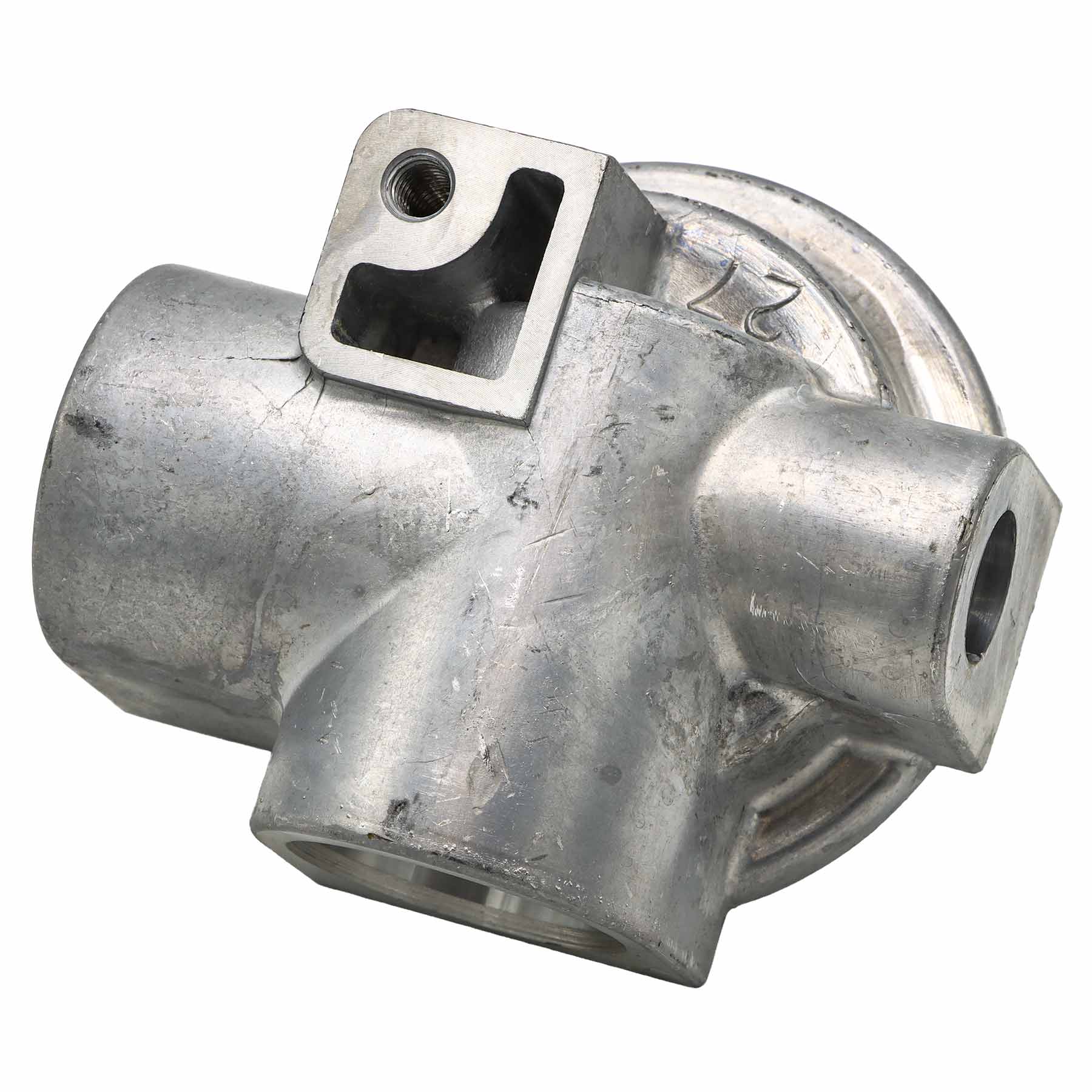

  • 6 HYD FILTER HOUSING FOR GEAR DRIVE MODELS

    HYD FILTER HOUSING FOR GEAR DRIVE MODELS

    • Part No. T2185-38041
    • 1 shown on diagram
    $124.99
  • 7

    SUPPORT, FILTER

    • Part No. T2185-38061
    • * multiple options for #7
    • 1 shown on diagram
    $18.99
  • 7

    SUPPORT, FILTER

    • Part No. T2185-38062
    • Compatibility New repl old
    • Applied Dates 2004-01-14 to 2004-04-28
    • Serial No. D70100001 and up
    • * multiple options for #7
    • 1 shown on diagram
    $32.99
  • 8

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 9

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 10

    HOSE 4, INLET v

    • Part No. T2185-38111
    • Applied Dates Up to 2004-03-22
    • * multiple options for #10
    • 1 shown on diagram
    $75.99
  • 10

    Suction Pipe 4

    • Part No. T2185-38112
    • Compatibility New repl old
    • Applied Dates 2004-03-23 to 2004-09-10
    • Serial No. D70100001 and up
    • * multiple options for #10
    • 1 shown on diagram
    $139.99
  • 10

    TUBE 4, SUCTION v

    • Part No. T2185-38113
    • Compatibility New repl old
    • Applied Dates 2004-09-11 to 2006-11-28
    • Serial No. E70100001 to G70100404
    • * multiple options for #10
    • 1 shown on diagram
    $144.99
  • 10

    PIPE, SUCTION-4 dnr v

    • Part No. T2198-38113
    • Compatibility New repl old
    • Applied Dates 2008-10-01 to 2008-10-30
    • * multiple options for #10
    • 1 shown on diagram
    $174.99
  • 11 O-ring

    O-ring

    • Part No. 04810-00320
    • 1 shown on diagram
    $1.39
  • 12 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 13 HOSE,RUBBER 28mm ID

    HOSE,RUBBER 28mm ID

    • Part No. T4125-38151
    • 1 shown on diagram
    $6.49
  • 14

    HOSE BAND v

    • Part No. 31355-3819-1
    • Stan40#
    • 2 shown on diagram
    $4.99
  • 15

    HOSE 3, INLET obs v

    • Part No. T2185-38071
    • * multiple options for #15
    • 1 shown on diagram
    $99.99
  • 15

    Inlet Tube 3

    • Part No. T2185-38072
    • Compatibility New repl old
    • Applied Dates 2005-01-11 and up
    • Serial No. E70100001 and up
    • * multiple options for #15
    • 1 shown on diagram
    $169.99
  • 15

    TUBE 3, INLET

    • Part No. T2185-38072BB
    • Compatibility Call for compat
    • * multiple options for #15
    • 1 shown on diagram
    $169.99
  • 16 O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    • Part No. 04810-00220
    • DIA21.8
    • 1 shown on diagram
    $1.19
  • 17

    Bolt With Washer, M8 P1.25 x 50mm

    • Part No. 01123-50850
    • M8XP1.25
    • 2 shown on diagram
    $2.99
