HYDRAULIC CYLINDER BODY GROUP - CK30M-T630-1A

Kioti TRACTOR | CK Series | CK25

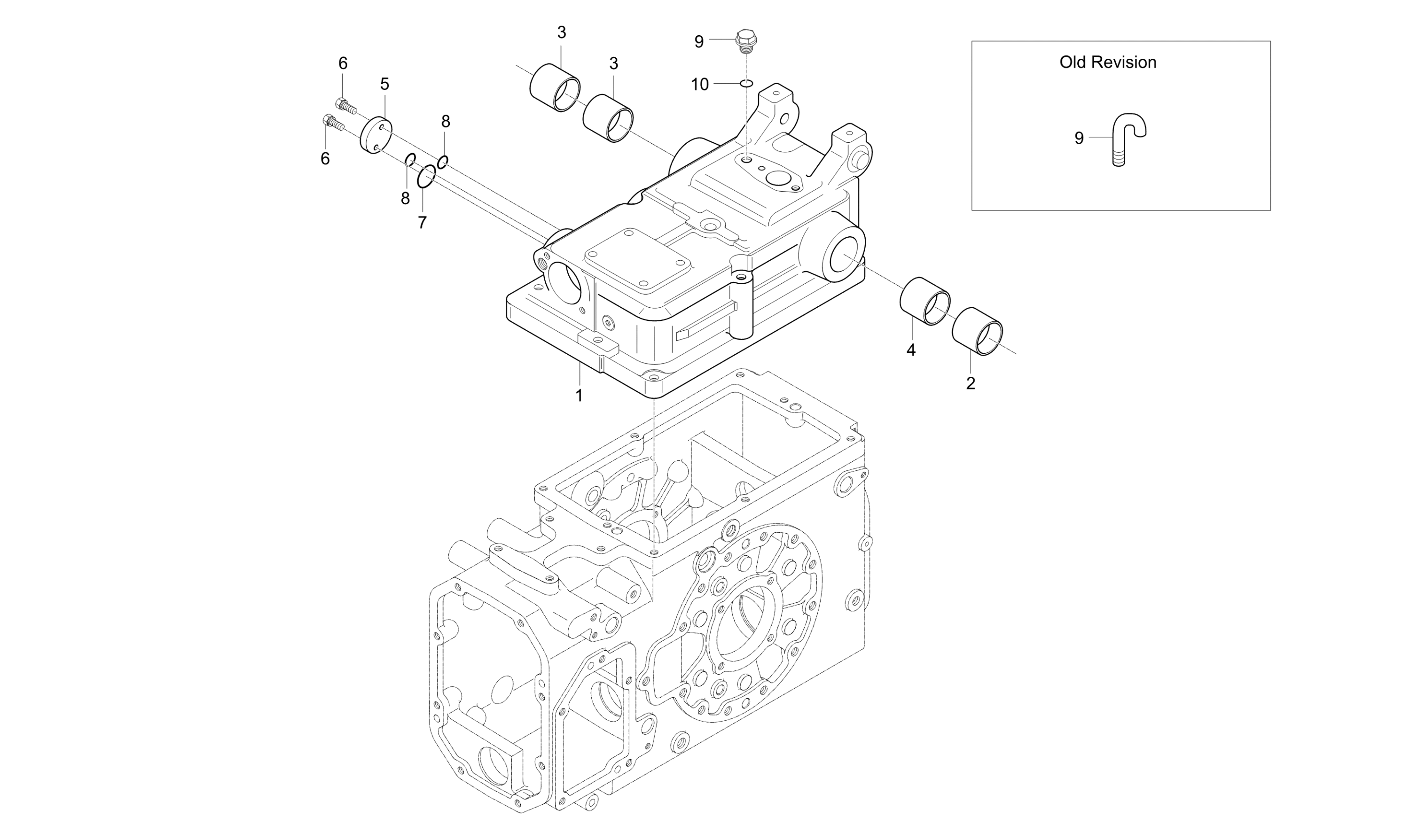

Diagram for HYDRAULIC CYLINDER BODY GROUP - CK30M-T630-1A
  • 1

    Power Lift Body

    • Part No. T2185-37113
    • Applied Dates Up to 2004-06-17
    • * multiple options for #1
    • 1 shown on diagram
    $1,234.99
  • 1

    BODY, POWER LIFT

    • Part No. T2185-37114
    • Compatibility New repl old
    • Applied Dates Up to 2004-12-31
    • Serial No. Up to E70100080
    • * multiple options for #1
    • 1 shown on diagram
    $1,234.99
  • 1

    BODY, POWER LIFT

    • Part No. T2185-37115
    • Compatibility No interchange
    • Applied Dates 2005-03-09 and up
    • Serial No. E70100081 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,234.99
  • 1

    Powerlift Body

    • Part No. T2185-37116
    • Compatibility New repl old
    • Applied Dates 2005-03-09 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,314.99
  • 2 BUSH

    BUSH

    • Part No. 08511-04530
    • Applied Dates 2005-03-09 and up
    • Inner Diameter 45XL30
    • 1 shown on diagram
    $31.99
  • 3 DU BUSH

    DU BUSH

    • Part No. 08511-05040
    • Applied Dates 2005-03-09 and up
    • Inner Diameter 50XL40
    • 2 shown on diagram
    $35.99
  • 4

    DU BUSH

    • Part No. 08511-04540
    • Applied Dates 2005-03-09 and up
    • Inner Diamter 45XL40
    • 1 shown on diagram
    $37.99
  • 5

    FLANGE dnr v

    • Part No. T2610-37471
    • Applied Dates 2005-03-09 and up
    • * multiple options for #5
    • 1 shown on diagram
    $57.99
  • 5

    PLATE, COVER dnr v

    • Part No. T2610-37473
    • Compatibility Interchngable
    • Applied Dates 2005-03-09 and up
    • * multiple options for #5
    • 1 shown on diagram
    $87.99
  • 6

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 7 O RING 04811-06250

    O RING 04811-06250

    • Part No. 04811-06250
    • 1 shown on diagram
    $1.19
  • 8

    O-RING, Replaced by 04816-00120

    • Part No. 04810-00120
    • DIA11.8
    • 2 shown on diagram
    $0.00
  • 9

    PLUG obs

    • Part No. 06311-55010
    • Applied Dates Up to 2003-12-31
    • * multiple options for #9
    • 1 shown on diagram
    $4.49
  • 9

    PLUG obs

    • Part No. 06311-55010
    • Compatibility Interchngable
    • Applied Dates Up to 2003-12-31
    • * multiple options for #9
    • 1 shown on diagram
    $4.49
  • 10 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • Applied Dates Up to 2012-12-31
    • M10
    • * multiple options for #10
    • 1 shown on diagram
    $1.99
  • 10 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • Compatibility Interchngable
    • Applied Dates Up to 2012-12-31
    • M10
    • * multiple options for #10
    • 1 shown on diagram
    $1.99
