HYDRULIC SYSTEM 1 GROUP - CK30M-T650A

Kioti TRACTOR | CK Series | CK25

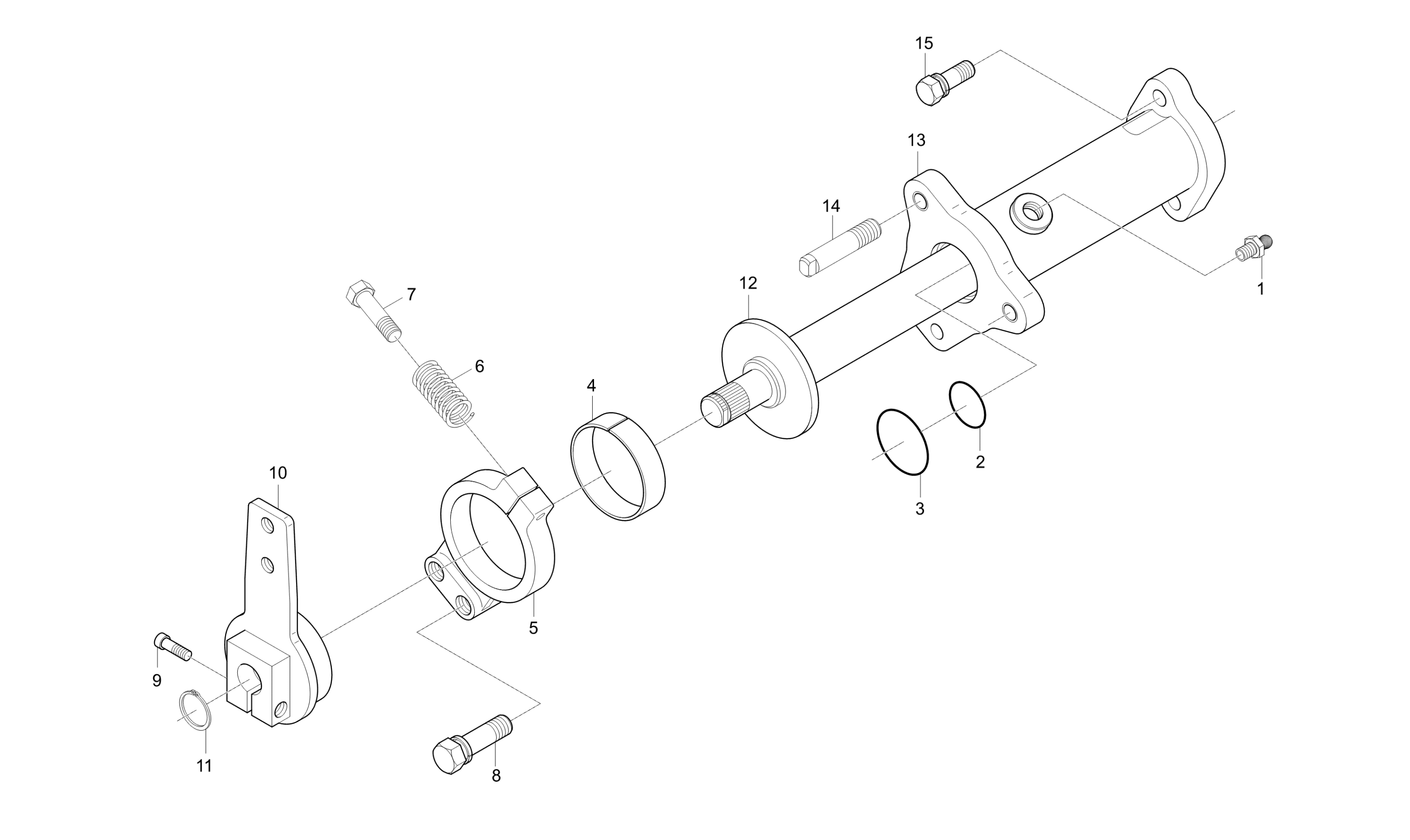

Diagram for HYDRULIC SYSTEM 1 GROUP - CK30M-T650A
  • 1 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • PT1/8
    • 1 shown on diagram
    $3.49
  • 2 O RING

    O RING

    • Part No. 04811-00210
    • DIA20.8
    • 1 shown on diagram
    $4.49
  • 3 O RING

    O RING

    • Part No. 04811-00250
    • DIA24.7
    • 1 shown on diagram
    $1.49
  • 4

    CLUTCH, HYD LEVER

    • Part No. T2610-39202
    • 1 shown on diagram
    $7.99
  • 5

    HUB 2,CLUTCH

    • Part No. T2610-39222
    • 1 shown on diagram
    $15.99
  • 6

    SPRING

    • Part No. T2610-39233
    • DIA2.3
    • 1 shown on diagram
    $5.99
  • 7

    Bolt, M6 P1.0x40 Hex Head Cap Screw

    • Part No. 01053-50640
    • M6XP1.0
    • 1 shown on diagram
    $1.49
  • 8 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8P1.25*30
    • 2 shown on diagram
    $2.49
  • 9

    BOLT

    • Part No. T2610-39252
    • M8*1.25
    • 1 shown on diagram
    $4.99
  • 10

    LEVER,CONTROL

    • Part No. T2610-39261
    • 1 shown on diagram
    $66.99
  • 11 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • DIA16
    • 1 shown on diagram
    $0.85
  • 12

    SHAFT

    • Part No. T2165-39271
    • 1 shown on diagram
    $67.99
  • 13

    SUPPORT HYD. LEVER

    • Part No. T2165-39301
    • Applied Dates Up to 2008-04-14
    • 1 shown on diagram
    $85.99
  • 14

    STOPPER

    • Part No. T2165-39281
    • 2 shown on diagram
    $6.49
  • 15 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • Applied Dates 2005-03-14 and up
    • M8XP1.25
    • 2 shown on diagram
    $1.99
