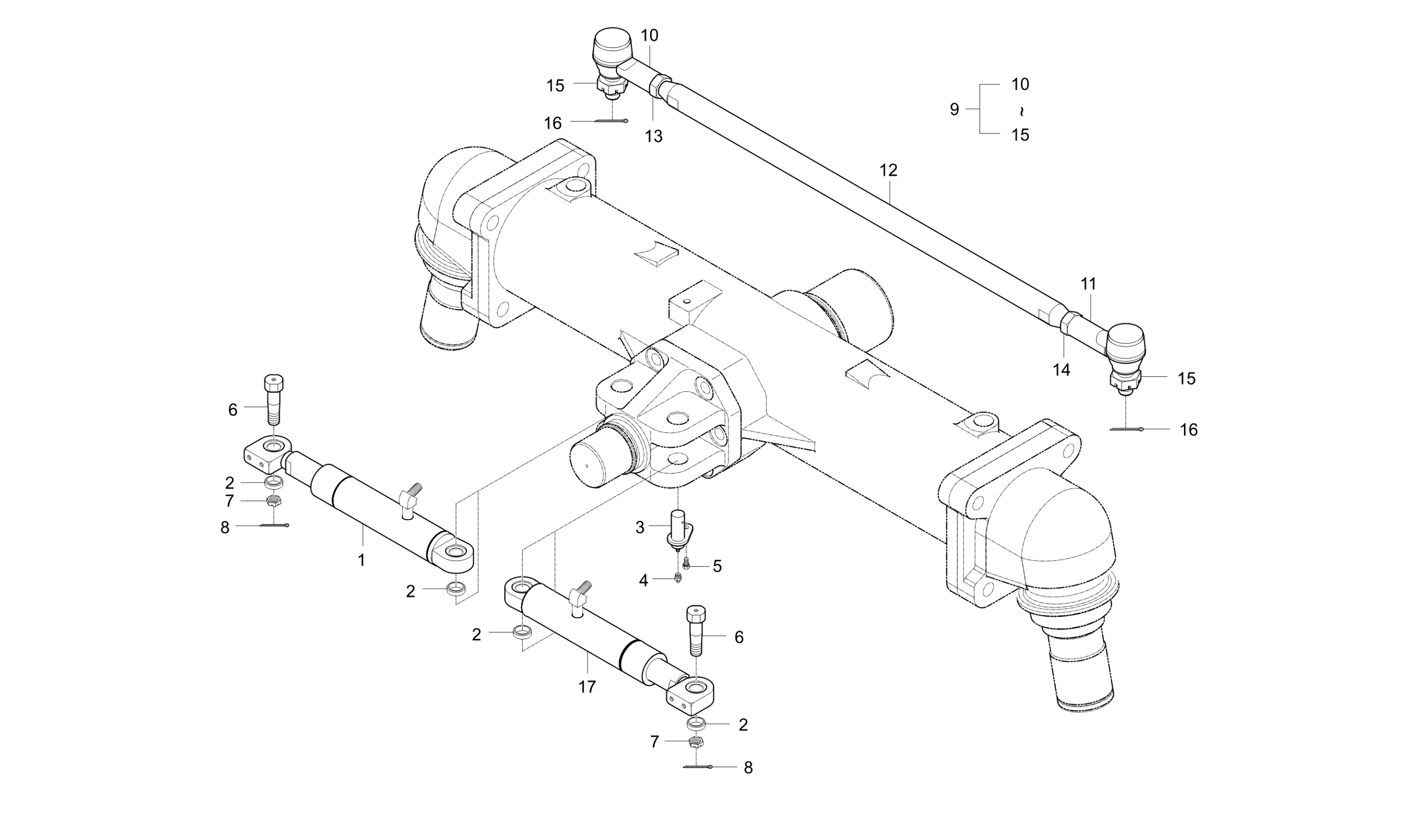

STEERING CYLINDER GROUP - CK30M-T585B

Kioti TRACTOR | CK Series | CK25

1
ASSY,STEERING CYLINDER(R) v
- Part No. T2185-32301
- 1 shown on diagram
$719.99

ASSY,STEERING CYLINDER(R) v quantity
2
SPACER
- Part No. T4625-31151
- 4 shown on diagram
$8.99

SPACER quantity
3
PIN,CYLINDER SUPPORT
- Part No. T4625-31361
- 2 shown on diagram
$48.99

PIN,CYLINDER SUPPORT quantity
4
Grease Zerk, Brass 1/8″ BSPT
- Part No. 06613-10010
- PT1/8
- 1 shown on diagram
$3.49

Grease Zerk, Brass 1/8" BSPT quantity
5
Bolt With Washer, M8 P1.25 x 16mm 01123-50816
- Part No. 01123-50816
- M8XP1.25
- 2 shown on diagram
$1.09

Bolt With Washer, M8 P1.25 x 16mm 01123-50816 quantity
6
PIN,STAY v
- Part No. T2620-31183
- 2 shown on diagram
$38.99

PIN,STAY v quantity
7
Nut, Castle M18 P1.50
- Part No. T2610-31311
- 2 shown on diagram
$4.49

Nut, Castle M18 P1.50 quantity
8
PIN, SPLIT
- Part No. 05511-50335
- DIA3*35
- 2 shown on diagram
$0.68

PIN, SPLIT quantity
9
TIE ROD ASSY V, Replaced by T2185-31132BB
- Part No. T2185-31132
- 1 shown on diagram
$0.00

TIE ROD ASSY V, Replaced by T2185-31132BB quantity
10
ASS Y END, TIE ROD RH
- Part No. T2240-12602
- 1 shown on diagram
$76.99

ASS Y END, TIE ROD RH quantity
11
Tie Rod End Ass’y Lh V
- Part No. T2240-12702
- 1 shown on diagram
$78.99

Tie Rod End Ass'y Lh V quantity
12
TIE ROD V
- Part No. T2185-31142
- Ø30 × t9.0
- 1 shown on diagram
$149.99

TIE ROD V quantity
13
NUT, M16 P1.50
- Part No. 02174-50160
- M16XP1.5
- 1 shown on diagram
$1.49

NUT, M16 P1.50 quantity
14
NUT, M16 P1.50 LH Thread
- Part No. 37650-1128-1
- M16*1.5 (Left Thread)
- 1 shown on diagram
$12.99

NUT, M16 P1.50 LH Thread quantity
15
NUT
- Part No. 34150-1283-1
- 1 shown on diagram
$6.99

NUT quantity
16
Split Pin (05511-50325)
- Part No. 05511-50325
- 2 shown on diagram
$0.68

Split Pin (05511-50325) quantity
17
Steering Cylinder
- Part No. T2185-32201
- 1 shown on diagram
$639.99

Steering Cylinder quantity

STEERING CYLINDER GROUP - CK30M-T585B

Kioti TRACTOR | CK Series | CK25
