HYDRAULIC CYLINDER GROUP - CK30M-T620-1A

Kioti TRACTOR | CK Series | CK25

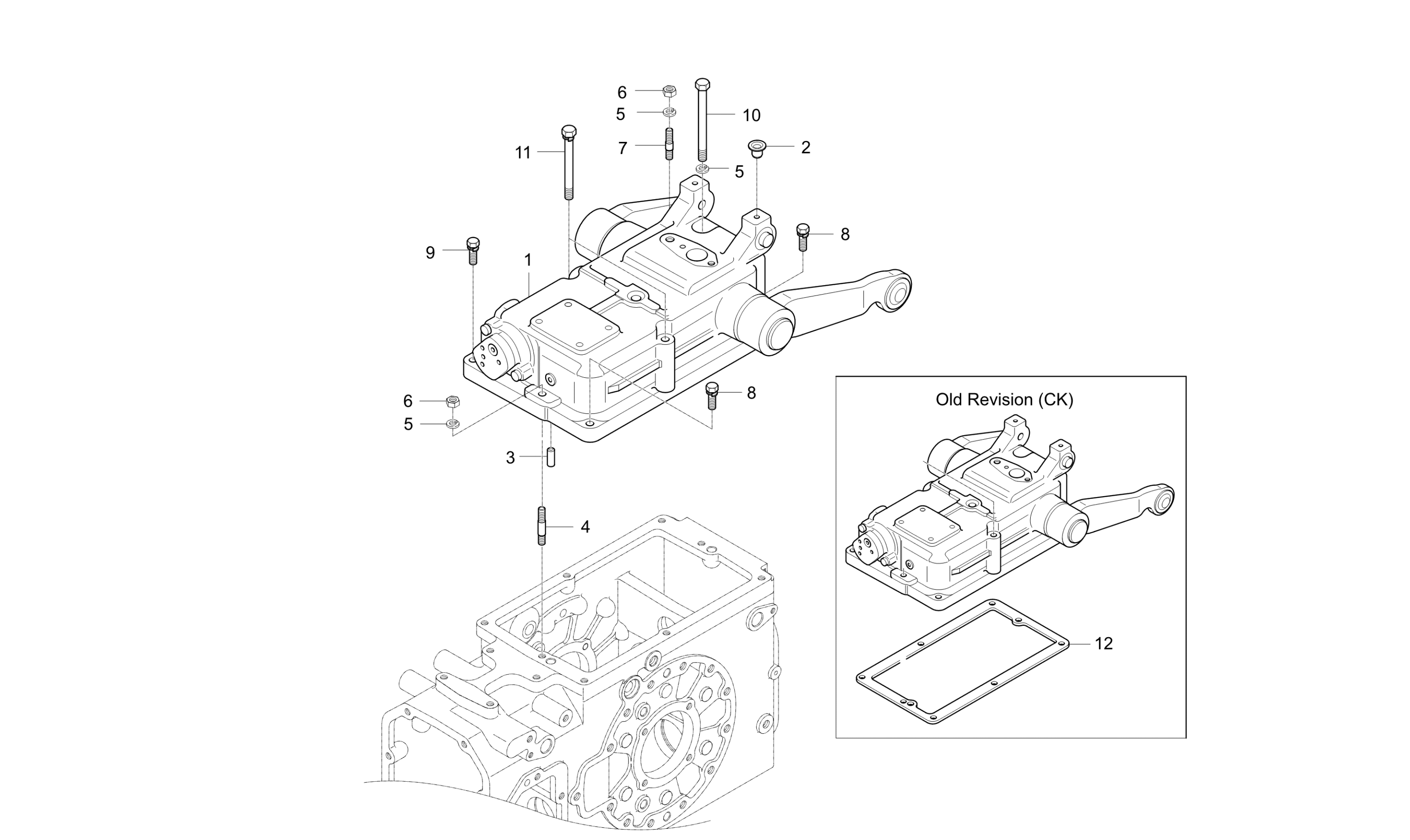

Diagram for HYDRAULIC CYLINDER GROUP - CK30M-T620-1A
  • 1

    ASSY,HYD CYLINDER v

    • Part No. T2165-31101
    • Applied Dates Up to 2007-01-31
    • * multiple options for #1
    • 1 shown on diagram
    $2,199.99
  • 1

    Hydraulic Cylinder

    • Part No. T2165-31102
    • Compatibility Interchngable
    • Applied Dates 2007-08-09 to 2008-03-10
    • * multiple options for #1
    • 1 shown on diagram
    $1,924.99
  • 2

    PLUG

    • Part No. 34150-2758-1
    • Applied Dates 2004-11-12 and up
    • 2 shown on diagram
    $2.49
  • 3 PIN, DOWEL

    PIN, DOWEL

    • Part No. 37805-4350-1
    • 1 shown on diagram
    $5.99
  • 4

    STUD

    • Part No. 01517-51050
    • M10XP1.25
    • 1 shown on diagram
    $6.99
  • 5 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 3 shown on diagram
    $0.79
  • 6 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 7

    STUD

    • Part No. 01517-51035
    • Applied Dates 2003-12-30 and up
    • M10XP1.25
    • 1 shown on diagram
    $5.99
  • 8

    BOLT

    • Part No. 01133-51038
    • Applied Dates 2003-12-30 and up
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 9 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 1 shown on diagram
    $2.99

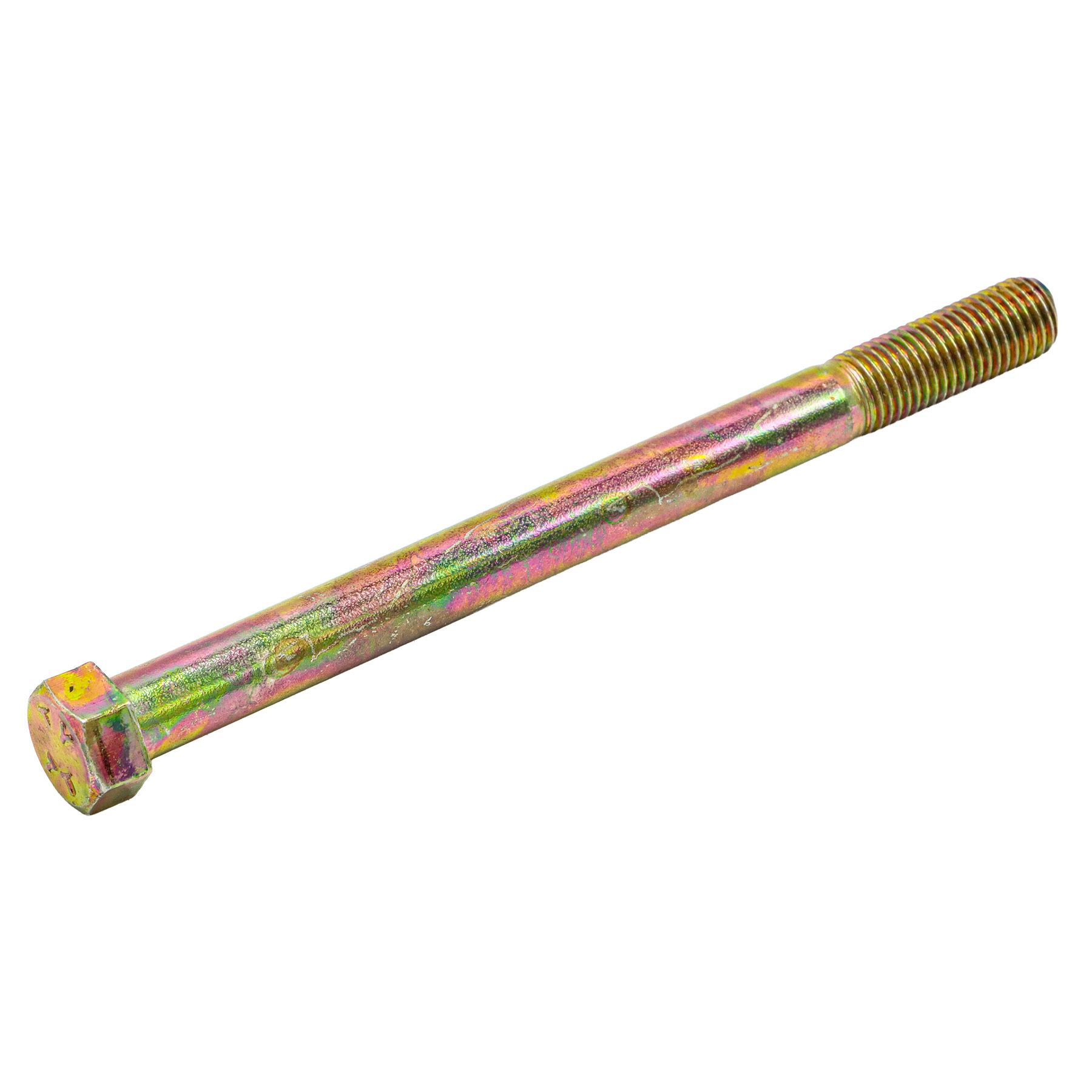

  • 10 BOLT

    BOLT

    • Part No. T2305-14151
    • HEX14
    • 1 shown on diagram
    $5.99
  • 11

    OB-BOLT

    • Part No. 01133-51003
    • 2 shown on diagram
    $6.49
  • 12

    PACKING

    • Part No. T4620-37121
    • Applied Dates Up to 2004-12-31
    • 1 shown on diagram
    $18.99
