DOUBLE ACTING VALVE GROUP - CK30M-T765-2A

Kioti TRACTOR | CK Series | CK25

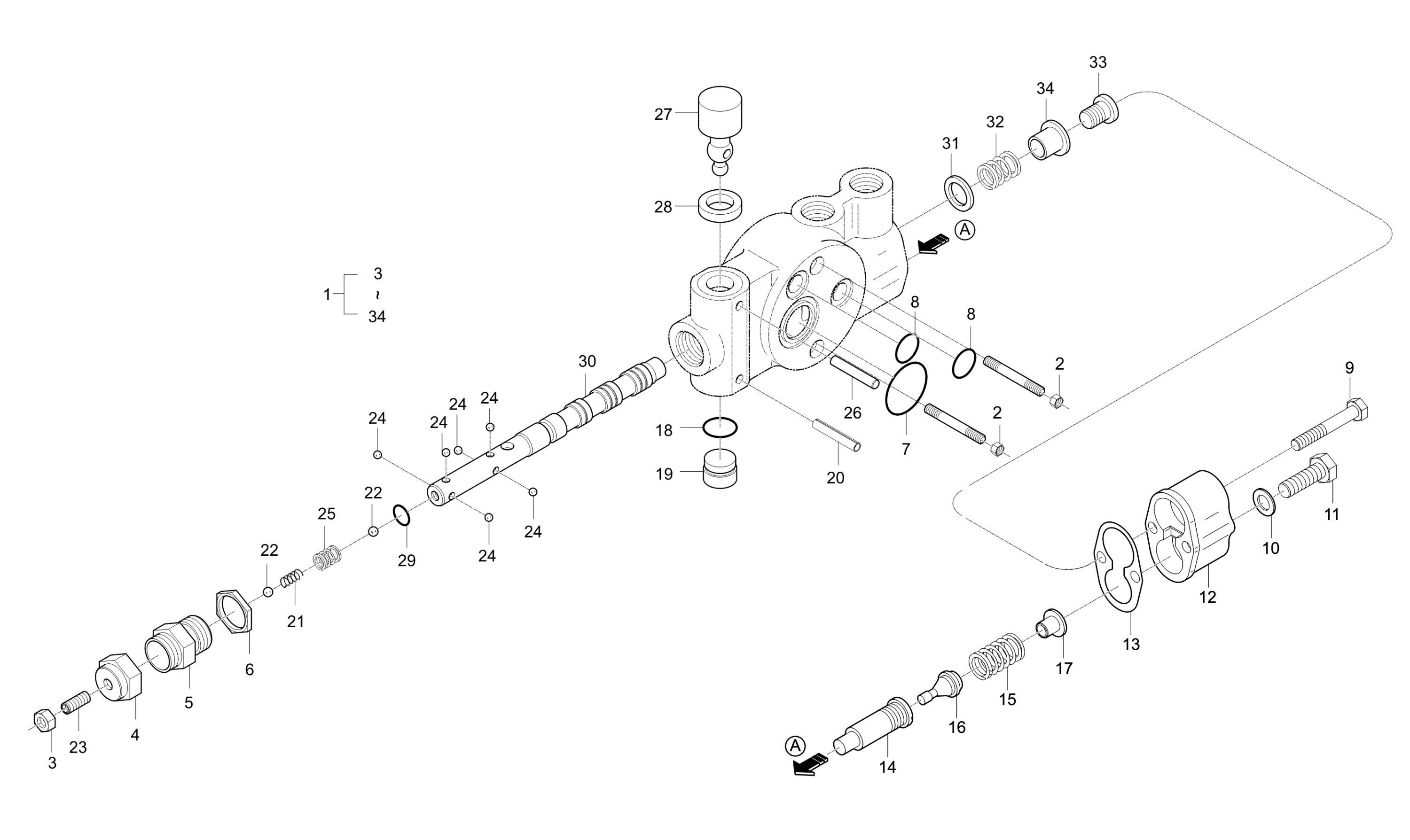

Diagram for DOUBLE ACTING VALVE GROUP - CK30M-T765-2A

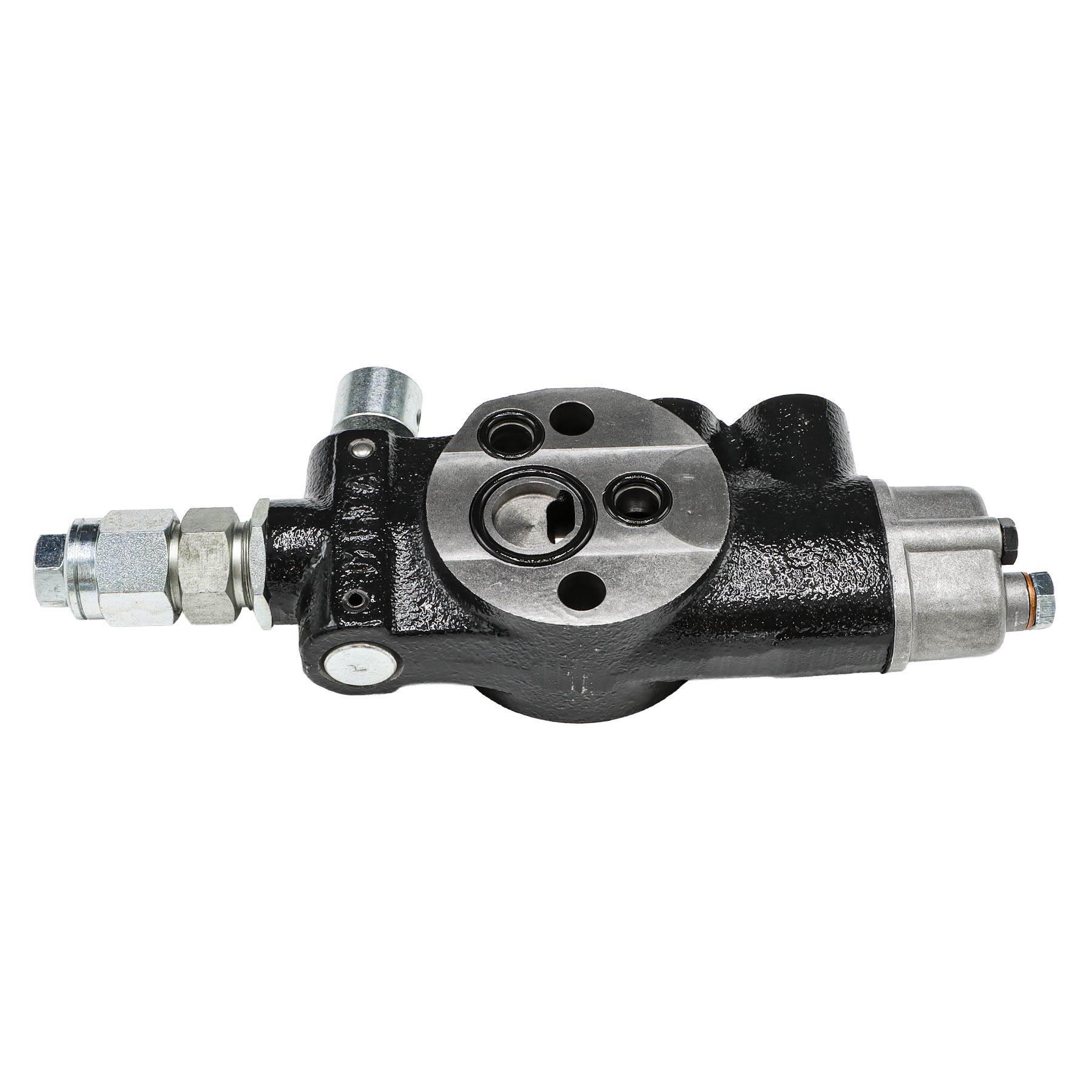

  • 1 VALVE, FLOATING

    VALVE, FLOATING

    • Part No. 008266
    • MITA
    • 1 shown on diagram
    $1,074.99
  • 2

    NUT, REMOVE CHECK V

    • Part No. 41182-5151-1
    • DIA10
    • 2 shown on diagram
    $1.49
  • 3

    NUT

    • Part No. 310006000
    • 1 shown on diagram
    $1.19
  • 4

    PLUG

    • Part No. 440152000
    • 1 shown on diagram
    $56.99
  • 5

    COVER obs v

    • Part No. 200016090
    • 1 shown on diagram
    $14.99
  • 6

    NUT v

    • Part No. 310021000
    • 1 shown on diagram
    $22.99
  • 7

    O-RING v

    • Part No. 360037000
    • 1 shown on diagram
    $1.59
  • 8

    O-RING v

    • Part No. 360013000
    • 2 shown on diagram
    $0.65
  • 9

    SCREW

    • Part No. 300091000
    • 2 shown on diagram
    $1.29
  • 10

    SEAL WASHER

    • Part No. 320048000
    • 1 shown on diagram
    $0.76
  • 11

    SCREW

    • Part No. 300070000
    • 1 shown on diagram
    $1.09
  • 12

    COVER

    • Part No. 200002090
    • 1 shown on diagram
    $69.99
  • 13

    GASKET

    • Part No. 360047000
    • 1 shown on diagram
    $2.49
  • 14

    VALVE SEAT

    • Part No. 200007180
    • 1 shown on diagram
    $64.99
  • 15

    SPRING

    • Part No. 350027000
    • 1 shown on diagram
    $2.99
  • 16

    VALVE

    • Part No. 200002050
    • 1 shown on diagram
    $26.99
  • 17

    VALVE SEAT

    • Part No. 200004020
    • 1 shown on diagram
    $27.99
  • 18

    O-RING v

    • Part No. 360011000
    • 1 shown on diagram
    $2.49
  • 19

    PLUG

    • Part No. 440031000
    • 1 shown on diagram
    $9.99
  • 20

    PIN

    • Part No. 380015000
    • 1 shown on diagram
    $1.19
  • 21

    SPRING

    • Part No. 350062000
    • 1 shown on diagram
    $9.49
  • 22

    BALL

    • Part No. 450007000
    • 2 shown on diagram
    $0.79
  • 23

    SCREW

    • Part No. 300017000
    • 1 shown on diagram
    $1.99
  • 24

    BALL

    • Part No. 450006000
    • 6 shown on diagram
    $0.73
  • 25

    SPRING

    • Part No. 350001000
    • 1 shown on diagram
    $3.99
  • 26

    PIN

    • Part No. 460006000
    • 1 shown on diagram
    $2.99
  • 27

    ARTICULATION

    • Part No. 200027100
    • 1 shown on diagram
    $49.99
  • 28

    GASKET

    • Part No. 360049000
    • 1 shown on diagram
    $23.99
  • 29

    O-RING

    • Part No. 360046000
    • 1 shown on diagram
    $0.79
  • 30

    SPOOL, CONTROL v

    • Part No. 200004060
    • 1 shown on diagram
    $0.00
  • 31

    PIN

    • Part No. 320047000
    • 1 shown on diagram
    $4.99
  • 32

    SPRING

    • Part No. 350024000
    • 1 shown on diagram
    $3.49
  • 33

    SCREW

    • Part No. 300090000
    • 1 shown on diagram
    $4.99
  • 34

    SPACER

    • Part No. 400049000
    • 1 shown on diagram
    $5.49
