MAIN DISTRIBUTOR VALVE GROUP - CK30M-T680A

Kioti TRACTOR | CK Series | CK25

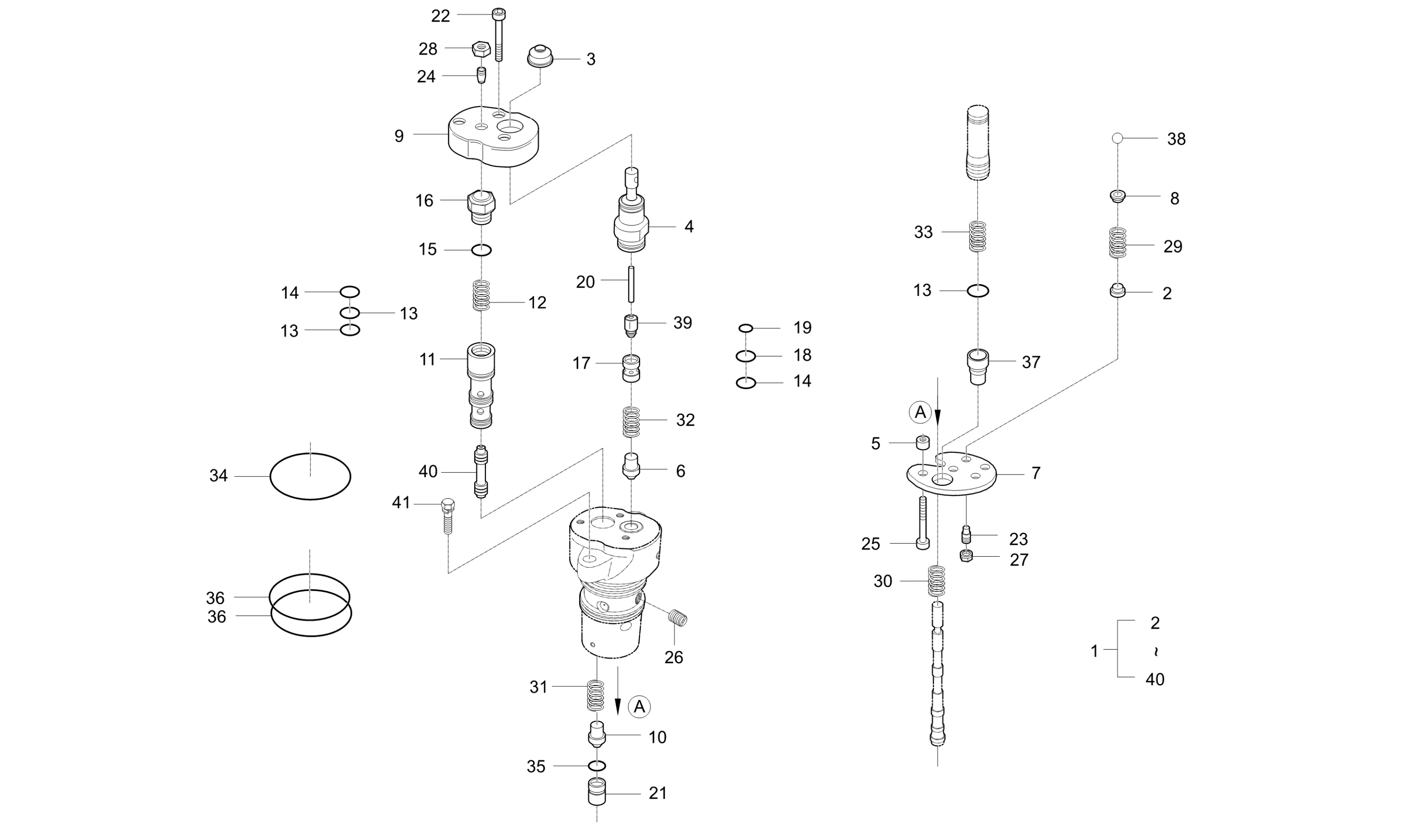

Diagram for MAIN DISTRIBUTOR VALVE GROUP - CK30M-T680A
  • 1

    MLS V/V (MORE STEPS) v

    • Part No. 110053004
    • Applied Dates Up to 2007-10-29
    • MITA
    • * multiple options for #1
    • 1 shown on diagram
    $909.99
  • 1 MLS V/V (MORE STEPS)

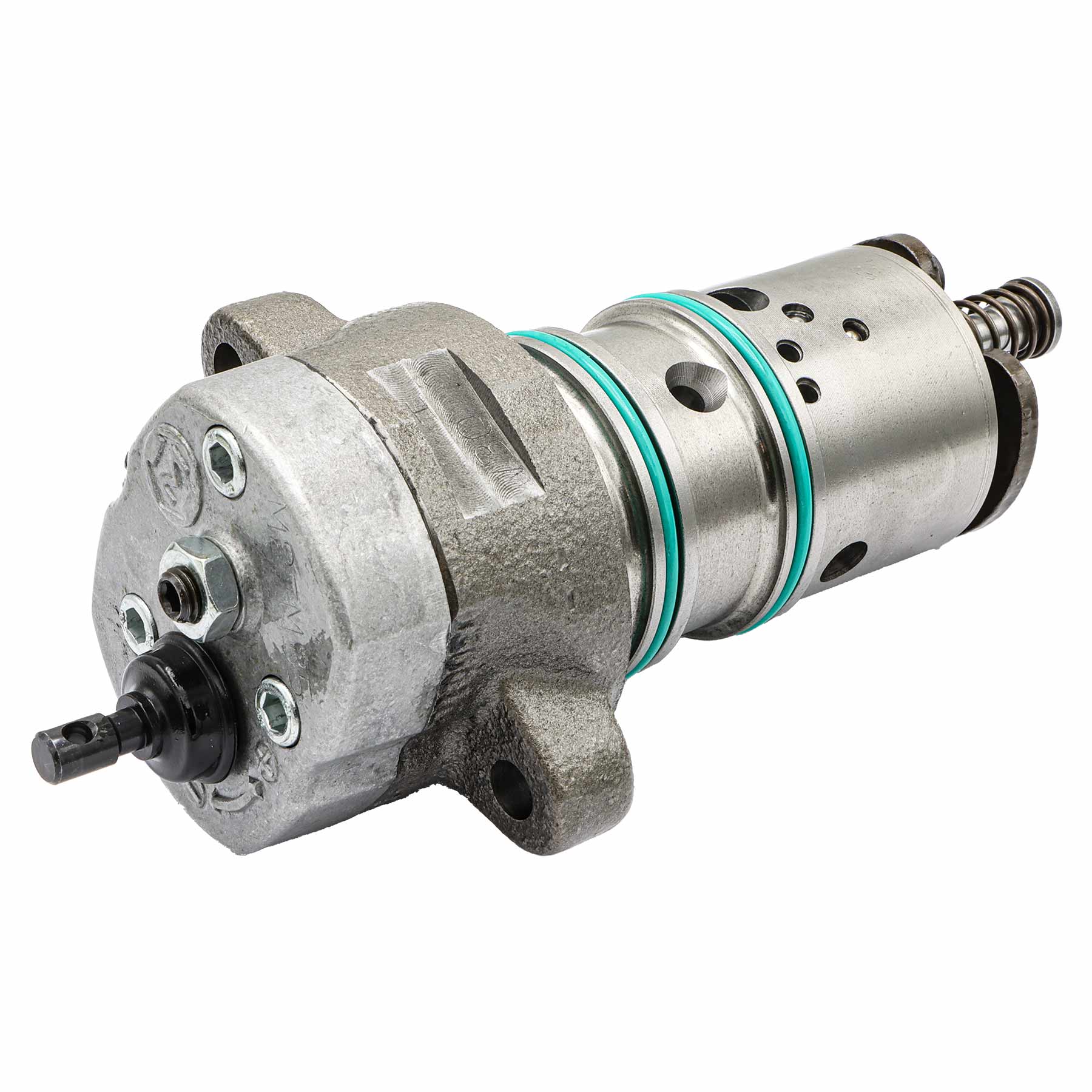

    MLS V/V (MORE STEPS)

    • Part No. 110083004
    • Compatibility New repl old
    • Applied Dates 2007-10-30 and up
    • Serial No. H70100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,314.99
  • 2

    SPACER obs v

    • Part No. 10001080
    • 1 shown on diagram
    $0.00
  • 3

    RUBBER GUADE

    • Part No. 110001110
    • 1 shown on diagram
    $5.99
  • 4

    ASSY,LEVER KIT

    • Part No. 110009032
    • 1 shown on diagram
    $144.99
  • 5

    SPACER

    • Part No. 110001160
    • 3 shown on diagram
    $1.99
  • 6

    VALVE

    • Part No. 110003040
    • 1 shown on diagram
    $59.99
  • 7

    PLATE

    • Part No. 110003150
    • 1 shown on diagram
    $28.99
  • 8

    SPACER

    • Part No. 110004080
    • 1 shown on diagram
    $7.99
  • 9

    COVER

    • Part No. 110004090
    • 1 shown on diagram
    $99.99
  • 10

    VALVE

    • Part No. 110005040
    • 1 shown on diagram
    $79.99
  • 11

    VALVE

    • Part No. 110006032
    • 1 shown on diagram
    $574.99
  • 12

    SPRING

    • Part No. 350044000
    • 1 shown on diagram
    $6.49
  • 13

    O-RING v

    • Part No. 360011000
    • 3 shown on diagram
    $2.49
  • 14

    O-RING

    • Part No. 360054000
    • 2 shown on diagram
    $3.49
  • 15

    O-RING

    • Part No. 360076000
    • 1 shown on diagram
    $2.49
  • 16

    PLUG

    • Part No. 440144000
    • 1 shown on diagram
    $21.99
  • 17

    VALVE SEAT

    • Part No. 110011020
    • 1 shown on diagram
    $184.99
  • 18

    O-RING

    • Part No. 360009000
    • 1 shown on diagram
    $9.49
  • 19

    O-RING

    • Part No. 360010000
    • 1 shown on diagram
    $4.99
  • 20

    PIN

    • Part No. 460002000
    • 1 shown on diagram
    $2.49
  • 21

    VALVE SEAT

    • Part No. 110012020
    • 1 shown on diagram
    $59.99
  • 22

    ADJUST SCREW

    • Part No. 300002000
    • 1 shown on diagram
    $1.99
  • 23

    ADJUST SCREW

    • Part No. 300004000
    • 1 shown on diagram
    $3.49
  • 24

    SCREW

    • Part No. 300093000
    • 1 shown on diagram
    $3.49
  • 25

    ADJUST SCREW

    • Part No. 300129000
    • 3 shown on diagram
    $2.99
  • 26

    SCREW

    • Part No. 300180000
    • 1 shown on diagram
    $9.99
  • 27

    NUT

    • Part No. 310001000
    • 1 shown on diagram
    $0.65
  • 28

    NUT ( USE 02114-50080 ) dnr v

    • Part No. 310003000
    • 1 shown on diagram
    $0.71
  • 29

    SPRING

    • Part No. 350005000
    • 1 shown on diagram
    $6.99
  • 30

    SPRING

    • Part No. 350011000
    • 1 shown on diagram
    $16.99
  • 31

    SPRING

    • Part No. 350027000
    • 1 shown on diagram
    $2.99
  • 32

    SPRING

    • Part No. 350043000
    • 1 shown on diagram
    $5.99
  • 33

    SPRING

    • Part No. 350046000
    • 1 shown on diagram
    $12.99
  • 34

    SEAL v

    • Part No. 360003000
    • Applied Dates Up to 2007-10-29
    • * multiple options for #34
    • 1 shown on diagram
    $9.99
  • 34 O-RING v

    O-RING v

    • Part No. 360156000
    • Compatibility New repl old
    • Applied Dates 2007-10-30 and up
    • * multiple options for #34
    • 1 shown on diagram
    $29.99
  • 35

    O-RING

    • Part No. 360073000
    • 1 shown on diagram
    $2.99
  • 36

    O-RING v

    • Part No. 360077000
    • Applied Dates Up to 2007-10-29
    • * multiple options for #36
    • 2 shown on diagram
    $11.99
  • 36 O RING

    O RING

    • Part No. 360157000
    • Compatibility New repl old
    • Applied Dates 2007-10-30 and up
    • * multiple options for #36
    • 2 shown on diagram
    $28.99
  • 37

    PLUG

    • Part No. 440008000
    • 1 shown on diagram
    $41.99
  • 38

    BALL

    • Part No. 450005000
    • 1 shown on diagram
    $1.09
  • 39

    VALVE v

    • Part No. 110004040
    • 1 shown on diagram
    $139.99
  • 40

    PILOT SPOOL

    • Part No. 110002062
    • 1 shown on diagram
    $99.99
  • 41 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 2 shown on diagram
    $2.49
