JOYSTICK VALVE GROUP - CK30M-T750A

Kioti TRACTOR | CK Series | CK25

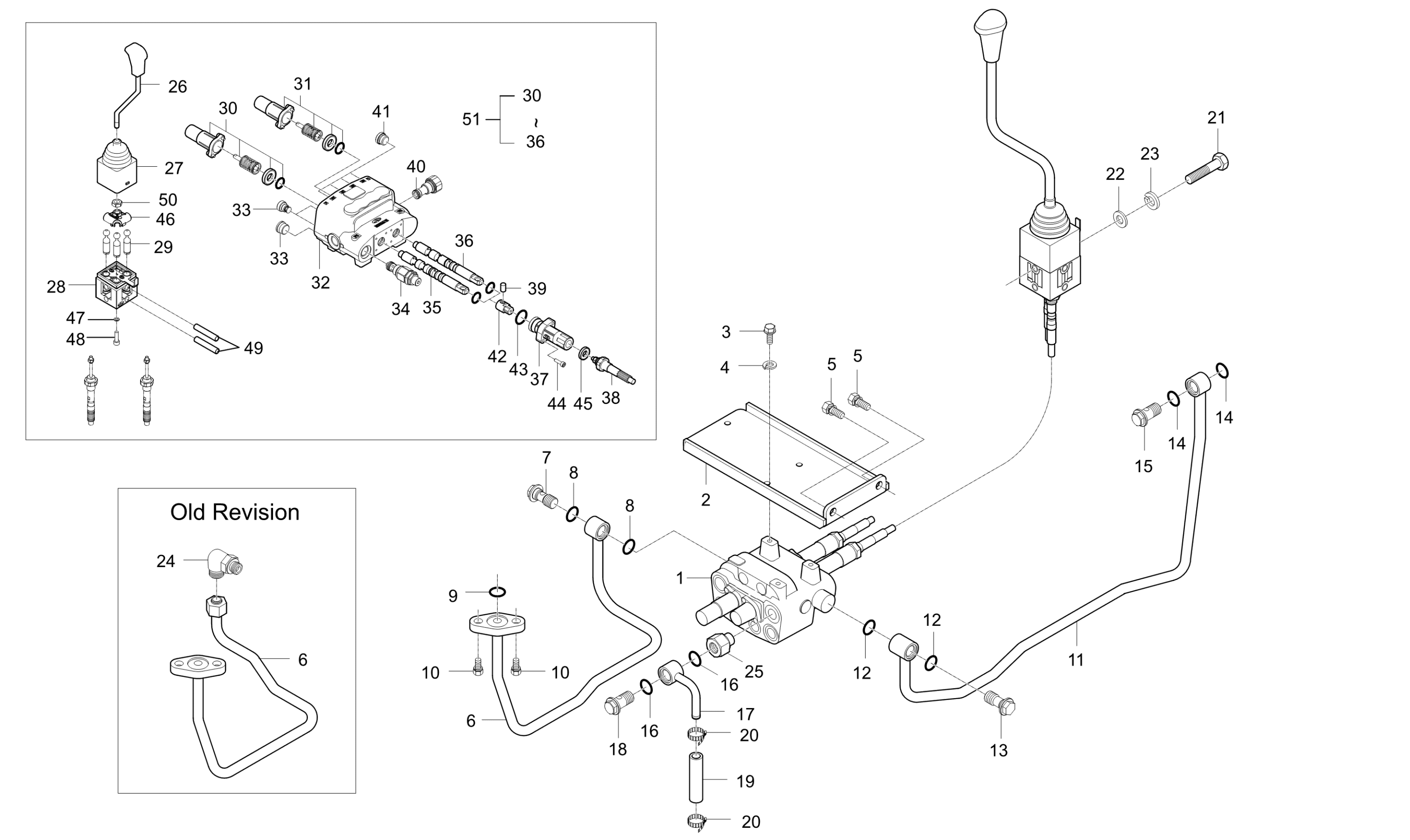

Diagram for JOYSTICK VALVE GROUP - CK30M-T750A
  • 1

    Joystick Valve, Replaced by T2155-90201

    • Part No. T2185-90111
    • Applied Dates Up to 2006-11-05
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    Joystick Valve Assembly, Replaced by T2155-90201

    • Part No. T2185-90112
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • Serial No. G70100405 to G70100484
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    Joystick Valve, Replaced by T2155-90201

    • Part No. T2195-90111
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 to 2008-10-26
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 2

    STAY, JOYSTICK VALVE dnr v

    • Part No. T2185-90211
    • Applied Dates Up to 2008-05-22
    • * multiple options for #2
    • 1 shown on diagram
    $67.99
  • 2

    SUPPORT, JOYSTICK VALVE M v

    • Part No. T2185-90211BB
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $66.99
  • 3

    Bolt, Replaced by T2350-90331

    • Part No. T2350-90311
    • * multiple options for #3
    • 3 shown on diagram
    $2.49
  • 3

    Bolt, Valve Lock, 5/16-18 UNC

    • Part No. T2350-90331
    • Compatibility Interchngable
    • Applied Dates 2010-07-16 and up
    • 5/16-18 UNC
    • * multiple options for #3
    • 3 shown on diagram
    $1.49
  • 4 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 3 shown on diagram
    $0.61
  • 5 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • Applied Dates 2004-02-14 to 2005-01-10
    • Serial No. D70100001 and up
    • M12XP1.25
    • * multiple options for #5
    • 2 shown on diagram
    $3.49
  • 5 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51220
    • Compatibility New repl old
    • Applied Dates 2005-01-11 and up
    • Serial No. E70100001 and up
    • M12*P1.25
    • * multiple options for #5
    • 2 shown on diagram
    $2.99
  • 6

    TUBE J1, HYD v

    • Part No. T2185-90251
    • Applied Dates Up to 2004-09-10
    • * multiple options for #6
    • 1 shown on diagram
    $134.99
  • 6

    TUBE J1-HYD

    • Part No. T2185-90252
    • Compatibility New repl old
    • Applied Dates 2004-09-11 to 2004-12-15
    • * multiple options for #6
    • 1 shown on diagram
    $83.99
  • 6

    TUBE J1, HYD. V

    • Part No. T2185-90253
    • Compatibility New repl old
    • Applied Dates 2004-12-16 to 2006-11-28
    • Serial No. E70100001 to G70100404
    • * multiple options for #6
    • 1 shown on diagram
    $129.99
  • 6

    TUBE J1- HYD v, Replaced by T2198-90252BB

    • Part No. T2198-90251
    • Compatibility No interchange
    • Applied Dates 2006-11-29 and up
    • Serial No. G70100405 to G70100484
    • * multiple options for #6
    • 1 shown on diagram
    $0.00
  • 6

    TUBE J1, HYD v, Replaced by T2198-90252BB

    • Part No. T2198-90251BB
    • Compatibility No interchange
    • * multiple options for #6
    • 1 shown on diagram
    $0.00
  • 6

    TUBE J1, HYDRAULIC v, Replaced by T2198-90252BB

    • Part No. T2198-90252
    • Compatibility Interchngable
    • * multiple options for #6
    • 1 shown on diagram
    $0.00
  • 7 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • Applied Dates 2006-11-29 and up
    • 1 shown on diagram
    $21.99
  • 8 O RING

    O RING

    • Part No. 04810-00200
    • Applied Dates 2006-11-29 and up
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 9 O RING

    O RING

    • Part No. 04810-00180
    • 1 shown on diagram
    $1.09
  • 10 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates Up to 2008-04-22
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 11

    TUBE J2,HYD. dnr v

    • Part No. T2185-90261
    • Applied Dates Up to 2004-01-11
    • * multiple options for #11
    • 1 shown on diagram
    $77.99
  • 11

    TUBE J2, HYD dnr v

    • Part No. T2185-90262
    • Compatibility New repl old
    • Applied Dates 2004-01-12 to 2004-09-10
    • Serial No. D70100001 and up
    • * multiple options for #11
    • 1 shown on diagram
    $109.99
  • 11

    Hydraulic Tube J2, Replaced by T2185-90264BB

    • Part No. T2185-90263
    • Compatibility New repl old
    • Applied Dates 2004-09-11 to 2004-12-15
    • * multiple options for #11
    • 1 shown on diagram
    $79.99
  • 11

    TUBE J2, HYD v

    • Part No. T2185-90264
    • Compatibility New repl old
    • Applied Dates 2004-12-16 and up
    • Serial No. E70100001 and up
    • * multiple options for #11
    • 1 shown on diagram
    $85.99
  • 11

    TUBE J2, HYD v

    • Part No. T2185-90264BB
    • Compatibility Interchngable
    • * multiple options for #11
    • 1 shown on diagram
    $139.99
  • 12 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 13 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 1 shown on diagram
    $21.99
  • 14 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 15 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 1 shown on diagram
    $21.99
  • 16 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 17

    RETURN PIPE J

    • Part No. T2185-90221
    • Applied Dates Up to 2004-01-11
    • * multiple options for #17
    • 1 shown on diagram
    $29.99
  • 17

    TUBE RETURN J v

    • Part No. T2185-90222
    • Compatibility New repl old
    • Applied Dates 2004-01-12 to 2008-10-30
    • Serial No. D70100001 and up
    • * multiple options for #17
    • 1 shown on diagram
    $52.99
  • 17

    TUBE J, RETURN

    • Part No. T2185-90222BB
    • Compatibility No interchange
    • * multiple options for #17
    • 1 shown on diagram
    $54.99
  • 18 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4520-90042
    • 1 shown on diagram
    $26.99
  • 19

    HOSE 1, RETURN v

    • Part No. T2185-38401
    • Applied Dates Up to 2004-04-18
    • * multiple options for #19
    • 1 shown on diagram
    $9.99
  • 19

    RETURN HOSE 1

    • Part No. T2185-38402
    • Compatibility Interchngable
    • Applied Dates 2004-04-20 to 2007-03-27
    • * multiple options for #19
    • 1 shown on diagram
    $5.99
  • 19

    RETURN HOSE 1

    • Part No. T2185-38403
    • Compatibility Interchngable
    • Applied Dates 2007-03-28 to 2007-09-28
    • Serial No. G70100181 to G70100404
    • * multiple options for #19
    • 1 shown on diagram
    $7.49
  • 19

    RETURN HOSE 1

    • Part No. T2185-38404
    • Compatibility Interchngable
    • Applied Dates 2007-09-29 and up
    • * multiple options for #19
    • 1 shown on diagram
    $9.99
  • 20

    BAND, HOSE v

    • Part No. 52200-2523-1
    • Applied Dates Up to 2007-03-27
    • * multiple options for #20
    • 2 shown on diagram
    $4.99
  • 20

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • Compatibility Interchngable
    • Applied Dates 2007-03-28 to 2007-09-28
    • Serial No. Up to G70100404
    • * multiple options for #20
    • 2 shown on diagram
    $3.49
  • 20

    CLAMP, HOSE

    • Part No. 09318-89022
    • Compatibility Call for compat
    • Applied Dates 2007-09-29 and up
    • Serial No. G70100405 and up
    • * multiple options for #20
    • 2 shown on diagram
    $2.99
  • 21

    Bolt, M8 P1.25 x 80mm

    • Part No. 01153-50880
    • Applied Dates Up to 2008-01-22
    • HEX12*91
    • 2 shown on diagram
    $3.49
  • 22 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 23 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates Up to 2008-01-22
    • M08
    • 2 shown on diagram
    $0.61
  • 24 ELBOW

    ELBOW

    • Part No. T4682-37221
    • Applied Dates Up to 2006-11-05
    • 1 shown on diagram
    $46.99
  • 25

    CONNECTOR

    • Part No. T2350-90171
    • Applied Dates Up to 2006-11-05
    • 1 shown on diagram
    $15.99
  • 26

    Lever, Replaced by 26001-0010

    • Part No. XAST281404
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • * multiple options for #26
    • 1 shown on diagram
    $0.00
  • 26 Joystick Lever, No Offset Bend

    Joystick Lever, No Offset Bend

    • Part No. 26001-0010
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 and up
    • * multiple options for #26
    • 1 shown on diagram
    $83.99
  • 27

    Rubber Bellow, Replaced by 3SOF204111

    • Part No. 3SOF204100
    • Applied Dates Up to 2006-11-05
    • * multiple options for #27
    • 1 shown on diagram
    $0.00
  • 27

    BOOT

    • Part No. 3SOF204111
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • * multiple options for #27
    • 1 shown on diagram
    $63.99
  • 27 Rubber Boot

    Rubber Boot

    • Part No. 36001-0180
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 and up
    • * multiple options for #27
    • 1 shown on diagram
    $22.99
  • 28

    BODY ASS’Y, Replaced by 5COR211763

    • Part No. 5COR211661
    • Applied Dates Up to 2006-11-05
    • * multiple options for #28
    • 1 shown on diagram
    $0.00
  • 28

    BODY v

    • Part No. 5COR211761
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • * multiple options for #28
    • 1 shown on diagram
    $63.99
  • 28 BODY ASS’Y v

    BODY ASS’Y v

    • Part No. 26001-0040
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 and up
    • * multiple options for #28
    • 1 shown on diagram
    $69.99
  • 29

    CINEMATIC KIT v, Replaced by 26001-0090

    • Part No. 5CIN305
    • Applied Dates Up to 2007-06-30
    • * multiple options for #29
    • 1 shown on diagram
    $0.00
  • 29 Ball End, Replaced by 36001-0170

    Ball End, Replaced by 36001-0170

    • Part No. 36001-0160
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 and up
    • * multiple options for #29
    • 3 shown on diagram
    $0.00
  • 30

    SPOOL POSITIONER

    • Part No. 5V13306020
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $0.00
  • 31

    SPOOL POSITIONER

    • Part No. 5V13505400
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $409.99
  • 32

    BODYASS’Y obs

    • Part No. 5KC1858002
    • Applied Dates Up to 2006-11-05
    • * multiple options for #32
    • 1 shown on diagram
    $874.99
  • 32

    BODY ASS’Y

    • Part No. 5KC1858010
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • * multiple options for #32
    • 1 shown on diagram
    $67.99
  • 33 PLUG

    PLUG

    • Part No. 3XTAP822150
    • Applied Dates Up to 2006-11-05
    • * multiple options for #33
    • 1 shown on diagram
    $11.99
  • 33 PLUG

    PLUG

    • Part No. 3XTAP822150
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • * multiple options for #33
    • 2 shown on diagram
    $11.99
  • 34

    VALVE, RELIEF

    • Part No. X162121175
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $244.99
  • 35

    SPOOL dnr v

    • Part No. 3CU5242100
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $179.99
  • 36

    SPOOL

    • Part No. 3CU5262120
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $334.99

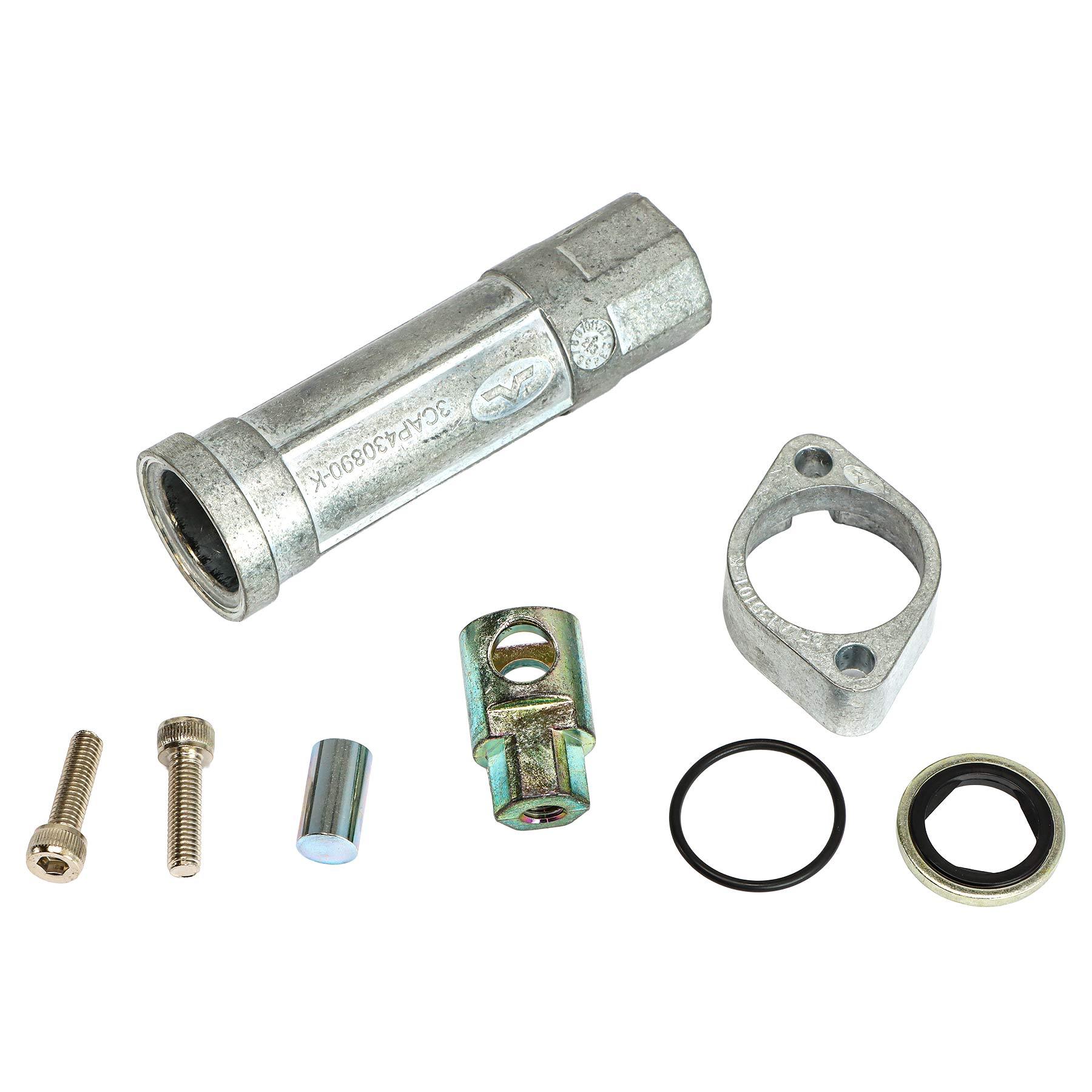

  • 37 TP50 KIT

    TP50 KIT

    • Part No. 5TEL107110
    • Applied Dates Up to 2007-06-30
    • * multiple options for #37
    • 2 shown on diagram
    $134.99
  • 37 ENDCAP

    ENDCAP

    • Part No. 36001-0120
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 and up
    • * multiple options for #37
    • 2 shown on diagram
    $22.99
  • 38 CABLE

    CABLE

    • Part No. 4CAV600650
    • Applied Dates Up to 2007-06-30
    • * multiple options for #38
    • 2 shown on diagram
    $279.99
  • 38

    CABLE, 650, Replace by 4CAV600650

    • Part No. 36001-0210
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 and up
    • * multiple options for #38
    • 2 shown on diagram
    $0.00
  • 39

    PIN v

    • Part No. 3SP1109181
    • Applied Dates Up to 2007-06-30
    • * multiple options for #39
    • 2 shown on diagram
    $5.99
  • 39 PIN, CONNECT V

    PIN, CONNECT V

    • Part No. 36001-0010
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 and up
    • * multiple options for #39
    • 2 shown on diagram
    $8.99
  • 40

    PLUG obs v

    • Part No. XGIU530580
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $99.99
  • 41

    PLUG

    • Part No. 3XTAP817130
    • Applied Dates Up to 2006-11-05
    • * multiple options for #41
    • 1 shown on diagram
    $9.99
  • 41

    PLUG

    • Part No. 3XTAP817130
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • * multiple options for #41
    • 4 shown on diagram
    $9.99
  • 42 JOINT

    JOINT

    • Part No. 36001-0150
    • Applied Dates 2007-07-01 and up
    • 2 shown on diagram
    $13.99
  • 43

    O RING v

    • Part No. 36001-0030
    • Applied Dates 2007-07-01 and up
    • 21.95x1.78
    • 2 shown on diagram
    $1.19

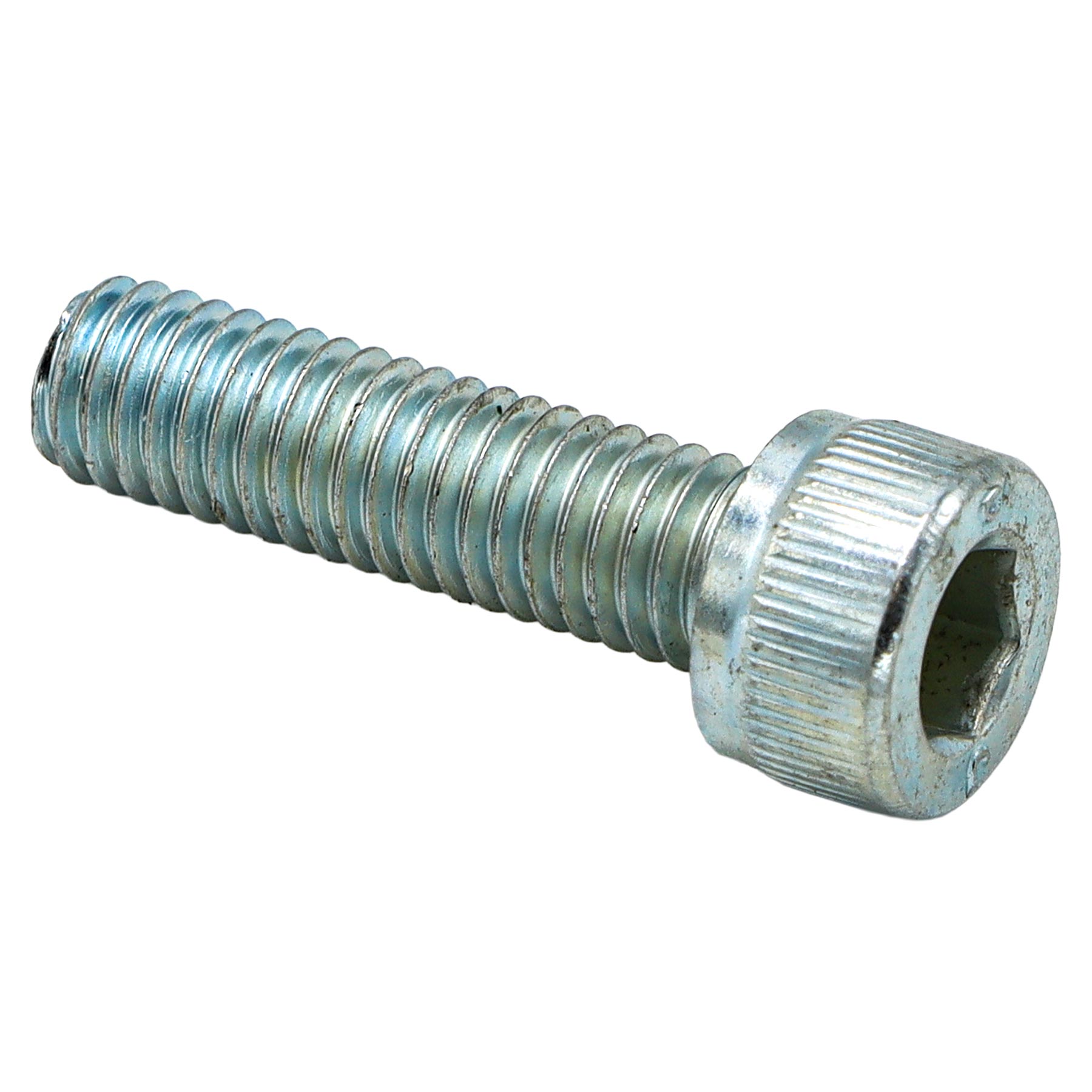

  • 44 SOCKET HEAD CAP SCREW M5 P.80×18

    SOCKET HEAD CAP SCREW M5 P.80×18

    • Part No. 36001-0060
    • Applied Dates 2007-07-01 and up
    • M5x18
    • 4 shown on diagram
    $0.85
  • 45

    FLANGE

    • Part No. 36001-0130
    • Applied Dates 2007-07-01 and up
    • 2 shown on diagram
    $12.99
  • 46 Selector, 3 Socket

    Selector, 3 Socket

    • Part No. 36001-0140
    • Applied Dates 2007-07-01 and up
    • 1 shown on diagram
    $24.99
  • 47 WASHER, SPRING v

    WASHER, SPRING v

    • Part No. 36001-0100
    • Applied Dates 2007-07-01 and up
    • 1 shown on diagram
    $1.09
  • 48 BOLT SHCS M6 P1.00×20 v

    BOLT SHCS M6 P1.00×20 v

    • Part No. 36001-0080
    • Applied Dates 2007-07-01 and up
    • (M6x20)
    • 1 shown on diagram
    $1.09
  • 49 Tube

    Tube

    • Part No. 36001-0050
    • Applied Dates 2007-07-01 and up
    • 2 shown on diagram
    $8.99
  • 50 NUT

    NUT

    • Part No. 02072-50140
    • Applied Dates 2007-07-01 and up
    • 1 shown on diagram
    $1.29
  • 51

    Assy’ Valve Body v

    • Part No. 102020058
    • Applied Dates 2007-07-01 and up
    • 1 shown on diagram
    $2,614.99

Related Diagrams
