RELIFE VALVE GROUP - CK30M-T740A

Kioti TRACTOR | CK Series | CK25

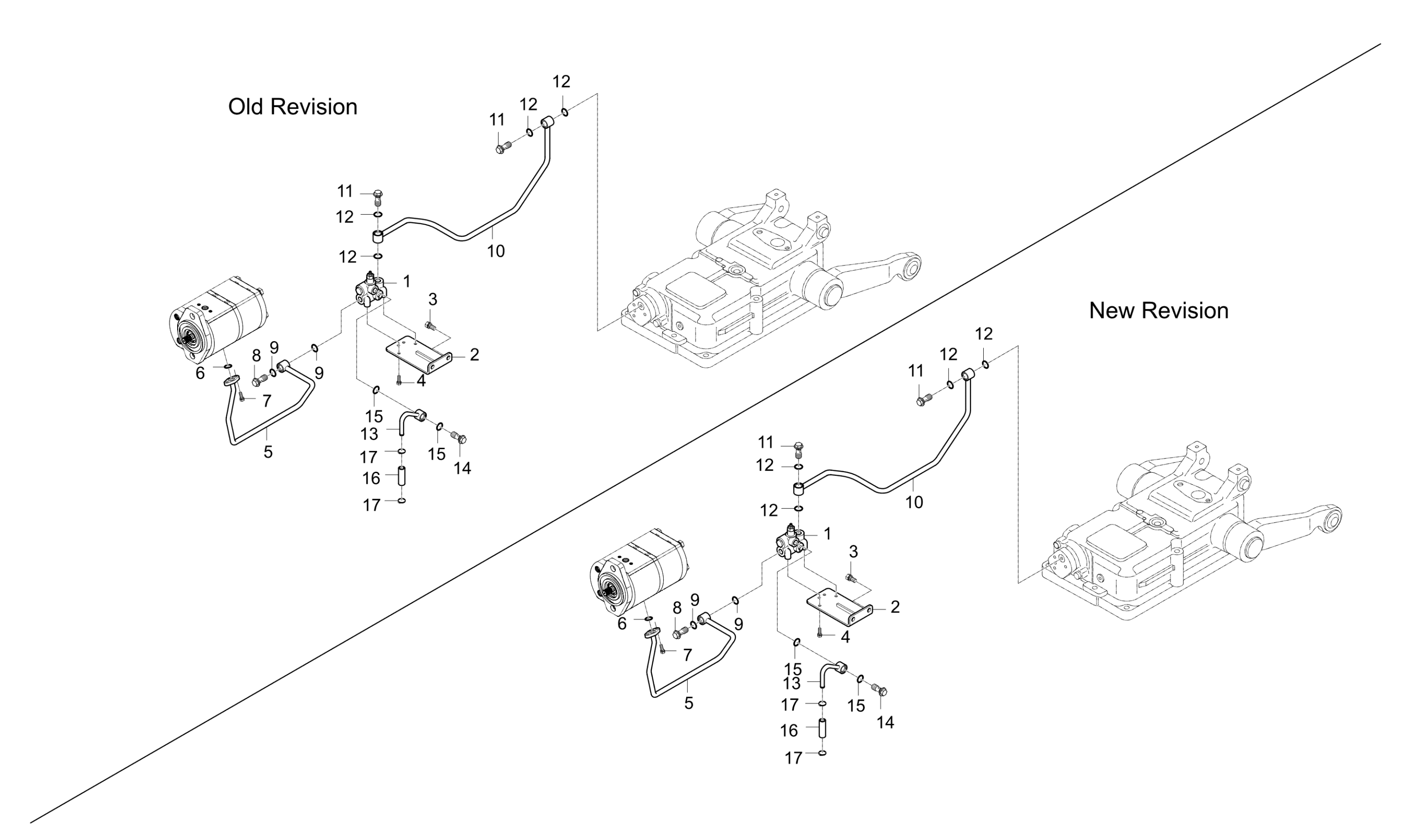

Diagram for RELIFE VALVE GROUP - CK30M-T740A
  • 1

    ASS’Y, RELIEF VALVE

    • Part No. T2185-38301
    • 1 shown on diagram
    $494.99
  • 2

    Hyd.BlockSupport (M)

    • Part No. T2185-38311
    • Applied Dates Up to 2007-02-13
    • * multiple options for #2
    • 1 shown on diagram
    $14.99
  • 2

    SUPPORT M, HYDRAULIC BLOCK

    • Part No. T2185-38312
    • Compatibility No interchange
    • Applied Dates 2007-02-14 and up
    • * multiple options for #2
    • 1 shown on diagram
    $17.99
  • 3 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 2 shown on diagram
    $3.49
  • 4 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates 2007-02-14 and up
    • M8XP1.25
    • 3 shown on diagram
    $2.49
  • 5

    TUBE HYD B1 v

    • Part No. T2185-37051
    • Applied Dates Up to 2007-02-13
    • * multiple options for #5
    • 1 shown on diagram
    $86.99
  • 5

    TUBE B1, HYD

    • Part No. T2185-37053
    • Compatibility New repl old
    • Applied Dates 2007-07-10 and up
    • * multiple options for #5
    • 1 shown on diagram
    $86.99
  • 5

    TUBE B1.HYDRAULIC

    • Part No. T2185-37053BB
    • Compatibility No interchange
    • * multiple options for #5
    • 1 shown on diagram
    $179.99
  • 6 O RING

    O RING

    • Part No. 04810-00180
    • 1 shown on diagram
    $1.09
  • 7 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates Up to 2008-04-22
    • M8XP1.25
    • * multiple options for #7
    • 1 shown on diagram
    $2.49
  • 7 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • Compatibility Interchngable
    • Applied Dates 2008-04-23 and up
    • M8XP1.25
    • * multiple options for #7
    • 2 shown on diagram
    $1.99
  • 8 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • Applied Dates 2008-02-21 to 2007-07-09
    • Serial No. G70100405 to G70100484
    • * multiple options for #8
    • 1 shown on diagram
    $21.99
  • 8

    BOLT 2, JOINT

    • Part No. T4520-37372
    • Compatibility New repl old
    • Applied Dates 2007-07-10 and up
    • M18*1.5
    • * multiple options for #8
    • 1 shown on diagram
    $29.99
  • 9 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 10

    TUBE HYD B2 v

    • Part No. T2185-37061
    • Applied Dates Up to 2007-02-13
    • * multiple options for #10
    • 1 shown on diagram
    $84.99
  • 10

    Hydraulic. Tube B2

    • Part No. T2185-37062
    • Compatibility No interchange
    • Applied Dates 2007-02-14 and up
    • * multiple options for #10
    • 1 shown on diagram
    $149.99
  • 10

    TUBE B2, HYDRAULIC

    • Part No. T2185-37062BB
    • Compatibility No interchange
    • * multiple options for #10
    • 1 shown on diagram
    $149.99
  • 11 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 2 shown on diagram
    $21.99
  • 12 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 13

    TUBE RETURN B v

    • Part No. T2185-38331
    • Applied Dates Up to 2007-02-13
    • * multiple options for #13
    • 1 shown on diagram
    $29.99
  • 13

    TUBE, RETURN

    • Part No. T2185-38332
    • Compatibility No interchange
    • Applied Dates 2007-02-14 and up
    • * multiple options for #13
    • 1 shown on diagram
    $51.99
  • 13

    Return Tube

    • Part No. T2185-38332BB
    • Compatibility No interchange
    • * multiple options for #13
    • 1 shown on diagram
    $45.99
  • 14 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 1 shown on diagram
    $21.99
  • 15 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 16

    HOSE 1, RETURN v

    • Part No. T2185-38401
    • Applied Dates Up to 2004-04-18
    • * multiple options for #16
    • 1 shown on diagram
    $9.99
  • 16

    RETURN HOSE 1

    • Part No. T2185-38402
    • Compatibility Interchngable
    • Applied Dates 2004-04-19 to 2007-03-27
    • Serial No. D70100105 to G70100180
    • * multiple options for #16
    • 1 shown on diagram
    $5.99
  • 16

    RETURN HOSE 1

    • Part No. T2185-38404
    • Compatibility Interchngable
    • Applied Dates 2007-09-29 and up
    • Serial No. G70100405 and up
    • * multiple options for #16
    • 1 shown on diagram
    $9.99
  • 17

    BAND, HOSE v

    • Part No. 52200-2523-1
    • Applied Dates Up to 2007-03-27
    • Serial No. Up to G70100180
    • * multiple options for #17
    • 2 shown on diagram
    $4.99
  • 17

    CLAMP, HOSE

    • Part No. 09318-89022
    • Compatibility Call for compat
    • Applied Dates 2007-09-29 and up
    • Serial No. G70100405 and up
    • * multiple options for #17
    • 2 shown on diagram
    $2.99
