CONTROL LEVER, RH GROUP - T2555-G412

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

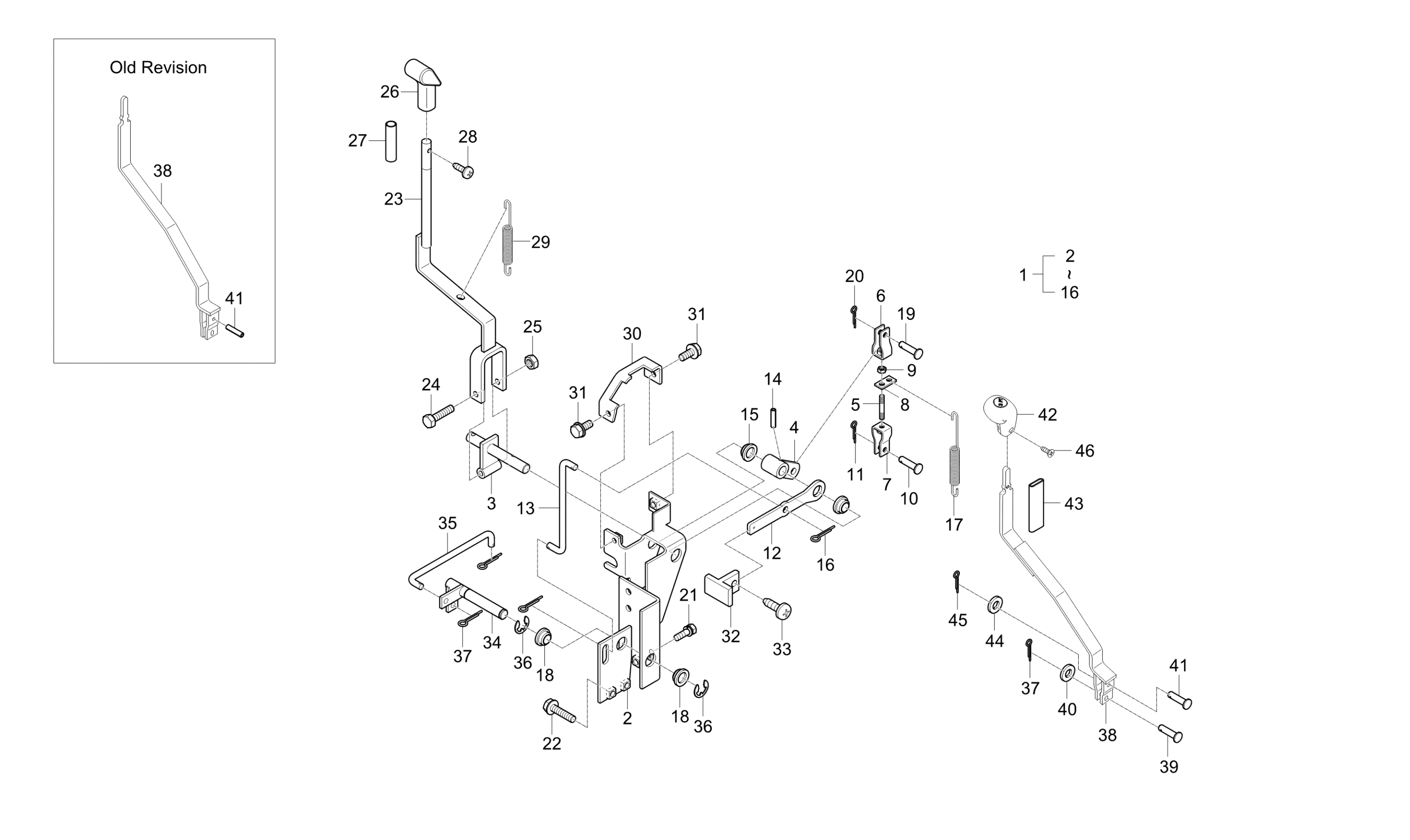

Diagram for CONTROL LEVER, RH GROUP - T2555-G412
  • 1

    BRACKET ASSY, PTO LEVER

    • Part No. T2555-61202
    • * multiple options for #1
    • 1 shown on diagram
    $219.99
  • 1

    BRACKET ASSY, PTO LEVER

    • Part No. T2555-61203
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 2

    GUIDE, PTO

    • Part No. T2555-61211
    • 1 shown on diagram
    $91.99
  • 3

    ARM 1, PTO

    • Part No. T2555-60121
    • 1 shown on diagram
    $28.99
  • 4

    ARM 2, PTO

    • Part No. T2555-60132
    • 1 shown on diagram
    $19.99
  • 5

    BOLT, STUD

    • Part No. T2555-60141
    • 1 shown on diagram
    $12.99
  • 6 FORK JOINT (RH thread)

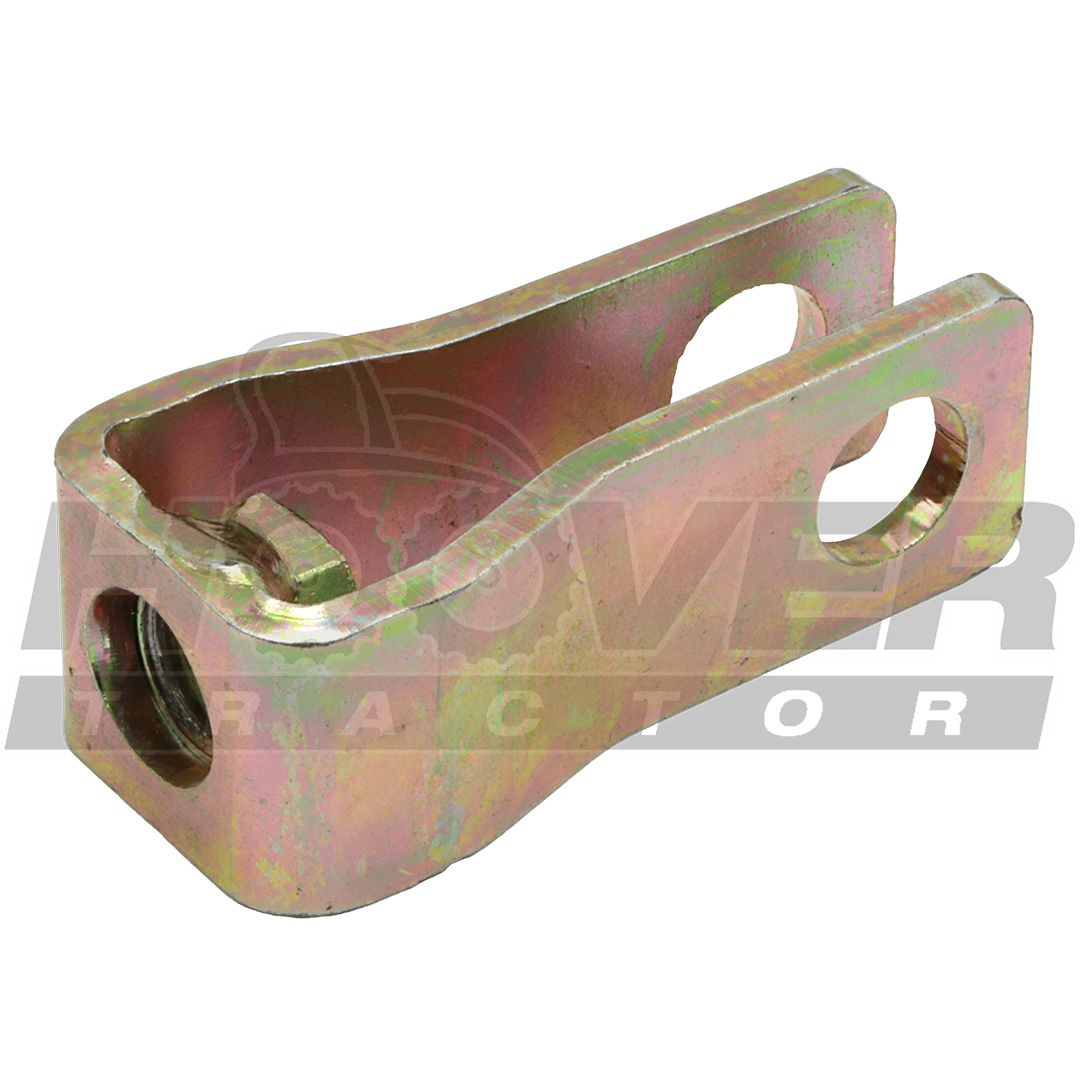

    FORK JOINT (RH thread)

    • Part No. T2555-60161
    • 1 shown on diagram
    $9.99
  • 7

    FORK JOINT (LH thread)

    • Part No. T2555-60151
    • 1 shown on diagram
    $9.99
  • 8

    HOLDING, SPRING

    • Part No. T2555-60171
    • 1 shown on diagram
    $3.99
  • 9 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 10

    DOWEL PIN

    • Part No. 05112-51020
    • 1 shown on diagram
    $.00
  • 11

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 1 shown on diagram
    $0.68
  • 12

    LEVER, 4WD

    • Part No. T2555-60181
    • 1 shown on diagram
    $13.99
  • 13

    ROD, 4WD

    • Part No. T2555-60192
    • 1 shown on diagram
    $9.49
  • 14 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00625
    • DIA6.4XL25
    • 1 shown on diagram
    $1.09
  • 15

    BUSH

    • Part No. T2555-60751
    • 2 shown on diagram
    $4.49
  • 16

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 2 shown on diagram
    $0.56
  • 17

    FRICTION SPRING

    • Part No. T2555-61042
    • 1 shown on diagram
    $6.99
  • 18

    BUSH

    • Part No. T2555-60751
    • 2 shown on diagram
    $4.49
  • 19

    PIN, JOINT

    • Part No. 05112-51022
    • DIA12
    • * multiple options for #19
    • 1 shown on diagram
    $2.99
  • 19

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • Compatibility New repl old
    • DIA10*25
    • * multiple options for #19
    • 1 shown on diagram
    $2.99
  • 20

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 1 shown on diagram
    $0.68
  • 21 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99
  • 22 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 23 LEVER, PTO

    LEVER, PTO

    • Part No. T2555-60911
    • 1 shown on diagram
    $42.99
  • 24

    Bolt With Washer, M8 P1.25 x 60mm

    • Part No. 01123-50860
    • M8XP1.25
    • 1 shown on diagram
    $3.49
  • 25

    NUT

    • Part No. T2555-58731
    • 1 shown on diagram
    $1.89
  • 26

    GRIP, PTO

    • Part No. T2555-60921
    • 1 shown on diagram
    $19.99
  • 27

    TUBE, VINYL

    • Part No. T2555-61331
    • 1 shown on diagram
    $5.49
  • 28 BOLT,SCREW

    BOLT,SCREW

    • Part No. 03024-50514
    • 1 shown on diagram
    $.79
  • 29

    FRICTION SPRING

    • Part No. T2555-61032
    • 1 shown on diagram
    $5.99
  • 30 GUIDE

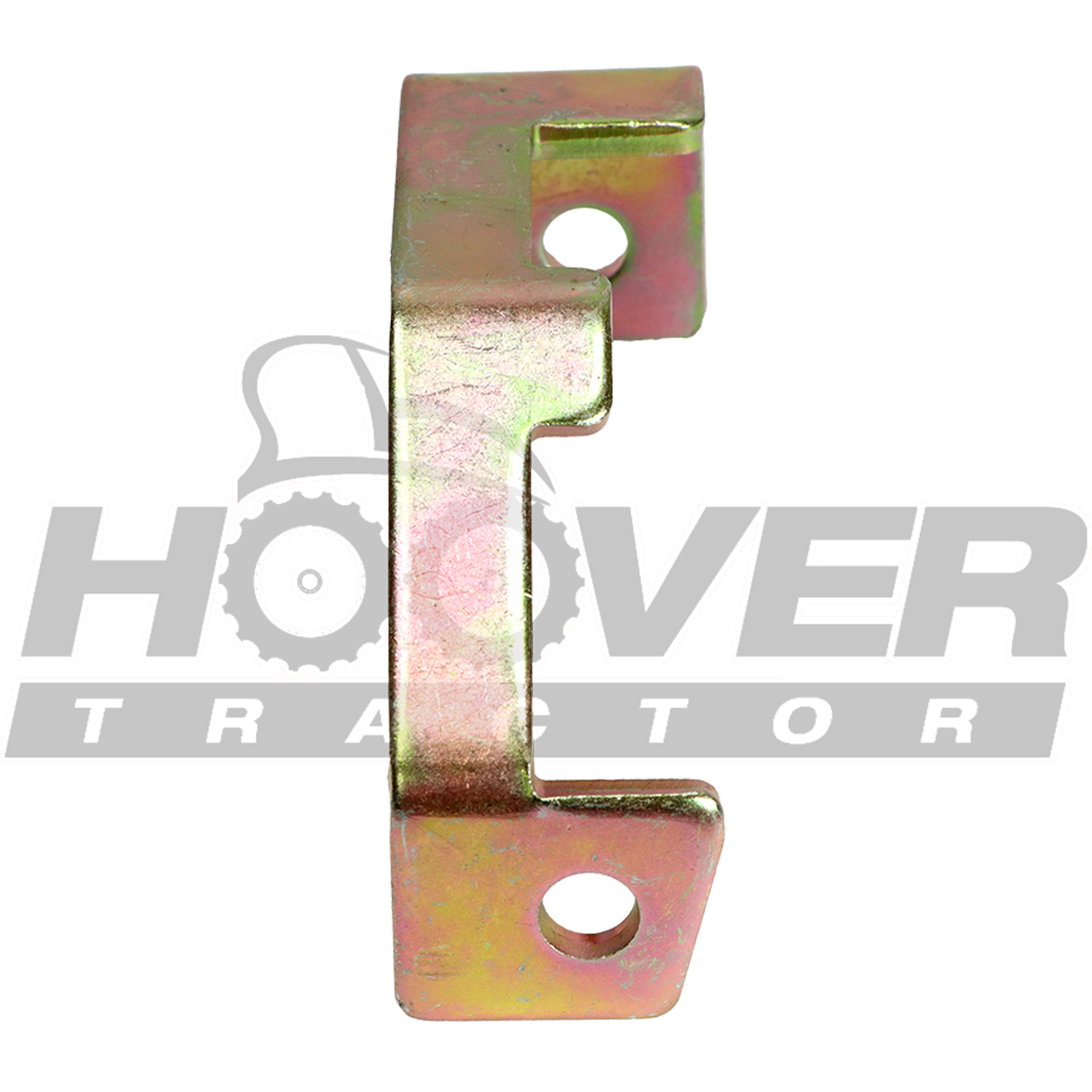

    GUIDE

    • Part No. T2555-61322
    • 1 shown on diagram
    $17.99
  • 31 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 32

    GRIP, 4WD

    • Part No. T2555-61521
    • 1 shown on diagram
    $15.99
  • 33

    BOLT,SCREW

    • Part No. 03024-50512
    • M5XP0.8
    • 1 shown on diagram
    $0.68
  • 34

    ARM, 4WD

    • Part No. T2555-61531
    • 1 shown on diagram
    $27.99
  • 35

    ROD

    • Part No. T2555-61541
    • 1 shown on diagram
    $9.99
  • 36 RING,SNAP

    RING,SNAP

    • Part No. 04613-50120
    • 2 shown on diagram
    $0.55
  • 37

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 2 shown on diagram
    $0.56
  • 38

    LEVER, HYDRAULIC

    • Part No. T2555-65435
    • 1 shown on diagram
    $41.99
  • 39

    Pin, Joint M6x20mm

    • Part No. 05122-50620
    • 1 shown on diagram
    $2.99
  • 40

    Flat Washer M5

    • Part No. 04012-50050
    • M5
    • 2 shown on diagram
    $.67
  • 41

    PIN JOINT

    • Part No. 05112-50525
    • DIA5XL25
    • 1 shown on diagram
    $2.99
  • 42

    GRIP-HYDRAULIC

    • Part No. TB26-0199A
    • 1 shown on diagram
    $15.99
  • 43

    TUBE, VINYL

    • Part No. T2555-60551
    • 1 shown on diagram
    $1.59
  • 44

    Flat Washer M5

    • Part No. 04012-50050
    • M5
    • 2 shown on diagram
    $.67
  • 45

    PIN, SPLIT

    • Part No. 05511-50115
    • 2 shown on diagram
    $0.29
  • 46

    BOLT,SCREW

    • Part No. 03024-50512
    • M5XP0.8
    • 1 shown on diagram
    $0.68
