VIBRATIONPROOF RUBBER GROUP - TB2-G624001

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

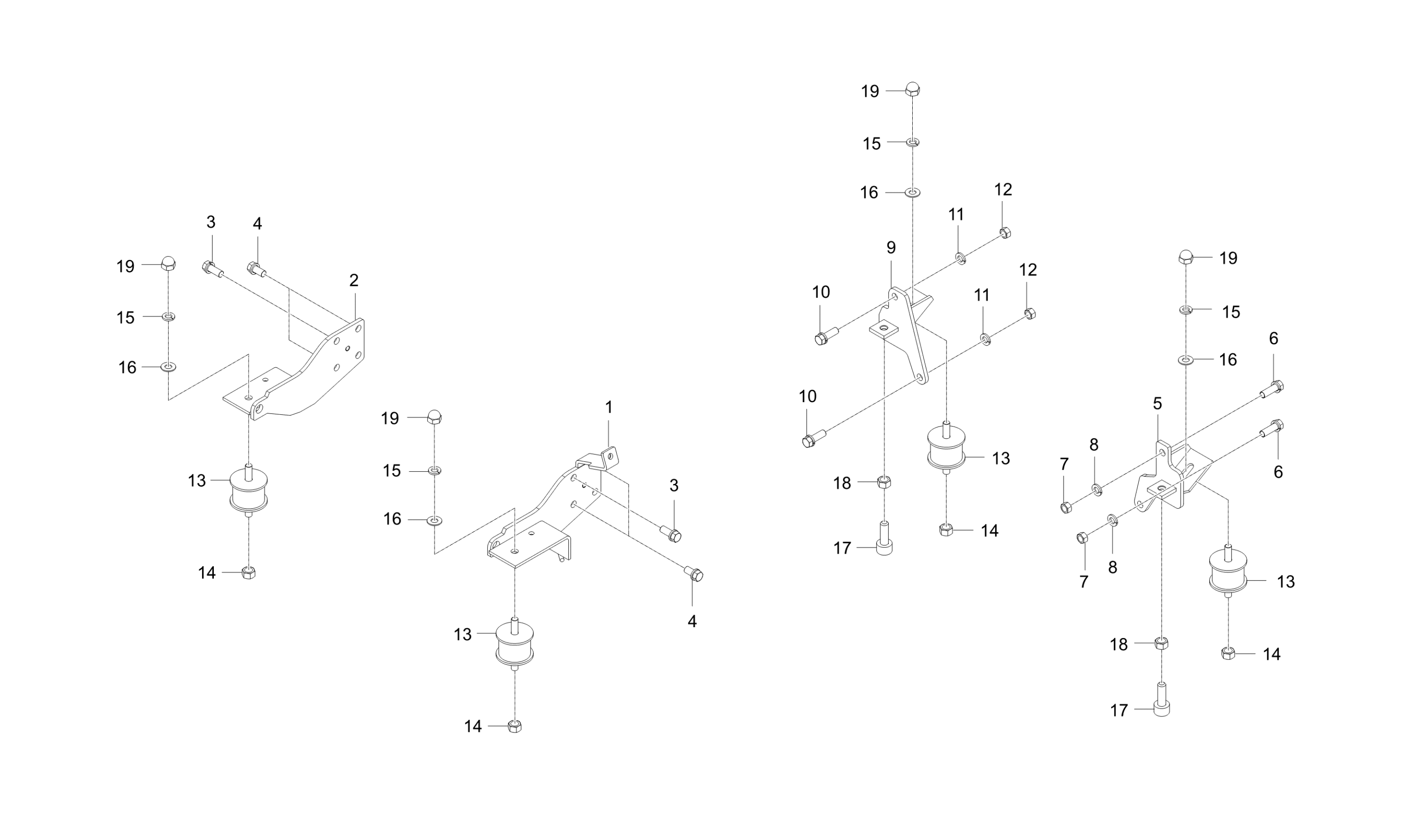

Diagram for VIBRATIONPROOF RUBBER GROUP - TB2-G624001
  • 1

    SUPPORT, VIB ISOLATOR MOUNT-FR LH

    • Part No. TB26-0279B
    • 1 shown on diagram
    $84.99
  • 2

    SUPPORT, VIB ISOLATOR MOUNT-FR RH

    • Part No. TB26-0280B
    • 1 shown on diagram
    $38.99
  • 3 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 4

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 6 shown on diagram
    $2.99
  • 5

    SUPPORT, VIB ISOLATOR MOUNT-LH

    • Part No. TB36-0949B
    • 1 shown on diagram
    $45.99
  • 6 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 7 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 8 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 9

    SUPPORT, VIB ISOLATOR MOUNT-RH

    • Part No. TB36-0950B
    • 1 shown on diagram
    $53.99
  • 10 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 11 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 12 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 13

    RUBBER, VIB ISOLATOR ENGINE

    • Part No. TB36-0581A
    • 4 shown on diagram
    $41.99
  • 14

    NUT dnr V

    • Part No. 02076-50100
    • M10*P1.25
    • 4 shown on diagram
    $0.4
  • 15 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
  • 16 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 4 shown on diagram
    $.73
  • 17

    BOLT, CUSHION

    • Part No. TB26-0299A
    • 2 shown on diagram
    $13.99
  • 18 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 19

    NUT, CAP

    • Part No. 44366-4723-1
    • 4 shown on diagram
    $3.49
