SEAT GROUP - TB2-G661002

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

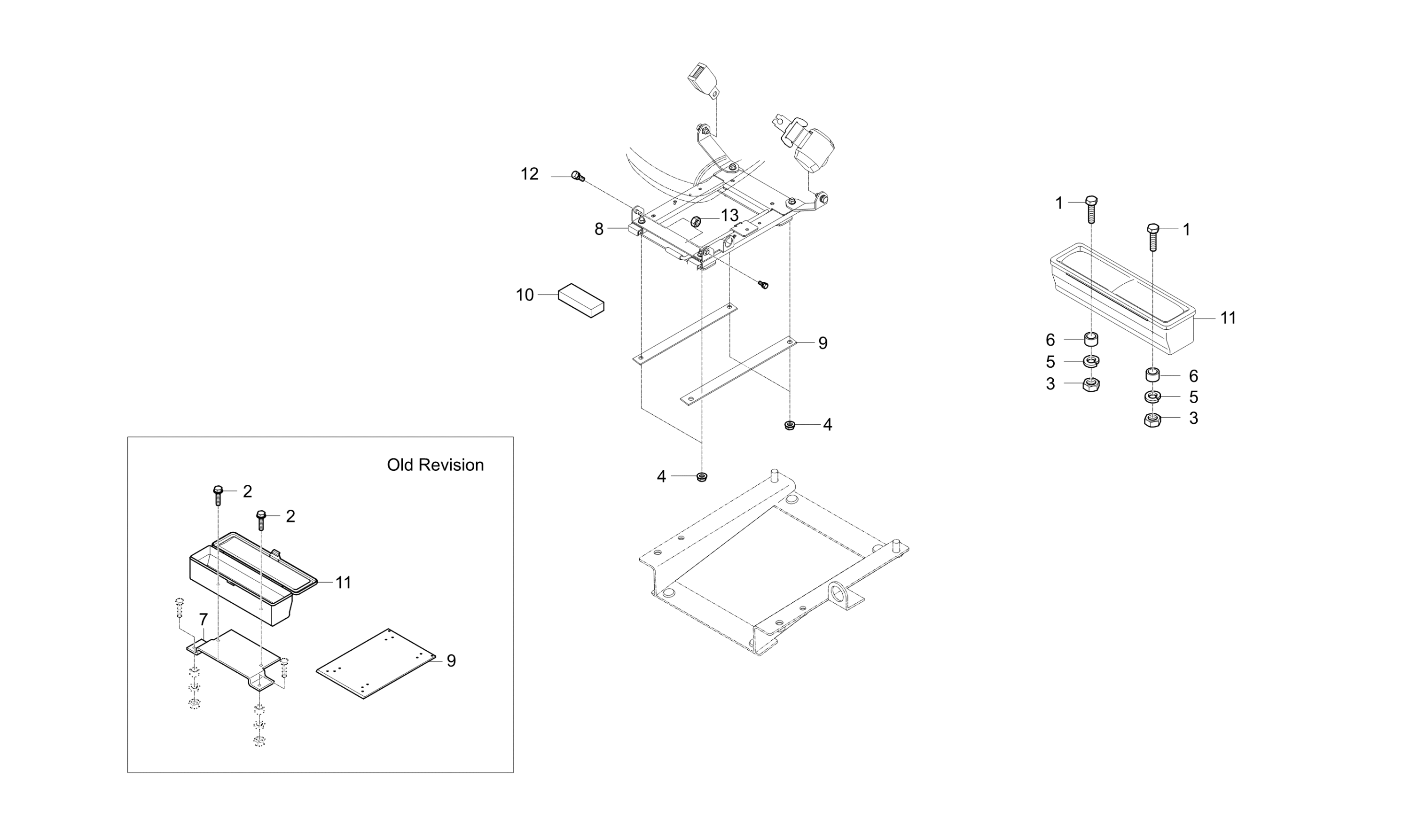

Diagram for SEAT GROUP - TB2-G661002
  • 1

    Bolt, M8 P1.25 x 30mm

    • Part No. 01153-50830
    • * multiple options for #1
    • 2 shown on diagram
    $1.89
  • 1 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • Compatibility New repl old
    • M8XP1.25
    • * multiple options for #1
    • 2 shown on diagram
    $1.89
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 3 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • * multiple options for #3
    • 2 shown on diagram
    $.85
  • 3 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • Compatibility New repl old
    • M8XP1.25
    • * multiple options for #3
    • 2 shown on diagram
    $0.85
  • 4 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.67
  • 5 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $.61
  • 6

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 2 shown on diagram
    $4.49
  • 7

    PLATE, HOLDER

    • Part No. T2555-70313
    • 1 shown on diagram
    $21.99
  • 8

    ASSY SUPPORT

    • Part No. T2555-70682
    • 1 shown on diagram
    $609.99
  • 9

    PLATE, SEAT FLOOR-1 dnr v

    • Part No. T2555-70752
    • T2.3
    • 1 shown on diagram
    $25.99
  • 10

    RUBBER, CUSHION

    • Part No. T2555-70792
    • 1 shown on diagram
    $9.99
  • 11

    TOOL BOX

    • Part No. T4930-70492
    • * multiple options for #11
    • 1 shown on diagram
    $25.99
  • 11

    BOX, TOOL

    • Part No. T4930-70493
    • Compatibility Interchngable
    • * multiple options for #11
    • 1 shown on diagram
    $25.99
  • 12

    BOLT FOR CS SUSPENSION

    • Part No. TB26-0053A
    • 2 shown on diagram
    $9.99
  • 13

    NUT FOR CS SUSPENSION

    • Part No. TB26-0054A
    • 2 shown on diagram
    $2.99
