BRAKE PEDAL GROUP - T2555-G418

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

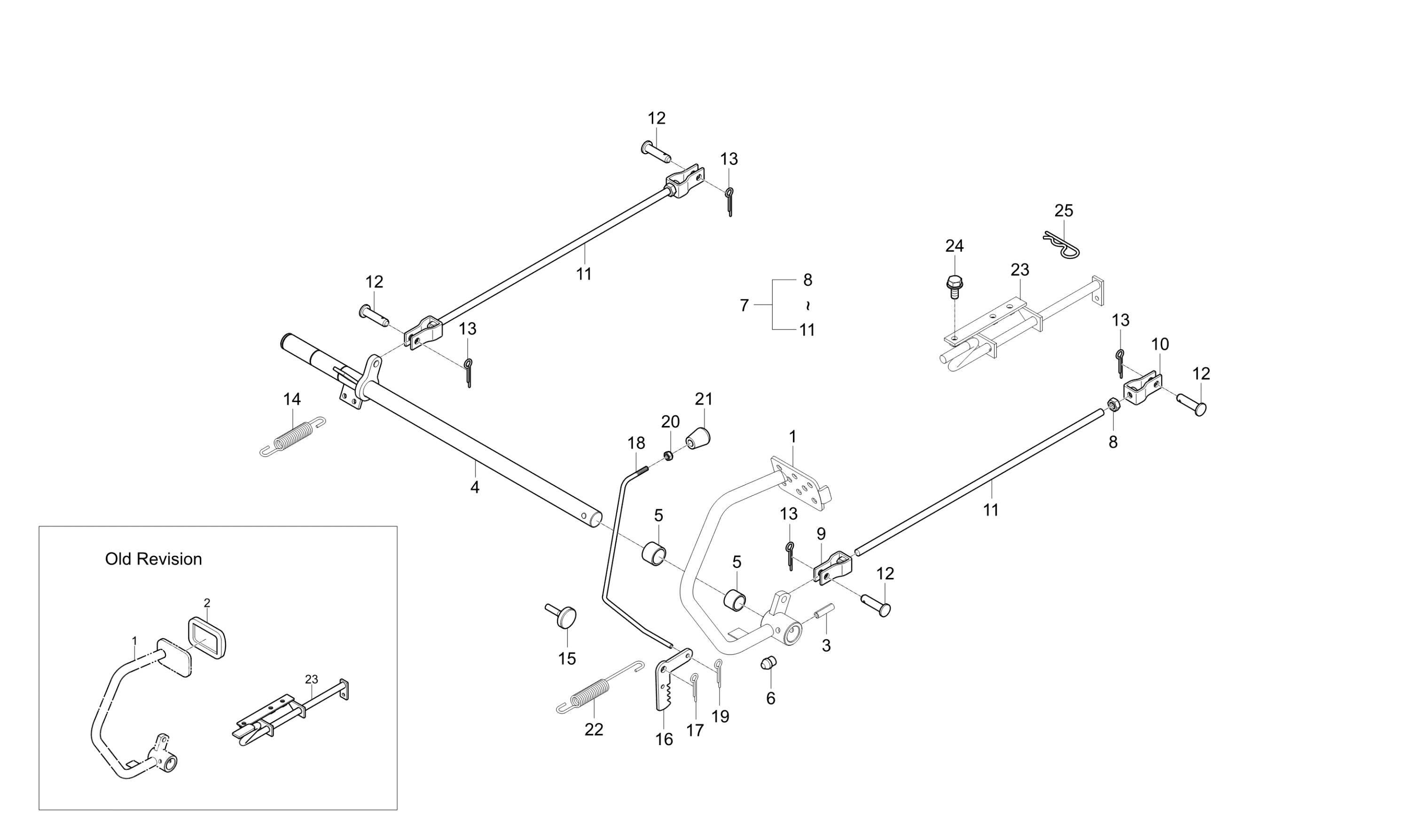

Diagram for BRAKE PEDAL GROUP - T2555-G418
  • 1

    PEDAL, BRAKE

    • Part No. T2555-55713
    • 1 shown on diagram
    $94.99

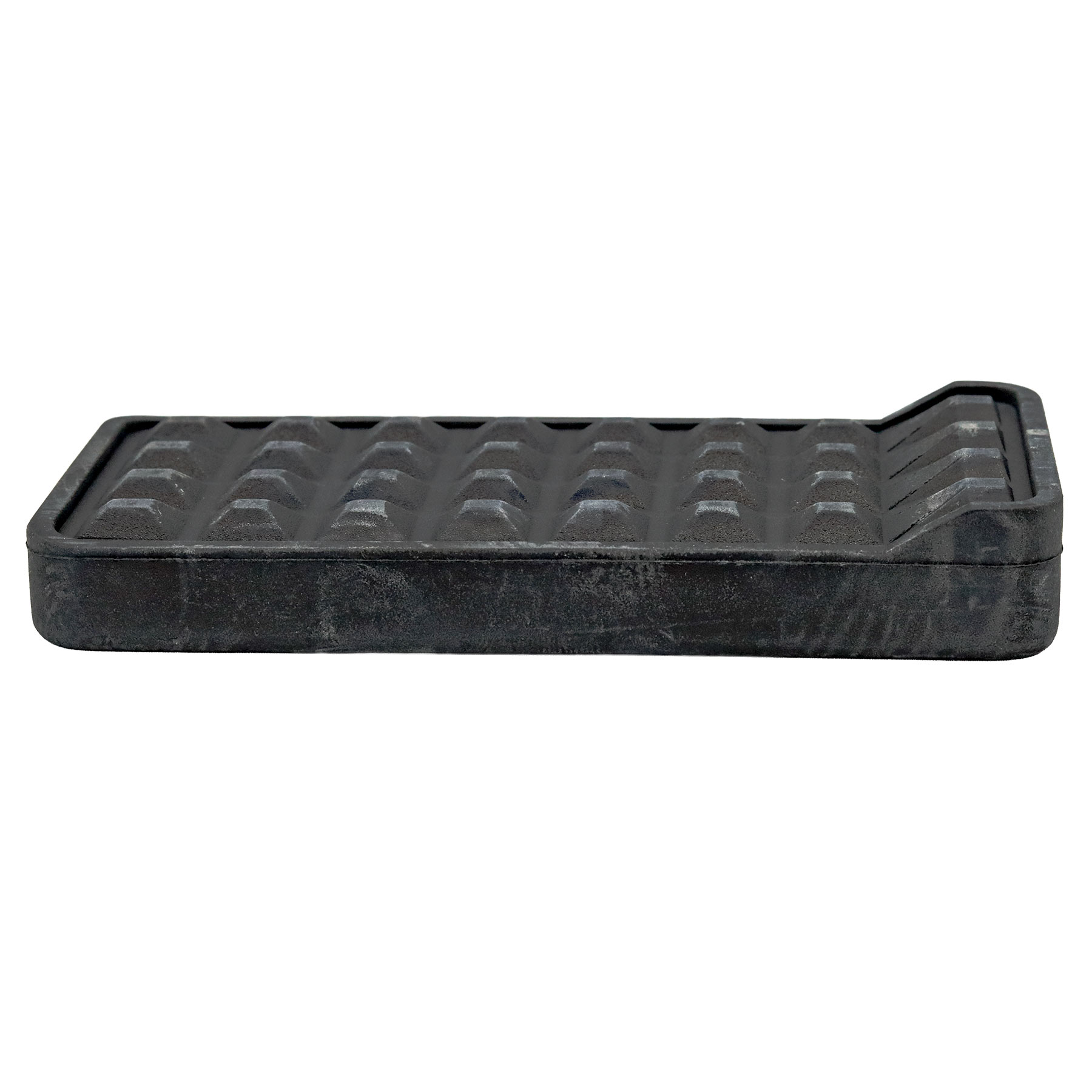

  • 2 COVER,PEDAL

    COVER,PEDAL

    • Part No. T2670-55531
    • 1 shown on diagram
    $23.99
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 4

    PEDAL SHAFT, BRAKE

    • Part No. T2555-55732
    • 1 shown on diagram
    $86.99
  • 5

    BUSH v

    • Part No. 08511-02525
    • MB2525DU
    • 2 shown on diagram
    $11.99
  • 6 Grease Nipple M6 P0.75

    Grease Nipple M6 P0.75

    • Part No. 06613-10675
    • M6XP0.75
    • 1 shown on diagram
    $2.49
  • 7

    ROD ASSY, BRAKE

    • Part No. T2555-55741
    • 2 shown on diagram
    $43.99
  • 8 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 9

    FORK JOINT (LH thread)

    • Part No. T2555-60151
    • 1 shown on diagram
    $9.99
  • 10 FORK JOINT (RH thread)

    FORK JOINT (RH thread)

    • Part No. T2555-60161
    • 1 shown on diagram
    $9.99
  • 11

    ROD, BRAKE

    • Part No. T2555-55751
    • 1 shown on diagram
    $23.99
  • 12

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 4 shown on diagram
    $2.99
  • 13

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 4 shown on diagram
    $0.68
  • 14

    FRICTION SPRING

    • Part No. T2555-61052
    • 1 shown on diagram
    $9.99
  • 15 CHSSING

    CHSSING

    • Part No. K9100-50241
    • 1 shown on diagram
    $1.89
  • 16

    BRACKET BRAKE

    • Part No. T2555-55901
    • 1 shown on diagram
    $11.99
  • 17 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 1 shown on diagram
    $.46
  • 18

    LEVER, PARKING BRAKE

    • Part No. T2555-55912
    • 1 shown on diagram
    $9.99
  • 19

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 2 shown on diagram
    $0.56
  • 20

    NUT

    • Part No. T2555-58721
    • 1 shown on diagram
    $1.59

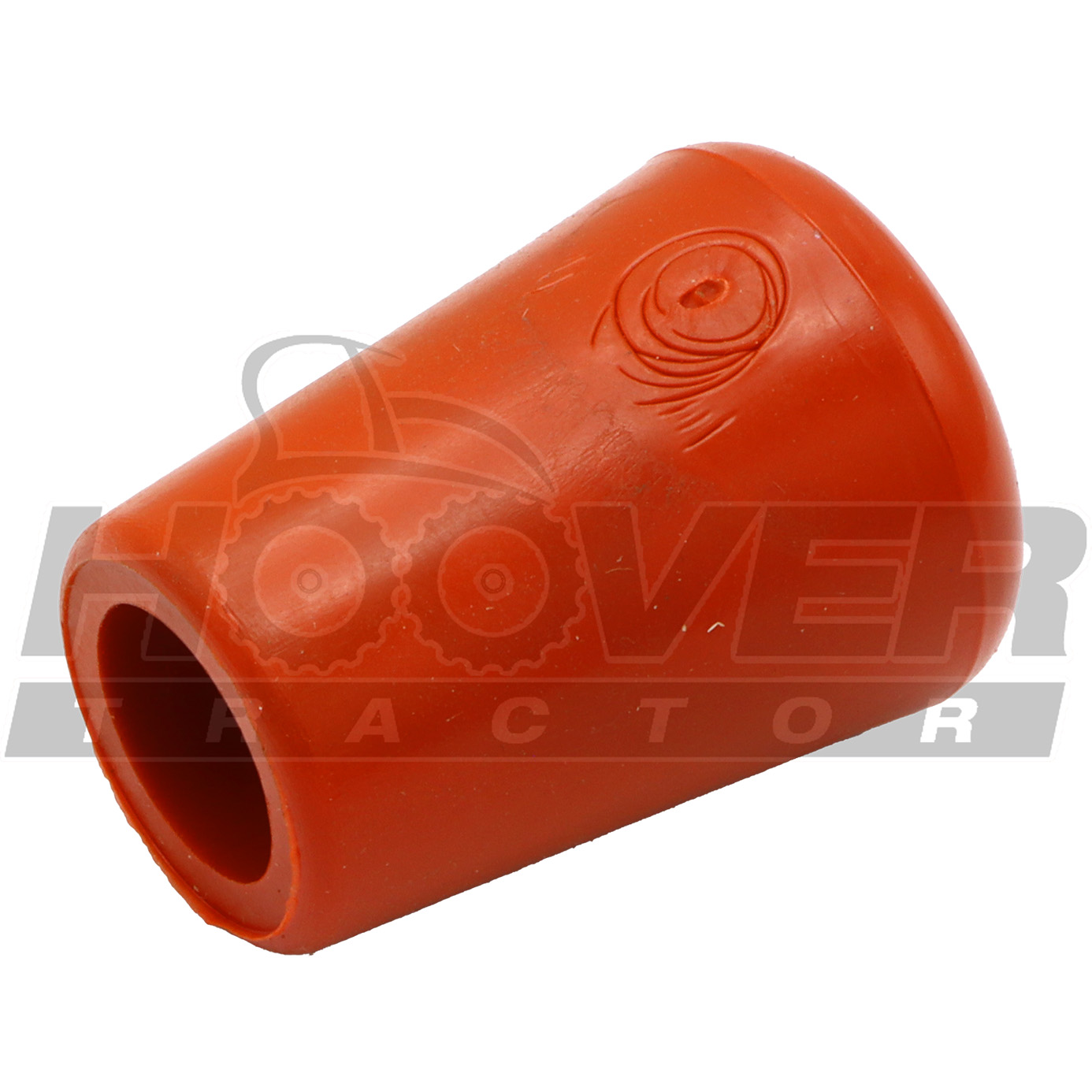

  • 21 GRIP, PARKING BRAKE

    GRIP, PARKING BRAKE

    • Part No. T2555-55921
    • 1 shown on diagram
    $11.99
  • 22

    FRICTION SPRING

    • Part No. T2555-61062
    • 1 shown on diagram
    $5.99
  • 23

    PEDAL, DIFFERENTIAL LOCK

    • Part No. T2555-65023
    • 1 shown on diagram
    $61.99
  • 24 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 25 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 1 shown on diagram
    $.46
