ROPS BAR GROUP - TB2-G631003

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

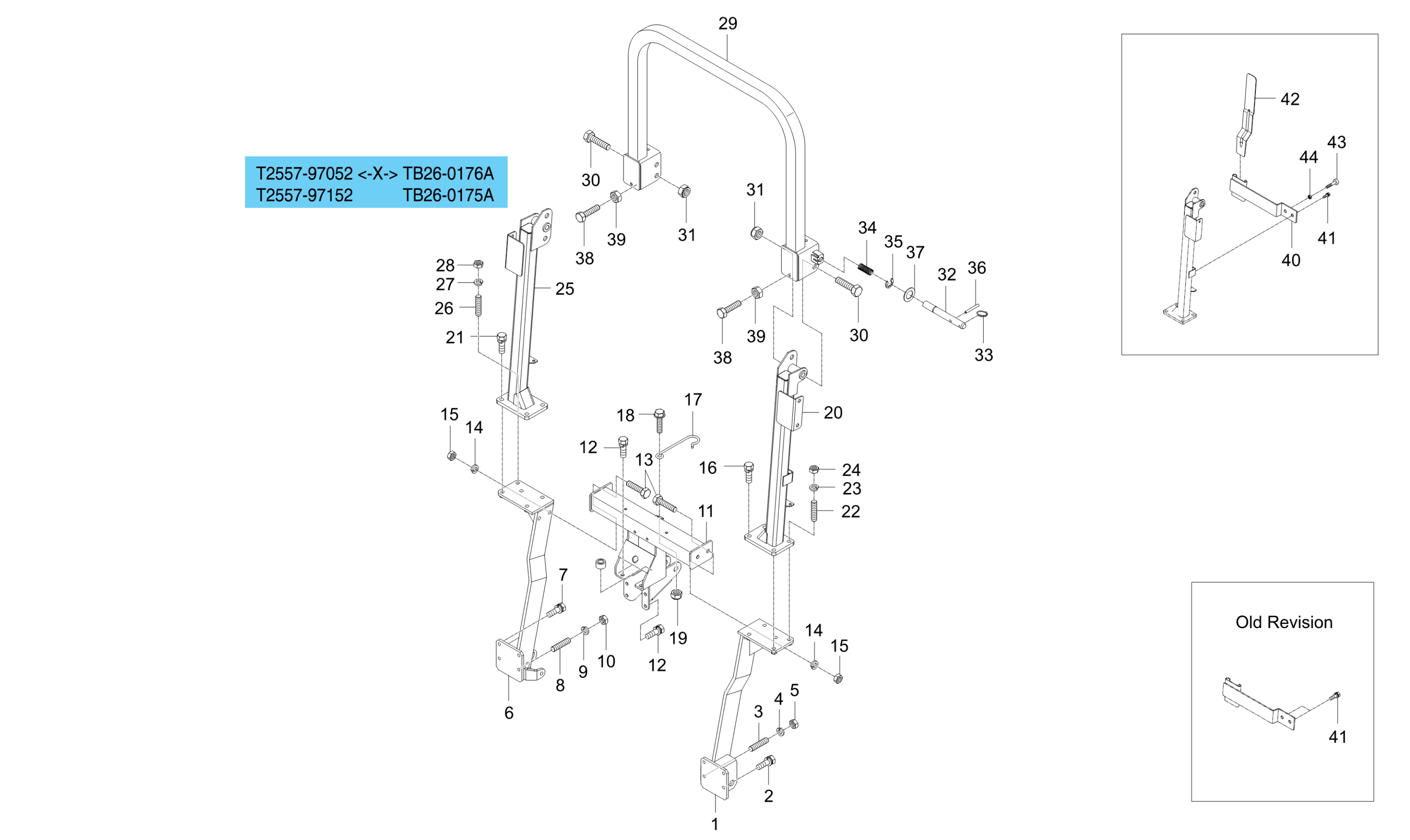

Diagram for ROPS BAR GROUP - TB2-G631003
  • 1

    SUPPORT LH

    • Part No. T2555-95033
    • 1 shown on diagram
    $329.99
  • 2 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 3 shown on diagram
    $3.49
  • 3

    STUD

    • Part No. 01517-51030
    • 1 shown on diagram
    $4.99
  • 4 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 5 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 6

    SUPPORT RH FENDER

    • Part No. T2555-95053
    • 1 shown on diagram
    $339.99
  • 7 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 3 shown on diagram
    $3.49
  • 8

    STUD

    • Part No. 01517-51030
    • 1 shown on diagram
    $4.99
  • 9 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 10 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 11

    SUPPORT, FENDER

    • Part No. T2555-95012
    • 1 shown on diagram
    $224.99
  • 12 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 6 shown on diagram
    $3.49
  • 13 BOLT

    BOLT

    • Part No. 01173-51235
    • M12P1.25*35
    • 4 shown on diagram
    $3.99
  • 14 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 4 shown on diagram
    $0.95
  • 15 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 4 shown on diagram
    $1.49
  • 16 BOLT, WASHER, M12 P1.25×40 01133-51240

    BOLT, WASHER, M12 P1.25×40 01133-51240

    • Part No. 01133-51240
    • M12XP1.25
    • 3 shown on diagram
    $4.49
  • 17

    CLIP,TOP LINK

    • Part No. T2555-91771
    • 1 shown on diagram
    $9.99
  • 18 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 19

    NUT

    • Part No. T2555-58731
    • 1 shown on diagram
    $1.89
  • 20

    ROPS-LH dnr v

    • Part No. TB26-0175C
    • 1 shown on diagram
    $339.99
  • 21 BOLT, WASHER, M12 P1.25×40 01133-51240

    BOLT, WASHER, M12 P1.25×40 01133-51240

    • Part No. 01133-51240
    • M12XP1.25
    • 3 shown on diagram
    $4.49
  • 22

    STUD

    • Part No. 01574-51240
    • M12*1.25*30
    • 1 shown on diagram
    $6.99
  • 23 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 24 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
  • 25

    ROPS-RH v

    • Part No. TB26-0176C
    • 1 shown on diagram
    $329.99
  • 26

    STUD

    • Part No. 01574-51240
    • M12*1.25*30
    • 1 shown on diagram
    $6.99
  • 27 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 28 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
  • 29

    ROPS, UPR

    • Part No. T2555-97132
    • 1 shown on diagram
    $539.99
  • 30

    BOLT v

    • Part No. T2555-97181
    • 2 shown on diagram
    $9.99
  • 31 NUT

    NUT

    • Part No. T2181-97191
    • 2 shown on diagram
    $7.49
  • 32

    PIN, ROPS

    • Part No. T2555-97211
    • 2 shown on diagram
    $17.99
  • 33

    FRICTION SPRING

    • Part No. T2555-97222
    • 2 shown on diagram
    $4.49
  • 34

    FRICTION SPRING

    • Part No. T2555-97232
    • 2 shown on diagram
    $5.49

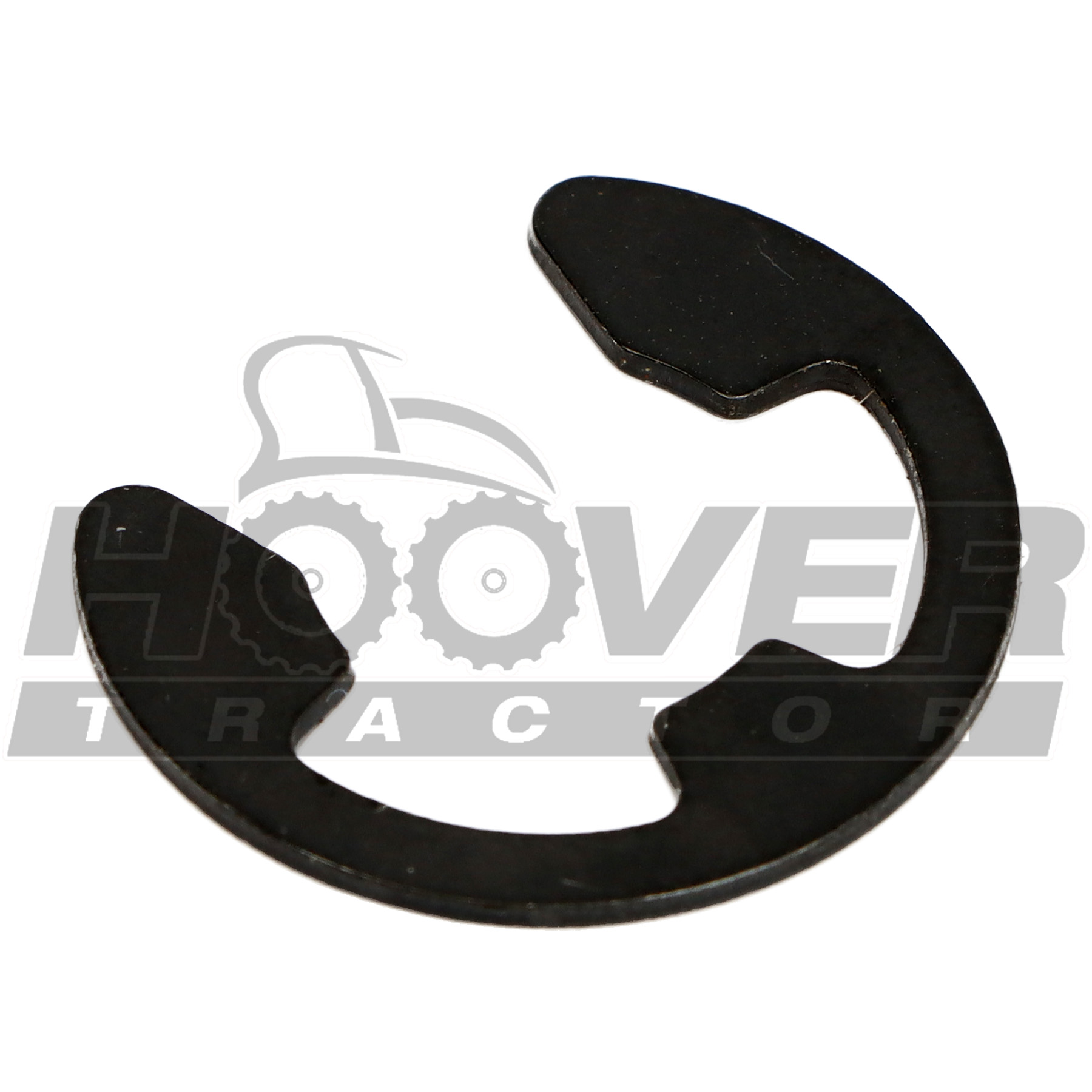

  • 35 RING,SNAP

    RING,SNAP

    • Part No. 04613-50120
    • 2 shown on diagram
    $0.55

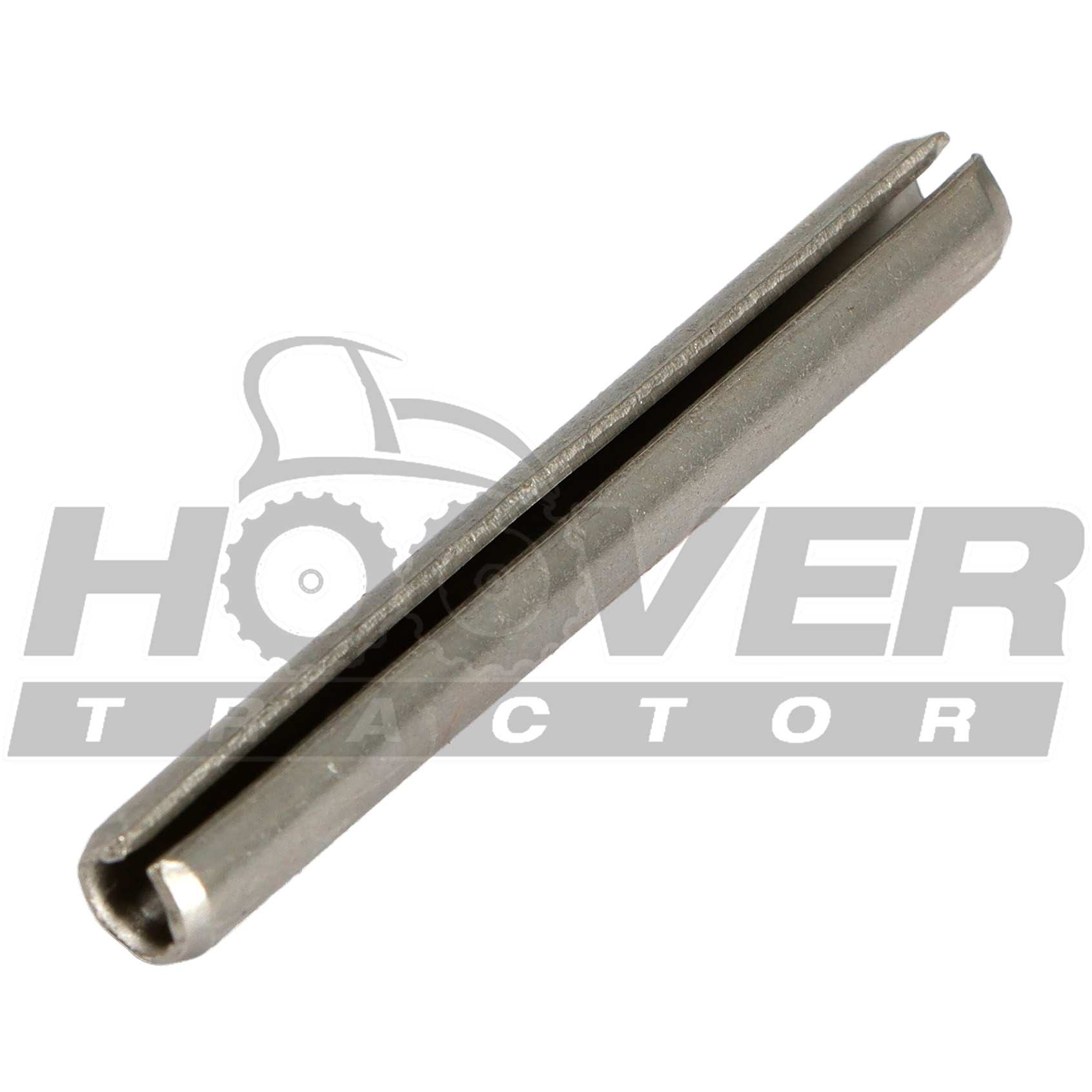

  • 36 SPRING PIN

    SPRING PIN

    • Part No. T2555-58761
    • 2 shown on diagram
    $1.89
  • 37 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 2 shown on diagram
    $1.19
  • 38

    BOLT dnr v

    • Part No. 01173-51016
    • 2 shown on diagram
    $1.19
  • 39 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98

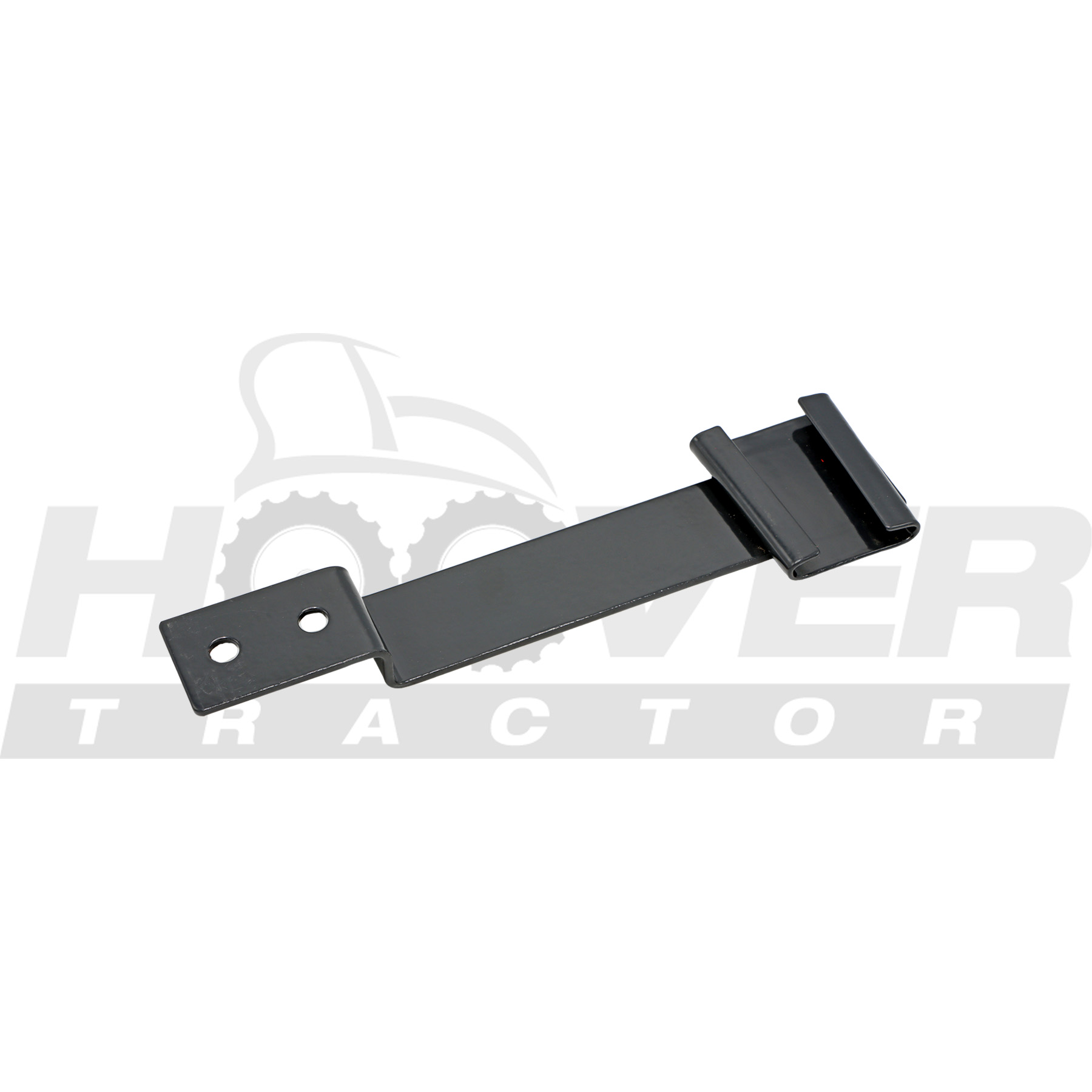

  • 40 BRACKET, SMV

    BRACKET, SMV

    • Part No. T2555-97201
    • 1 shown on diagram
    $22.99
  • 41 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 42

    SMV Bracket, Replaced by T2555-98511BB

    • Part No. T2555-98511
    • 1 shown on diagram
    $.00
  • 43

    BOLT, CUSHION

    • Part No. TB26-0276A
    • 1 shown on diagram
    $9.99
  • 44 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $.85
