RADIATOR GROUP - TB2-G612504

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

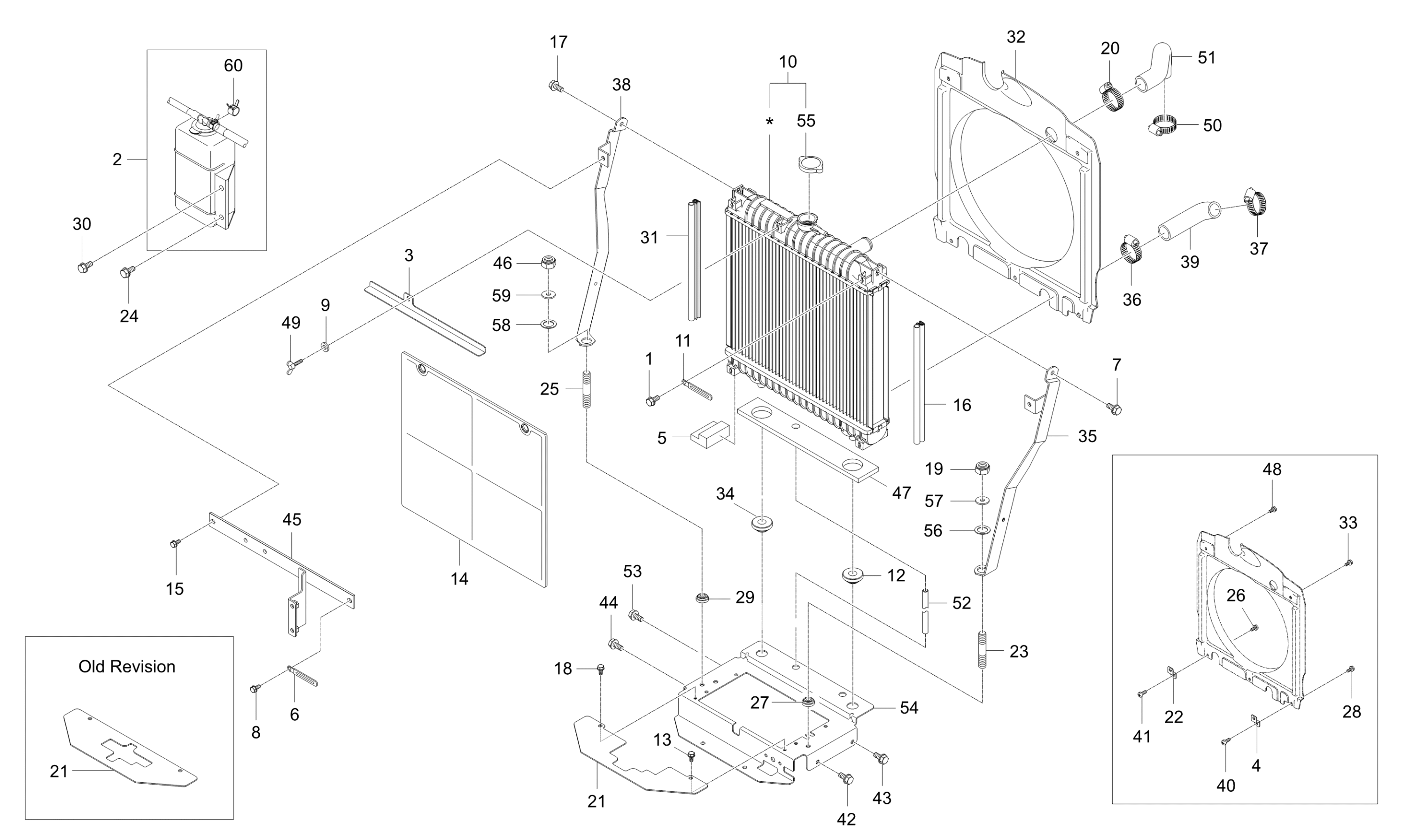

Diagram for RADIATOR GROUP - TB2-G612504
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 2

    RESERVOIR ASSY v

    • Part No. T2555-72734
    • * multiple options for #2
    • 1 shown on diagram
    $77.99
  • 2

    RESERVOIR ASSY

    • Part No. T2555-72735
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $.00
  • 3

    BRACKET, HOLDER-NET

    • Part No. TB26-0189B
    • T2.0
    • 1 shown on diagram
    $12.99
  • 4

    BRACKET, FIXING dnr v

    • Part No. TB26-0197B
    • T1.6
    • 1 shown on diagram
    $4.99
  • 5

    SPONGE

    • Part No. T2555-72581
    • 1 shown on diagram
    $4.99
  • 6

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 7 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 8 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 9 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $.73
  • 10 ASSY RADIATOR

    ASSY RADIATOR

    • Part No. TB36-0931A
    • 1 shown on diagram
    $509.99
  • 11

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 12

    CUSHION

    • Part No. T4125-13561
    • 1 shown on diagram
    $5.99
  • 13 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 14

    NET, RADIATOR

    • Part No. TB36-1069A
    • 1 shown on diagram
    $66.99
  • 15 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 16

    RUBBER

    • Part No. T2555-50911
    • 1 shown on diagram
    $15.99
  • 17 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 18 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 19

    NUT

    • Part No. T2555-58731
    • 1 shown on diagram
    $1.89
  • 20

    CLMAP, HOSE

    • Part No. 09318-87040
    • 1 shown on diagram
    $4.49
  • 21

    PLATE, BLOCK

    • Part No. TB26-0274B
    • T2.3
    • * multiple options for #21
    • 1 shown on diagram
    $.00
  • 21

    PLATE, BLOCK

    • Part No. TB26-0274C
    • Compatibility Interchngable
    • T2.3
    • * multiple options for #21
    • 1 shown on diagram
    $.00
  • 21

    PLATE, BLOCK

    • Part No. TB26-0192B
    • Compatibility New repl old
    • Serial No. YY8500001 and up
    • T2.3
    • * multiple options for #21
    • 1 shown on diagram
    $15.99
  • 22

    BRACKET, FIXING dnr v

    • Part No. TB26-0197B
    • T1.6
    • 1 shown on diagram
    $4.99

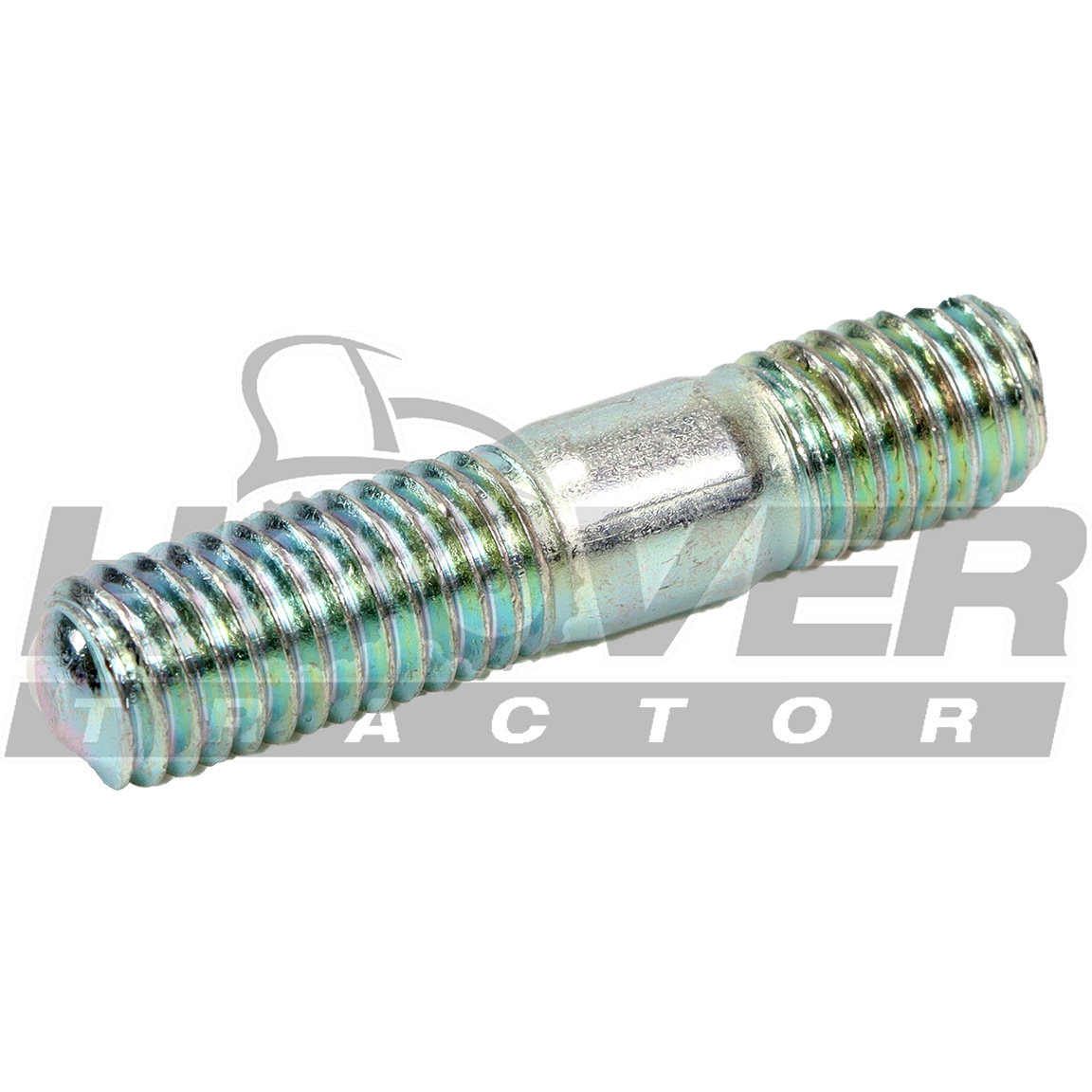

  • 23 STUD

    STUD

    • Part No. 01513-50825
    • M8*P1.25
    • 1 shown on diagram
    $3.99
  • 24 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 25 STUD

    STUD

    • Part No. 01513-50825
    • M8*P1.25
    • 1 shown on diagram
    $3.99
  • 26 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39

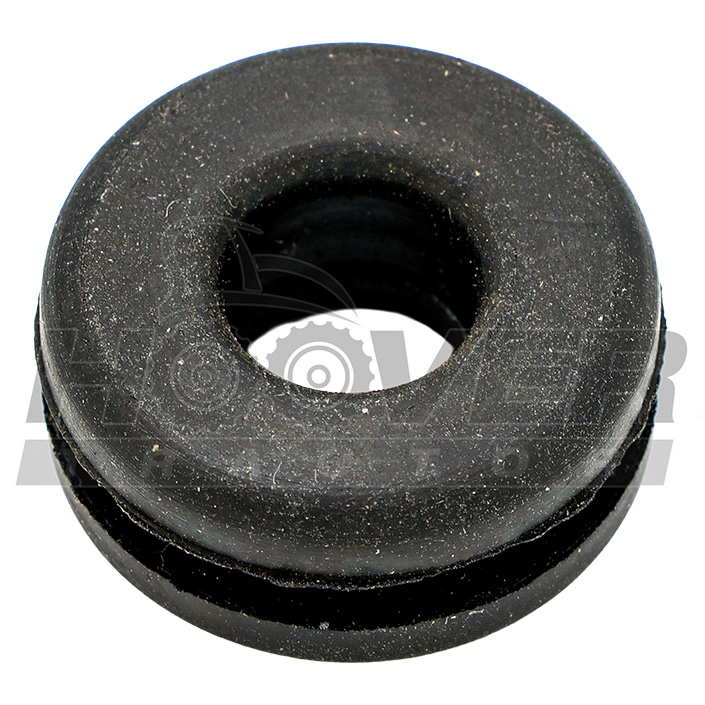

  • 27 GROMMET

    GROMMET

    • Part No. T4682-50251
    • * multiple options for #27
    • 1 shown on diagram
    $1.89
  • 27

    SPACER

    • Part No. TB26-0360A
    • Compatibility Call for compat
    • * multiple options for #27
    • 1 shown on diagram
    $8.49
  • 28 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 29 GROMMET

    GROMMET

    • Part No. T4682-50251
    • * multiple options for #29
    • 1 shown on diagram
    $1.89
  • 29

    SPACER

    • Part No. TB26-0360A
    • Compatibility Call for compat
    • * multiple options for #29
    • 1 shown on diagram
    $8.49
  • 30 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 31

    RUBBER

    • Part No. T2555-50911
    • 1 shown on diagram
    $15.99
  • 32

    SHROUD

    • Part No. TB36-0932B
    • T3.0
    • 1 shown on diagram
    $55.99
  • 33 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 34

    CUSHION

    • Part No. T4125-13561
    • 1 shown on diagram
    $5.99
  • 35

    BRACKET RH, RADIATOR

    • Part No. T2555-50253
    • * multiple options for #35
    • 1 shown on diagram
    $32.99
  • 35

    BRACKET RH, RADIATOR

    • Part No. T2555-50254
    • Compatibility Call for compat
    • Serial No. YY8500001 and up
    • * multiple options for #35
    • 1 shown on diagram
    $32.99
  • 36

    CLMAP, HOSE

    • Part No. 09318-87040
    • 1 shown on diagram
    $4.49
  • 37

    CLMAP, HOSE

    • Part No. 09318-87040
    • 1 shown on diagram
    $4.49
  • 38

    BRACKET LH, RADIATOR

    • Part No. T2555-50243
    • * multiple options for #38
    • 1 shown on diagram
    $32.99
  • 38

    BRACKET LH, RADIATOR

    • Part No. T2555-50244
    • Compatibility Call for compat
    • Serial No. YY8500001 and up
    • * multiple options for #38
    • 1 shown on diagram
    $32.99
  • 39

    HOSE, COOLING WATER-LWR

    • Part No. TB36-0938B
    • OD 35 / ID 27
    • 1 shown on diagram
    $19.99
  • 40 Screw, Black M6 P1.00×16

    Screw, Black M6 P1.00×16

    • Part No. U3215-81552
    • M6
    • 1 shown on diagram
    $0.68
  • 41 Screw, Black M6 P1.00×16

    Screw, Black M6 P1.00×16

    • Part No. U3215-81552
    • M6
    • 1 shown on diagram
    $0.68
  • 42 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 43 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 44 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 45

    HOLDER, RESERVOIR TANK dnr v

    • Part No. TB36-0935A
    • 1 shown on diagram
    $45.99
  • 46

    NUT

    • Part No. T2555-58731
    • 1 shown on diagram
    $1.89
  • 47

    SPONGE, 2

    • Part No. T2555-72553
    • 1 shown on diagram
    $9.99
  • 48 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 49 BOLT,WING

    BOLT,WING

    • Part No. 01811-50615
    • 1 shown on diagram
    $2.49
  • 50

    CLMAP, HOSE

    • Part No. 09318-87040
    • 1 shown on diagram
    $4.49
  • 51

    HOSE, COOLING WATER-UPR

    • Part No. TB36-0937B
    • OD 35 / ID 27
    • 1 shown on diagram
    $27.99
  • 52

    TUBE, VINYL

    • Part No. T2555-72782
    • 1 shown on diagram
    $3.49
  • 53 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 54

    PLATE, RADIATOR SUPPORT

    • Part No. T2555-50237
    • * multiple options for #54
    • 1 shown on diagram
    $59.99
  • 54

    Radiator Support Plate Replaced by T2555-50239CB

    • Part No. T2555-50238
    • Compatibility New repl old
    • * multiple options for #54
    • 1 shown on diagram
    $84.99
  • 54

    PLATE, RADIATOR SUPPORT

    • Part No. T2555-50239
    • Compatibility New repl old
    • * multiple options for #54
    • 1 shown on diagram
    $.00
  • 55

    Radiator Cap

    • Part No. U3215-77501
    • 1 shown on diagram
    $27.99
  • 56

    PLATE-CIRCULAR

    • Part No. TB26-0362A
    • T1.5
    • 1 shown on diagram
    $4.99
  • 57 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 1 shown on diagram
    $1.09
  • 58

    PLATE-CIRCULAR

    • Part No. TB26-0362A
    • T1.5
    • 1 shown on diagram
    $4.99
  • 59 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 1 shown on diagram
    $1.09
  • 60

    CLMAP, HOSE

    • Part No. 09318-88080
    • 2 shown on diagram
    $0.53
