MUFFLER GROUP - TB2-G612001

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

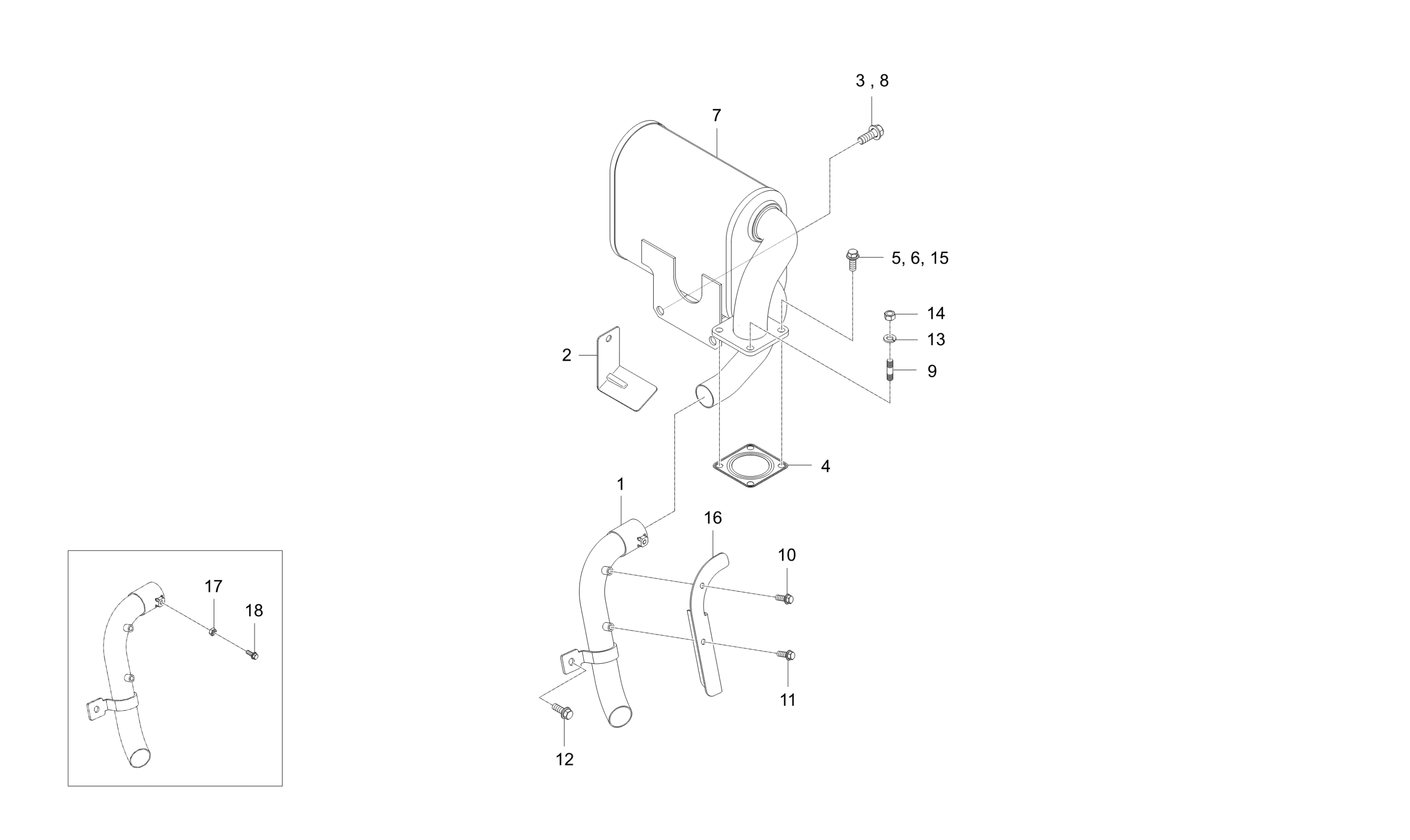

Diagram for MUFFLER GROUP - TB2-G612001
  • 1

    PIPE, MUFFLER

    • Part No. TB36-0894A
    • 1 shown on diagram
    $119.99
  • 2

    COVER, PROTECTING-2

    • Part No. TB36-0898A
    • T1.6
    • 1 shown on diagram
    $14.99
  • 3 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 1 shown on diagram
    $3.49
  • 4 GASKET

    GASKET

    • Part No. T2555-12501
    • 1 shown on diagram
    $4.49
  • 5 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 6 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 7

    ASSY MUFFLER-HST

    • Part No. TB36-0943B
    • 1 shown on diagram
    $534.99
  • 8 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 1 shown on diagram
    $3.49
  • 9

    STUD

    • Part No. 01513-50820
    • M8XP1.25
    • 1 shown on diagram
    $3.49
  • 10

    WASHER BOLT

    • Part No. 01025-50612
    • M6XP1.0
    • 1 shown on diagram
    $2.49
  • 11

    WASHER BOLT

    • Part No. 01025-50612
    • M6XP1.0
    • 1 shown on diagram
    $2.49
  • 12 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 13 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $.61
  • 14 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $.85
  • 15 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 16

    COVER, PROTECTING-1

    • Part No. TB36-0897A
    • T2.0
    • 1 shown on diagram
    $28.99
  • 17 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 18

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 1 shown on diagram
    $0.73
