FENDER GROUP - T2555-G426

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

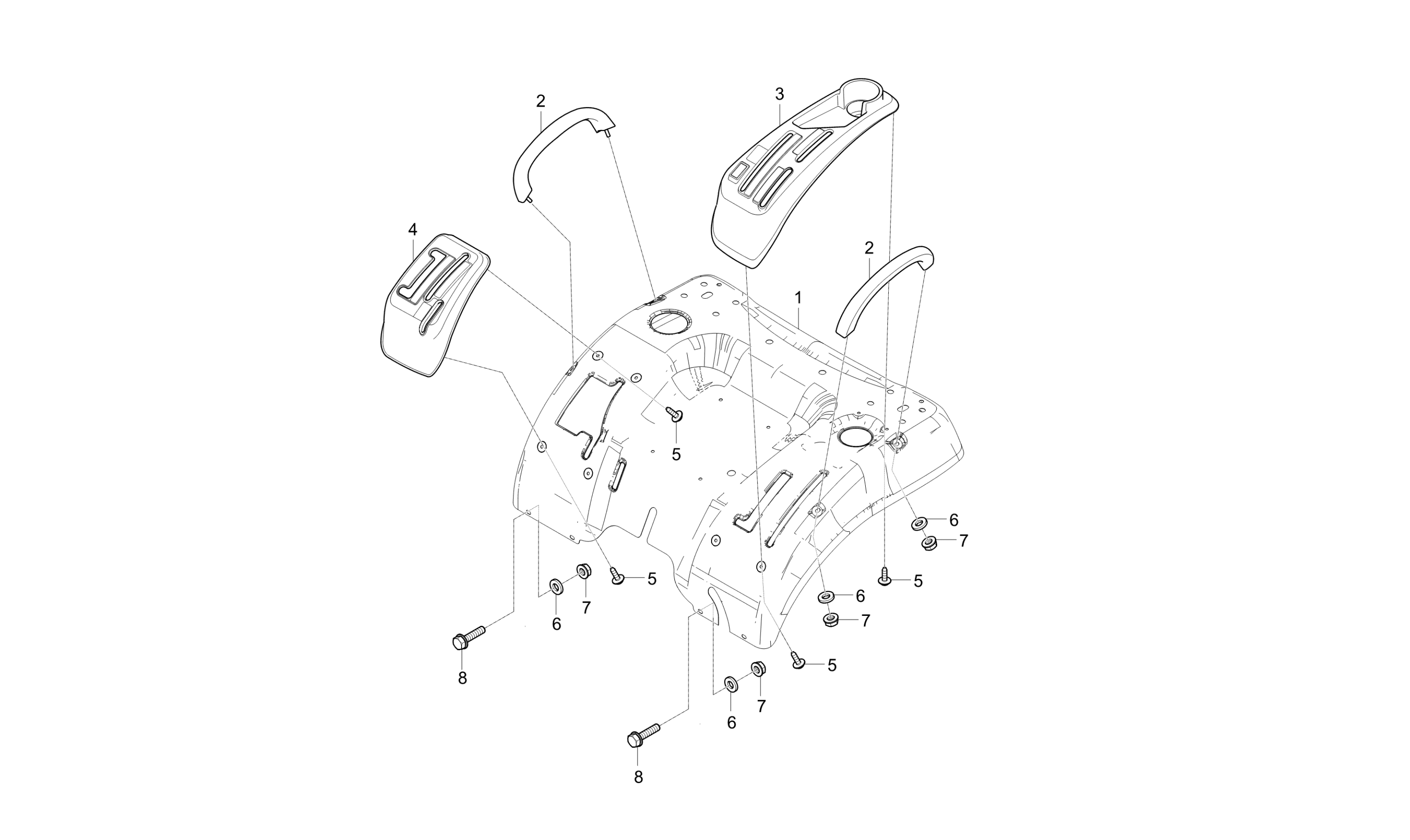

Diagram for FENDER GROUP - T2555-G426
  • 1

    TRK – FENDER dnr v

    • Part No. T2555-95161OE
    • T1.0
    • * multiple options for #1
    • 1 shown on diagram
    $579.99

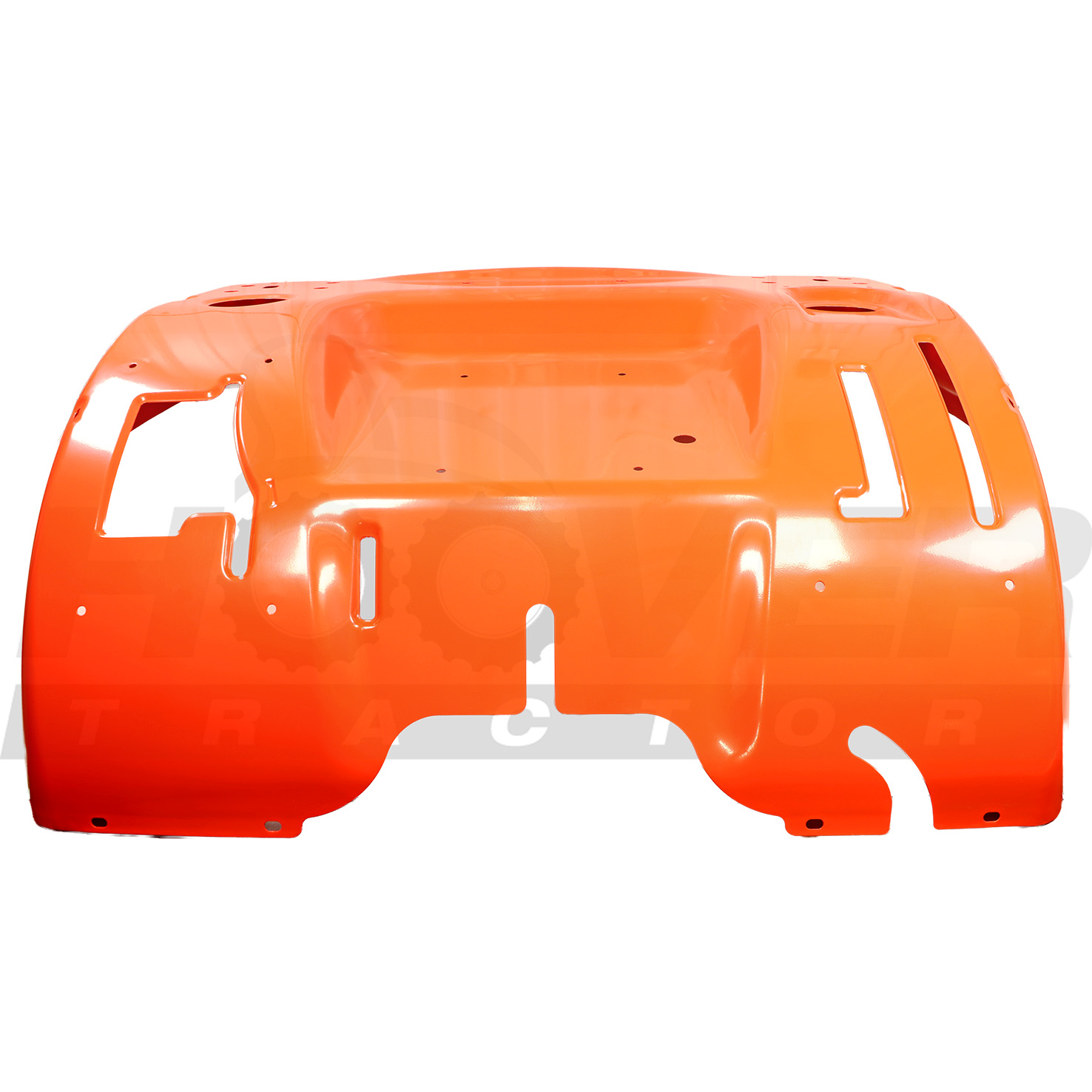

  • 1 FENDER dnr v

    FENDER dnr v

    • Part No. T2555-95162
    • Compatibility Interchngable
    • T1.0
    • * multiple options for #1
    • 1 shown on diagram
    $494.99

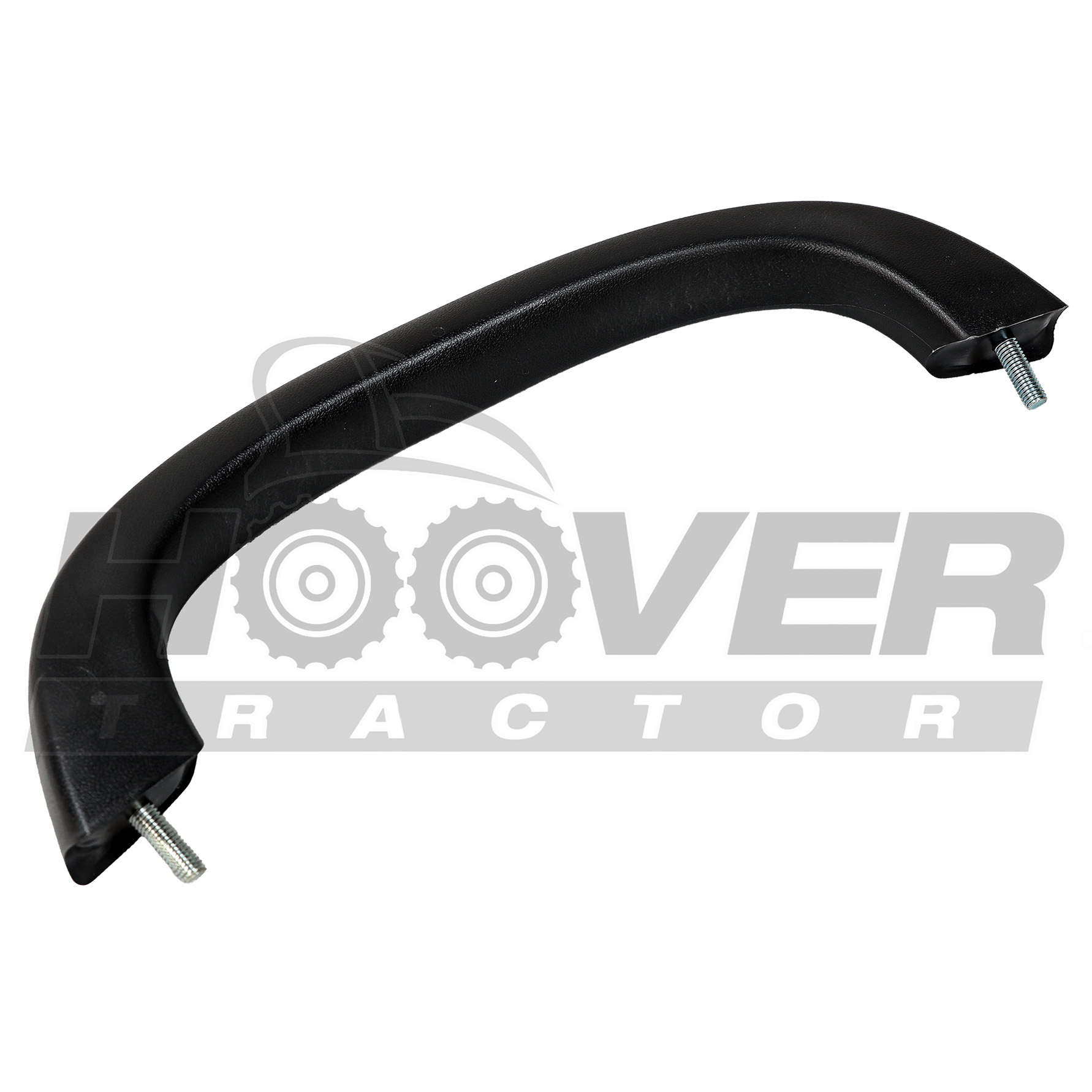

  • 2 HANDLE, FENDER

    HANDLE, FENDER

    • Part No. T2555-95082
    • 2 shown on diagram
    $59.99
  • 3

    LEVER GUIDE, LH dnr v

    • Part No. T2555-95434
    • 1 shown on diagram
    $68.99
  • 4

    GUIDE, LEVER-RH dnr v

    • Part No. T2555-95533
    • 1 shown on diagram
    $44.99
  • 5

    BOLT,TAPPING SCREW dnr v

    • Part No. 38240-1823-1
    • * multiple options for #5
    • 8 shown on diagram
    $0.4
  • 5

    BOLT, SCREW obs

    • Part No. 84612-1823-0
    • Compatibility New repl old
    • M6X16
    • * multiple options for #5
    • 8 shown on diagram
    $0.79
  • 6

    WASHER

    • Part No. T2555-58571
    • 8 shown on diagram
    $1.79
  • 7 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 8 shown on diagram
    $0.67
  • 8 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
    $1.19
