CONTROL LEVER, LH GROUP - T2555-G416

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

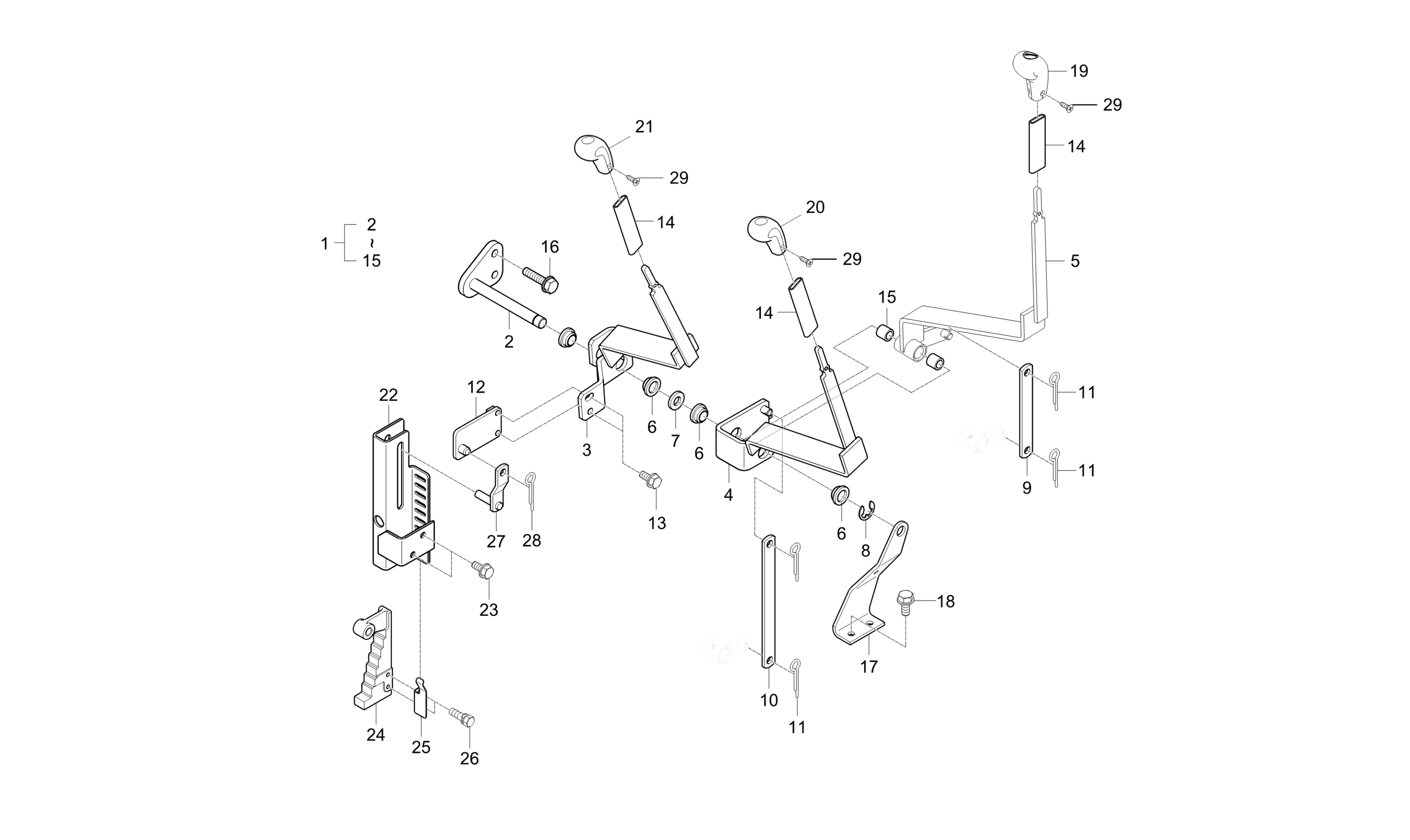

Diagram for CONTROL LEVER, LH GROUP - T2555-G416
  • 1

    LEVER ASSY, LH

    • Part No. T2555-60606
    • 1 shown on diagram
    $284.99
  • 2

    SHAFT LEVER, SUB SHIFT

    • Part No. T2555-60661
    • 1 shown on diagram
    $35.99
  • 3

    LEVER, MOWER DECK HEIGHT

    • Part No. T2555-60675
    • 1 shown on diagram
    $61.99
  • 4

    LEVER, PTO SELECT

    • Part No. T2555-60773
    • 1 shown on diagram
    $68.99
  • 5

    LEVER, RANGE

    • Part No. T2555-60434
    • 1 shown on diagram
    $63.99
  • 6

    BUSH

    • Part No. T2555-60751
    • 4 shown on diagram
    $4.49
  • 7 Flat Washer M14

    Flat Washer M14

    • Part No. 04011-50140
    • M14
    • 1 shown on diagram
    $1.19
  • 8 RING,SNAP

    RING,SNAP

    • Part No. 04613-50120
    • 1 shown on diagram
    $0.55
  • 9

    PLATE, SUB SHIFT

    • Part No. T2555-60422
    • 1 shown on diagram
    $5.49
  • 10

    PLATE, PTO SELECT

    • Part No. T2555-60781
    • 1 shown on diagram
    $7.49
  • 11 Hair Pin

    Hair Pin

    • Part No. 05515-51200
    • DIA12
    • 2 shown on diagram
    $1.49
  • 12

    PLATE, MOWER DECK

    • Part No. T2555-60681
    • 1 shown on diagram
    $15.99
  • 13 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 14

    TUBE, VINYL

    • Part No. T2555-60541
    • 3 shown on diagram
    $6.49
  • 15

    BUSH

    • Part No. 08511-01515
    • MB1515DU
    • 2 shown on diagram
    $6.99
  • 16 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 17

    GUIDE, RANGE

    • Part No. T2555-60651
    • 1 shown on diagram
    $19.99
  • 18 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
    $1.19
  • 19

    GRIP-RANGE

    • Part No. TB26-0202A
    • 1 shown on diagram
    $15.99
  • 20

    GRIP-PTO

    • Part No. TB26-0200A
    • 1 shown on diagram
    $15.99
  • 21

    GRIP-MOWER

    • Part No. TB26-0201A
    • 1 shown on diagram
    $15.99
  • 22

    BRACKET, MOWER DECK

    • Part No. T2555-60711
    • 1 shown on diagram
    $48.99
  • 23 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 24

    ARM, MOWER DECK

    • Part No. T2555-60632
    • 1 shown on diagram
    $82.99
  • 25 PLATE SPRING, MOWER DECK

    PLATE SPRING, MOWER DECK

    • Part No. T2555-60741
    • 1 shown on diagram
    $7.49
  • 26

    WASHER BOLT

    • Part No. 01025-50612
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 27

    LEVER 2, MOWER DECK

    • Part No. T2555-60721
    • 1 shown on diagram
    $9.99
  • 28 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 3 shown on diagram
    $.46
  • 29

    BOLT,SCREW

    • Part No. 03024-50512
    • M5XP0.8
    • 3 shown on diagram
    $0.68
