AIR CLEANER GROUP(3C100) - TB3-G611002

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

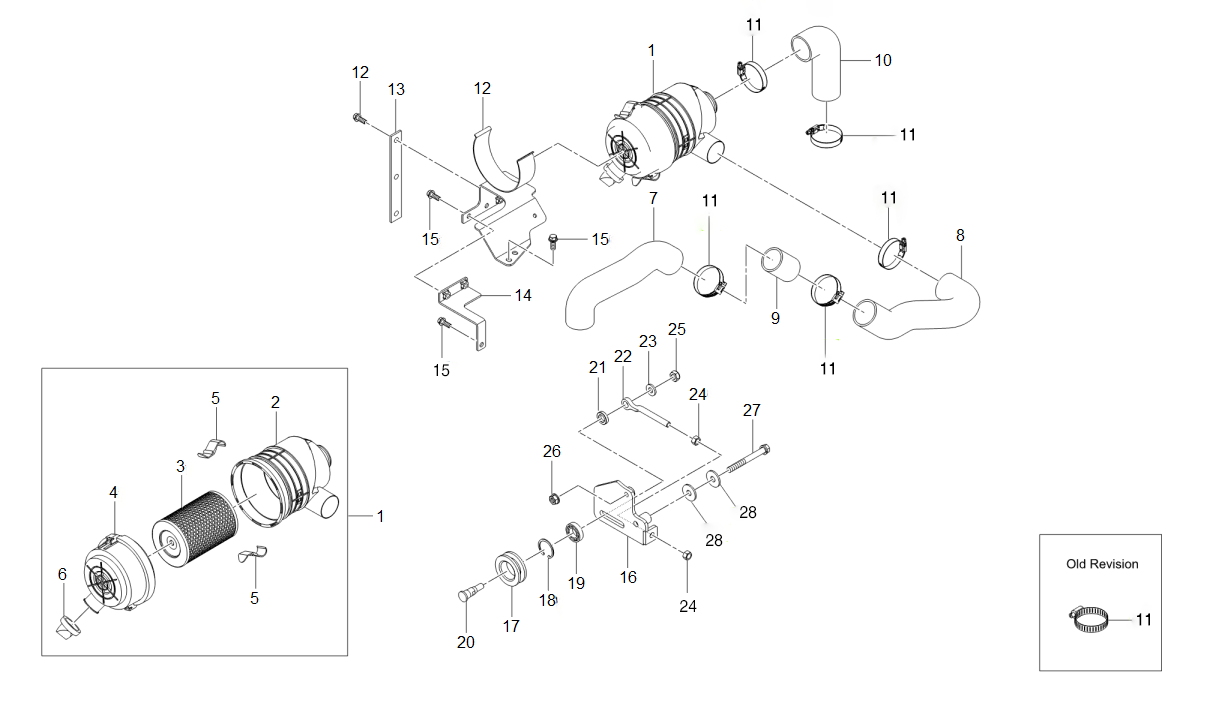

Diagram for AIR CLEANER GROUP(3C100) - TB3-G611002
  • 1

    AIR CLEANER ASS’Y

    • Part No. U3210-73102
    • 1 shown on diagram
    $124.99
  • 2

    BODY

    • Part No. U3210-73111
    • 1 shown on diagram
    $39.99
  • 3 AIR FILTER ELEMENT CS-20 series, K9

    AIR FILTER ELEMENT CS-20 series, K9

    • Part No. U3210-73121
    • 1 shown on diagram
    $29.99
  • 4

    COVER

    • Part No. U3210-73131
    • 1 shown on diagram
    $29.99
  • 5

    CLAMP

    • Part No. U3210-73141
    • 2 shown on diagram
    $4.49
  • 6 VACUATE, VALVE

    VACUATE, VALVE

    • Part No. U3210-73151
    • 1 shown on diagram
    $11.99
  • 7

    HOSE, SUCTION

    • Part No. TB36-0577A
    • OD 51 / ID 44
    • 1 shown on diagram
    $27.99
  • 8

    HOSE, SUCTION-INLET

    • Part No. TB36-0888A
    • OD 51 / ID 44
    • 1 shown on diagram
    $74.99
  • 9

    PIPE, CONNECTING

    • Part No. TB36-0959A
    • OD 42.7 / ID 39.5
    • 1 shown on diagram
    $13.99
  • 10

    HOSE, SUCTION

    • Part No. TB36-0889A
    • OD 51 / ID 44
    • 1 shown on diagram
    $59.99
  • 11

    HOSE CLAMP

    • Part No. 09318-87057
    • DIA33~57
    • * multiple options for #11
    • 5 shown on diagram
    $3.49
  • 11

    HOSECLAMP

    • Part No. F6800-91812
    • Compatibility Interchngable
    • * multiple options for #11
    • 5 shown on diagram
    $7.99
  • 12

    SUPPORT, AIR CLEANER

    • Part No. TB36-0890A
    • 1 shown on diagram
    $56.99
  • 13

    COLLAR

    • Part No. TB36-0893A
    • T4.5
    • 1 shown on diagram
    $6.99
  • 14

    PLATE, CONNECTING

    • Part No. TB36-0922A
    • 1 shown on diagram
    $28.99
  • 15 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 6 shown on diagram
    $1.09
  • 16

    PLATE, SUPPORT BEARING-FULLY

    • Part No. TB36-0924A
    • 1 shown on diagram
    $77.99
  • 17

    BODY, TENSION PULLEY

    • Part No. TB36-0930A
    • 1 shown on diagram
    $35.99
  • 18 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00350
    • DIA35
    • 1 shown on diagram
    $1.39
  • 19 BEARING, BALL

    BEARING, BALL

    • Part No. E7310-76191
    • 1 shown on diagram
    $15.99
  • 20 SHAFT, PULLEY

    SHAFT, PULLEY

    • Part No. E7300-05304
    • 1 shown on diagram
    $17.99
  • 21

    COLLAR

    • Part No. 76KB-0511
    • DIA25*10
    • 1 shown on diagram
    $4.99
  • 22

    BOLT, TENSION dnr v

    • Part No. E7310-76161
    • 1 shown on diagram
    $22.99
  • 23

    WASHER

    • Part No. 76KB-0512
    • 10.5*22*T3.2
    • 1 shown on diagram
    $2.49
  • 24 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 25

    NUT, REMOVE CHECK V

    • Part No. 41182-5151-1
    • DIA10
    • 1 shown on diagram
    $1.49
  • 26 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 27

    BOLT

    • Part No. 01133-51090
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 28

    Flat Washer M10

    • Part No. 04015-50100
    • M10
    • * multiple options for #28
    • 2 shown on diagram
    $1.09
  • 28

    WASHER, PLAIN

    • Part No. TB36-1185A
    • Compatibility New repl old
    • T2.9
    • * multiple options for #28
    • 2 shown on diagram
    $1.19
