HST PEDAL GROUP - TB2-G647502

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

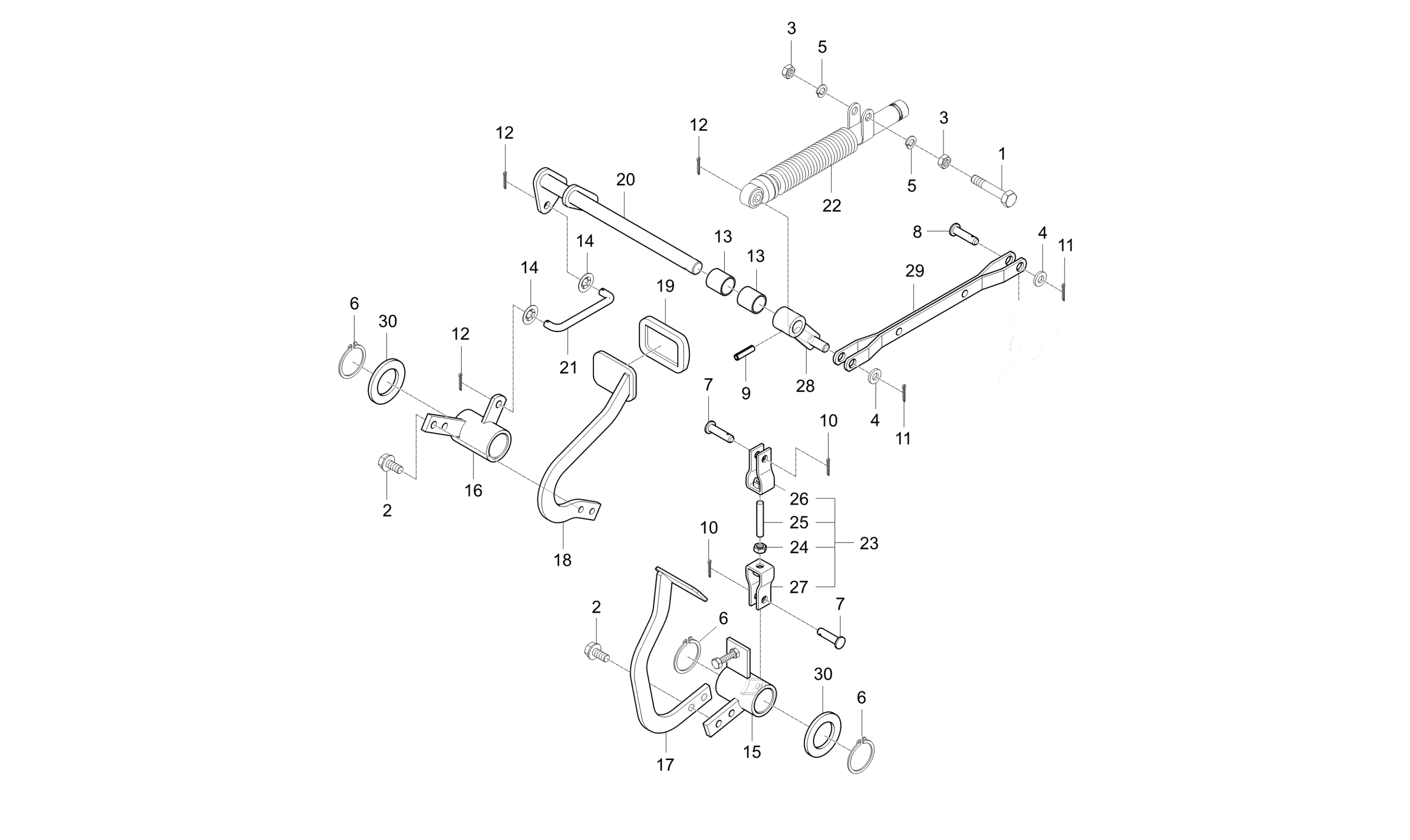

Diagram for HST PEDAL GROUP - TB2-G647502
  • 1

    Bolt, M8 P1.25 x 65mm

    • Part No. 01153-50865
    • 1 shown on diagram
    $1.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 3 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $.85
  • 4

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 2 shown on diagram
    $.67
  • 5 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $.61
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 3 shown on diagram
    $1.09
  • 7

    Pin, Joint M8x20mm

    • Part No. 05122-50820
    • 2 shown on diagram
    $2.49
  • 8

    Pin, Joint M10x22mm

    • Part No. 05122-51022
    • 1 shown on diagram
    $3.49
  • 9 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00625
    • DIA6.4XL25
    • 1 shown on diagram
    $1.09
  • 10

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 2 shown on diagram
    $0.56
  • 11

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 2 shown on diagram
    $0.68
  • 12

    PIN,SPLIT

    • Part No. 05511-52525
    • 3 shown on diagram
    $0.34
  • 13

    BUSH

    • Part No. 08511-01515
    • MB1515DU
    • 2 shown on diagram
    $6.99

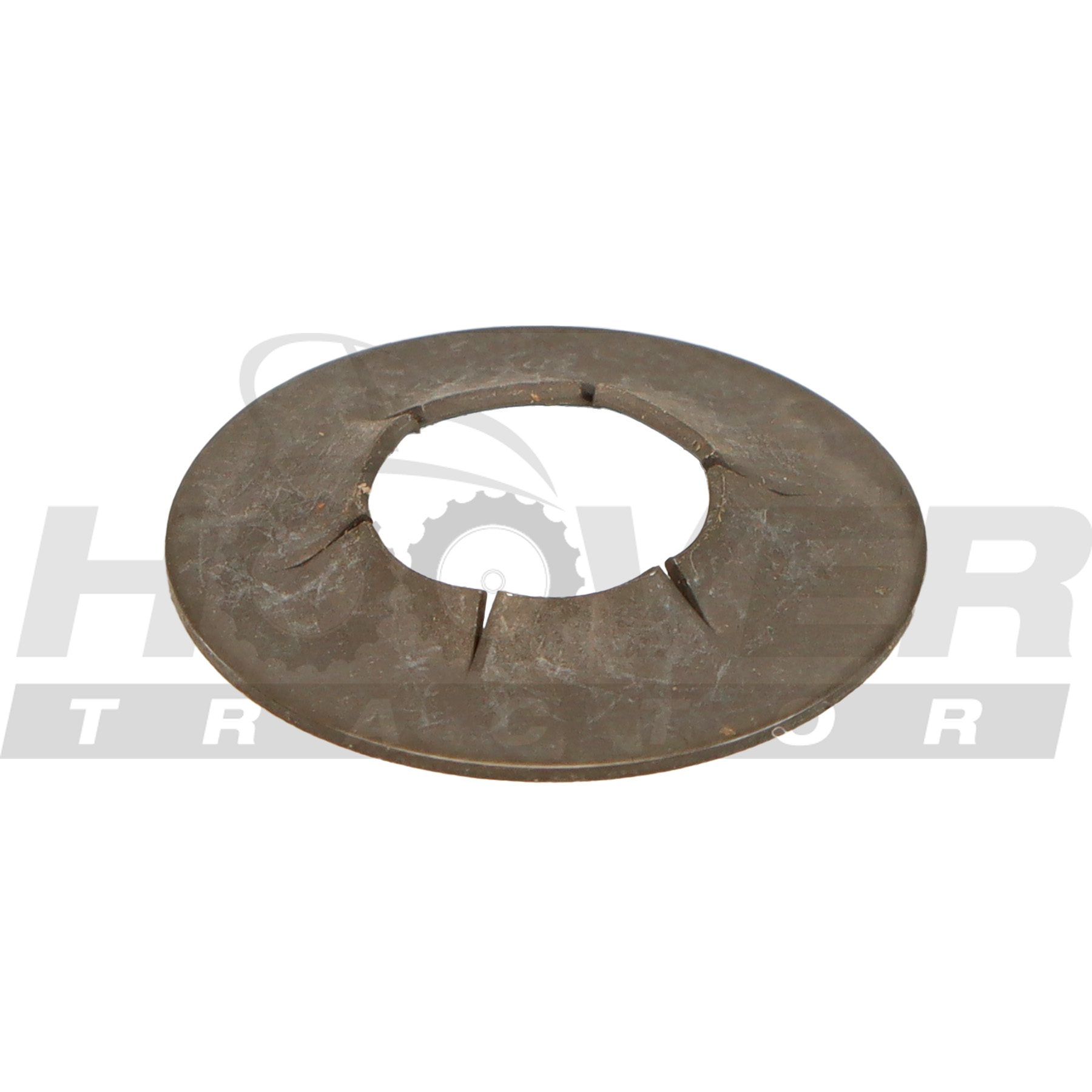

  • 14 NUT, PUSH 8 v

    NUT, PUSH 8 v

    • Part No. 52300-2622-1
    • T0.5
    • 2 shown on diagram
    $1.39
  • 15

    ARM ASSY

    • Part No. T2555-31041
    • 1 shown on diagram
    $77.99
  • 16

    ARM ASSY

    • Part No. T2555-31051
    • 1 shown on diagram
    $65.99
  • 17

    HST PEDAL, FORWARD

    • Part No. T2555-31112
    • 1 shown on diagram
    $47.99
  • 18

    HST PEDAL, BACKWARD

    • Part No. T2555-31121
    • 1 shown on diagram
    $46.99

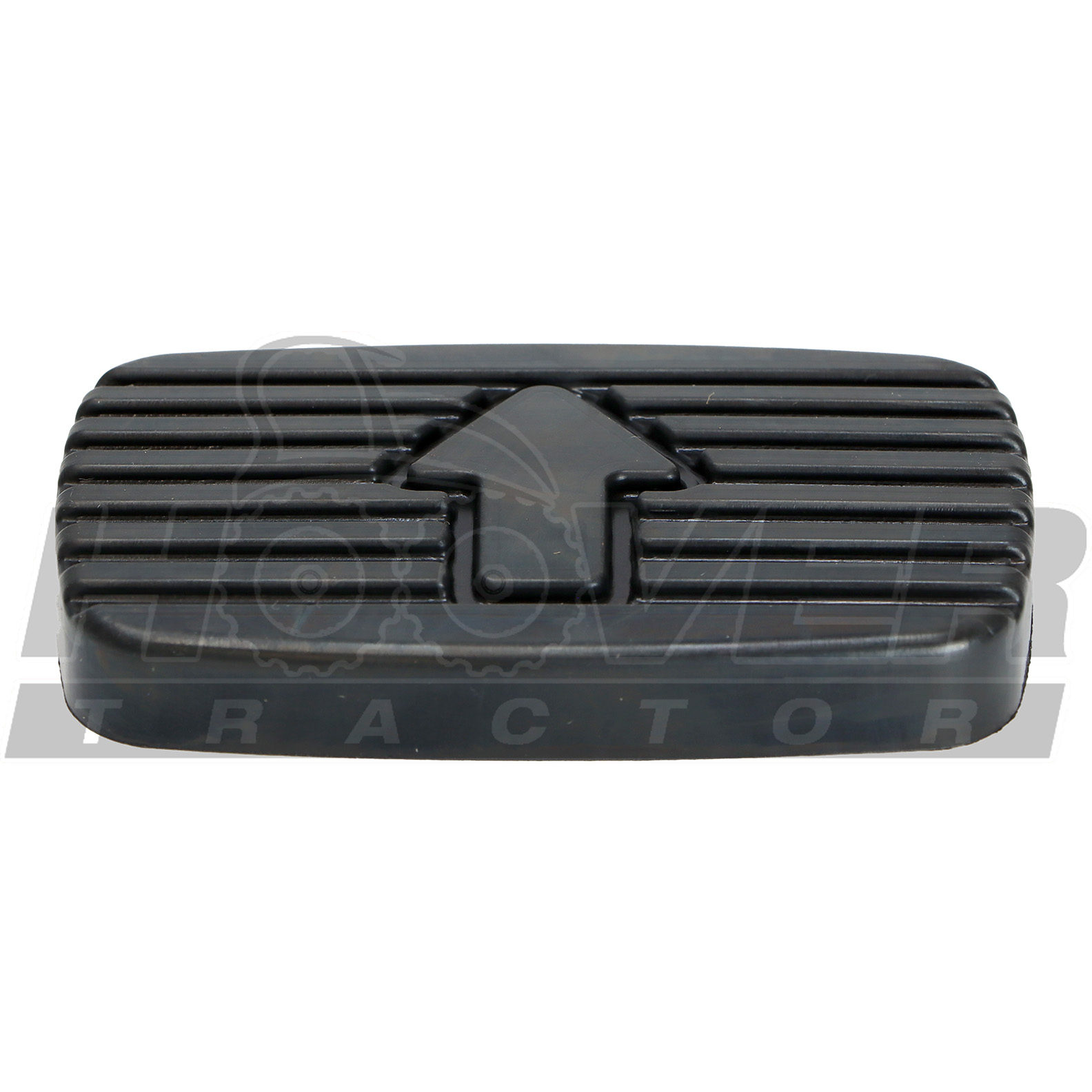

  • 19 RUBBER, PEDAL BLACK

    RUBBER, PEDAL BLACK

    • Part No. T2555-31132
    • 2 shown on diagram
    $11.99
  • 20

    SHAFT, BRAKE PEDAL-HST dnr v

    • Part No. T2555-32241
    • 1 shown on diagram
    $36.99
  • 21

    ROD, HST PEDAL

    • Part No. T2555-32251
    • 1 shown on diagram
    $7.49
  • 22

    DEMPER ASSY

    • Part No. TB34-0103A
    • 1 shown on diagram
    $114.99
  • 23

    ROD ASSY, HST

    • Part No. T2555-32541
    • 1 shown on diagram
    $25.99
  • 24 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $.85

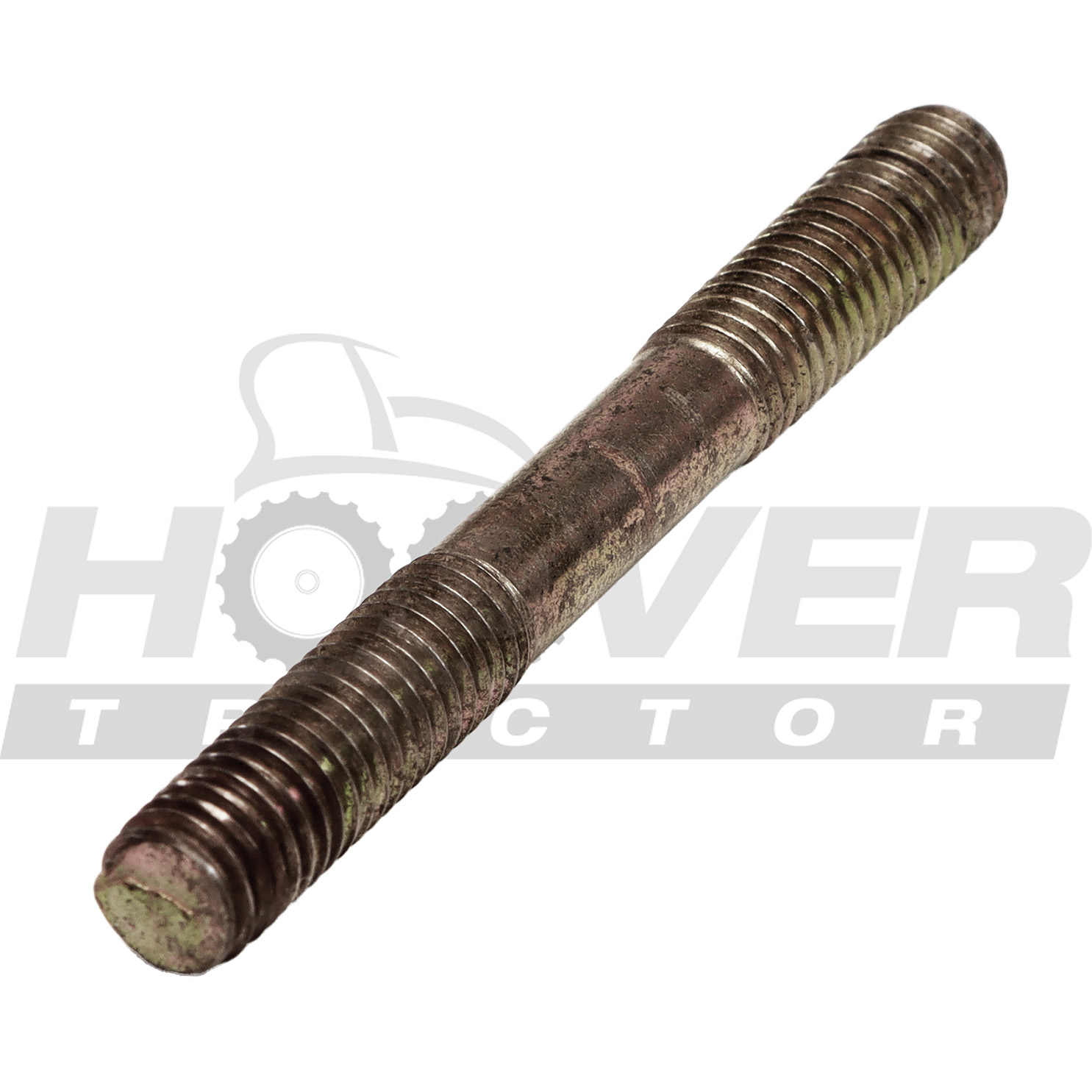

  • 25 CONNECTING ROD

    CONNECTING ROD

    • Part No. T2555-32551
    • 1 shown on diagram
    $7.99
  • 26

    FORK JOINT, LH M8 P1.25

    • Part No. T2555-32561
    • 1 shown on diagram
    $8.99

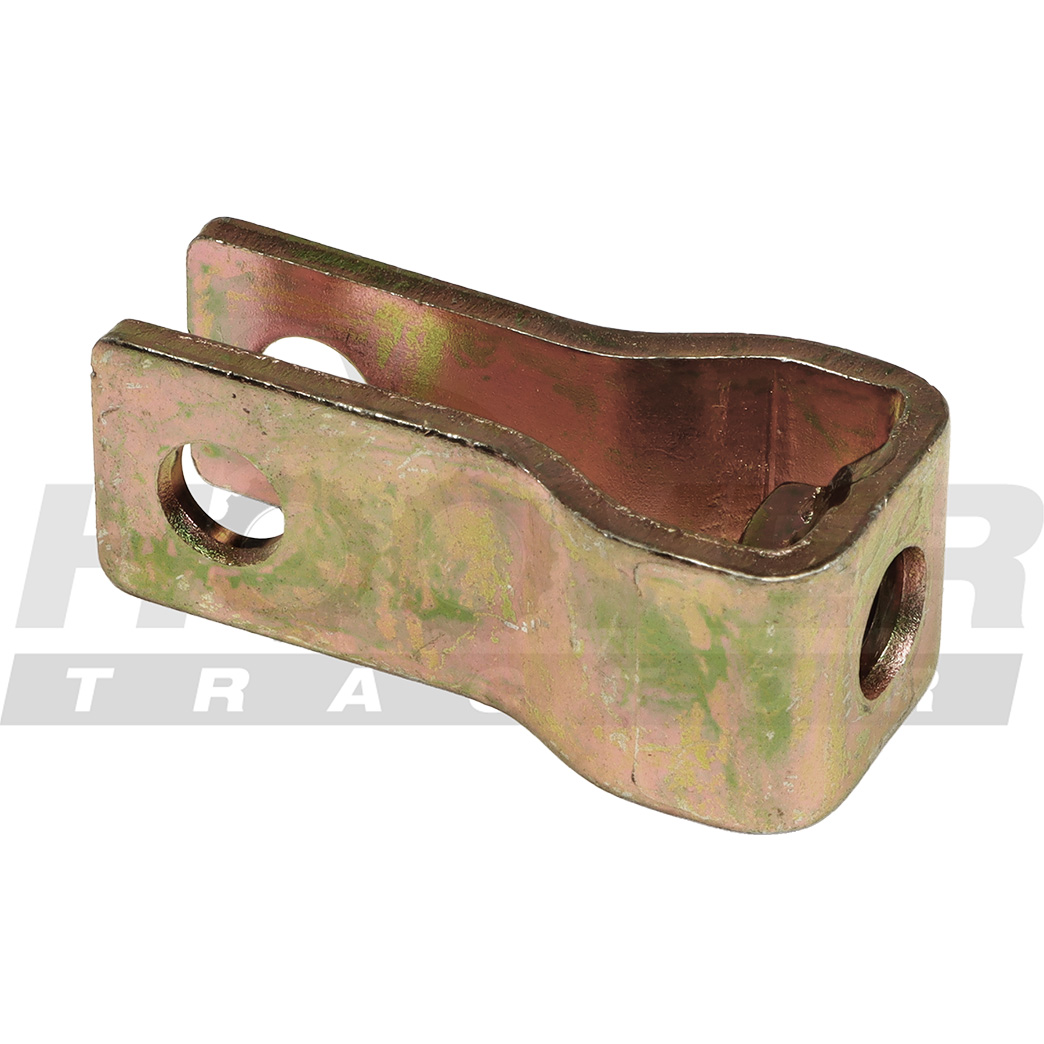

  • 27 FORK JOINT, RH M8 P1.25

    FORK JOINT, RH M8 P1.25

    • Part No. T2555-32571
    • 1 shown on diagram
    $8.99
  • 28

    ARM 3, HST

    • Part No. T2555-32641
    • 1 shown on diagram
    $32.99
  • 29

    SHIFT LINK, HST

    • Part No. T2555-32651
    • 1 shown on diagram
    $19.99
  • 30

    SPACER

    • Part No. T2555-66151
    • 2 shown on diagram
    $2.99
