FUEL TANK GROUP - TB2-G671001

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

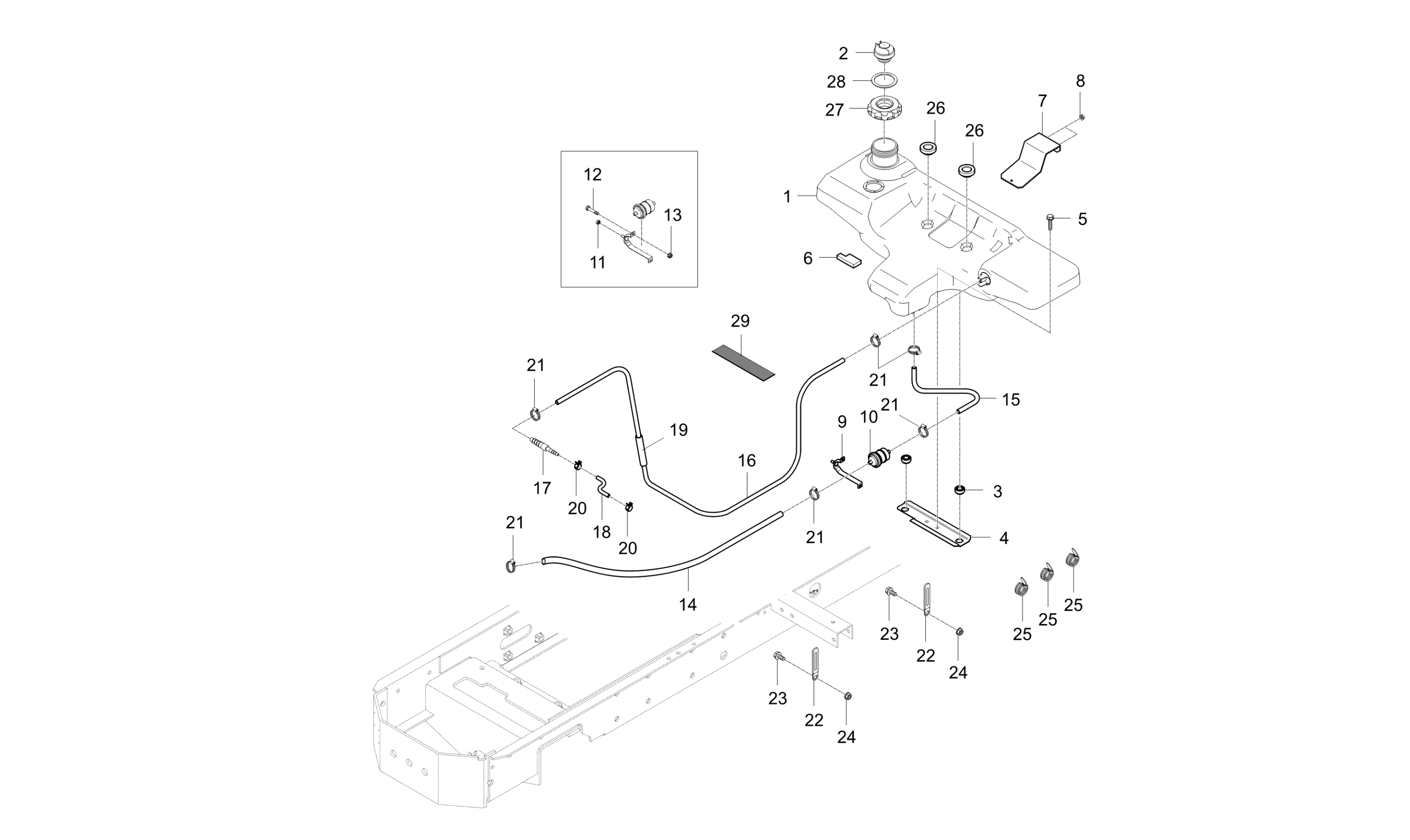

Diagram for FUEL TANK GROUP - TB2-G671001
  • 1

    Fuel Tank

    • Part No. T2555-55021
    • 1 shown on diagram
    $529.99
  • 2 Fuel Tank Cap

    Fuel Tank Cap

    • Part No. T2611-54825
    • 1 shown on diagram
    $43.99

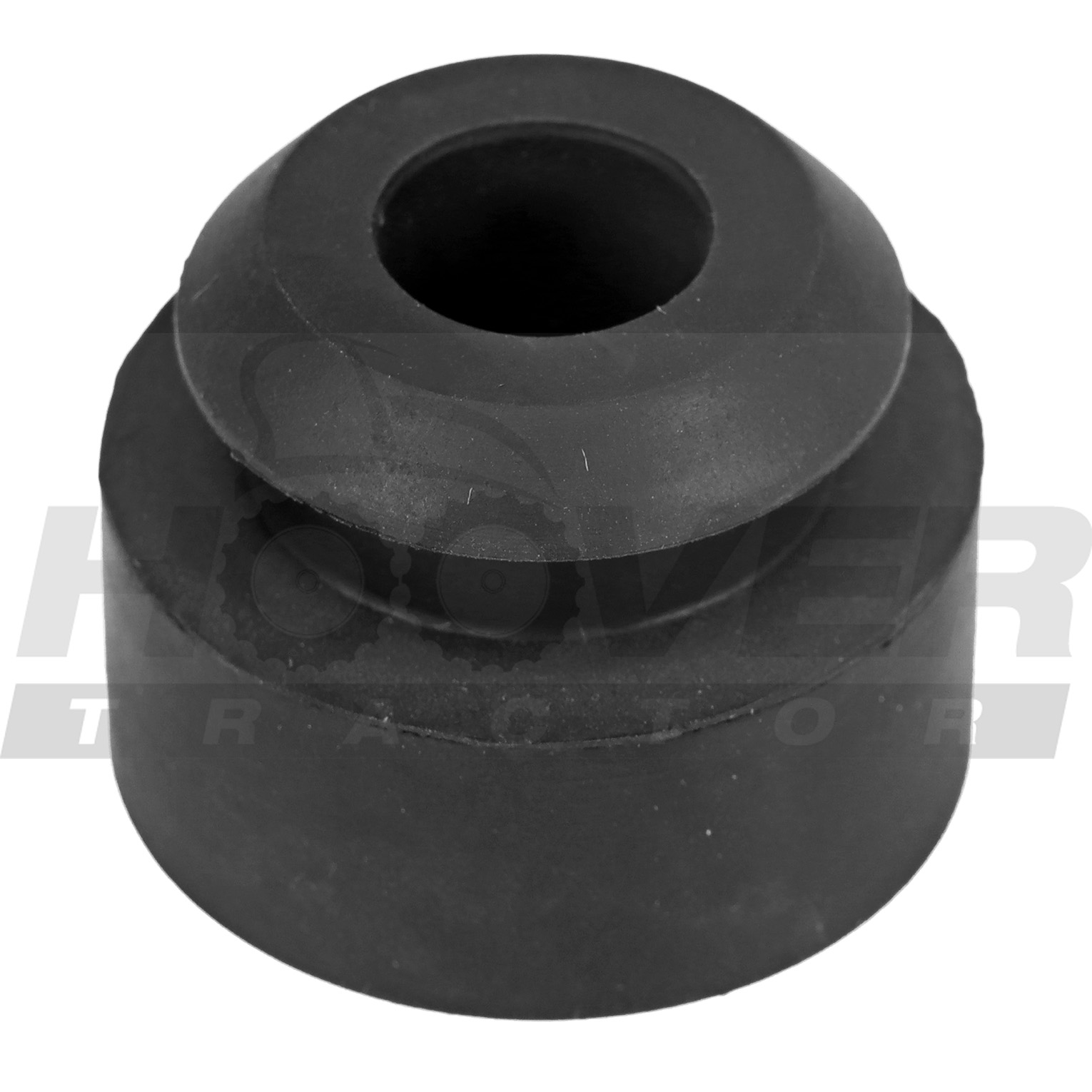

  • 3 RUBBER, CUSHION

    RUBBER, CUSHION

    • Part No. T2555-55241
    • 2 shown on diagram
    $7.49
  • 4

    PLATE 2, FUEL TANK HOLDER

    • Part No. T2555-55051
    • 1 shown on diagram
    $17.99
  • 5 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 6

    RUBBER, CUSHION

    • Part No. T2555-55251
    • 1 shown on diagram
    $7.49
  • 7

    PLATE1, FUEL TANK HOLDER

    • Part No. T2555-55042
    • 1 shown on diagram
    $34.99
  • 8 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 9

    PLATE, FUEL FILTER

    • Part No. T2555-55232
    • 1 shown on diagram
    $6.99
  • 10 Kioti Fuel Filter, CS & ZXD Series

    Kioti Fuel Filter, CS & ZXD Series

    • Part No. TB36-0988A
    • 1 shown on diagram
    $29.99
  • 11 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 12 Bolt, M6 P1.0x25

    Bolt, M6 P1.0x25

    • Part No. 01053-50625
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 13 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.67
  • 14

    HOSE, FUEL-IN-1

    • Part No. TB26-0311A
    • OD 14 / ID 8
    • 1 shown on diagram
    $49.99
  • 15

    HOSE, FUEL-IN-2

    • Part No. TB26-0312A
    • OD 14 / ID 8
    • 1 shown on diagram
    $21.99
  • 16

    HOSE 2, FUEL

    • Part No. T5710-50831
    • OD14XID8
    • 1 shown on diagram
    $65.99
  • 17

    TUBE, CONNECTING

    • Part No. T2555-55191
    • 1 shown on diagram
    $1.99
  • 18

    HOSE, FUEL

    • Part No. T2555-55291
    • 1 shown on diagram
    $9.49
  • 19

    COLGATE TUBE

    • Part No. T2555-59211
    • 1 shown on diagram
    $0.99
  • 20

    CLMAP, HOSE

    • Part No. 09318-88080
    • DIA8
    • 2 shown on diagram
    $0.53
  • 21

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • * multiple options for #21
    • 6 shown on diagram
    $2.49
  • 21

    BAND, HOSE

    • Part No. F6800-91851
    • Compatibility Interchngable
    • 12-22mm
    • * multiple options for #21
    • 6 shown on diagram
    $1.89
  • 22

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 2 shown on diagram
    $4.99
  • 23 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 24 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 25

    BAND, CORD

    • Part No. T2185-82561
    • L200
    • 3 shown on diagram
    $0.49
  • 26

    RUBBER, CUSHION

    • Part No. T2555-55211
    • 2 shown on diagram
    $9.99

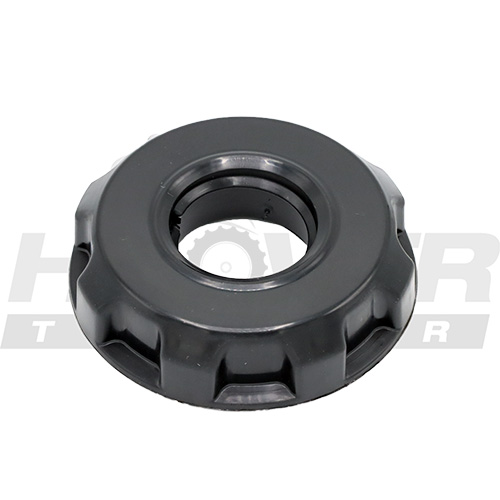

  • 27 CASE, JOINT

    CASE, JOINT

    • Part No. TB26-0184A
    • 1 shown on diagram
    $19.99

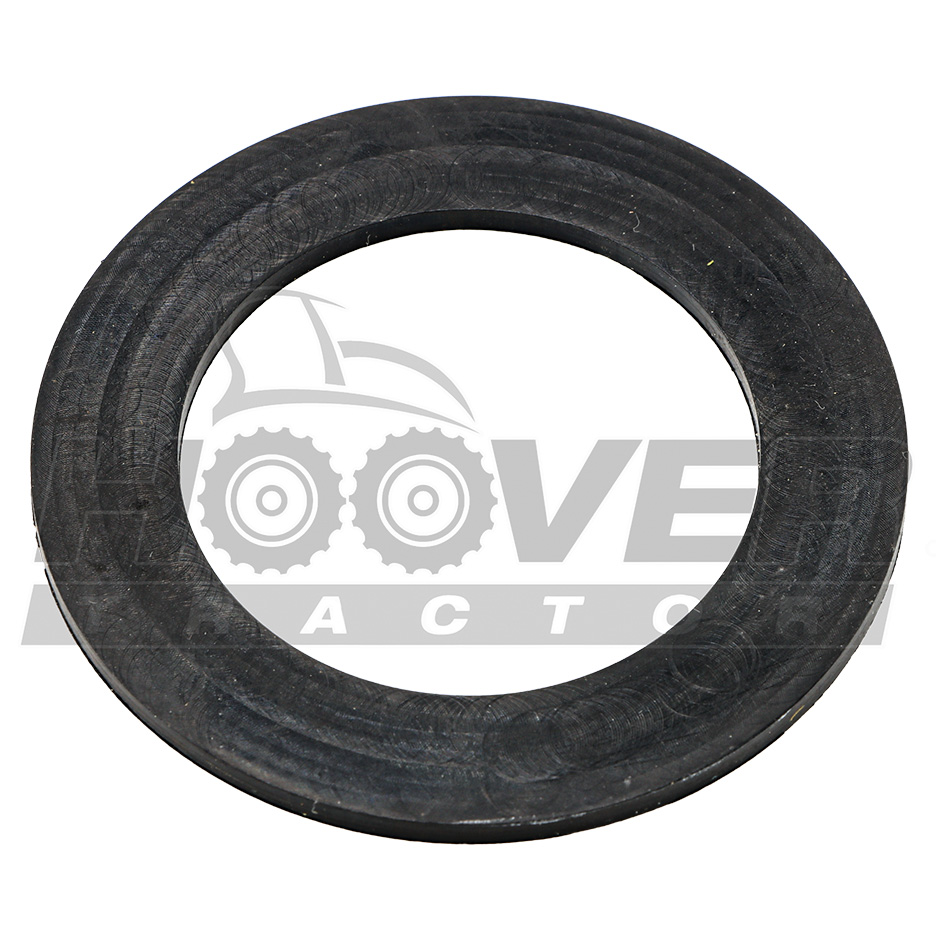

  • 28 PLATE, RUBBER 55x82x3.3mm

    PLATE, RUBBER 55x82x3.3mm

    • Part No. TB26-0186A
    • 1 shown on diagram
    $7.49
  • 29 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T2610-50271
    • 170x26x4T
    • 1 shown on diagram
    $5.99
