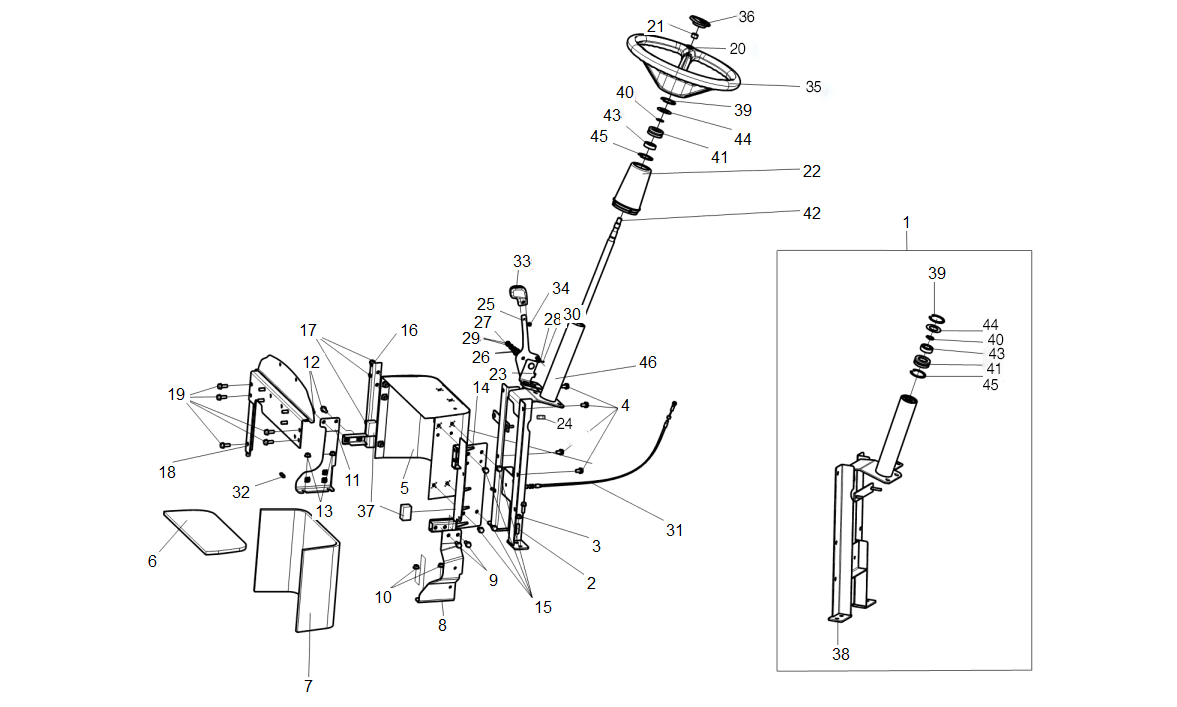

STEERING COLUMN GROUP(3C100) - TB2-G653003
Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)
-
Bolt With Washer, M8 P1.25 x 25mm
- Part No. 01123-50825
- M8XP1.25
- 2 shown on diagram
$1.99 -
STUD
- Part No. 01513-50820
- M8XP1.25
- 2 shown on diagram
$3.49 -
NUT, FLANGE
- Part No. 02763-50080
- M8XP1.25
- 2 shown on diagram
$0.85 -
BOLT, FLANGE
- Part No. 01754-50812
- M8XP1.25
- 4 shown on diagram
$1.79 -
PLATE, BLOCK
- Part No. TB36-0901A
- 1 shown on diagram
$72.99 -
SPONGE
- Part No. T2555-50841
- 1 shown on diagram
$35.99 -
SPONGE
- Part No. T2555-50851
- 1 shown on diagram
$75.99 -
SUPPORT, BONNET-LH
- Part No. TB36-0899B
- T4.5
- 1 shown on diagram
$29.99 -
FLANGE BOLT, HEX HEAD M8
- Part No. 01754-50820
- M8XP1.25
- 2 shown on diagram
$1.19 -
NUT, FLANGE
- Part No. 02763-50080
- M8XP1.25
- 2 shown on diagram
$0.85 -
SUPPORT, BONNET-RH
- Part No. TB36-0900B
- T4.5
- 1 shown on diagram
$36.99 -
FLANGE BOLT, HEX HEAD M8
- Part No. 01754-50820
- M8XP1.25
- 2 shown on diagram
$1.19 -
NUT, FLANGE
- Part No. 02763-50080
- M8XP1.25
- 2 shown on diagram
$0.85 -
PLATE, CONNECTING-LH
- Part No. TB36-0903A
- 1 shown on diagram
$98.99 -
BOLT, FLANGE
- Part No. 01754-50812
- M8XP1.25
- 4 shown on diagram
$1.79 -
SUPPORT, BONNET-RH
- Part No. TB36-0912A
- 1 shown on diagram
$53.99 -
BOLT, FLANGE
- Part No. 01754-50812
- M8XP1.25
- 3 shown on diagram
$1.79 -
BRACKET, BONNET
- Part No. TB36-0909A
- 1 shown on diagram
$71.99 -
FLANGE BOLT, HEX HEAD M8
- Part No. 01754-50820
- M8XP1.25
- 5 shown on diagram
$1.19 -
M12 Spring Washer (04512-50120)
- Part No. 04512-50120
- M12
- 1 shown on diagram
$0.95 -
NUT M12 P1.25
- Part No. 02176-50120
- M12XP1.25
- 1 shown on diagram
$1.49 -
COVER, STEERING
- Part No. T2555-55481
- 1 shown on diagram
$16.99 -
BRACKET, ACCEL
- Part No. T2555-67332
- 1 shown on diagram
$15.99 -
Kioti Flange Nut, M8 P1.25
- Part No. 02751-50080
- M8XP1.25
- 2 shown on diagram
$0.67 -

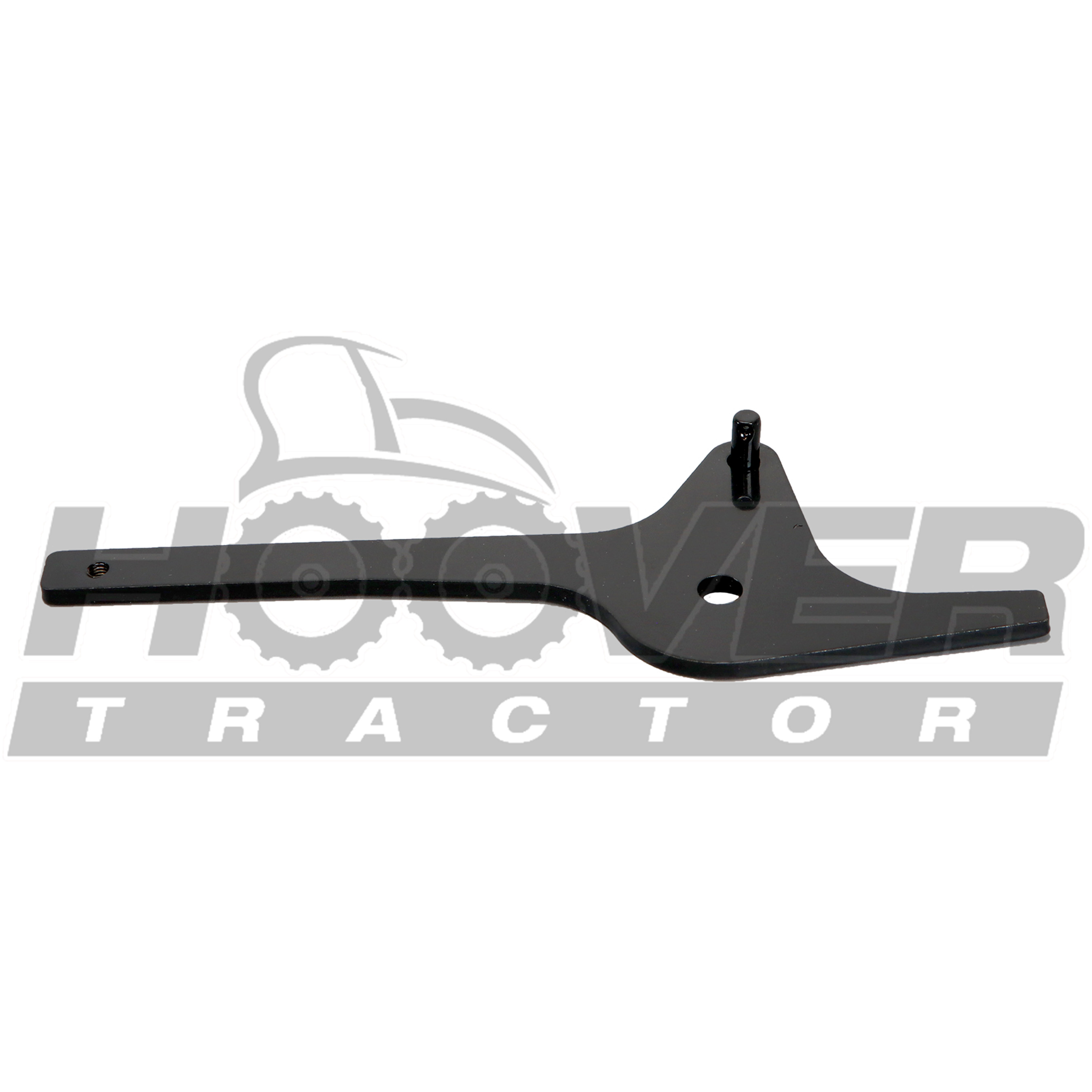

LEVER, HAND ACCEL dnr v
- Part No. TB36-0881A
- 1 shown on diagram
$32.99 -
SPRING WASHER
- Part No. T4668-83301
- 1.5Xø20
- 2 shown on diagram
$1.69 -
Flat Washer M8
- Part No. 04012-50080
- M8
- 1 shown on diagram
$.67 -
Flat Washer M6
- Part No. 04012-50060
- M6
- 1 shown on diagram
$0.67 -
Nut M8 P1.25
- Part No. 02156-50080
- M8XP1.25
- 2 shown on diagram
$.85 -
PIN,SPLIT
- Part No. 05511-51620
- DIA1.4XL20
- 1 shown on diagram
$0.5 -
CABLE, ACLTR
- Part No. TB26-0302A
- 1 shown on diagram
$44.99 -
Rubber Bushing
- Part No. T2555-67441
- 1 shown on diagram
$2.99 -

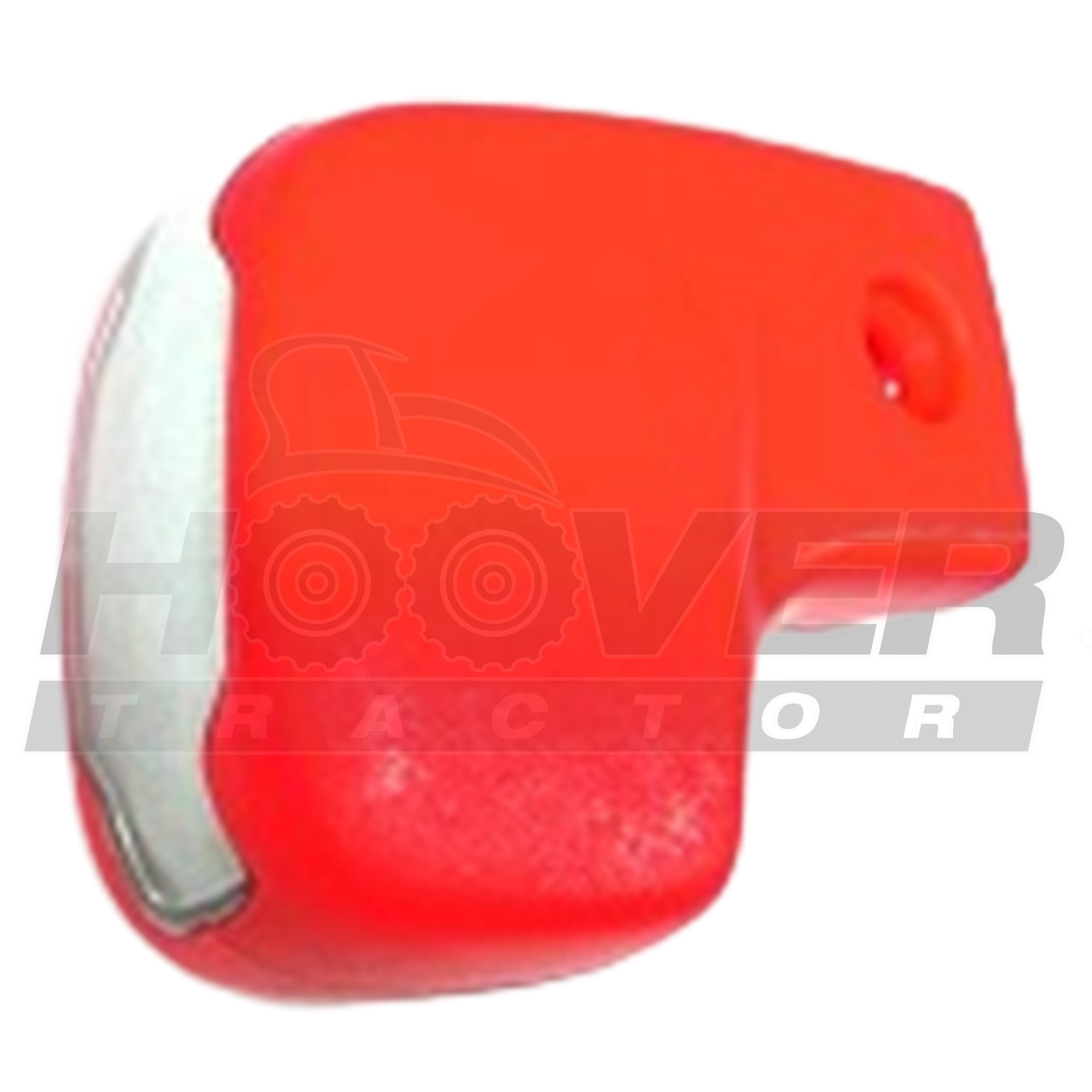

GRIP, HAND ACCEL
- Part No. T5210-67361
- 1 shown on diagram
$16.99 -

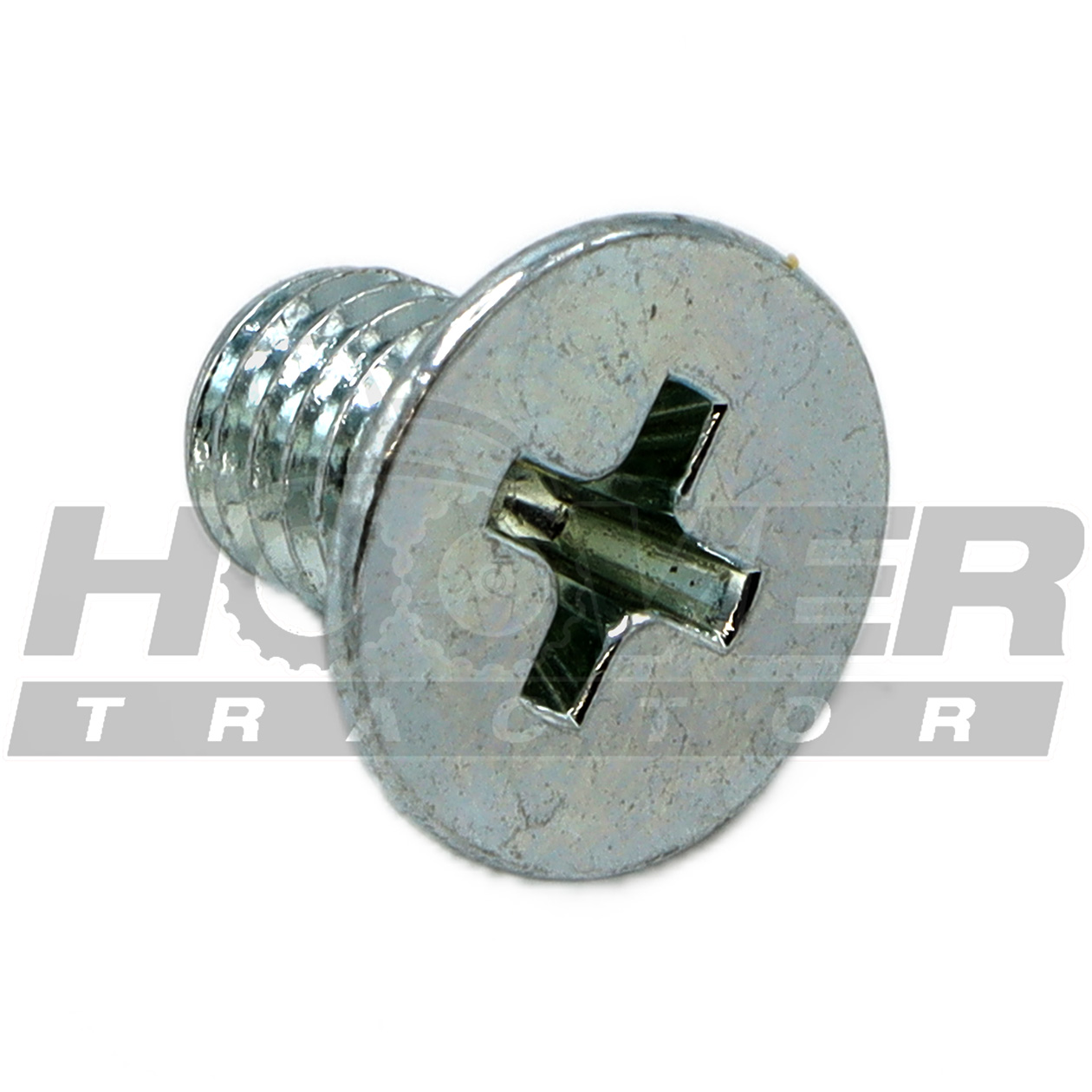

FLAT HEAD SCREW M5P0.8
- Part No. 03056-50508
- 1 shown on diagram
$0.68 -
Steering Wheel
- Part No. T2555-55462
- 1 shown on diagram
$129.99 -
CAP,HANDLE
- Part No. T5245-55461
- * multiple options for #36
- 1 shown on diagram
$39.99 -
CAP,HANDLE
- Part No. T5245-55462
- Compatibility New repl old
- * multiple options for #36
- 1 shown on diagram
$39.99 -
SPONGE
- Part No. TB26-0322A
- 2 shown on diagram
$6.49 -
ASSY COLUMN, STEERING-3C100
- Part No. TB26-0284A
- 1 shown on diagram
$.00 -
SNAP RING
- Part No. 04611-00420
- DIA42
- 1 shown on diagram
$1.99 -
CIR-CLIP
- Part No. 04612-00170
- DIA17
- 1 shown on diagram
$0.98 -
RUBBER, STEERING WHEEL
- Part No. T2555-66142
- 1 shown on diagram
$4.49 -
STEERING SHAFT v
- Part No. T2555-66133
- 1 shown on diagram
$79.99 -
BEARING,BALL
- Part No. 08141-06003
- DIA17
- 1 shown on diagram
$14.99 -
SPACER
- Part No. T2555-66151
- 1 shown on diagram
$2.99 -
SNAP RING
- Part No. 04611-00420
- DIA42
- 1 shown on diagram
$1.99 -
SUPPORT, FRAME INSTPN-3C100 TB200
- Part No. TB26-0301A
- 1 shown on diagram
$.00
