AIR CLEANER GROUP - TC2-G611018

Kioti TRACTOR | CK Series | CK3510HSEB

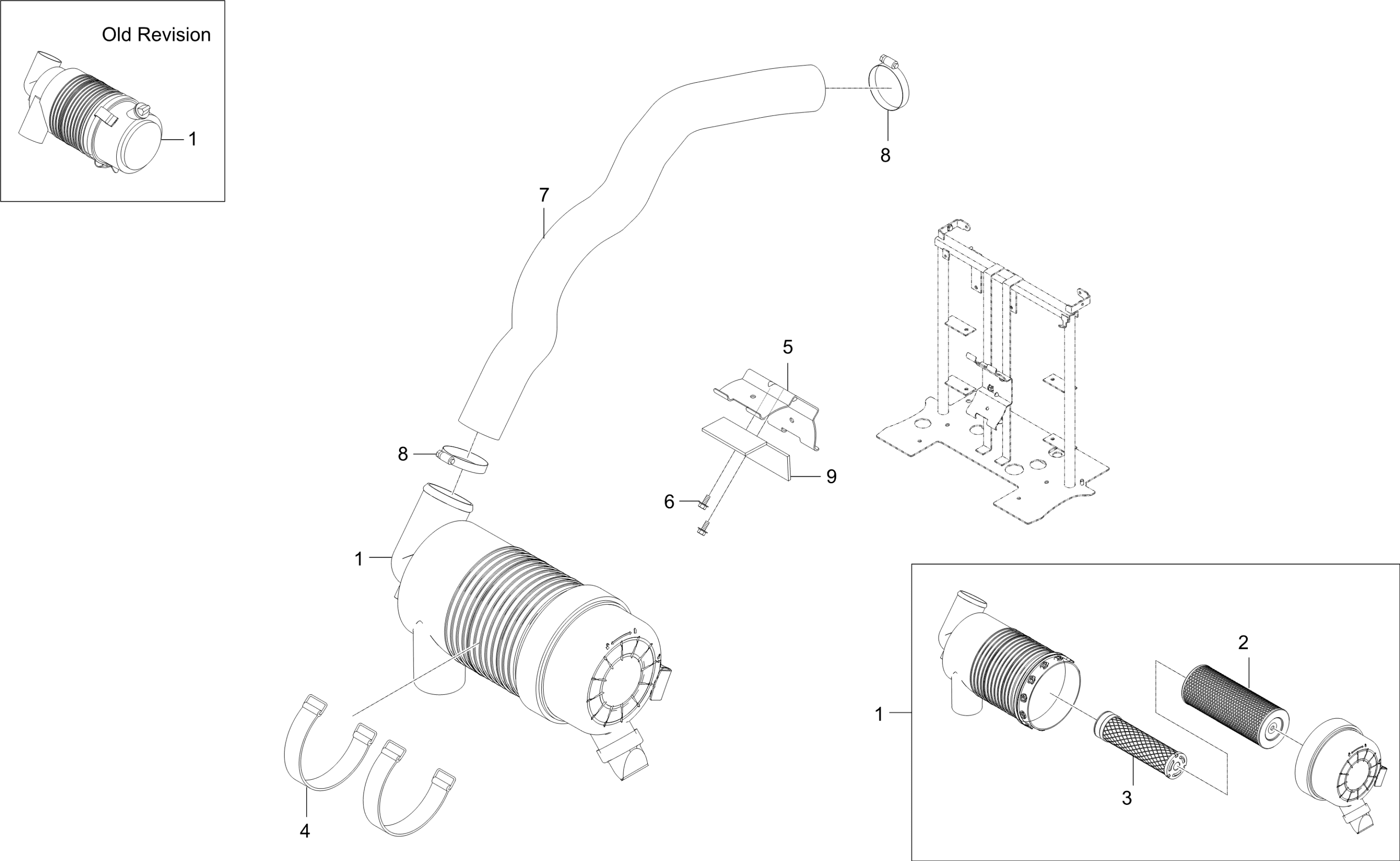

Diagram for AIR CLEANER GROUP - TC2-G611018
  • 1

    AIR CLEANER ASSY (5.5 IN, DUAL)

    • Part No. TC26-1866A
    • Serial No. XJJ800625 and up
    • 1 shown on diagram
    $244.99

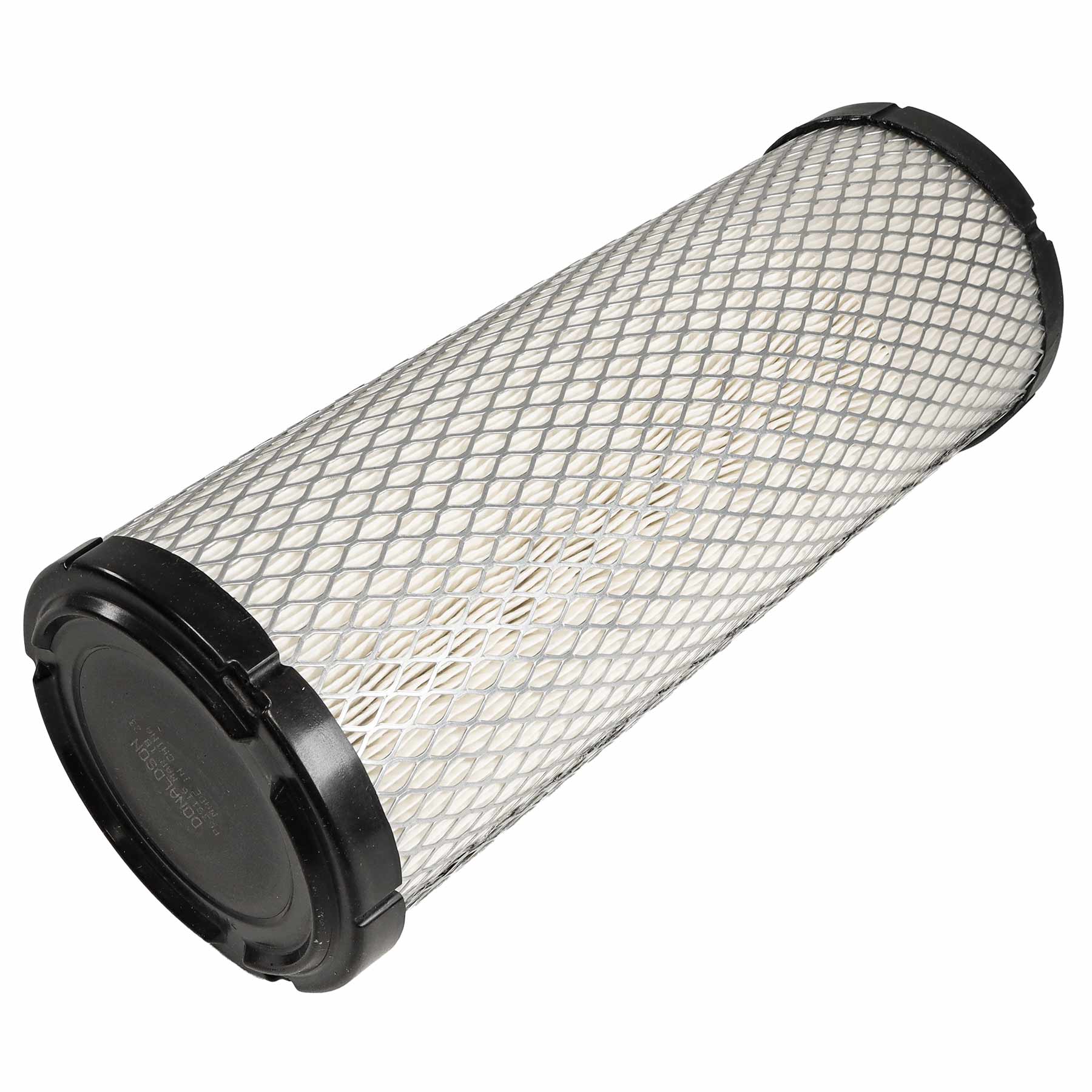

  • 2 Primary Air Filter (Orange tab) 4.5×12″ P639116

    Primary Air Filter (Orange tab) 4.5×12″ P639116

    • Part No. TC26-1869A
    • Serial No. XJJ800625 and up
    • 1 shown on diagram
    $74.99
  • 3 Secondary Air Filter (Orange tab) P639123

    Secondary Air Filter (Orange tab) P639123

    • Part No. TC26-1870A
    • Serial No. XJJ800625 and up
    • 1 shown on diagram
    $49.99

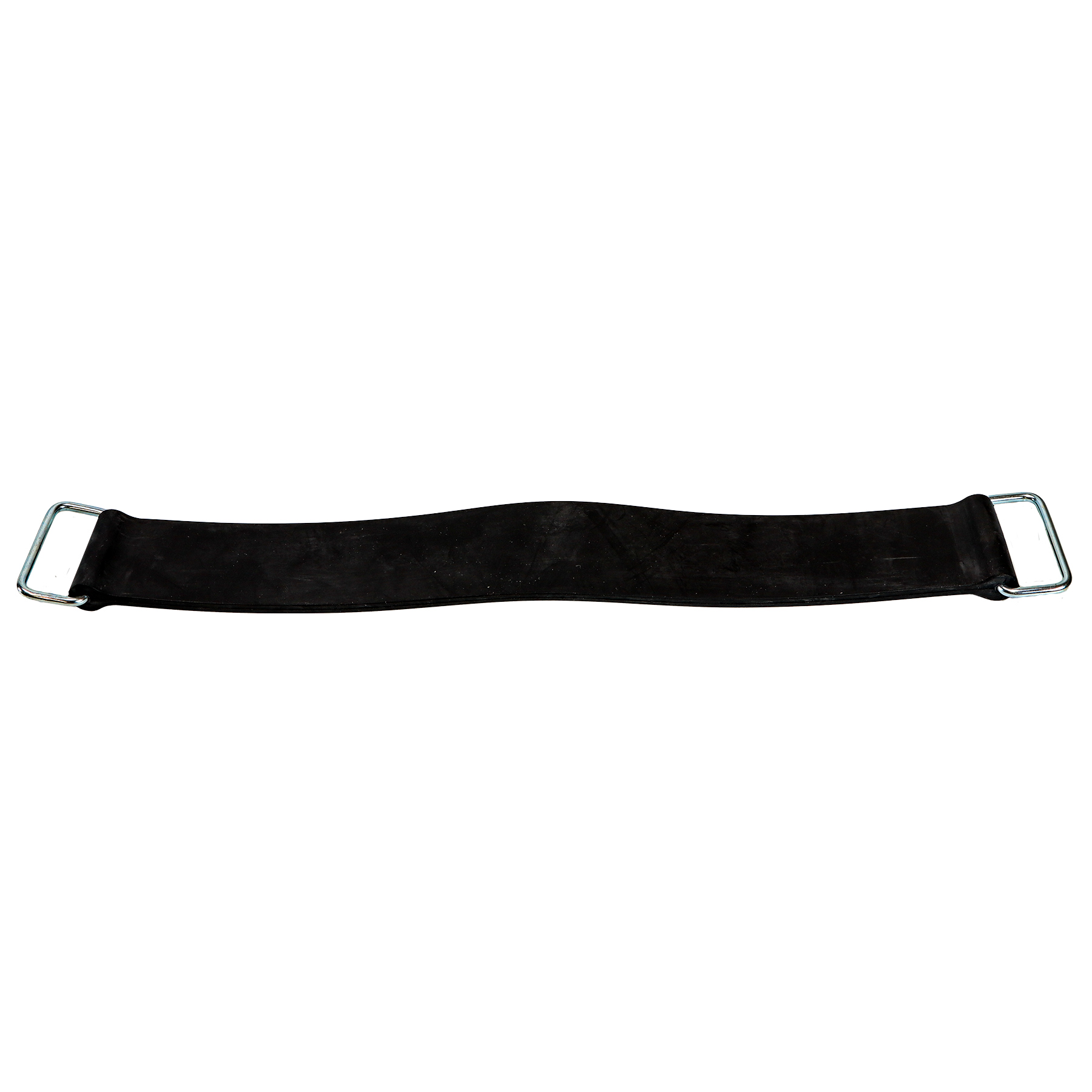

  • 4 BAND,AIR CLEANER

    BAND,AIR CLEANER

    • Part No. 38325-1398-1
    • 2 shown on diagram
    $15.99
  • 5
    • Part No. TC26-0447A
    • T2.3
    • 1 shown on diagram
  • 6 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 7

    HOSE, SUCTION

    • Part No. TC26-0414A
    • OD75 / ID63
    • 1 shown on diagram
    $114.99
  • 8

    ASSY, CLAMP v

    • Part No. KX97382-S51
    • DIA70 Stan76#
    • 2 shown on diagram
    $2.99
  • 9
    • Part No. TC26-1947A
    • 2 shown on diagram
