STEP SEAT FRAME GROUP(HST) - TC2-G633026

Kioti TRACTOR | CK Series | CK3510HSEB

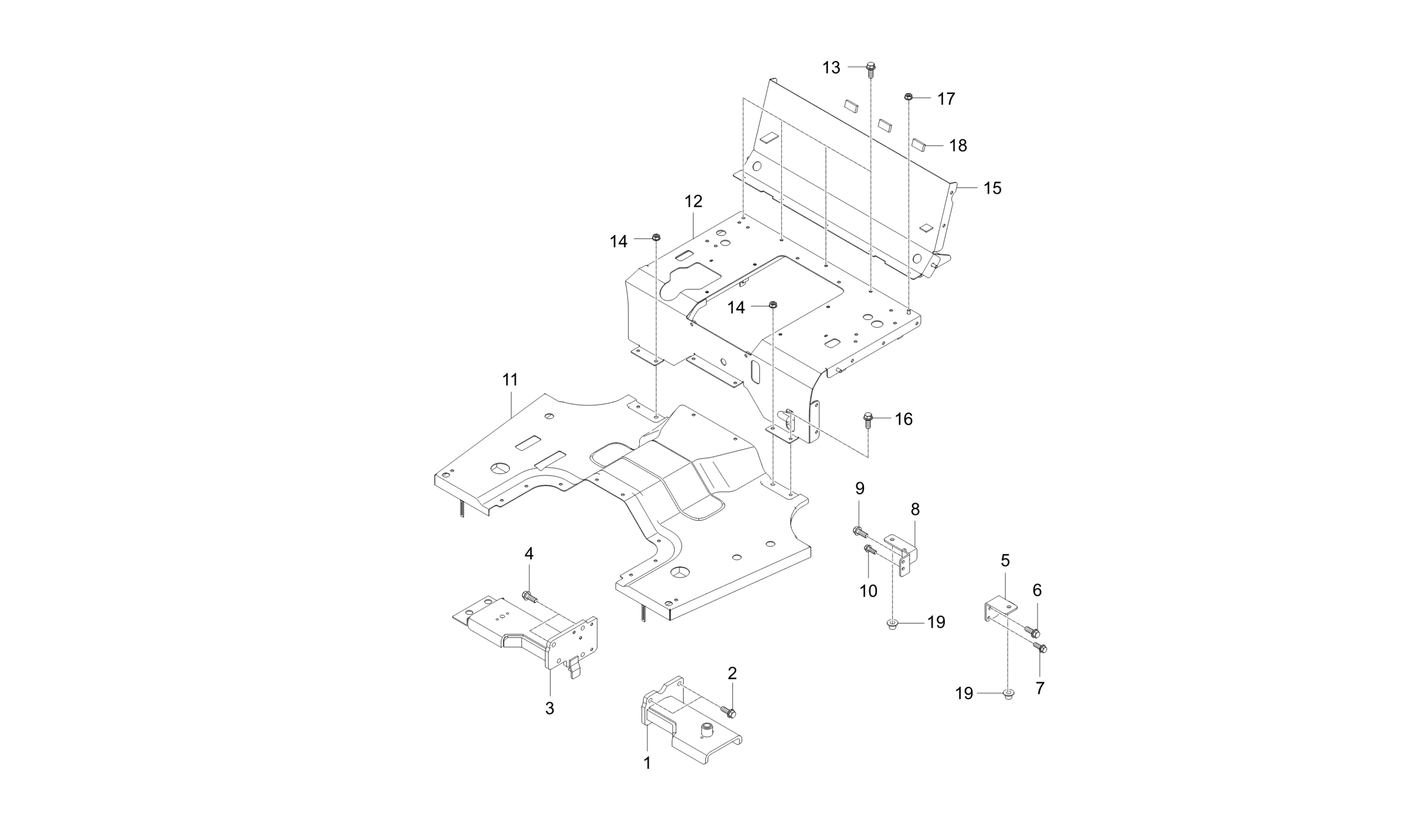

Diagram for STEP SEAT FRAME GROUP(HST) - TC2-G633026
  • 1

    SUPPORT, STEP-LH FR

    • Part No. TC26-0704C
    • 1 shown on diagram
    $214.99
  • 2
    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
  • 3
    • Part No. TC26-1029A
    • 1 shown on diagram
  • 4
    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
  • 5

    SUPPORT, STEP-MID LH

    • Part No. TC26-0716A
    • 1 shown on diagram
    $22.99
  • 6

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 7 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 8

    SUPPORT, STEP-MID RH

    • Part No. TC26-0798A
    • 1 shown on diagram
    $35.99
  • 9

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 10 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 11

    ASSY FLOOR-HST

    • Part No. TC26-0756C
    • Applied Dates Up to 2019-11-24
    • Serial No. Up to VJJ800808
    • * multiple options for #11
    • 1 shown on diagram
    $464.99
  • 11

    ASSY FLOOR-HST

    • Part No. TC26-0756COE
    • Compatibility New repl old
    • * multiple options for #11
    • 1 shown on diagram
    $464.99
  • 12

    PLATE, SEAT FLOOR-HST dnr v

    • Part No. TC26-0733D
    • Applied Dates Up to 2017-12-25
    • Serial No. Up to TJJ800088
    • * multiple options for #12
    • 1 shown on diagram
    $334.99
  • 12
    • Part No. TC26-0733E
    • Compatibility New repl old
    • Applied Dates 2017-12-26 and up
    • Serial No. TJJ800089 to WJJ800230
    • * multiple options for #12
    • 1 shown on diagram
  • 13 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 14

    NUT

    • Part No. 02771-50100
    • M10*1.25
    • 2 shown on diagram
    $0.73
  • 15

    PLATE, SEAT FLOOR-RR

    • Part No. TC26-1348A
    • 1 shown on diagram
    $179.99
  • 16 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 17
    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
  • 18

    SPONGE

    • Part No. TC26-0001A
    • Low Foam PU Foam
    • 3 shown on diagram
    $3.99
  • 19

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 2 shown on diagram
    $1.59
