BATTERY FIXING GROUP - TC2-G617002

Kioti TRACTOR | CK Series | CK3510HSEB

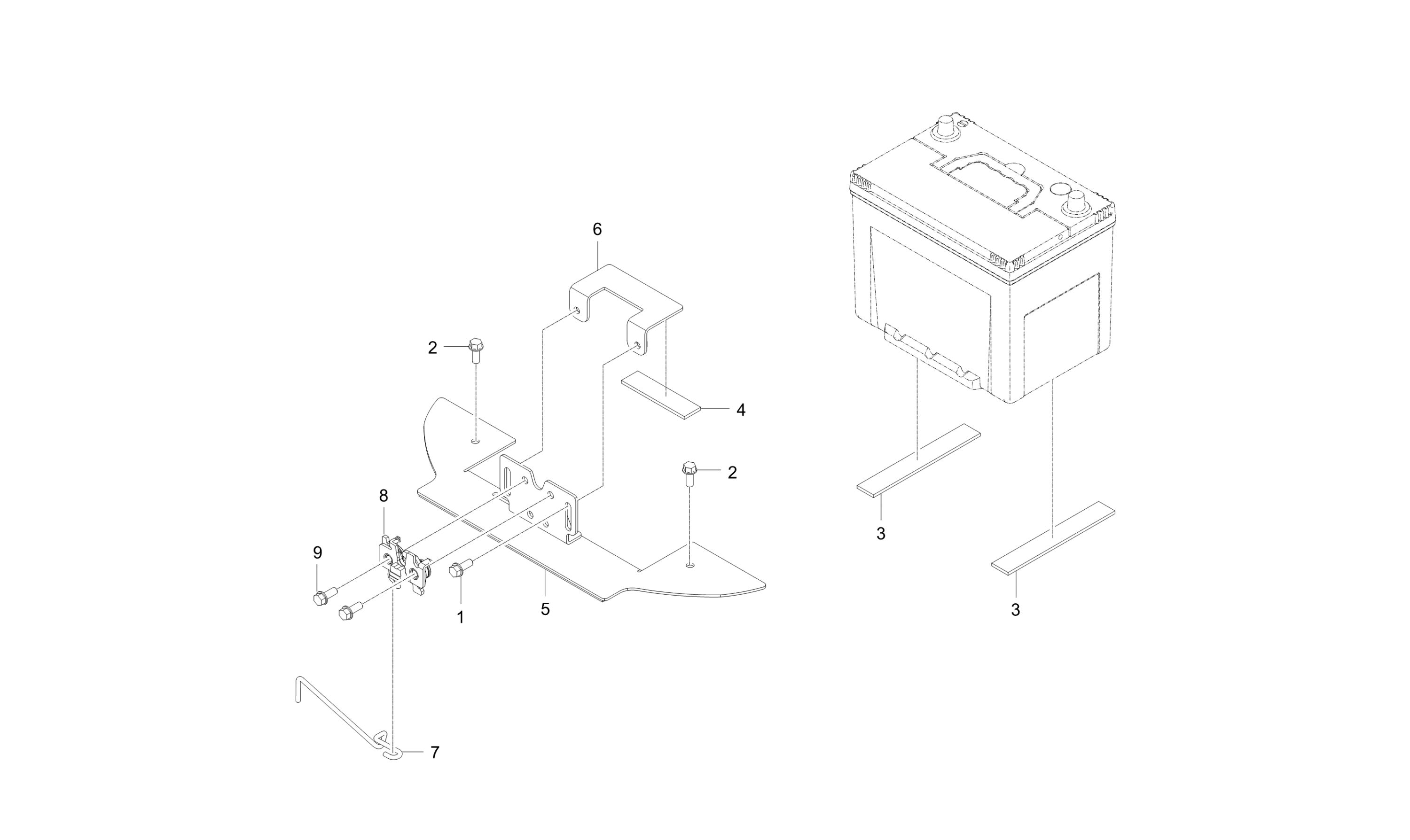

Diagram for BATTERY FIXING GROUP - TC2-G617002
  • 1 Bolt With Washers, M8 P1.25 x 20mm

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 2

    Bolt

    • Part No. T2185-70491
    • 2 shown on diagram
    $1.59
  • 3 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T2610-50271
    • 2 shown on diagram
    $5.99
  • 4

    RUBBER, CUSHION

    • Part No. T4157-50271
    • 1 shown on diagram
    $8.49
  • 5

    BRACKET, BATTERY FIXING dnr v

    • Part No. T5855-52014
    • 1 shown on diagram
    $129.99
  • 6

    BRACKET dnr v

    • Part No. T5855-52021
    • 1 shown on diagram
    $54.99
  • 7

    ROD

    • Part No. T5855-52032
    • DIA 5
    • * multiple options for #7
    • 1 shown on diagram
    $16.99
  • 7

    LATCH, ROD

    • Part No. T5855-52033
    • Compatibility New repl old
    • Serial No. XJJ800001 and up
    • DIA 5
    • * multiple options for #7
    • 1 shown on diagram
    $16.99
  • 8 HANDLE ASSY

    HANDLE ASSY

    • Part No. T4145-60582
    • 1 shown on diagram
    $66.99
  • 9 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
