RPM LINKED GROUP - TC2-G646901

Kioti TRACTOR | CK Series | CK3510HSEB

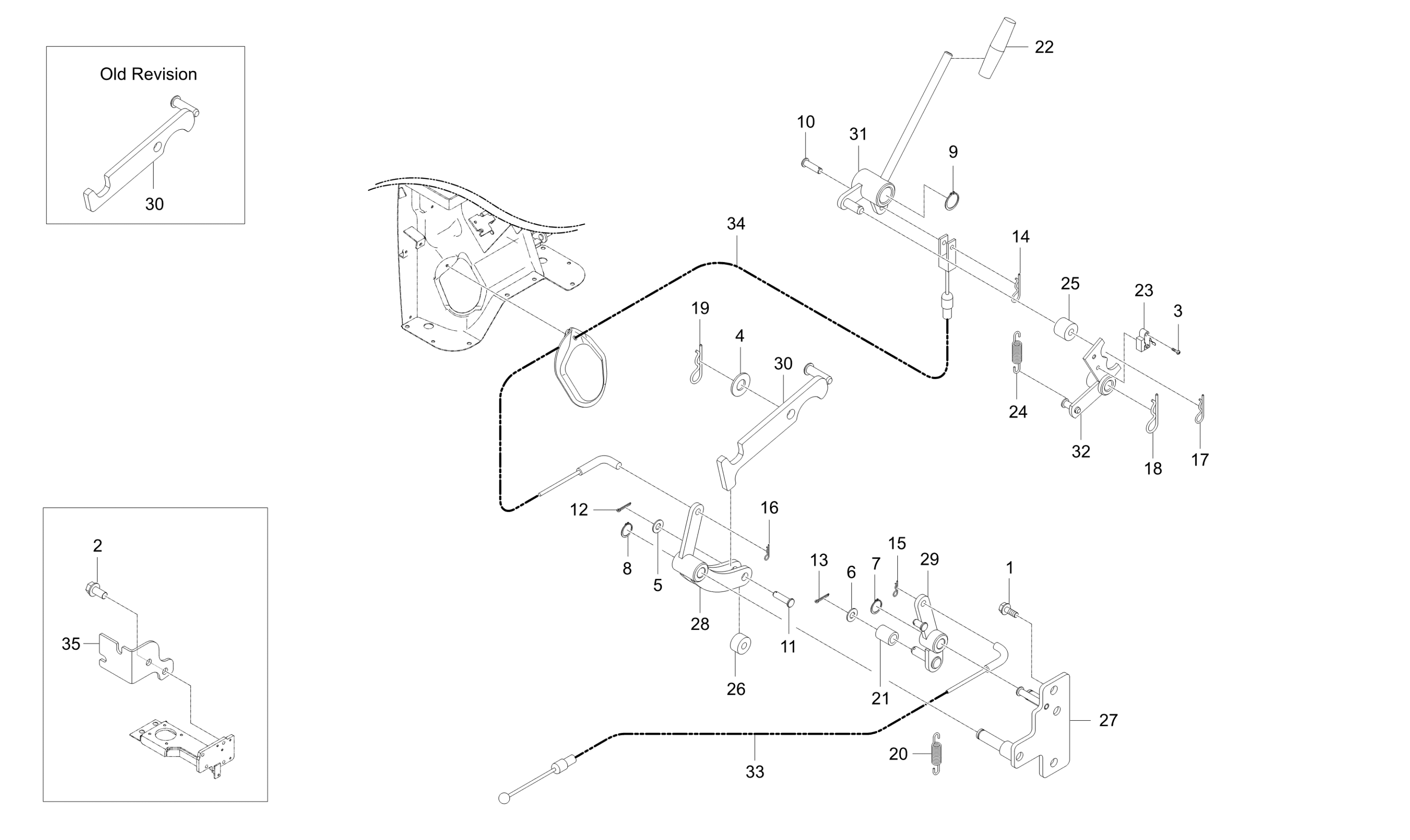

Diagram for RPM LINKED GROUP - TC2-G646901
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 2
    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
  • 3

    SCREW

    • Part No. 03024-50414
    • M4XP0.7
    • 1 shown on diagram
    $0.68
  • 4

    Flat Washer M10

    • Part No. 04011-50100
    • Applied Dates 2016-07-12 to 2020-03-25
    • Serial No. Up to WJJ800102
    • M10
    • * multiple options for #4
    • 1 shown on diagram
    $.67
  • 4

    Flat Washer M10

    • Part No. 04015-50100
    • Compatibility Interchngable
    • Applied Dates 2020-03-26 to 2017-10-17
    • Serial No. WJJ800103 to WJJ800230
    • M10
    • * multiple options for #4
    • 1 shown on diagram
    $1.09
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $.67
  • 6 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $.67
  • 7

    RING,SNAP

    • Part No. 04612-00100
    • DIA10
    • 1 shown on diagram
    $0.67
  • 8

    RING,SNAP

    • Part No. 04612-00100
    • DIA10
    • 1 shown on diagram
    $0.67
  • 9 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • DIA16
    • 1 shown on diagram
    $.85
  • 10

    Pin, Joint M6x16mm

    • Part No. 05122-50616
    • DIA6XL16
    • 1 shown on diagram
    $2.49
  • 11

    Pin, Joint M8x25mm

    • Part No. 05122-50825
    • 1 shown on diagram
    $2.99
  • 12
    • Part No. 05511-50218
    • DIA1.8XL18
    • 1 shown on diagram
  • 13
    • Part No. 05511-50218
    • DIA1.8XL18
    • 1 shown on diagram
  • 14

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 15

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 16

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 17
    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
  • 18

    PIN, SNAP

    • Part No. 05525-51000
    • DIA10
    • 1 shown on diagram
    $1.29
  • 19

    PIN, SNAP

    • Part No. 05525-51000
    • DIA10
    • 1 shown on diagram
    $1.29
  • 20 SPRING, DIFF.LOCK PEDAL

    SPRING, DIFF.LOCK PEDAL

    • Part No. T2305-26641
    • DIA1.2
    • 1 shown on diagram
    $5.99
  • 21

    SPACER v

    • Part No. T2360-34142
    • DIA14
    • 1 shown on diagram
    $6.49
  • 22

    GRIP

    • Part No. T2350-55922
    • 1 shown on diagram
    $5.49
  • 23

    SWITCH, MICRO

    • Part No. T4125-69391
    • 1 shown on diagram
    $62.99
  • 24

    SPRING, RETURN

    • Part No. T4157-51211
    • 1 shown on diagram
    $4.99
  • 25

    SPACER

    • Part No. T5515-65691
    • DIA20
    • 1 shown on diagram
    $13.99
  • 26

    BUSHING

    • Part No. T5710-54281
    • DIA20
    • 1 shown on diagram
    $5.99
  • 27

    STAY, DYNAMO

    • Part No. TC26-0522A
    • 1 shown on diagram
    $61.99
  • 28

    ARM-1

    • Part No. TC26-0523A
    • 1 shown on diagram
    $53.99
  • 29

    ARM-2

    • Part No. TC26-0524C
    • 1 shown on diagram
    $41.99
  • 30

    PLATE, CONNECTING obs v

    • Part No. TC26-0525D
    • Applied Dates 2017-06-28 to 2020-03-19
    • Serial No. Up to WJJ800102
    • T6.0
    • * multiple options for #30
    • 1 shown on diagram
    $18.99
  • 30

    PLATE, RPM LINKAGE CONNECTING obs v

    • Part No. TC26-0525E
    • Compatibility New repl old
    • Applied Dates 2020-03-20 and up
    • Serial No. WJJ800103 to WJJ800230
    • T6.0
    • * multiple options for #30
    • 1 shown on diagram
    $18.99
  • 30

    PLATE, CONNECTING

    • Part No. TC26-0525F
    • Compatibility New repl old
    • Serial No. XJJ800001 and up
    • T6.0
    • * multiple options for #30
    • 1 shown on diagram
    $18.99
  • 31

    LEVER, LINKAGE-RPM

    • Part No. TC26-0526A
    • 1 shown on diagram
    $51.99
  • 32

    BRACKET, SWITCH

    • Part No. TC26-0529A
    • 1 shown on diagram
    $31.99
  • 33
    • Part No. TC26-0532A
    • 1 shown on diagram
  • 34

    ASSY CABLE LINKAGE 2

    • Part No. TC26-1211B
    • 1 shown on diagram
    $92.99
  • 35

    PLATE-4

    • Part No. TC26-0940A
    • T3.2
    • 1 shown on diagram
    $14.99
