RADIATOR GROUP - TC2-G612506

Kioti TRACTOR | CK Series | CK3510HSEB

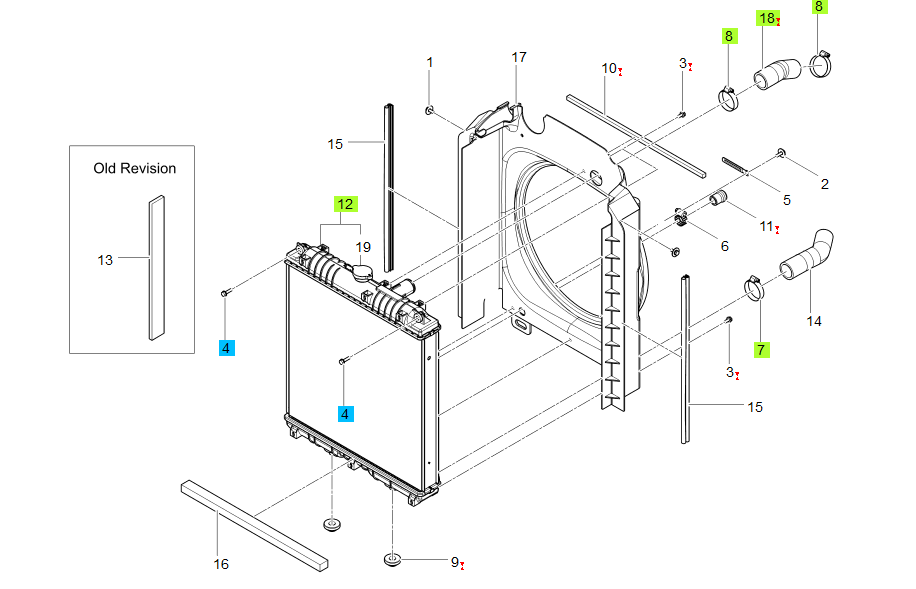

Diagram for RADIATOR GROUP - TC2-G612506
  • 1

    BOLT, WASHER

    • Part No. 01027-50616
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 2

    BOLT, WASHER

    • Part No. 01027-50620
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 4 shown on diagram
    $1.39
  • 4

    BOLT FLANGE

    • Part No. 01754-50622
    • M6XP1.0
    • 2 shown on diagram
    $1.09
  • 5

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 6

    BAND, HOSE

    • Part No. 66204-3623-1
    • 1 shown on diagram
    $3.99
  • 7

    CLAMP BAND

    • Part No. E1500-18411
    • * multiple options for #7
    • 2 shown on diagram
    $4.49
  • 7

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchngable
    • 25-40mm
    • * multiple options for #7
    • 1 shown on diagram
    $2.99
  • 7

    CLAMP,HOSESTAINLESS32-50

    • Part No. CE11-0011A
    • Compatibility Interchngable
    • 32-50mm
    • * multiple options for #7
    • 1 shown on diagram
    $3.49
  • 8

    CLAMP BAND

    • Part No. E1500-18411
    • * multiple options for #8
    • 2 shown on diagram
    $4.49
  • 8

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchngable
    • 25-40mm
    • * multiple options for #8
    • 1 shown on diagram
    $2.99
  • 8

    CLAMP,HOSESTAINLESS32-50

    • Part No. CE11-0011A
    • Compatibility Interchngable
    • 32-50mm
    • * multiple options for #8
    • 2 shown on diagram
    $3.49
  • 9

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 10

    SPONGE

    • Part No. T4931-72091
    • 2 shown on diagram
    $5.49
  • 11 CAP, SEALING

    CAP, SEALING

    • Part No. T5535-50451
    • 1 shown on diagram
    $4.49
  • 12

    RADIATOR ASSY

    • Part No. T5855-50411
    • Applied Dates Up to 2020-04-26
    • Serial No. Up to WJJ800230
    • * multiple options for #12
    • 1 shown on diagram
    $724.99
  • 12

    ASSY RADIATOR – OS v

    • Part No. TC26-1800A
    • Compatibility Interchngable
    • Applied Dates 2020-04-27 and up
    • Serial No. WJJ800231 and up
    • * multiple options for #12
    • 1 shown on diagram
    $649.99
  • 13

    SPONGE,2

    • Part No. T5855-50431
    • 45X10XL
    • 2 shown on diagram
    $13.99
  • 14

    HOSE,LOWER

    • Part No. T5855-50483
    • OD 46 / ID 34
    • 1 shown on diagram
    $43.99
  • 15

    RUBBER,RADIATOR

    • Part No. T5855-50552
    • 2 shown on diagram
    $21.99
  • 16

    SPONGE, 5

    • Part No. T5855-50571
    • High foaming PU foam
    • 1 shown on diagram
    $26.99
  • 17

    SHROUD

    • Part No. TC26-0417A
    • T2.5
    • 1 shown on diagram
    $92.99
  • 18

    HOSE, COOLING WATER-UPR v

    • Part No. TC26-0420B
    • Applied Dates Up to 2018-01-18
    • Serial No. Up to UJJ800272
    • OD46/ID35
    • * multiple options for #18
    • 1 shown on diagram
    $25.99
  • 18

    HOSE, COOLING WATER-UPR v

    • Part No. TC26-0420C
    • Compatibility Interchngable
    • Applied Dates 2018-01-19 and up
    • Serial No. UJJ800273 to WJJ800230
    • OD46/ID35
    • * multiple options for #18
    • 1 shown on diagram
    $37.99
  • 19

    Radiator Cap

    • Part No. U3215-77501
    • 1 shown on diagram
    $27.99
