STEERING COLUMN GROUP - TC2-G653009

Kioti TRACTOR | CK Series | CK3510HSEB

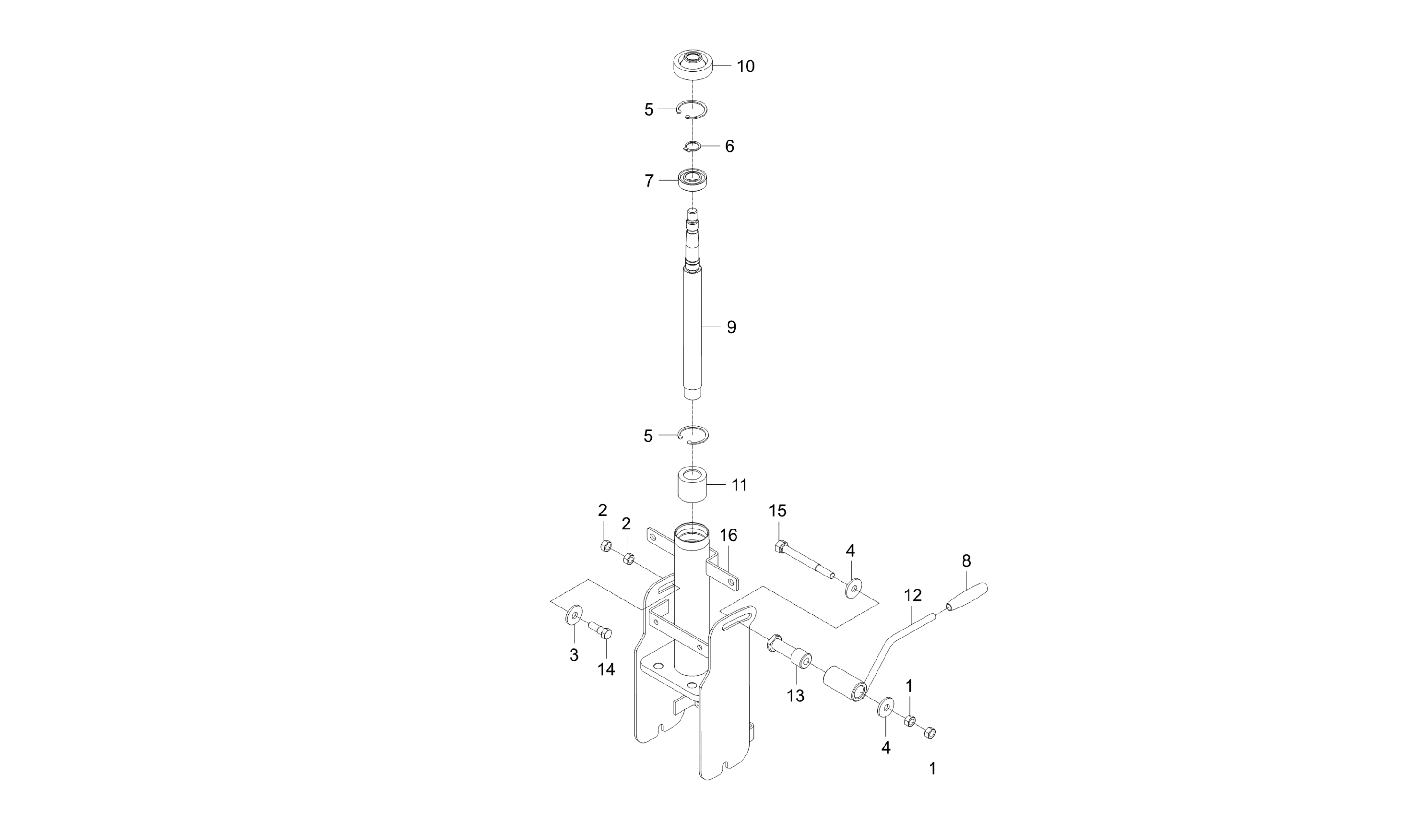

Diagram for STEERING COLUMN GROUP - TC2-G653009
  • 1
    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
  • 2
    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
  • 3
    • Part No. 04015-50080
    • M8
    • 1 shown on diagram
  • 4
    • Part No. 04015-50080
    • M8
    • 2 shown on diagram

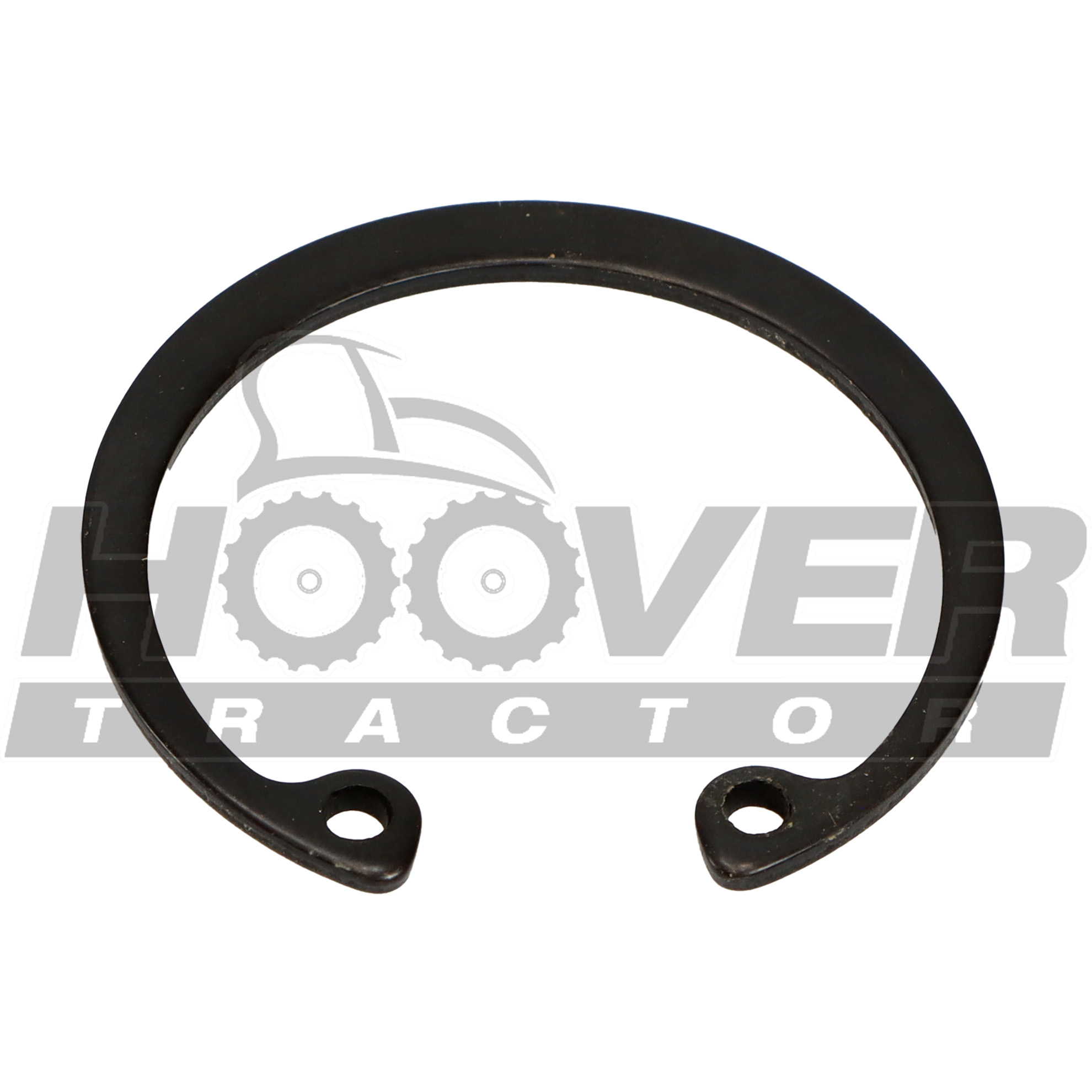

  • 5 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00350
    • SK5M
    • 2 shown on diagram
    $1.39
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00170
    • DIA17
    • 1 shown on diagram
    $0.98
  • 7 BEARING,BALL 17x35x10

    BEARING,BALL 17x35x10

    • Part No. 08111-06003
    • 1 shown on diagram
    $11.99
  • 8

    GRIP, DARK BLUE

    • Part No. T2185-71241
    • 1 shown on diagram
    $4.49
  • 9

    SHAFT,STEERING

    • Part No. T2350-66101
    • 1 shown on diagram
    $97.99
  • 10

    SEAL,OIL

    • Part No. T2440-16351
    • 1 shown on diagram
    $5.99

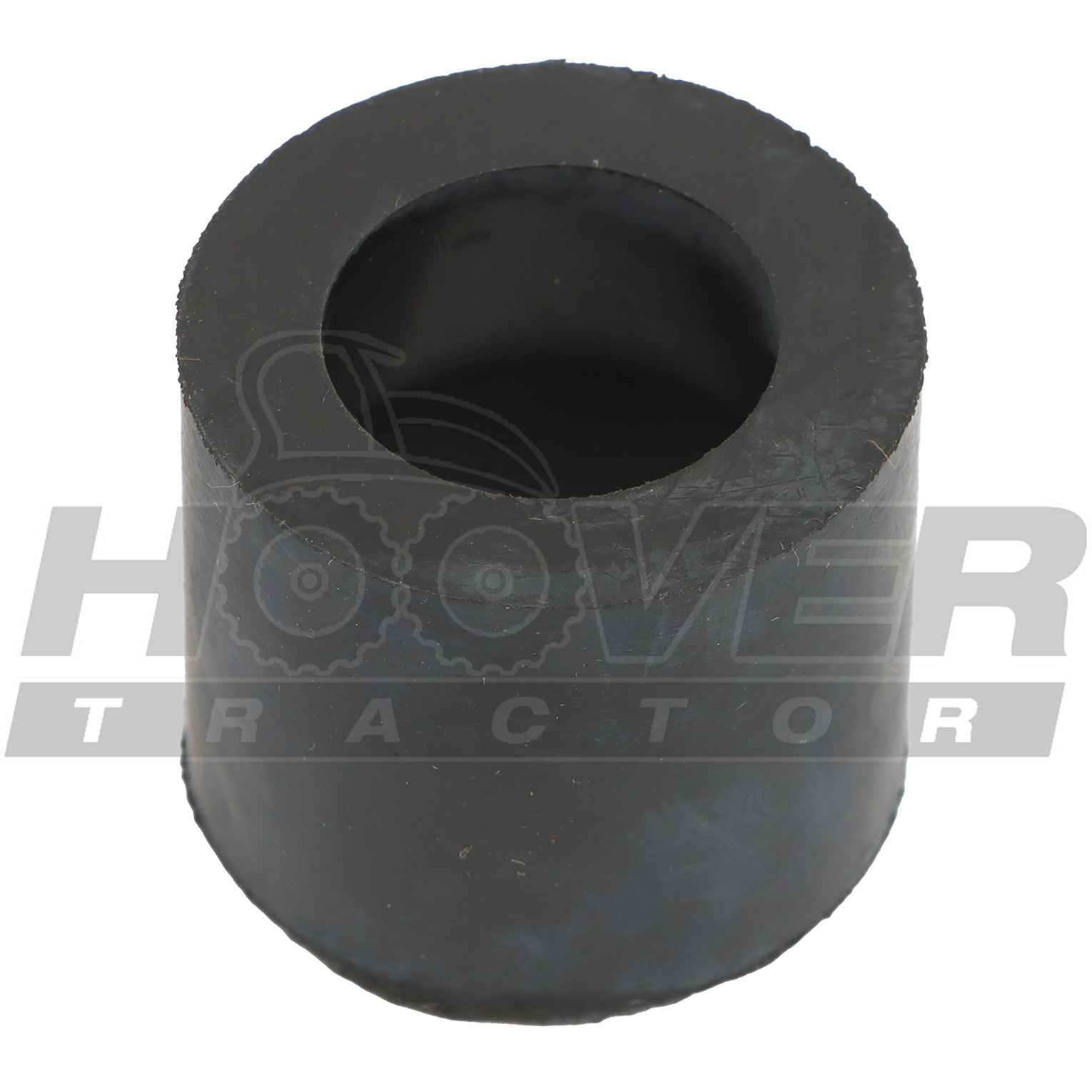

  • 11 RUBBER CUSHION

    RUBBER CUSHION

    • Part No. T4260-50100
    • L3503, D4351
    • 1 shown on diagram
    $9.49
  • 12
    • Part No. T5710-80841
    • N
    • 1 shown on diagram
  • 13

    BOLT, HOLDER

    • Part No. T5710-80852
    • 1 shown on diagram
    $29.99
  • 14

    BOLT

    • Part No. T5710-80861
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 15

    BOLT

    • Part No. T5710-80871
    • M8XP1.25
    • 1 shown on diagram
    $4.49
  • 16

    ASSY COLUMN, STEERING-US

    • Part No. TC26-0495A
    • 1 shown on diagram
    $149.99
