FUEL COOLER GROUP - TC2-G614502

Kioti TRACTOR | CK Series | CK3510HSEB

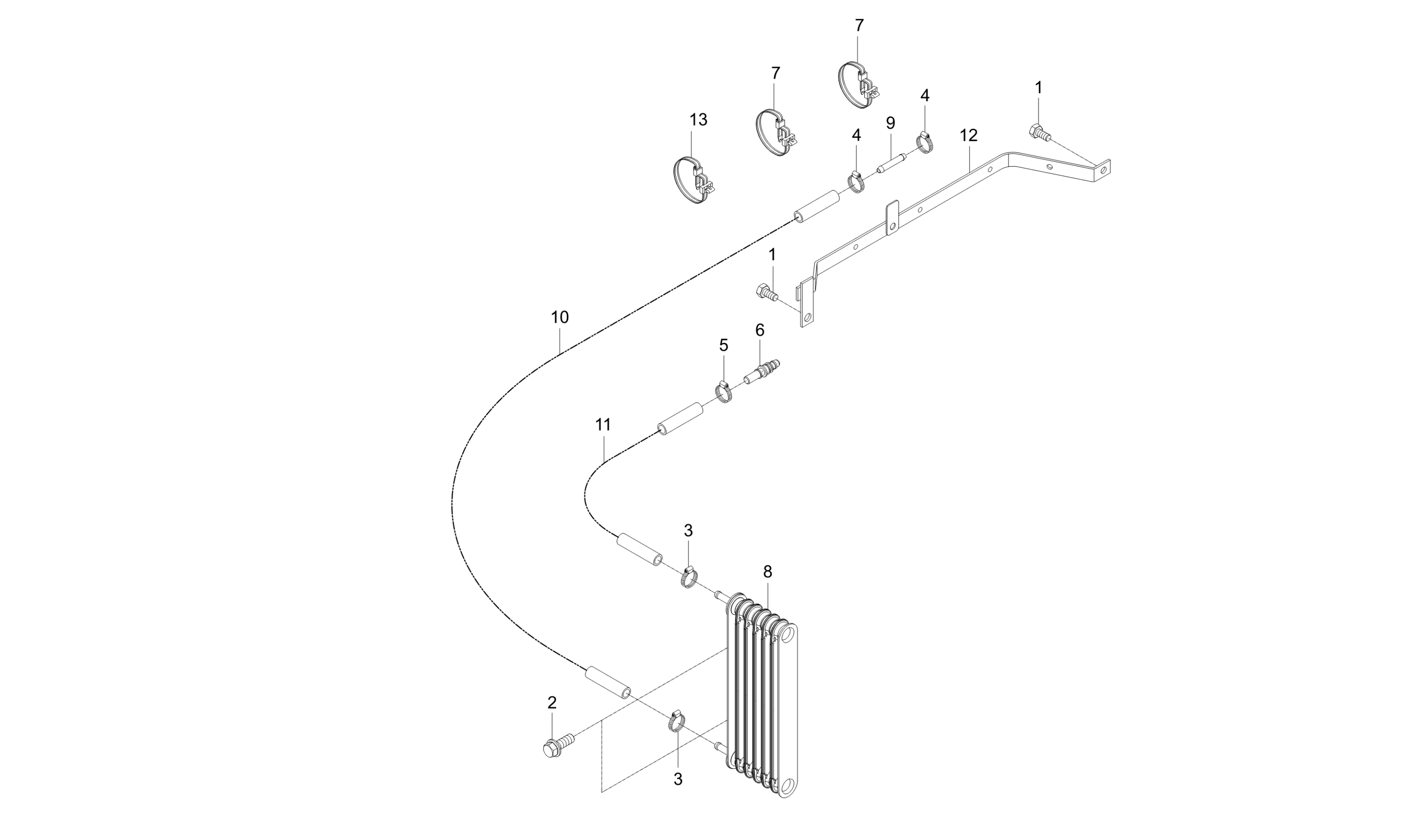

Diagram for FUEL COOLER GROUP - TC2-G614502
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 2
    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
  • 3

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • 2 shown on diagram
    $2.49
  • 4

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • 1 shown on diagram
    $2.49
  • 5

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • 1 shown on diagram
    $2.49
  • 6

    ADAPTER

    • Part No. F6800-16181
    • OD8.4*ID4.7
    • 1 shown on diagram
    $9.49
  • 7
    • Part No. P5370-82551
    • 2 shown on diagram
  • 8

    COOLER, FUEL v

    • Part No. T5315-81251
    • 1 shown on diagram
    $169.99
  • 9

    TUBE, CONNECTING

    • Part No. T5855-55261
    • 0.8T
    • 1 shown on diagram
    $2.99
  • 10

    FUEL, HOSE

    • Part No. TC26-0423A
    • OD12.8 / ID7
    • 1 shown on diagram
    $24.99
  • 11

    FUEL, HOSE

    • Part No. TC26-0424A
    • OD12.8 / ID7
    • 1 shown on diagram
    $38.99
  • 12

    BRACKET WIRE HARNESS

    • Part No. T2185-69771
    • T1.6
    • 2 shown on diagram
    $5.49
  • 13

    BAND, CORD

    • Part No. T2185-82561
    • L200
    • 1 shown on diagram
    $0.49
