RANGE SHIFT LEVER GROUP - TC2-G640504

Kioti TRACTOR | CK Series | CK3510HSEB

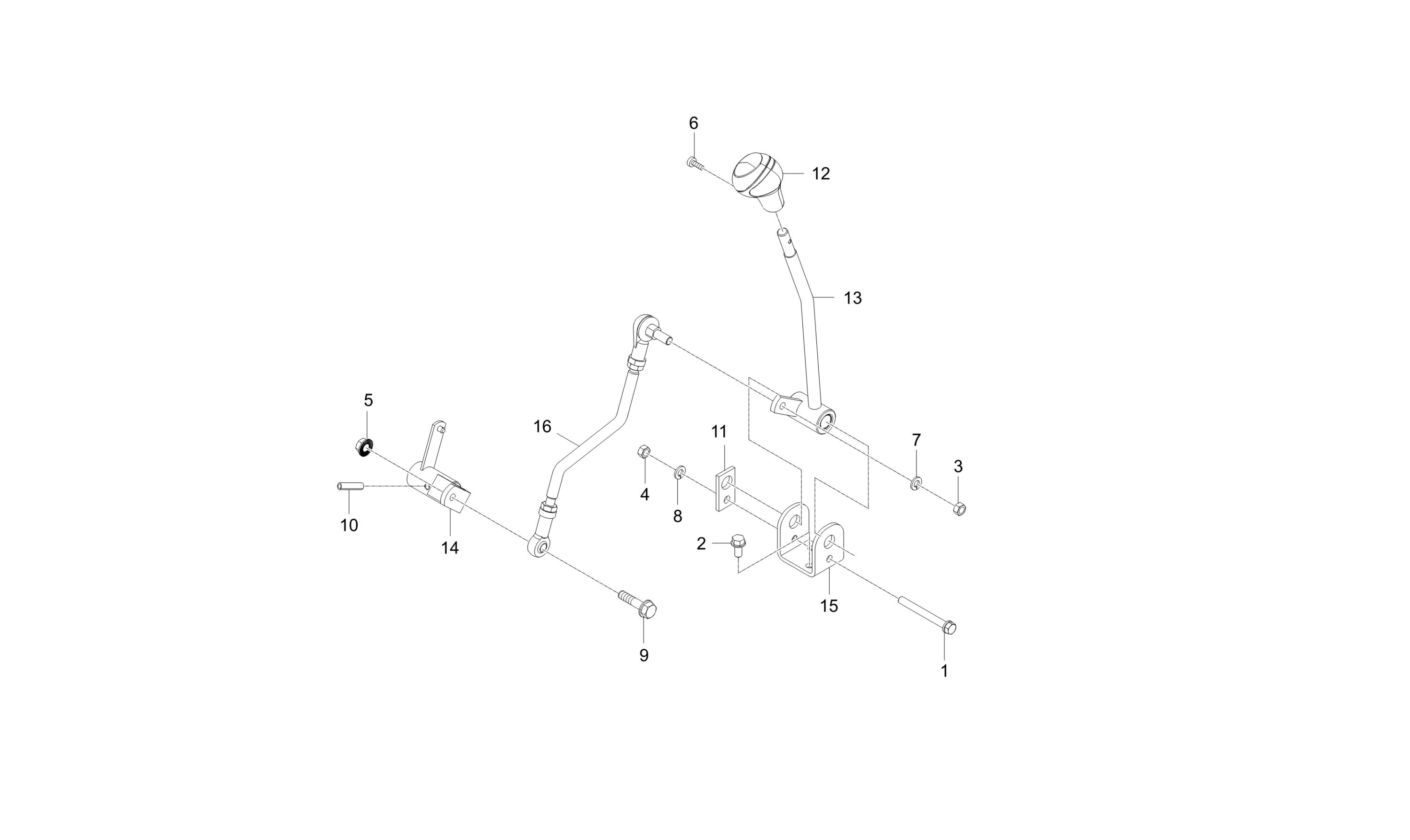

Diagram for RANGE SHIFT LEVER GROUP - TC2-G640504
  • 1

    Bolt With Washer, M8 P1.25 x 75mm

    • Part No. 01123-50875
    • M8XP1.25
    • 1 shown on diagram
    $3.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 3
    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
  • 4
    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
  • 5
    • Part No. 02156-50080
    • Applied Dates Up to 2017-11-19
    • M8XP1.25
    • * multiple options for #5
    • 1 shown on diagram
  • 5
    • Part No. 02763-50080
    • Compatibility Call for compat
    • Applied Dates 2017-11-20 and up
    • Serial No. TJJ800001 to WJJ800230
    • M8XP1.25
    • * multiple options for #5
    • 1 shown on diagram
  • 6 BOLT,SCREW

    BOLT,SCREW

    • Part No. 03024-50514
    • 1 shown on diagram
    $.79
  • 7 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $.61
  • 8 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $.61
  • 9 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates 2015-07-03 to 2017-11-19
    • Serial No. RJJ800001 to VJJ800472
    • M08
    • * multiple options for #9
    • 1 shown on diagram
    $.61
  • 9

    Bolt With Washers, M8 P1.25 x 35mm

    • Part No. 01125-50835
    • Compatibility Call for compat
    • Applied Dates 2017-11-20 and up
    • Serial No. TJJ800001 to WJJ800230
    • M8*P1.25
    • * multiple options for #9
    • 1 shown on diagram
    $3.49
  • 10 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00632
    • DIA6.4XL32
    • 1 shown on diagram
    $.90
  • 11
    • Part No. T2185-66531
    • 1 shown on diagram
  • 12 GRIP

    GRIP

    • Part No. T5855-56261
    • 1 shown on diagram
    $42.99
  • 13

    BOLT,FLYWHEEL dnr v

    • Part No. TC26-0469A
    • 1 shown on diagram
    $82.99
  • 14

    ARM, CONNECTING RANGE SHIFT

    • Part No. TC26-0471A
    • 1 shown on diagram
    $51.99
  • 15

    BRACKET, RANGE SHIFT

    • Part No. TC26-0472B
    • T4.5
    • 1 shown on diagram
    $34.99
  • 16
    • Part No. TC26-0470A
    • Applied Dates 2016-12-15 to 2017-11-19
    • * multiple options for #16
    • 1 shown on diagram
  • 16 ROD, RANGE SHIFT v

    ROD, RANGE SHIFT v

    • Part No. TC26-1560A
    • Compatibility Call for compat
    • Applied Dates 2017-11-20 and up
    • Serial No. TJJ800001 to WJJ800230
    • * multiple options for #16
    • 1 shown on diagram
    $119.99
