FUEL HOSE GROUP - TC2-G672003

Kioti TRACTOR | CK Series | CK3510HSEB

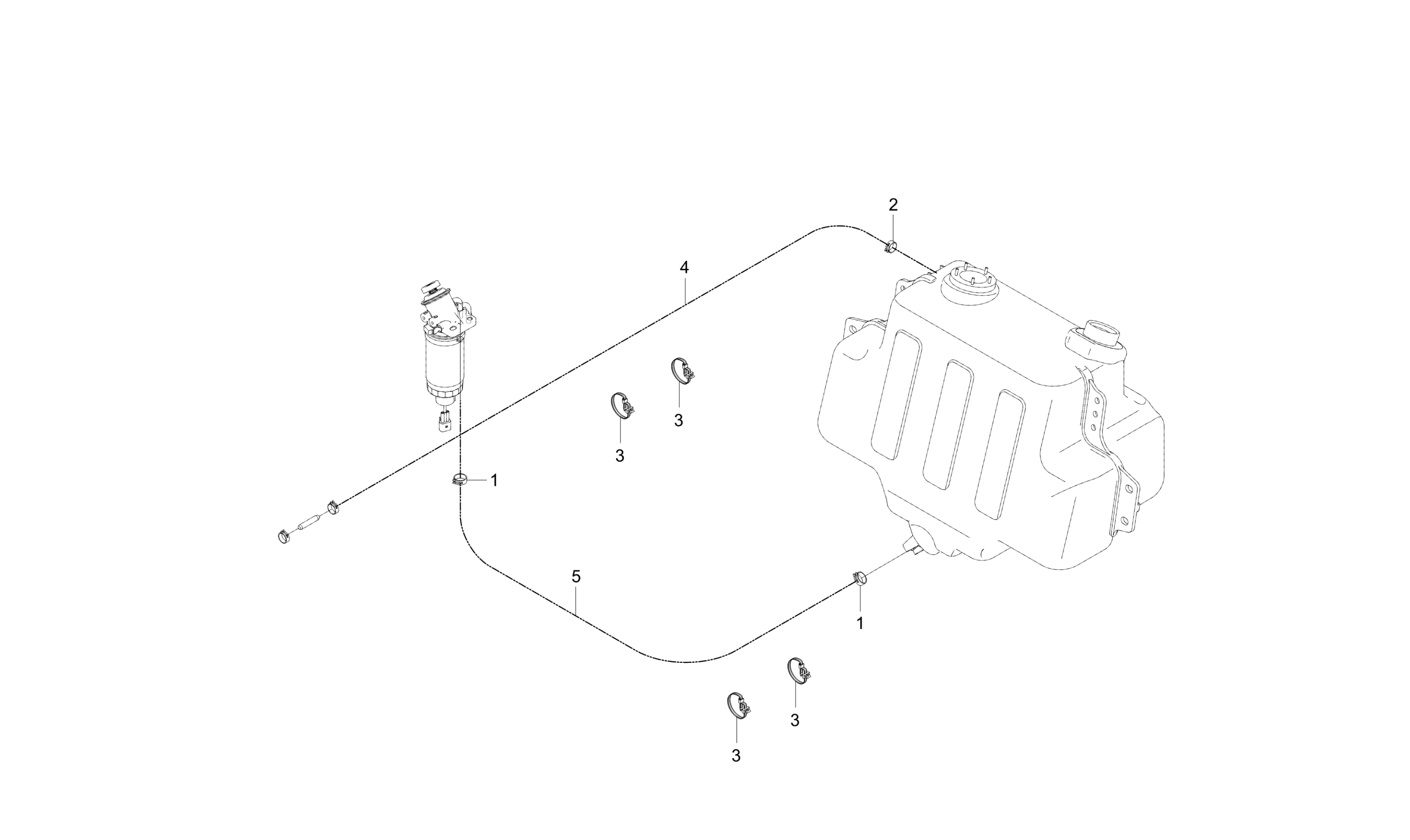

Diagram for FUEL HOSE GROUP - TC2-G672003
  • 1

    CLAMP, HOSE

    • Part No. 09318-88130
    • DIA13
    • 2 shown on diagram
    $1.09
  • 2

    CLAMP, HOSE

    • Part No. 09318-88130
    • DIA13
    • 1 shown on diagram
    $1.09
  • 3
    • Part No. P5370-82551
    • 4 shown on diagram
  • 4

    FUEL,HOSE

    • Part No. T5855-52244
    • Applied Dates Up to 2017-11-15
    • OD14 / ID8
    • * multiple options for #4
    • 1 shown on diagram
    $56.99
  • 4
    • Part No. T5525-51022
    • Compatibility New repl old
    • Applied Dates 2017-11-16 and up
    • Serial No. TJJ800001 to WJJ800230
    • OD13XID8
    • * multiple options for #4
    • 1 shown on diagram
  • 5

    HOSE, FUEL

    • Part No. TC26-1052B
    • OD12.8 / ID7
    • 1 shown on diagram
    $78.99
