CLUTCH PEDAL GROUP - CK30H-T120A

Kioti TRACTOR | CK Series | CK25H

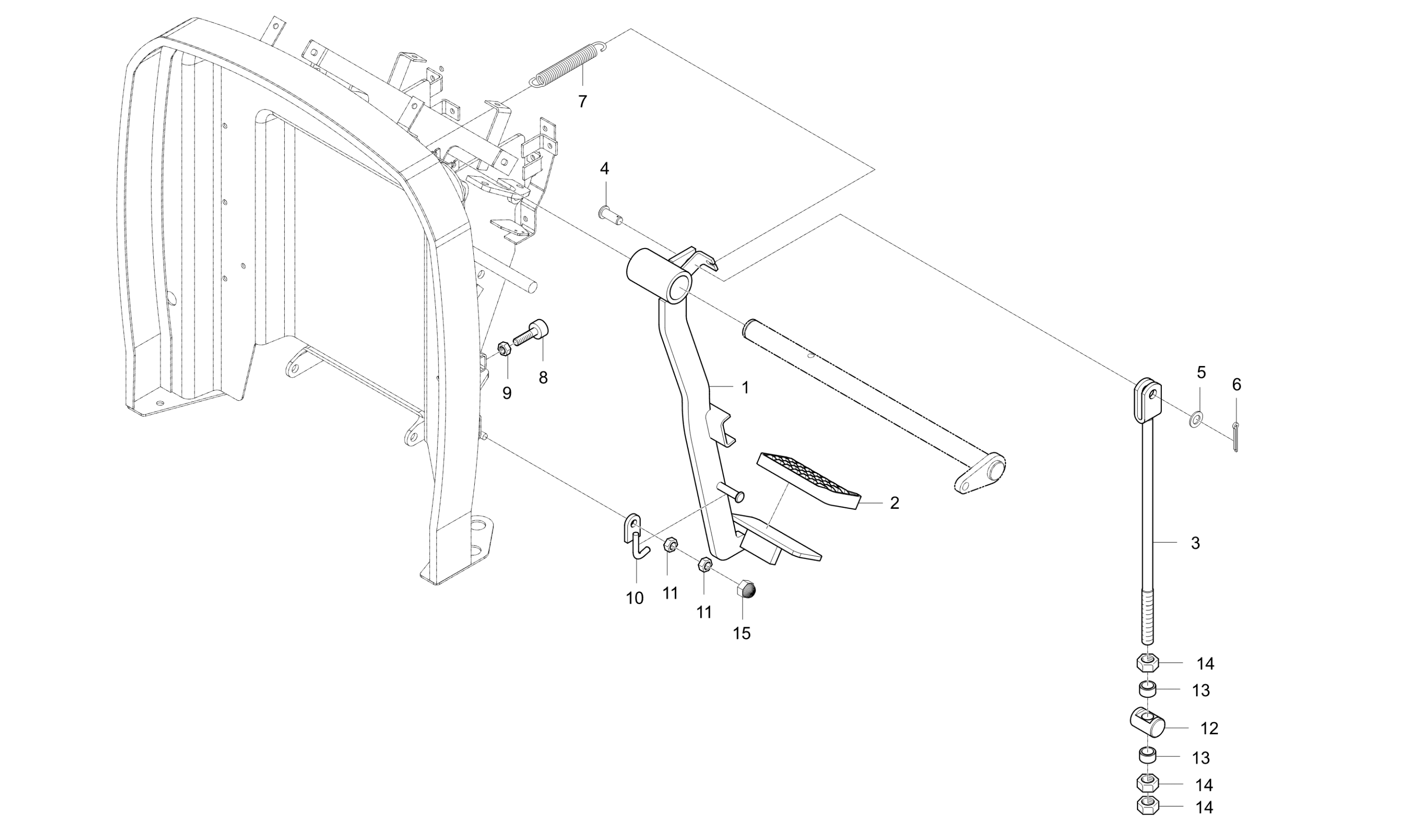

Diagram for CLUTCH PEDAL GROUP - CK30H-T120A
  • 1

    PEDAL, CLUTCH

    • Part No. T2195-55511
    • Applied Dates Up to 2007-01-29
    • 1 shown on diagram
    $74.99
  • 2 COVER,PEDAL

    COVER,PEDAL

    • Part No. T2670-55531
    • 1 shown on diagram
    $23.99
  • 3

    ROD, CLUTCH

    • Part No. T2195-55521
    • 1 shown on diagram
    $18.99
  • 4

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 1 shown on diagram
    $2.99
  • 5 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $0.73
  • 6

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 1 shown on diagram
    $0.40
  • 7

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 1 shown on diagram
    $6.49
  • 8

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 1 shown on diagram
    $8.49
  • 9 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 1 shown on diagram
    $0.67
  • 10

    HOOK

    • Part No. T2350-55871
    • 1 shown on diagram
    $7.99
  • 11 NUT

    NUT

    • Part No. 02112-50080
    • Applied Dates 2009-03-26 to 2004-03-24
    • Serial No. Up to D70200050
    • M8*P1.25
    • * multiple options for #11
    • 2 shown on diagram
    $0.55
  • 11 NUT

    NUT

    • Part No. 02114-50080
    • Compatibility Interchngable
    • Applied Dates 2004-03-25 to 2004-04-28
    • Serial No. D70200051 to D70200151
    • M8*P1.25
    • * multiple options for #11
    • 2 shown on diagram
    $0.67
  • 12

    PIN,CLUTCH ROD

    • Part No. T2350-55531
    • DIA22
    • 1 shown on diagram
    $11.99
  • 13 SPACER

    SPACER

    • Part No. T2350-55541
    • DIA17.3*T2.3
    • 2 shown on diagram
    $2.99
  • 14

    NUT

    • Part No. 02172-50120
    • 3 shown on diagram
    $0.79
  • 15 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 1 shown on diagram
    $1.49
