SEAT FLOOR GROUP - CK30H-T890A

Kioti TRACTOR | CK Series | CK25H

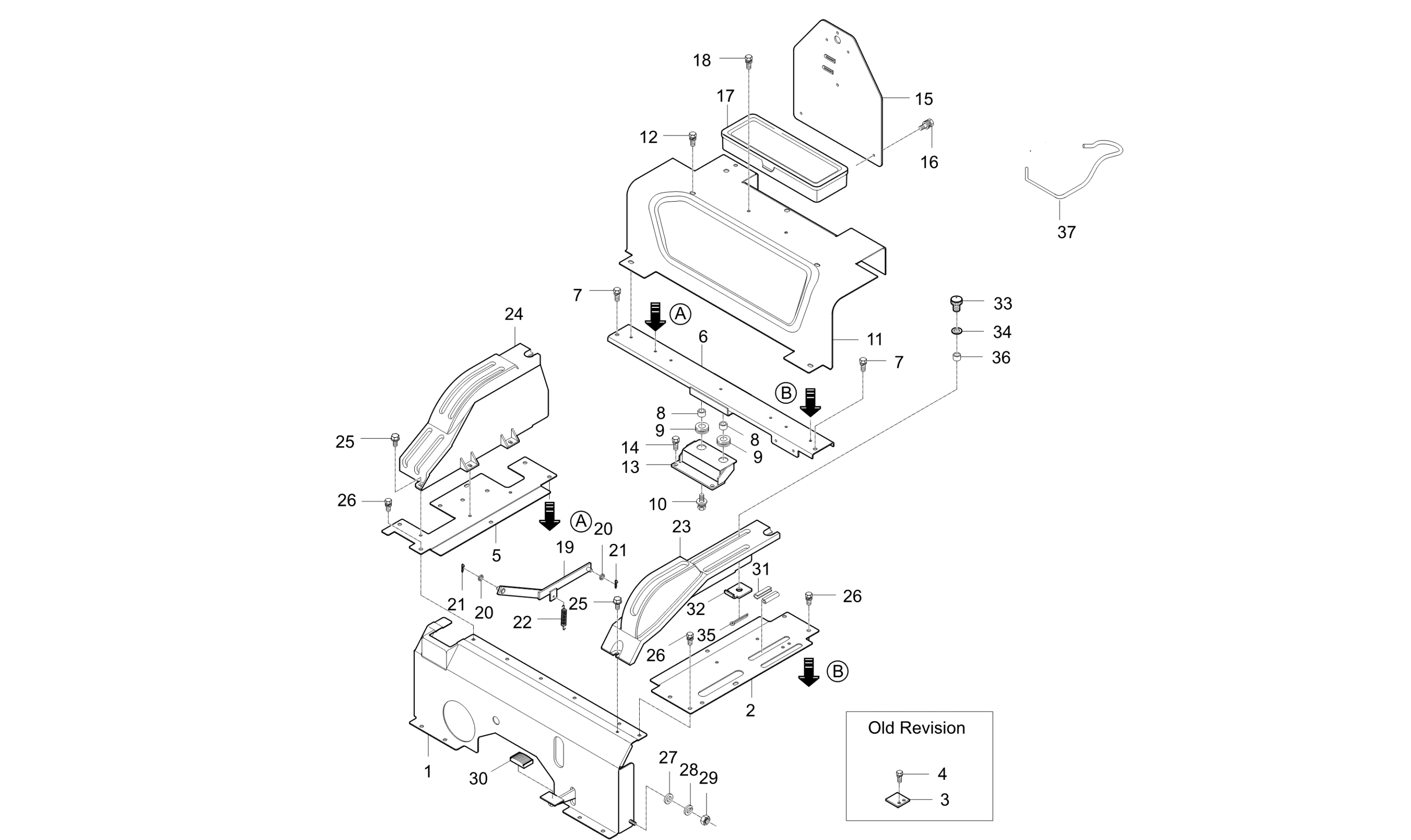

Diagram for SEAT FLOOR GROUP - CK30H-T890A
  • 1

    COVER, FRONT

    • Part No. T2195-70414
    • Applied Dates 2004-02-19 to 2007-03-29
    • Serial No. D70200001 to G70200080
    • * multiple options for #1
    • 1 shown on diagram
    $119.99
  • 1

    COVER, SEAT FRONT

    • Part No. T2195-70415
    • Compatibility No interchange
    • Applied Dates 2007-03-30 to 2008-11-19
    • Serial No. G70200081 and up
    • * multiple options for #1
    • 1 shown on diagram
    $139.99
  • 1

    COVER SEAT FRONT

    • Part No. T2195-70416
    • Compatibility Interchngable
    • Applied Dates 2008-11-20 and up
    • * multiple options for #1
    • 1 shown on diagram
    $229.99
  • 2

    PLATE,LEVER GUIDE(LH)

    • Part No. T2185-70423
    • Applied Dates 2004-02-19 to 2004-03-22
    • Serial No. D70200001 to D70200050
    • * multiple options for #2
    • 1 shown on diagram
    $39.99
  • 2

    PALTE, LEVER GUIDE(LH)

    • Part No. T2185-70424
    • Compatibility New repl old
    • Applied Dates 2004-03-23 to 2004-06-20
    • Serial No. D70200051 to D70200401
    • * multiple options for #2
    • 1 shown on diagram
    $29.99
  • 2

    PLATE(LH), LEVER GUIDE

    • Part No. T2185-70425
    • Compatibility New repl old
    • Applied Dates 2004-06-21 to 2007-02-04
    • Serial No. D70200402 to G70200040
    • * multiple options for #2
    • 1 shown on diagram
    $26.99
  • 2

    PLATE(LH),LEVER GUIDE

    • Part No. T2185-70426
    • Compatibility New repl old
    • Applied Dates 2007-02-05 to 2007-05-24
    • Serial No. G70200041 to G70200080
    • * multiple options for #2
    • 1 shown on diagram
    $39.99
  • 2

    PLATE(LH),LEVER GUIDE

    • Part No. T2185-70427
    • Compatibility No interchange
    • Applied Dates 2007-05-25 and up
    • Serial No. G70200081 and up
    • * multiple options for #2
    • 1 shown on diagram
    $37.99

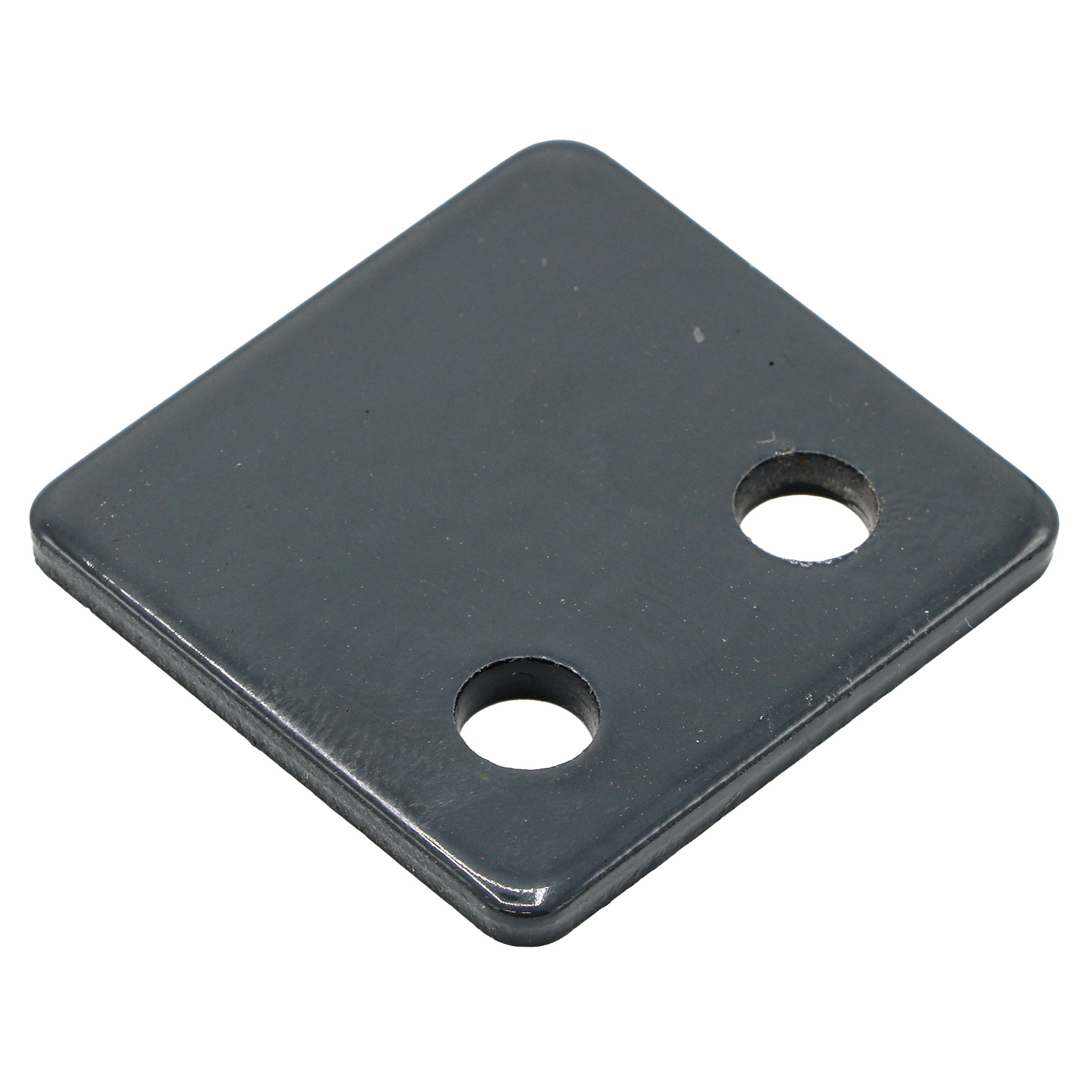

  • 3 STOPPER,PTO

    STOPPER,PTO

    • Part No. T2185-25871
    • Applied Dates Up to 2004-08-22
    • T3.2
    • 1 shown on diagram
    $11.99
  • 4

    BOLT v

    • Part No. 01123-50616
    • Applied Dates 2003-11-21 to 2004-03-24
    • Serial No. 370200001 to D70200050
    • * multiple options for #4
    • 2 shown on diagram
    $1.19
  • 4

    BOLT, WASHER

    • Part No. 01023-50616
    • Compatibility New repl old
    • Applied Dates 2004-03-25 to 2004-08-22
    • Serial No. G70200081 to D70200501
    • M6XP1.0
    • * multiple options for #4
    • 2 shown on diagram
    $1.19
  • 5

    PLATE,LEVER GUIDE(RH)

    • Part No. T2185-70442
    • Applied Dates Up to 2006-11-14
    • * multiple options for #5
    • 1 shown on diagram
    $36.99
  • 5

    PLATE(LH),LEVER GUIDE v

    • Part No. T2185-70443
    • Compatibility New repl old
    • Applied Dates 2006-11-15 to 2008-11-19
    • Serial No. G70200041 and up
    • * multiple options for #5
    • 1 shown on diagram
    $39.99
  • 5

    PLATE, LEVER GUIDE

    • Part No. T2185-70444
    • Compatibility Call for compat
    • Applied Dates 2008-11-20 and up
    • * multiple options for #5
    • 1 shown on diagram
    $37.99
  • 6

    SUPPORT, SEAT FLOOR

    • Part No. T2185-70454
    • Applied Dates 2004-02-19 to 2004-06-17
    • Serial No. D70200001 to D70200501
    • * multiple options for #6
    • 1 shown on diagram
    $65.99
  • 6

    SUPPORT, SEAT FLOOR

    • Part No. T2185-70455
    • Compatibility Interchngable
    • Applied Dates 2004-06-18 and up
    • Serial No. D70200502 and up
    • * multiple options for #6
    • 1 shown on diagram
    $86.99
  • 7 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates 2004-02-19 to 2004-03-24
    • M8XP1.25
    • * multiple options for #7
    • 2 shown on diagram
    $2.49
  • 7

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • Compatibility Interchngable
    • Applied Dates 2004-03-25 to 2010-05-13
    • M8XP1.25
    • * multiple options for #7
    • 2 shown on diagram
    $2.49
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Compatibility Interchngable
    • Applied Dates 2007-02-22 to 2004-02-13
    • Serial No. G70200041 to D70200151
    • M8XP1.25
    • * multiple options for #7
    • 2 shown on diagram
    $1.79
  • 8

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 2 shown on diagram
    $4.49
  • 9

    GROMMET

    • Part No. T2350-50431
    • 2 shown on diagram
    $4.99
  • 10

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 11

    Rear Cover

    • Part No. T2195-70462
    • Applied Dates 2004-02-18 and up
    • 1 shown on diagram
    $194.99
  • 12

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • Applied Dates 2004-01-15 and up
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 13

    SUPPORT,BRACKET

    • Part No. T2185-70471
    • * multiple options for #13
    • 1 shown on diagram
    $82.99
  • 13

    BRACKET, SUPPORT

    • Part No. T2185-70471BB
    • Compatibility No interchange
    • * multiple options for #13
    • 1 shown on diagram
    $56.99
  • 14

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • Applied Dates Up to 2004-11-08
    • M8XP1.25
    • * multiple options for #14
    • 2 shown on diagram
    $2.49
  • 14 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • Compatibility New repl old
    • Applied Dates 2004-11-09 to 2005-04-29
    • Serial No. 370200001 to E70200080
    • M8XP1.25
    • * multiple options for #14
    • 2 shown on diagram
    $2.49
  • 15

    SMV Bracket, Replaced by T2185-70482OE

    • Part No. T2185-70481
    • * multiple options for #15
    • 1 shown on diagram
    $58.99
  • 15

    BRACKET,SMV

    • Part No. T2185-70482
    • Compatibility New repl old
    • Applied Dates 2011-01-30 and up
    • * multiple options for #15
    • 1 shown on diagram
    $71.99
  • 16

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • Applied Dates 2004-01-15 and up
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 17

    BOX, TOOL

    • Part No. T2350-70492
    • 1 shown on diagram
    $26.99
  • 18

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 19

    Diff Lock Rod, Replaced by T2195-65011BB

    • Part No. T2195-65011
    • * multiple options for #19
    • 1 shown on diagram
    $22.99
  • 19

    Diff Lock Rod

    • Part No. T2195-65011BB
    • Compatibility No interchange
    • * multiple options for #19
    • 1 shown on diagram
    $23.99
  • 20 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • Applied Dates 2004-01-30 and up
    • 2 shown on diagram
    $0.79
  • 21 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • Applied Dates 2004-01-30 and up
    • DIA8
    • 2 shown on diagram
    $1.29
  • 22

    SPRING (DIFFERENTIAL LOCK)

    • Part No. T2185-66671
    • DIA2
    • 1 shown on diagram
    $9.99
  • 23

    GUIDELH,LEVER use T2195-95424 dnr v

    • Part No. T2195-95423
    • Applied Dates 2004-02-19 to 2004-10-04
    • Serial No. D70200001 and up
    • * multiple options for #23
    • 1 shown on diagram
    $62.99
  • 23

    GUIDE-LEVER LH dnr v

    • Part No. T2195-95424
    • Compatibility Interchngable
    • Applied Dates 2004-10-05 and up
    • Serial No. E70200001 and up
    • T3.0
    • * multiple options for #23
    • 1 shown on diagram
    $83.99
  • 23

    (LH) Guide Lever< Replaced by T2195-95425BB

    • Part No. T2195-95424BB
    • Compatibility No interchange
    • * multiple options for #23
    • 1 shown on diagram
    $86.99
  • 24

    LEVER GUIDE(RH) dnr v

    • Part No. T2185-95431
    • Applied Dates Up to 2004-10-04
    • * multiple options for #24
    • 1 shown on diagram
    $93.99
  • 24

    LEVER GUIDE RH v

    • Part No. T2185-95432
    • Compatibility Interchngable
    • Applied Dates 2004-10-05 and up
    • Serial No. E70200001 and up
    • T3.0
    • * multiple options for #24
    • 1 shown on diagram
    $93.99
  • 24

    Guide Lever (RH)

    • Part No. T2185-95432BB
    • Compatibility No interchange
    • * multiple options for #24
    • 1 shown on diagram
    $96.99
  • 25 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 4 shown on diagram
    $1.09
  • 26 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • Applied Dates 2004-01-30 to 2007-02-04
    • M8XP1.25
    • * multiple options for #26
    • 9 shown on diagram
    $2.49
  • 26 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Compatibility New repl old
    • Applied Dates 2007-02-05 and up
    • M8XP1.25
    • * multiple options for #26
    • 9 shown on diagram
    $1.79
  • 27 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • Applied Dates 2004-02-19 and up
    • 2 shown on diagram
    $0.79
  • 28 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates 2004-02-19 and up
    • M08
    • 2 shown on diagram
    $0.61
  • 29 NUT

    NUT

    • Part No. 02114-50080
    • Applied Dates 2004-02-19 to 2007-09-03
    • M8*P1.25
    • * multiple options for #29
    • 2 shown on diagram
    $0.67
  • 29 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Compatibility Interchngable
    • Applied Dates 2007-09-04 and up
    • M8XP1.25
    • * multiple options for #29
    • 2 shown on diagram
    $0.85
  • 30

    RUBBER, PEDAL

    • Part No. T2350-26661
    • Applied Dates 2004-02-18 to 2007-03-29
    • 1 shown on diagram
    $7.99
  • 31

    U-SHAPED RUBBER

    • Part No. T2185-70621
    • Applied Dates 2004-02-20 to 2007-02-04
    • 2 shown on diagram
    $3.49
  • 32

    Lever Stopper Replaced by T2350-95472

    • Part No. T2350-95471
    • Applied Dates 2004-08-23 to 2005-01-18
    • Serial No. 370200001 to E70200080
    • * multiple options for #32
    • 1 shown on diagram
    $3.99
  • 32

    Lever Stopper (T2350-95472)

    • Part No. T2350-95472
    • Compatibility Interchngable
    • Applied Dates 2005-01-19 to 2007-05-24
    • Serial No. E70200081 to G70200080
    • * multiple options for #32
    • 1 shown on diagram
    $3.49
  • 32 STOPPER,PTO

    STOPPER,PTO

    • Part No. T2185-25871
    • Compatibility Call for compat
    • Applied Dates 2007-05-25 to 2004-08-24
    • Serial No. G70200081 to D70200501
    • T3.2
    • * multiple options for #32
    • 1 shown on diagram
    $11.99
  • 33

    BOLT, Replaced by 55571-32381

    • Part No. 55571-3238-1
    • Applied Dates 2004-08-23 to 2007-05-24
    • 1 shown on diagram
    $0.00
  • 34 Flat Washer M6, Replaced by 04012-50060

    Flat Washer M6, Replaced by 04012-50060

    • Part No. 04015-50060
    • Applied Dates 2004-08-23 to 2007-05-24
    • M6
    • 1 shown on diagram
    $0.00
  • 35 Split Pin (05511-50215)

    Split Pin (05511-50215)

    • Part No. 05511-50215
    • Applied Dates 2004-08-23 to 2007-05-24
    • DIA1.8XL15
    • 1 shown on diagram
    $0.62
  • 36

    SPACER

    • Part No. T4520-83301
    • Applied Dates 2005-01-19 to 2007-05-24
    • DIA10.5*T2.0
    • 1 shown on diagram
    $4.99
  • 37 RING

    RING

    • Part No. T2350-81151
    • DIA6
    • 1 shown on diagram
    $14.99
