BRAKE PEDAL GROUP - CK30H-T470A

Kioti TRACTOR | CK Series | CK25H

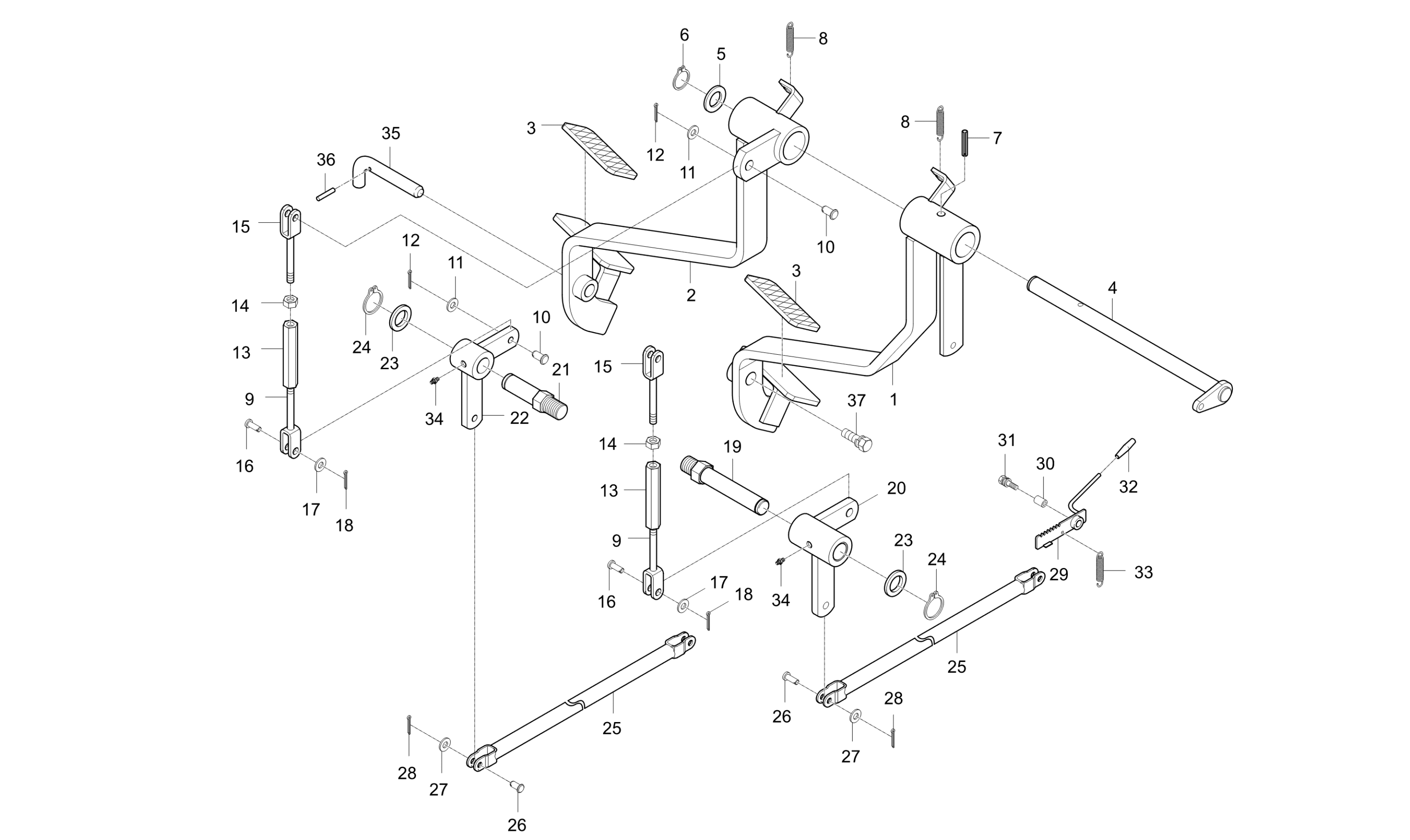

Diagram for BRAKE PEDAL GROUP - CK30H-T470A
  • 1

    PEDAL, BRAKE(LH) v

    • Part No. T2195-55712
    • Applied Dates 2004-02-18 to 2004-03-26
    • Serial No. D70200001 to D70200050
    • * multiple options for #1
    • 1 shown on diagram
    $66.99
  • 1

    PEDAL,BRAKE

    • Part No. T2195-55713
    • Compatibility New repl old
    • Applied Dates 2004-03-27 to 2007-06-20
    • Serial No. D70200051 to G70200080
    • * multiple options for #1
    • 1 shown on diagram
    $69.99
  • 1

    PEDAL,BRAKE dnr v

    • Part No. T2195-55714
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $114.99
  • 2

    PEDAL, BRAKE(RH)

    • Part No. T2195-55722
    • Applied Dates 2004-02-18 to 2004-03-26
    • Serial No. D70200001 to D70200050
    • * multiple options for #2
    • 1 shown on diagram
    $73.99
  • 2

    PEDAL, BRAKE(RH)

    • Part No. T2195-55723
    • Compatibility New repl old
    • Applied Dates 2004-03-27 to 2007-06-20
    • Serial No. D70200051 to G70200080
    • * multiple options for #2
    • 1 shown on diagram
    $74.99
  • 2

    PEDAL, BRAKE RH

    • Part No. T2195-55723BB
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $74.99
  • 3

    Pedal Cover

    • Part No. T2195-55531
    • 2 shown on diagram
    $12.99
  • 4

    SHAFT, PEDAL

    • Part No. T2185-55731
    • * multiple options for #4
    • 1 shown on diagram
    $49.99
  • 4

    SHAFT, PEDAL

    • Part No. T2185-55731BB
    • Compatibility No interchange
    • * multiple options for #4
    • 1 shown on diagram
    $54.99
  • 5

    COLLAR dnr v

    • Part No. 84612-1445-0
    • DIA36*8
    • 1 shown on diagram
    $11.99
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 7 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 8

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 2 shown on diagram
    $6.49
  • 9

    ROD 1,BRAKE

    • Part No. T2610-55751
    • 2 shown on diagram
    $24.99
  • 10

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
    $3.49
  • 11 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 12

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 13

    TURNBUCKLE

    • Part No. 32350-2898-4
    • HEX14
    • 2 shown on diagram
    $28.99
  • 14

    NUT

    • Part No. 02114-50100
    • M10*P1.5
    • 2 shown on diagram
    $0.67
  • 15

    BRAKE ROD 2

    • Part No. T2185-55761
    • 2 shown on diagram
    $19.99
  • 16

    Pin, Joint M8x25mm

    • Part No. 05122-50825
    • Applied Dates 2004-01-06 to 2004-11-11
    • Serial No. D70200001 to D70200557
    • * multiple options for #16
    • 2 shown on diagram
    $2.99
  • 16

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • Compatibility New repl old
    • Applied Dates 2004-11-19 to 2007-06-20
    • Serial No. D70200558 to G70200080
    • DIA10XL28
    • * multiple options for #16
    • 2 shown on diagram
    $3.49
  • 17 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • Compatibility New repl old
    • Applied Dates 2004-11-19 to 2007-02-10
    • Serial No. D70200558 to G70200040
    • M10
    • 2 shown on diagram
    $0.73
  • 18

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • Compatibility New repl old
    • Applied Dates 2004-11-19 to 2004-01-15
    • Serial No. D70200558 to G70200080
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 19

    BRAKE SHAFT(LH)

    • Part No. T2185-55801
    • HEX27
    • * multiple options for #19
    • 1 shown on diagram
    $15.99
  • 19

    Brake Shaft (LH)

    • Part No. T2185-55802
    • Compatibility New repl old
    • Applied Dates 2004-01-14 to 2004-04-28
    • Serial No. D70200001 to D70200151
    • HEX27
    • * multiple options for #19
    • 1 shown on diagram
    $27.99
  • 20

    LEVER, BRAKE

    • Part No. T2185-55781
    • Serial No. Up to G70200150
    • * multiple options for #20
    • 1 shown on diagram
    $35.99
  • 20

    LEVER,BRAKE v

    • Part No. T2185-55782
    • Compatibility New repl old
    • Applied Dates 2007-10-26 to 2011-01-10
    • Serial No. G70200151 and up
    • * multiple options for #20
    • 1 shown on diagram
    $59.99
  • 21

    BRAKE SHAFT(RH)

    • Part No. T2185-55811
    • HEX27
    • * multiple options for #21
    • 1 shown on diagram
    $14.99
  • 21

    BRAKE SHAFT(RH)

    • Part No. T2185-55812
    • Compatibility New repl old
    • Applied Dates 2004-01-14 to 2004-04-28
    • Serial No. D70200001 to D70200151
    • HEX27
    • * multiple options for #21
    • 1 shown on diagram
    $18.99
  • 22

    BRAKE LEVER

    • Part No. T2185-55792
    • Applied Dates 2004-09-01 to 2007-10-25
    • Serial No. D70200502 to G70200150
    • * multiple options for #22
    • 1 shown on diagram
    $39.99
  • 22

    LEVER, BRAKE v

    • Part No. T2185-55793
    • Compatibility New repl old
    • Applied Dates 2007-10-26 to 2011-01-10
    • Serial No. G70200151 and up
    • * multiple options for #22
    • 1 shown on diagram
    $46.99
  • 23

    Flat Washer M20

    • Part No. 04011-50200
    • M20
    • 2 shown on diagram
    $1.59
  • 24 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 2 shown on diagram
    $1.09
  • 25

    ROD 3,BARKE

    • Part No. T2610-55772
    • Applied Dates 2004-01-14 to 2009-01-24
    • Serial No. D70200001 to D70200151
    • * multiple options for #25
    • 2 shown on diagram
    $54.99
  • 25

    ROD 3, BRAKE

    • Part No. T2610-55772BB
    • Compatibility No interchange
    • Applied Dates 2009-01-25 and up
    • * multiple options for #25
    • 2 shown on diagram
    $57.99
  • 26 Pin, Joint M8x28mm

    Pin, Joint M8x28mm

    • Part No. 05122-50828
    • DIA8XL28
    • 4 shown on diagram
    $3.49
  • 27 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 4 shown on diagram
    $0.79
  • 28 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • DIA1.8XL18
    • 4 shown on diagram
    $0.56
  • 29

    Parking Brake Lever, Replaced by T2185-55912BB

    • Part No. T2185-55911
    • * multiple options for #29
    • 1 shown on diagram
    $38.99
  • 29

    LEVER,SET v

    • Part No. T2185-55912
    • Compatibility New repl old
    • * multiple options for #29
    • 1 shown on diagram
    $38.99
  • 30

    SPACER

    • Part No. T2350-55951
    • 1 shown on diagram
    $5.49
  • 31

    Bolt With Washers, M8 P1.25 x 25mm

    • Part No. 01125-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 32

    GRIP

    • Part No. T2350-55922
    • 1 shown on diagram
    $5.49
  • 33

    Spring, Replaced by T4157-51211

    • Part No. T2670-55841
    • Applied Dates 2004-02-20 to 2005-06-30
    • Serial No. D70200001 to E70200136
    • DIA0.8
    • * multiple options for #33
    • 1 shown on diagram
    $0.00
  • 33

    FRICTION SPRING

    • Part No. 57781-5121-1
    • Compatibility New repl old
    • Applied Dates 2005-10-01 to 2007-02-10
    • Serial No. E70200137 to G70200040
    • DIA1.2
    • * multiple options for #33
    • 1 shown on diagram
    $3.49
  • 34 NIPPLE, GREASE M6 P1.0

    NIPPLE, GREASE M6 P1.0

    • Part No. 06611-15675
    • A-M6F
    • 1 shown on diagram
    $1.69
  • 35

    PIN,BRAKE PEDAL

    • Part No. T2350-55942
    • DIA12
    • 1 shown on diagram
    $14.99
  • 36 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00325
    • DIA3.3XL25
    • 1 shown on diagram
    $0.62
  • 37

    BOLT

    • Part No. 01027-50614
    • 1 shown on diagram
    $1.89
