BONNET 1 GROUP - CK30M-T810A

Kioti TRACTOR | CK Series | CK25H

Diagram for BONNET 1 GROUP - CK30M-T810A
  • 1

    GRILLE FRONT V, Replaced by T2185-50802BB

    • Part No. T2185-50802
    • Applied Dates 2004-01-16 to 2008-10-23
    • Serial No. D70200001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $0.00

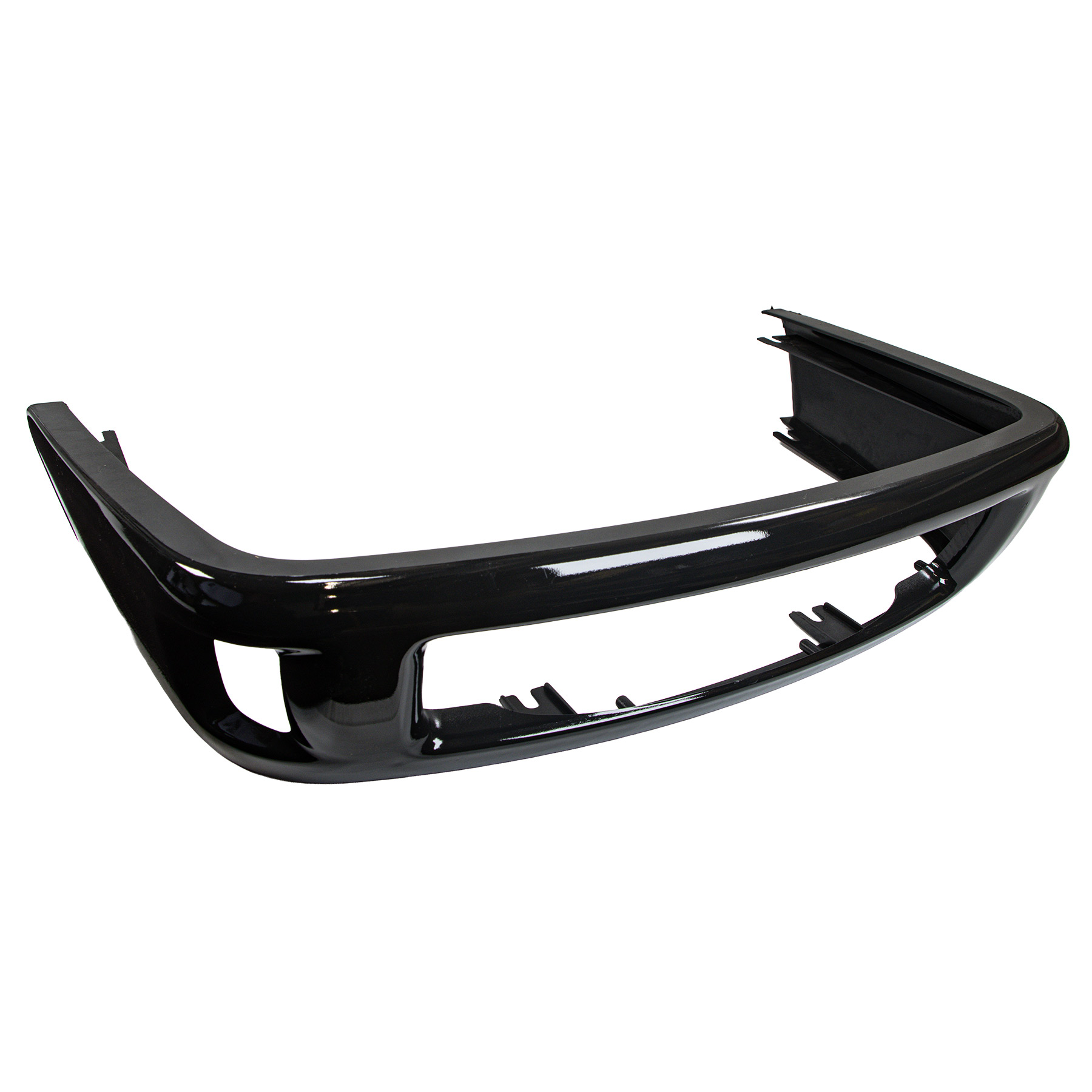

  • 1 GRILLE FRONT, CHARCOAL GRAY

    GRILLE FRONT, CHARCOAL GRAY

    • Part No. T2185-50802BB
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $99.99
  • 1

    GRILL, FRONT

    • Part No. T2185-50803
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $68.99
  • 2

    GRILL FRONT METAL V

    • Part No. T2185-50811
    • T0.8
    • * multiple options for #2
    • 1 shown on diagram
    $76.99
  • 2

    Front Metal Grill, Replaced By T2185-50812BB

    • Part No. T2185-50811BB
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $65.99
  • 3 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 8 shown on diagram
    $1.39
  • 4

    Bolt/Washer (01025-50620)

    • Part No. 01025-50620
    • Applied Dates 2004-02-16 to 2007-10-10
    • M6XP1.0
    • * multiple options for #4
    • 6 shown on diagram
    $2.49
  • 4

    WASHER BOLT v

    • Part No. 01025-50616
    • Compatibility New repl old
    • Applied Dates 2003-12-14 to 2008-07-25
    • Serial No. 370200001 to F70200280
    • M6*P1
    • * multiple options for #4
    • 6 shown on diagram
    $2.49
  • 5

    RUBBER FRONT GRILL

    • Part No. T2185-50902
    • Applied Dates 2004-01-06 and up
    • 1 shown on diagram
    $23.99
