AUX SPEED SHIFT LEVER GROUP - CK30H-T340A

Kioti TRACTOR | CK Series | CK25H

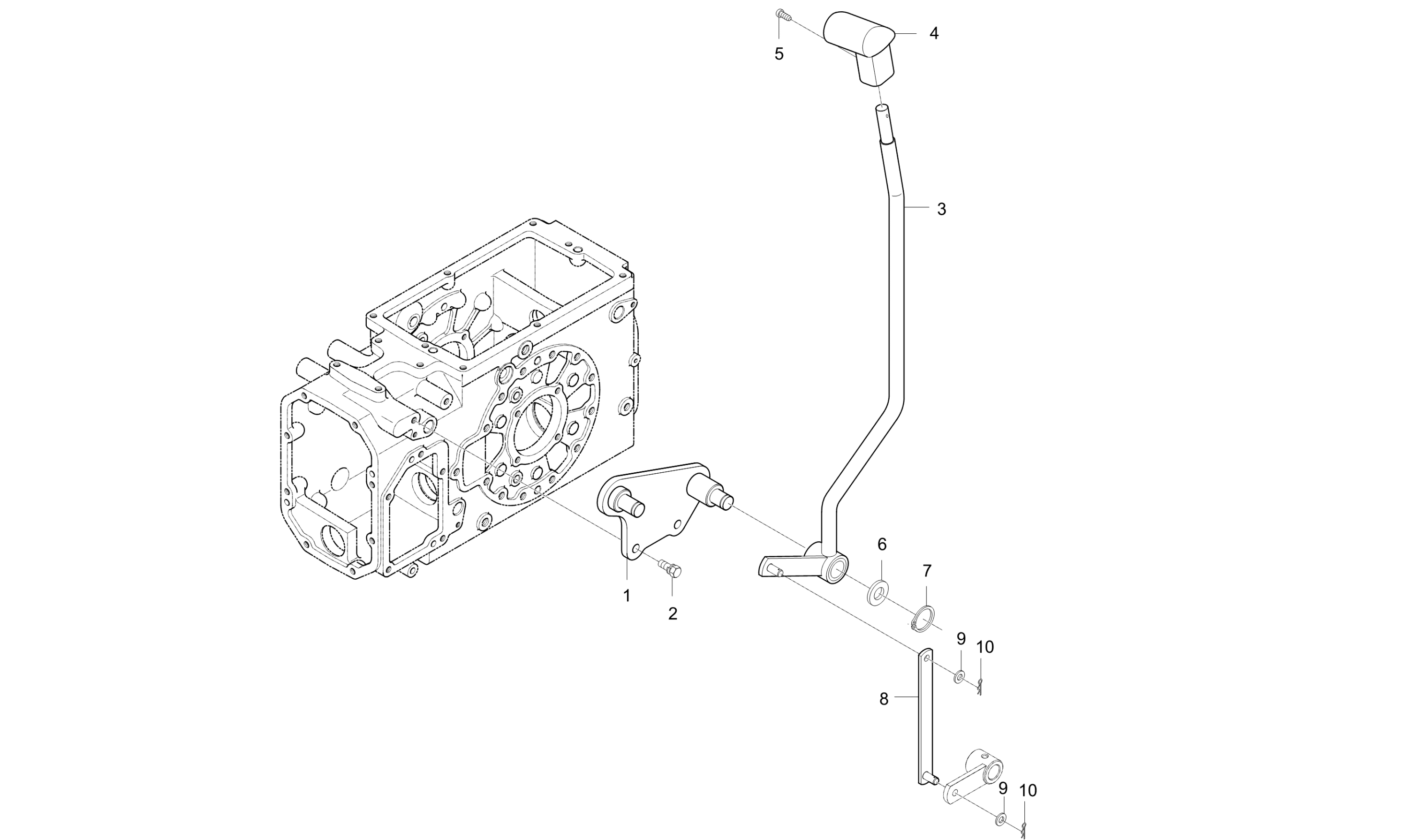

Diagram for AUX SPEED SHIFT LEVER GROUP - CK30H-T340A
  • 1

    BRACKET, HI-LO

    • Part No. T2185-60415
    • Applied Dates 2004-01-13 to 2004-04-28
    • Serial No. D70200001 to D70200151
    • * multiple options for #1
    • 1 shown on diagram
    $53.99
  • 1

    Range Shift Bracket, Replaced by T2185-60416-SP

    • Part No. T2185-60416
    • Compatibility New repl old
    • Applied Dates 2006-09-16 to 2011-01-10
    • Serial No. F70200281 and up
    • * multiple options for #1
    • 1 shown on diagram
    $52.99
  • 2 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 2 shown on diagram
    $3.49
  • 3

    Range Lever, Replaced by T2195-60431BB

    • Part No. T2185-60435
    • Applied Dates 2004-01-13 to 2005-10-31
    • Serial No. D70200001 to D70200151
    • * multiple options for #3
    • 1 shown on diagram
    $76.99
  • 3

    LEVER, RANGE SHIFT dnr v

    • Part No. T2195-60431
    • Compatibility New repl old
    • Applied Dates 2005-12-01 to 2009-06-25
    • Serial No. E70200217 and up
    • * multiple options for #3
    • 1 shown on diagram
    $82.99

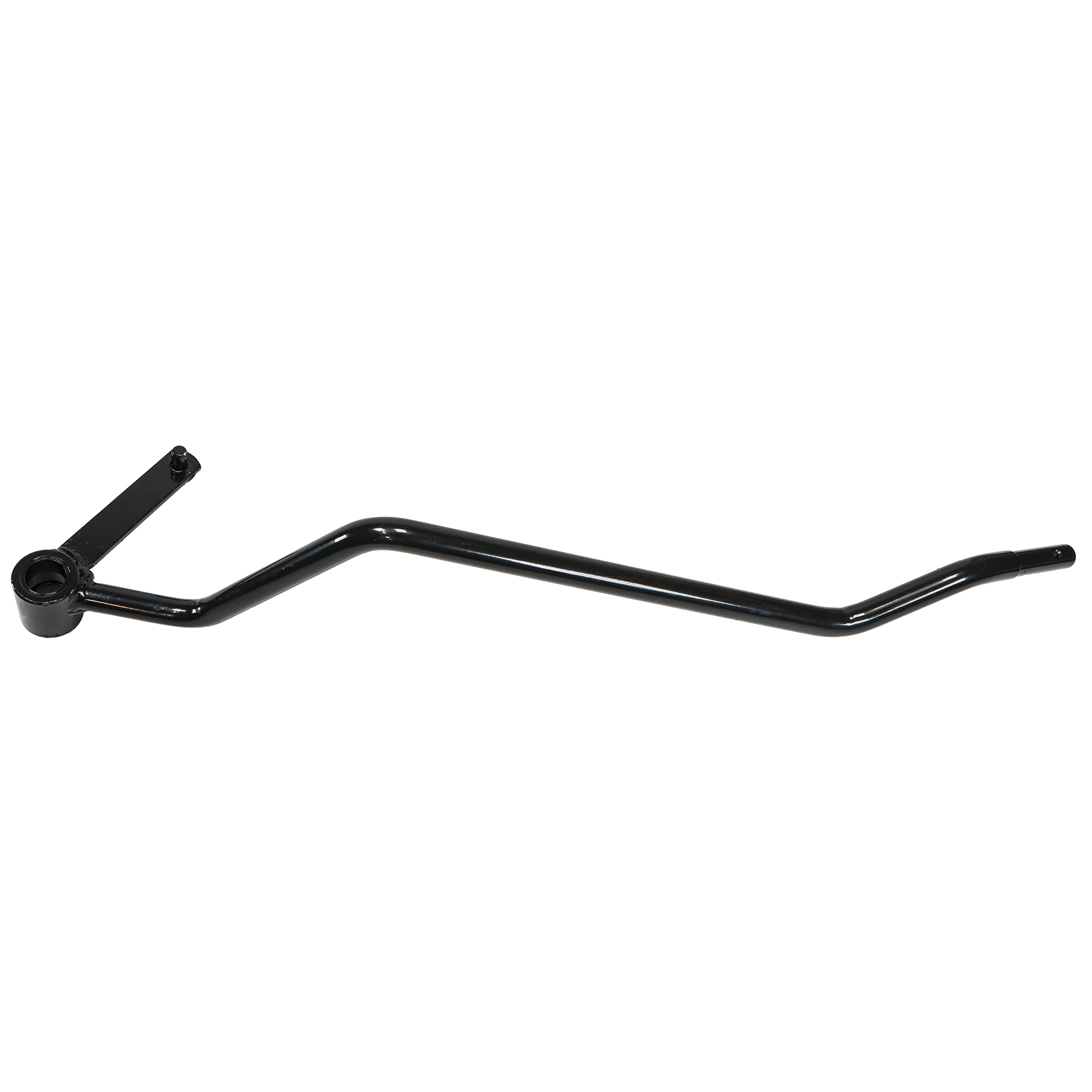

  • 3 LEVER, SUBMISSION

    LEVER, SUBMISSION

    • Part No. T2195-60431BB
    • Compatibility No interchange
    • * multiple options for #3
    • 1 shown on diagram
    $82.99
  • 4

    GRIP, HI-LOW SHIFT v

    • Part No. T2350-60442
    • Applied Dates 2003-12-22 to 2011-07-31
    • Serial No. 370200001 and up
    • * multiple options for #4
    • 1 shown on diagram
    $21.99
  • 4

    GRIP

    • Part No. T2368-60441
    • Compatibility New repl old
    • Applied Dates 2011-08-01 and up
    • * multiple options for #4
    • 1 shown on diagram
    $23.99
  • 5 BOLT,SCREW

    BOLT,SCREW

    • Part No. 03024-50514
    • 1 shown on diagram
    $0.79
  • 6 Flat Washer M18

    Flat Washer M18

    • Part No. 04011-50180
    • M18
    • 1 shown on diagram
    $1.59
  • 7 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
    $1.09
  • 8

    ROD(HI-LO)

    • Part No. T2195-60424
    • Applied Dates 2004-02-20 to 2004-04-28
    • Serial No. D70200001 to D70200151
    • * multiple options for #8
    • 1 shown on diagram
    $13.99
  • 8

    ROD, RANGE SHIFT dnr v

    • Part No. T2195-60425
    • Compatibility New repl old
    • Applied Dates 2004-05-23 to 2009-09-15
    • Serial No. D70200252 and up
    • * multiple options for #8
    • 1 shown on diagram
    $13.99
  • 8

    ROD, SUB SHIFT

    • Part No. T2195-60425BB
    • Compatibility No interchange
    • * multiple options for #8
    • 1 shown on diagram
    $13.99
  • 9 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 10 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 2 shown on diagram
    $1.29
