THREE POINT LINK SYSTEM 2GROUP - CK30M-T795A

Kioti TRACTOR | CK Series | CK25H

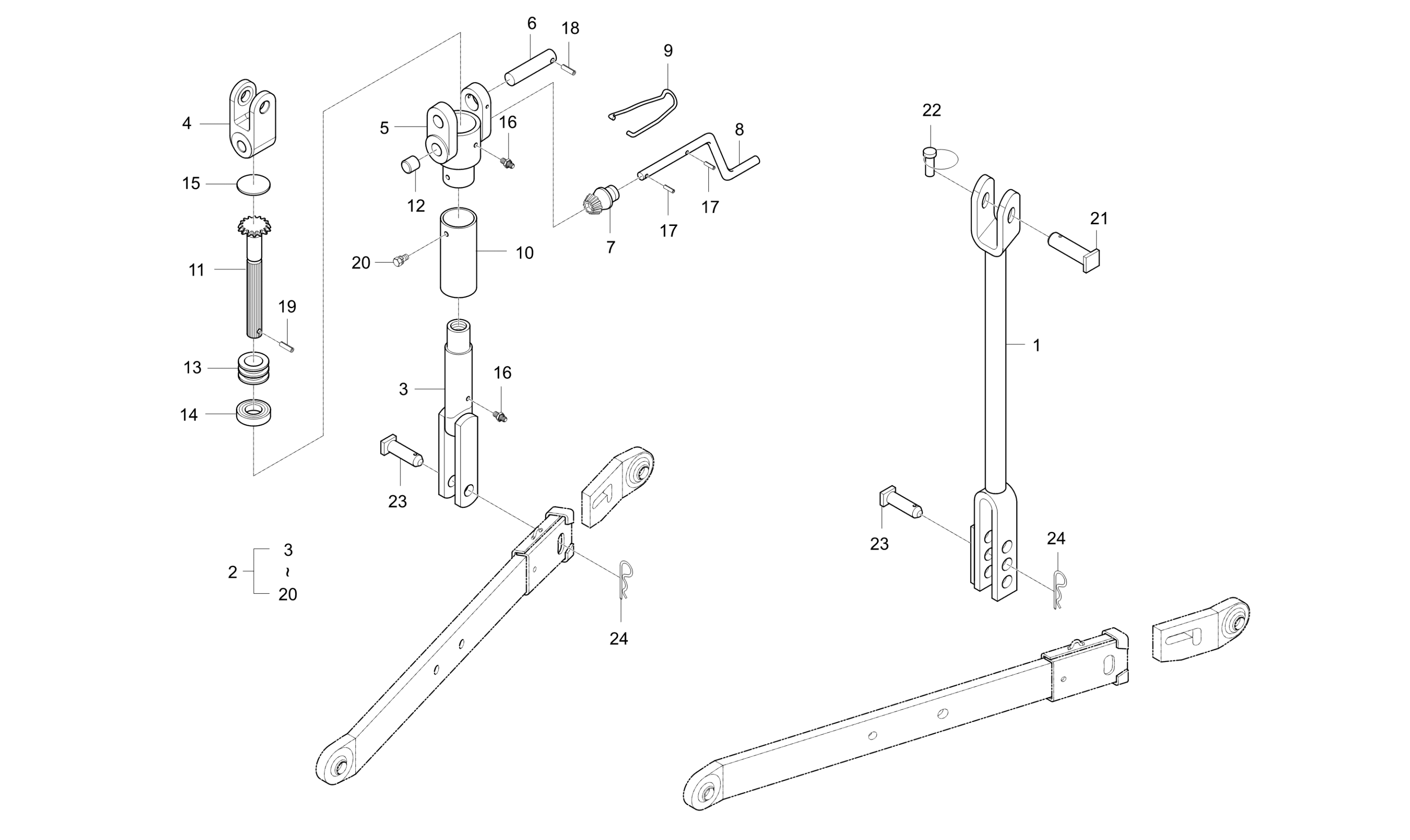

Diagram for THREE POINT LINK SYSTEM 2GROUP - CK30M-T795A
  • 1

    ASS’Y, LIFT ROD(LH)

    • Part No. T2185-71512
    • Applied Dates 2004-01-14 to 2004-02-02
    • * multiple options for #1
    • 1 shown on diagram
    $52.99
  • 1

    ASS’Y, LIFT ROD(LH)

    • Part No. T2185-71513
    • Compatibility New repl old
    • Applied Dates 2004-02-03 to 2004-04-28
    • Serial No. D70200001 to D70200151
    • * multiple options for #1
    • 1 shown on diagram
    $294.99
  • 2

    ASSY(RH), LIFT ROD v

    • Part No. T2185-71612
    • Applied Dates 2004-01-08 to 2004-02-02
    • * multiple options for #2
    • 1 shown on diagram
    $259.99
  • 2

    LIFT ROD ASSY RH V

    • Part No. T2185-71613
    • Compatibility New repl old
    • Applied Dates 2004-02-03 to 2004-04-28
    • Serial No. D70200001 to D70200151
    • * multiple options for #2
    • 1 shown on diagram
    $389.99
  • 3

    Lift Rod Lower

    • Part No. T2185-71621
    • 1 shown on diagram
    $64.99
  • 4

    Lift Rod Joint

    • Part No. T2185-71631
    • 1 shown on diagram
    $73.99
  • 5

    GEAR CASE, LIFT ROD

    • Part No. T2185-71641
    • 1 shown on diagram
    $109.99
  • 6

    PIN, LIFT ROD

    • Part No. T2185-71651
    • 1 shown on diagram
    $56.99
  • 7

    ADJUST GEAR 2, LIFT ROD

    • Part No. T2185-71661
    • 1 shown on diagram
    $49.99
  • 8

    HANDLE

    • Part No. T4340-71661
    • DIA12
    • 1 shown on diagram
    $19.99
  • 9

    Handle Support Loop

    • Part No. T2185-71671
    • 1 shown on diagram
    $14.99
  • 10

    TUBE

    • Part No. T4340-71701
    • OD48.6*T2.6
    • 1 shown on diagram
    $25.99
  • 11

    GEAR,LIFT ROD 1 dnr v

    • Part No. 32245-7164-1
    • Applied Dates Up to 2004-02-02
    • * multiple options for #11
    • 1 shown on diagram
    $43.99
  • 11

    GEAR, 1 LIFT ROD ADJUST

    • Part No. T2185-71691
    • Compatibility New repl old
    • Applied Dates 2004-02-03 and up
    • * multiple options for #11
    • 1 shown on diagram
    $83.99
  • 12

    SPACER

    • Part No. 32244-7167-1
    • DIA21.7X17
    • 1 shown on diagram
    $4.99
  • 13

    SHIM (LIFT ROD CONTROL)

    • Part No. 31220-7172-1
    • T0.2
    • 3 shown on diagram
    $13.99
  • 14

    THRUST BALL BEARING

    • Part No. 32294-7177-1
    • 1 shown on diagram
    $44.99
  • 15

    PLUG

    • Part No. 06311-75045
    • DIA45
    • 1 shown on diagram
    $3.49
  • 16 Grease Nipple M6 P0.75

    Grease Nipple M6 P0.75

    • Part No. 06613-10675
    • M6XP0.75
    • 2 shown on diagram
    $2.49
  • 17

    PIN,SPRING

    • Part No. 05411-00622
    • 2 shown on diagram
    $0.96
  • 18

    PIN,SPRING

    • Part No. 05411-00532
    • 1 shown on diagram
    $0.79
  • 19 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00420
    • DIA4.4XL20
    • 1 shown on diagram
    $0.68
  • 20

    BOLT

    • Part No. 01202-50612
    • 1 shown on diagram
    $1.09
  • 21 PIN,LIFT ROD, Replaced By T4620-85471TP

    PIN,LIFT ROD, Replaced By T4620-85471TP

    • Part No. T4620-85471
    • 2 shown on diagram
    $19.99
  • 22

    PIN, CLIP dnr v

    • Part No. 34150-3764-4
    • DIA10.0
    • 2 shown on diagram
    $5.99
  • 23

    PIN, Replaced by 34354-71583

    • Part No. 34354-7158-3
    • 2 shown on diagram
    $0.00
  • 24 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 2 shown on diagram
    $2.99
