AIR CLEANER GROUP - CK25M-T010A

Kioti TRACTOR | CK Series | CK25H

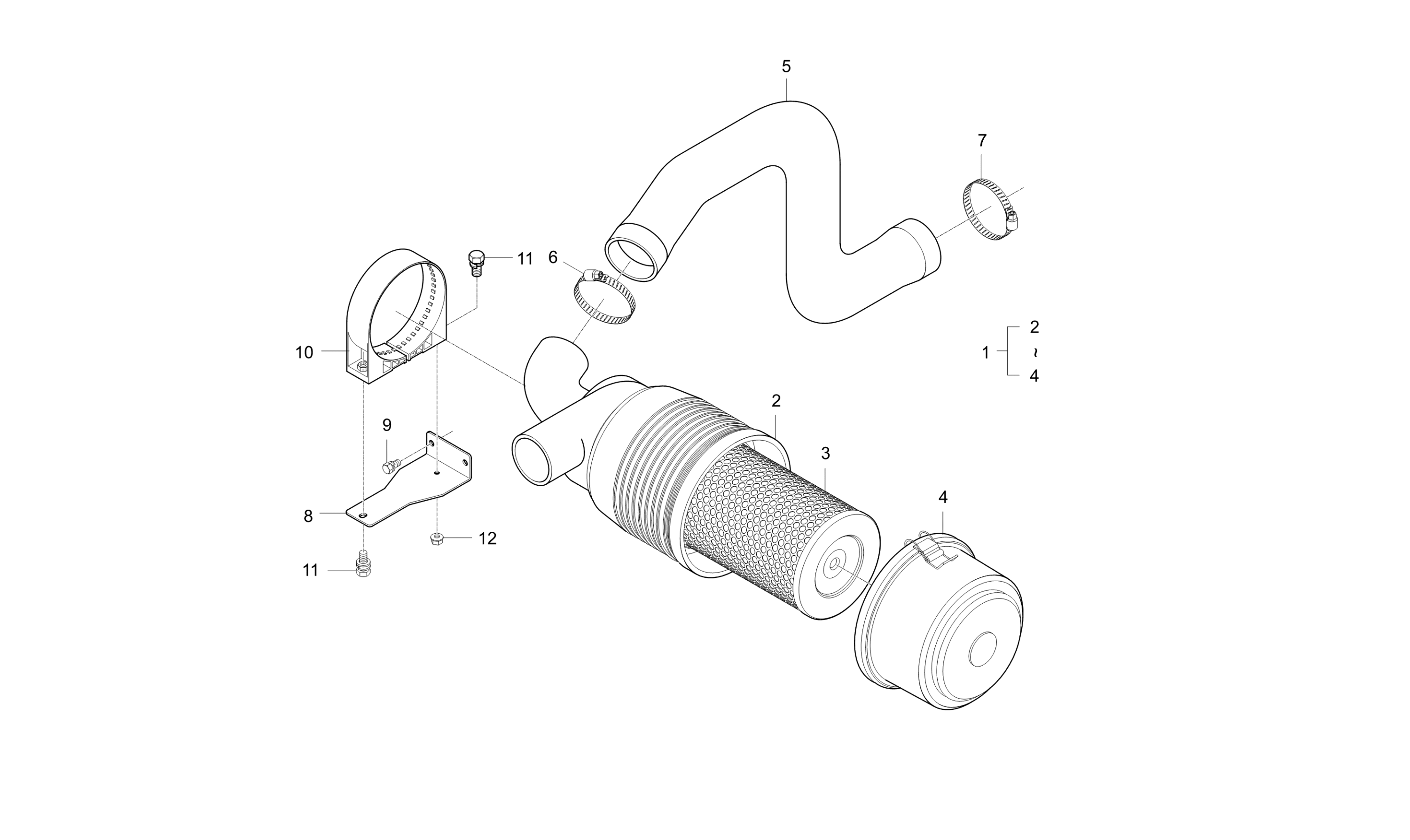

Diagram for AIR CLEANER GROUP - CK25M-T010A
  • 1

    ASSY, AIR CLEANER FILTER dnr v

    • Part No. T4624-11011
    • Applied Dates Up to 2008-01-15
    • 1 shown on diagram
    $214.99
  • 2 ASSY, AIR BODY CLEANER

    ASSY, AIR BODY CLEANER

    • Part No. T4624-11111
    • 1 shown on diagram
    $174.99
  • 3 Air Filter Element (Replaced by TC26-1225A)

    Air Filter Element (Replaced by TC26-1225A)

    • Part No. E7230-11081
    • 1 shown on diagram
    $57.99
  • 4 COVER

    COVER

    • Part No. E7230-11111002
    • 1 shown on diagram
    $134.99
  • 5

    Hose, Inlet

    • Part No. T2165-11621
    • Applied Dates Up to 2006-05-28
    • 1 shown on diagram
    $75.99
  • 6

    ASSY, CLAMP v

    • Part No. KX97382-S51
    • Applied Dates 2004-05-14 and up
    • DIA70 Stan76#
    • 1 shown on diagram
    $2.99
  • 7

    ASSY, CLAMP v

    • Part No. KX97382-S51
    • Applied Dates 2004-03-25 and up
    • DIA70 Stan76#
    • 1 shown on diagram
    $2.99
  • 8

    BRACKET(AIRCLEANER)

    • Part No. T2185-11732
    • Applied Dates 2004-03-23 and up
    • 1 shown on diagram
    $16.99
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09

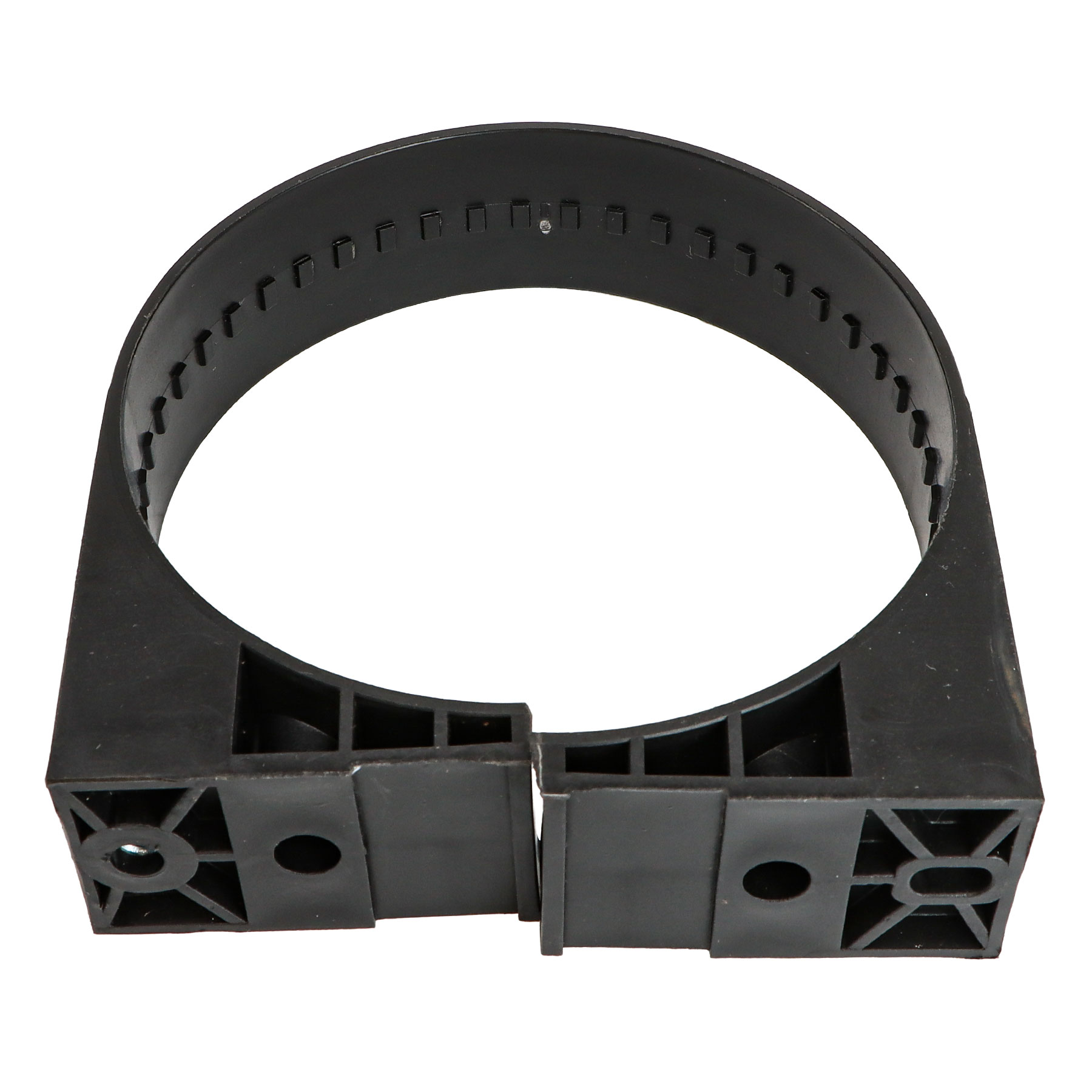

  • 10 HOLDER,AIRCLEANER

    HOLDER,AIRCLEANER

    • Part No. E7230-11222
    • 1 shown on diagram
    $29.99
  • 11

    Bolt With Washers, M8 P1.25 x 30mm

    • Part No. 01125-50830
    • M8*P1.25
    • 2 shown on diagram
    $2.99
  • 12 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • Applied Dates 2004-03-23 and up
    • M8XP1.25
    • 1 shown on diagram
    $0.67
