FRAME GROUP - CK30H-T840A

Kioti TRACTOR | CK Series | CK25H

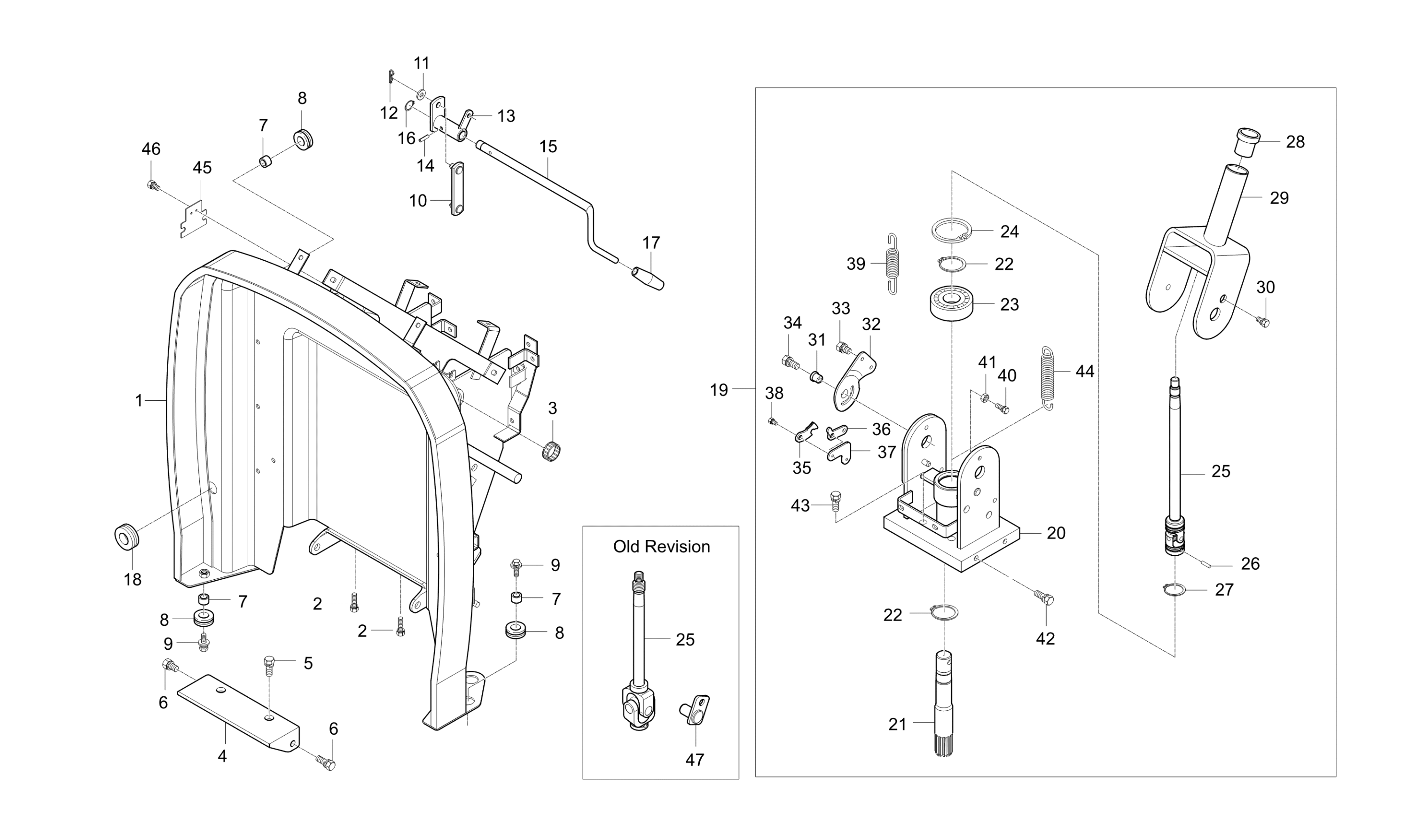

Diagram for FRAME GROUP - CK30H-T840A
  • 1

    ASSY FRAME

    • Part No. T2195-55104
    • Applied Dates 2005-10-01 to 2005-10-30
    • Serial No. E70200137 to E70200216
    • * multiple options for #1
    • 1 shown on diagram
    $494.99
  • 1

    ASSY FRAME v

    • Part No. T2195-55105
    • Compatibility New repl old
    • Applied Dates 2005-10-31 to 2006-11-20
    • Serial No. E70200217 to F70200280
    • * multiple options for #1
    • 1 shown on diagram
    $414.99
  • 1

    ASSY FRAME v

    • Part No. T2195-55106
    • Compatibility New repl old
    • Applied Dates 2006-11-21 to 2007-04-15
    • Serial No. F70200281 to G70200040
    • * multiple options for #1
    • 1 shown on diagram
    $499.99
  • 1

    ASSY FRAME

    • Part No. T2195-55107
    • Compatibility No interchange
    • Applied Dates 2007-04-16 to 2007-06-20
    • Serial No. G70200041 to G70200080
    • * multiple options for #1
    • 1 shown on diagram
    $694.99
  • 2

    BOLT

    • Part No. 01133-51245
    • M12XP1.25
    • 2 shown on diagram
    $4.49
  • 3

    NEEDLE BEARING

    • Part No. 08822-53017
    • Inner diameter 25
    • 2 shown on diagram
    $19.99
  • 4

    Frame Holder

    • Part No. T2185-55471
    • * multiple options for #4
    • 1 shown on diagram
    $22.99
  • 4

    HOLDER, FRAME obs v

    • Part No. T2185-55471ED
    • Compatibility Interchngable
    • * multiple options for #4
    • 1 shown on diagram
    $22.99
  • 5 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 2 shown on diagram
    $3.49
  • 6 BOLT

    BOLT

    • Part No. 01133-51022
    • Applied Dates Up to 2007-01-29
    • Serial No. Up to G70200040
    • M10XP1.25
    • * multiple options for #6
    • 2 shown on diagram
    $2.99
  • 6 BOLT

    BOLT

    • Part No. 01133-51025
    • Compatibility New repl old
    • Applied Dates 2007-02-09 to 2007-06-20
    • Serial No. G70200041 to G70200080
    • M10XP1.25
    • * multiple options for #6
    • 2 shown on diagram
    $3.49
  • 7

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 8 shown on diagram
    $4.49
  • 8

    GROMMET

    • Part No. T2350-50431
    • 8 shown on diagram
    $4.99
  • 9

    BOLT

    • Part No. 01127-50825
    • Applied Dates 2009-06-03 to 2007-02-10
    • Serial No. Up to G70200040
    • M8XP1.25
    • * multiple options for #9
    • 6 shown on diagram
    $2.49
  • 9

    Bolt With Washers, M8 P1.25 x 25mm

    • Part No. 01125-50825
    • Compatibility Interchngable
    • Applied Dates 2010-05-14 and up
    • M8XP1.25
    • * multiple options for #9
    • 2 shown on diagram
    $2.49
  • 10

    LOD(TILT)

    • Part No. T2185-66041
    • 1 shown on diagram
    $17.99
  • 11 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • Applied Dates Up to 2004-03-24
    • 2 shown on diagram
    $0.79
  • 12

    PIN,SNAP obs

    • Part No. 05515-50080
    • Applied Dates Up to 2004-03-24
    • Serial No. Up to D70200050
    • * multiple options for #12
    • 2 shown on diagram
    $1.29
  • 12

    PIN, SNAP

    • Part No. 05515-50800
    • Compatibility Interchngable
    • Applied Dates 2004-03-31 to 2007-06-20
    • Serial No. D70200051 to G70200080
    • DIA8
    • * multiple options for #12
    • 2 shown on diagram
    $1.29
  • 13

    ARM,CONNECT

    • Part No. T2185-66053
    • 1 shown on diagram
    $19.99
  • 14

    PIN, SPRING

    • Part No. 05411-00522
    • 1 shown on diagram
    $0.73
  • 15

    LEVER, TILT

    • Part No. T2185-66061
    • * multiple options for #15
    • 1 shown on diagram
    $16.99
  • 15

    LEVER, TILT

    • Part No. T2185-66062
    • Compatibility New repl old
    • * multiple options for #15
    • 1 shown on diagram
    $19.99
  • 16

    RING,SNAP

    • Part No. 04612-00120
    • #12
    • 1 shown on diagram
    $0.79
  • 17

    GRIP

    • Part No. T2360-33192
    • 1 shown on diagram
    $6.49
  • 18

    GROMMET

    • Part No. 31355-2949-1
    • 1 shown on diagram
    $4.99
  • 19

    ASSY SHAFT, STEERING dnr v

    • Part No. T2185-66104
    • Applied Dates 2004-09-16 to 2007-11-13
    • Serial No. E70200001 to G70200080
    • * multiple options for #19
    • 1 shown on diagram
    $789.99
  • 19

    Total Steering Assy, Replaced by T2155-66101BB

    • Part No. T2185-66105
    • Compatibility New repl old
    • Applied Dates 2007-11-14 to 2008-07-20
    • Serial No. H70200001 and up
    • * multiple options for #19
    • 1 shown on diagram
    $354.99
  • 19

    TOTAL STEERING ASSY

    • Part No. T2185-66105BB
    • Compatibility No interchange
    • * multiple options for #19
    • 1 shown on diagram
    $569.99
  • 19

    STEERING ASSY

    • Part No. T2155-66101BB
    • Compatibility New repl old
    • Applied Dates 2009-01-31 to 2009-01-31
    • * multiple options for #19
    • 1 shown on diagram
    $679.99
  • 20

    Steering Support

    • Part No. T2185-66112
    • 1 shown on diagram
    $339.99
  • 21

    Shaft, Replaced by T2155-66121

    • Part No. T2185-66121
    • Applied Dates Up to 2008-07-20
    • * multiple options for #21
    • 1 shown on diagram
    $32.99
  • 21

    SHAFT

    • Part No. T2155-66121
    • Compatibility New repl old
    • * multiple options for #21
    • 1 shown on diagram
    $48.99
  • 22 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00170
    • DIA17
    • 2 shown on diagram
    $0.98
  • 23

    BEARING, BALL

    • Part No. 08141-06203
    • DIA17
    • 1 shown on diagram
    $15.99
  • 24

    CIR CLIP, INTERNAL

    • Part No. 04611-00400
    • DIA40
    • 1 shown on diagram
    $2.49
  • 25

    STEERING SHAFT ASS’Y

    • Part No. T2185-66131
    • Applied Dates Up to 2004-09-15
    • * multiple options for #25
    • 1 shown on diagram
    $0.00
  • 25

    STEERING SHAFT ASSY

    • Part No. T2185-66132
    • Compatibility Interchngable
    • Applied Dates 2004-09-16 to 2008-07-20
    • * multiple options for #25
    • 1 shown on diagram
    $319.99
  • 25

    Steering Shaft

    • Part No. T2155-66131
    • Compatibility New repl old
    • * multiple options for #25
    • 1 shown on diagram
    $299.99
  • 26

    PIN,SPRING

    • Part No. 05411-00622
    • Applied Dates Up to 2008-07-20
    • * multiple options for #26
    • 1 shown on diagram
    $0.96
  • 26 PIN, STRAIGHT

    PIN, STRAIGHT

    • Part No. 66116-4135-3
    • Compatibility New repl old
    • * multiple options for #26
    • 1 shown on diagram
    $9.99
  • 27 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Applied Dates 2004-06-14 to 2008-07-20
    • Serial No. D70200302 to D70200151
    • DIA25
    • * multiple options for #27
    • 1 shown on diagram
    $1.09
  • 27 SNAP RING

    SNAP RING

    • Part No. 04612-00280
    • Compatibility New repl old
    • DIA28
    • * multiple options for #27
    • 1 shown on diagram
    $1.19
  • 28

    RUBBER, CUSHION

    • Part No. T2185-62241
    • 1 shown on diagram
    $23.99
  • 29

    STEERING COLUMN ASS’Y

    • Part No. T2185-66011
    • 1 shown on diagram
    $114.99
  • 30 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 31

    SPACER

    • Part No. T4682-66081
    • DIA16
    • 1 shown on diagram
    $14.99
  • 32

    GEAR, SECTOR

    • Part No. T4682-66061
    • T4.5
    • 1 shown on diagram
    $64.99
  • 33 Bolt M10 P1.25x16mm W/Lock Washer

    Bolt M10 P1.25x16mm W/Lock Washer

    • Part No. 01133-51016
    • M10*P1.25
    • 1 shown on diagram
    $2.49
  • 34

    BOLT

    • Part No. 01133-51028
    • M10*1.25
    • 1 shown on diagram
    $3.49
  • 35 GEAR, LOCK

    GEAR, LOCK

    • Part No. T4682-66071
    • T4.5
    • 1 shown on diagram
    $28.99
  • 36

    LEVER

    • Part No. T4682-66031
    • Applied Dates Up to 2007-11-13
    • T4.5
    • * multiple options for #36
    • 1 shown on diagram
    $9.99
  • 36

    LEVER, TILT obs v

    • Part No. T2198-66031
    • Compatibility New repl old
    • T4.5
    • * multiple options for #36
    • 1 shown on diagram
    $8.49
  • 37

    PLATE

    • Part No. T4682-66111
    • T3
    • 1 shown on diagram
    $5.99
  • 38

    BOLT, WASHER v

    • Part No. 01023-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.09
  • 39

    SPRING(TILT)

    • Part No. T2185-66161
    • DIA2
    • 1 shown on diagram
    $8.99
  • 40 Bolt, M6 P1.0x25

    Bolt, M6 P1.0x25

    • Part No. 01053-50625
    • M6*P1.0
    • 1 shown on diagram
    $1.09
  • 41

    NUT, Replaced by 02014-50060

    • Part No. 02114-50060
    • 1 shown on diagram
    $0.00
  • 42

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 43

    Bolt With Washer, M10 P1.50 x 30mm

    • Part No. 01123-51030
    • M10*1.5
    • 4 shown on diagram
    $3.49
  • 44 SPRING, BRAKE

    SPRING, BRAKE

    • Part No. T4520-26161
    • Applied Dates Up to 2004-03-24
    • Serial No. Up to D70200050
    • DIA2.5
    • * multiple options for #44
    • 1 shown on diagram
    $9.99
  • 44 SPRING

    SPRING

    • Part No. T4520-27831
    • Compatibility New repl old
    • Applied Dates 2004-03-25 to 2007-11-13
    • Serial No. D70200051 to G70200080
    • DIA2.0
    • * multiple options for #44
    • 1 shown on diagram
    $6.49
  • 44

    SPRING v

    • Part No. T2198-27831
    • Compatibility New repl old
    • T2.0
    • * multiple options for #44
    • 1 shown on diagram
    $3.49
  • 45

    PLATE

    • Part No. T2350-55291
    • Applied Dates 2003-12-26 to 2007-06-20
    • Serial No. 370200001 to G70200080
    • T1.2
    • * multiple options for #45
    • 1 shown on diagram
    $1.39
  • 45

    PLATE, SENSOR HOLDER

    • Part No. T2350-55292
    • Compatibility New repl old
    • T1.2
    • * multiple options for #45
    • 1 shown on diagram
    $2.49
  • 46

    WASHER BOLT v

    • Part No. 01025-50616
    • M6*P1
    • 2 shown on diagram
    $2.49
  • 47

    PLATE

    • Part No. T4682-48061
    • 1 shown on diagram
    $12.99
