STEP GROUP - CK30H-T900A

Kioti TRACTOR | CK Series | CK25H

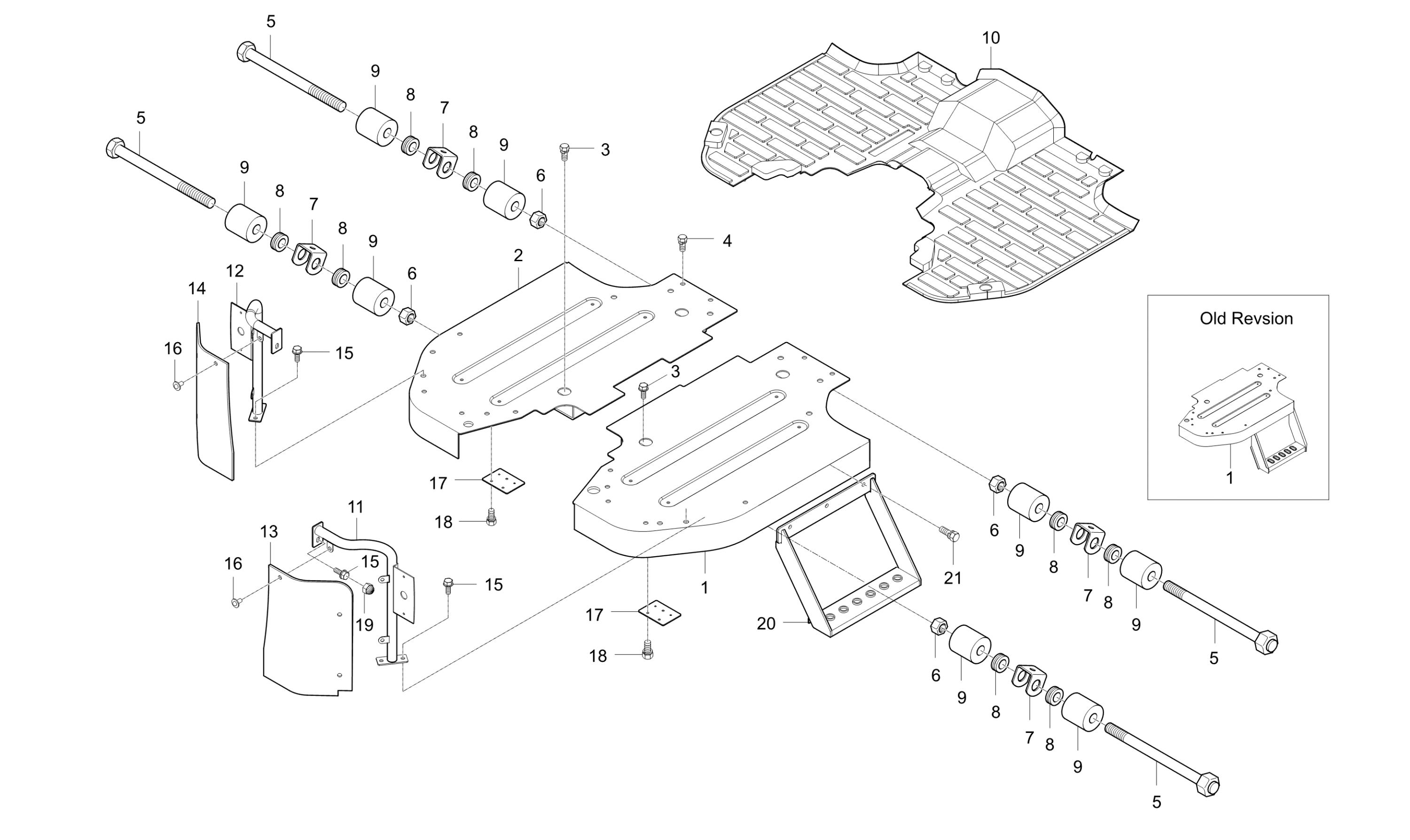

Diagram for STEP GROUP - CK30H-T900A
  • 1

    STEP(LH)

    • Part No. T2195-70113
    • Applied Dates 2004-01-16 to 2004-05-11
    • Serial No. D70200001 to D70200251
    • * multiple options for #1
    • 1 shown on diagram
    $164.99
  • 1

    STEP(RH)

    • Part No. T2195-70114
    • Compatibility Interchngable
    • Applied Dates 2004-05-12 to 2005-06-30
    • Serial No. D70200252 to E70200136
    • * multiple options for #1
    • 1 shown on diagram
    $194.99
  • 1

    (LH) Step Plate Replaced by T2195-70117AB

    • Part No. T2195-70115
    • Compatibility No interchange
    • Applied Dates 2005-07-01 to 2006-06-02
    • Serial No. E70200137 to F70200280
    • * multiple options for #1
    • 1 shown on diagram
    $169.99
  • 1

    PLATE LH,STEP v

    • Part No. T2195-70116
    • Compatibility Interchngable
    • Applied Dates 2006-06-03 to 2007-04-26
    • Serial No. F70200281 to G70200120
    • * multiple options for #1
    • 1 shown on diagram
    $144.99
  • 1

    (LH) Step Plate

    • Part No. T2195-70117
    • Compatibility New repl old
    • Applied Dates 2007-08-31 and up
    • Serial No. G70200121 and up
    • * multiple options for #1
    • 1 shown on diagram
    $199.99
  • 2

    STEP(RH)

    • Part No. T2195-70123
    • Applied Dates 2004-01-16 to 2004-05-11
    • Serial No. D70200001 to D70200251
    • * multiple options for #2
    • 1 shown on diagram
    $164.99
  • 2

    STEP(RH)

    • Part No. T2195-70124
    • Compatibility Interchngable
    • Applied Dates 2004-05-12 to 2005-06-30
    • Serial No. D70200252 to E70200136
    • * multiple options for #2
    • 1 shown on diagram
    $194.99
  • 2

    (RH) Step Plate, Replaced by T2195-70126AB

    • Part No. T2195-70125
    • Compatibility No interchange
    • Applied Dates 2005-07-01 to 2006-06-02
    • Serial No. E70200137 to F70200280
    • * multiple options for #2
    • 1 shown on diagram
    $169.99
  • 2

    PLATE RH,STEP

    • Part No. T2195-70126
    • Compatibility Interchngable
    • Applied Dates 2006-09-16 and up
    • Serial No. F70200281 and up
    • * multiple options for #2
    • 1 shown on diagram
    $289.99
  • 3

    Bolt With Washer, M8 P1.25 x 18mm

    • Part No. 01123-50818
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 4

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 5

    Bolt, Front, Replaced by T4157-70151

    • Part No. T2350-70152
    • 4 shown on diagram
    $0.00
  • 6 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 4 shown on diagram
    $2.49
  • 7

    BRACKET

    • Part No. T2350-70161
    • 4 shown on diagram
    $6.49
  • 8

    GROMMET

    • Part No. T2350-70171
    • 8 shown on diagram
    $3.99
  • 9

    CUSHION v

    • Part No. T2350-70181
    • Applied Dates Up to 2007-03-12
    • Serial No. Up to G70200080
    • * multiple options for #9
    • 8 shown on diagram
    $11.99
  • 9

    CUSHION V

    • Part No. T2350-70182
    • Compatibility New repl old
    • Applied Dates 2007-05-31 and up
    • Serial No. G70200081 and up
    • * multiple options for #9
    • 8 shown on diagram
    $13.99
  • 10

    MAT, STEP dnr v

    • Part No. T2195-70231
    • Applied Dates Up to 2006-11-14
    • * multiple options for #10
    • 1 shown on diagram
    $134.99
  • 10

    MAT, STEP dnr v

    • Part No. T2195-70232
    • Compatibility New repl old
    • Applied Dates 2006-11-15 to 2007-04-26
    • Serial No. F70200281 to G70200080
    • * multiple options for #10
    • 1 shown on diagram
    $114.99
  • 10

    Step Mat, Replaced by T2195-70234

    • Part No. T2195-70233
    • Compatibility New repl old
    • Applied Dates 2007-04-27 to 2012-09-30
    • Serial No. G70200081 and up
    • * multiple options for #10
    • 1 shown on diagram
    $154.99
  • 10

    MAT, STEP r

    • Part No. T2195-70234
    • Compatibility Interchngable
    • Applied Dates 2012-10-01 and up
    • * multiple options for #10
    • 1 shown on diagram
    $254.99
  • 11

    ASSY, COVER(LH)

    • Part No. T2185-70312
    • Applied Dates 2004-02-18 to 2006-06-02
    • Serial No. D70200001 to F70200280
    • * multiple options for #11
    • 1 shown on diagram
    $43.99
  • 11 ASSY,COVER(LH)

    ASSY,COVER(LH)

    • Part No. T2185-70711
    • Compatibility No interchange
    • Applied Dates 2006-09-16 and up
    • Serial No. G70200001 and up
    • * multiple options for #11
    • 1 shown on diagram
    $51.99
  • 12

    ASSY COVER, MUDGUARD-RH dnr v

    • Part No. T2185-70322
    • Applied Dates 2004-02-18 to 2006-06-02
    • Serial No. D70200001 to F70200280
    • * multiple options for #12
    • 1 shown on diagram
    $82.99
  • 12 Mud Guard Cover (RH)

    Mud Guard Cover (RH)

    • Part No. T2185-70721
    • Compatibility No interchange
    • Applied Dates 2006-09-16 and up
    • Serial No. G70200001 and up
    • * multiple options for #12
    • 1 shown on diagram
    $51.99
  • 13

    PLATE(LH)

    • Part No. T2185-70331
    • T3.0
    • 1 shown on diagram
    $41.99
  • 14

    PLATE(RH)

    • Part No. T2185-70341
    • T3.0
    • 1 shown on diagram
    $43.99
  • 15 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 6 shown on diagram
    $1.79
  • 16

    RIVET, BOLT, Replaced by 53650-61271

    • Part No. 53650-6127-1
    • 6 shown on diagram
    $0.00
  • 17

    HARNESS PLATE

    • Part No. T2185-70271
    • Applied Dates Up to 2005-08-17
    • T2.0
    • * multiple options for #17
    • 2 shown on diagram
    $4.99
  • 17

    HARNESS PLATE

    • Part No. T2185-70272
    • Compatibility New repl old
    • Applied Dates 2005-10-01 to 2008-05-09
    • Serial No. E70200137 and up
    • T2.0
    • * multiple options for #17
    • 2 shown on diagram
    $5.99
  • 18 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates 2004-01-30 and up
    • M8XP1.25
    • 4 shown on diagram
    $1.09
  • 19 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 2 shown on diagram
    $1.49
  • 20

    STEP

    • Part No. T2185-70223
    • Applied Dates 2005-10-01 and up
    • 2 shown on diagram
    $109.99
  • 21 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 8 shown on diagram
    $1.79
