RADIATOR GROUP - CK35-T030A

Kioti TRACTOR | CK Series | CK25H

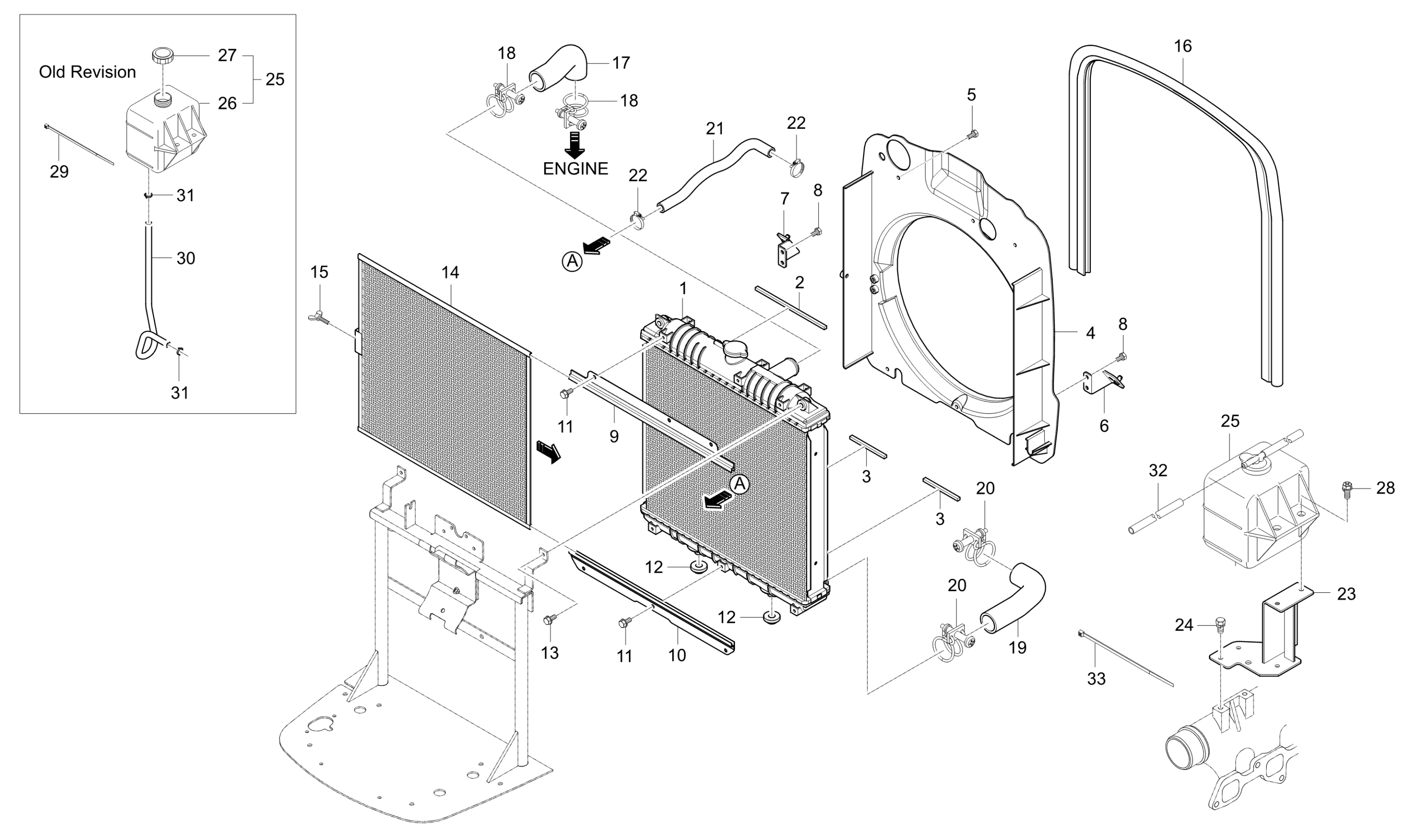

Diagram for RADIATOR GROUP - CK35-T030A
  • 1

    ASSY RADIATOR V

    • Part No. T2155-72162
    • 1 shown on diagram
    $724.99
  • 2

    SPONGE 1

    • Part No. T2155-13651
    • Applied Dates 2007-02-11 to 2014-03-01
    • Serial No. G70200041 and up
    • * multiple options for #2
    • 1 shown on diagram
    $9.99
  • 2

    SPONGE

    • Part No. T4931-72091
    • Compatibility Call for compat
    • Applied Dates 2014-03-02 and up
    • Serial No. P70200001 and up
    • * multiple options for #2
    • 1 shown on diagram
    $5.49
  • 3

    SPONGE 2

    • Part No. T2155-13661
    • 2 shown on diagram
    $6.99
  • 4

    Shourd obs

    • Part No. T2155-13522
    • Applied Dates Up to 2007-01-29
    • Serial No. Up to G70200040
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 4

    SHROUD

    • Part No. T2155-13523
    • Compatibility No interchange
    • Applied Dates 2007-02-17 and up
    • Serial No. G70200041 and up
    • * multiple options for #4
    • 1 shown on diagram
    $78.99
  • 5 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 6 shown on diagram
    $1.09
  • 6

    BRACKET, HOLDER-LH dnr v

    • Part No. T2155-13711
    • * multiple options for #6
    • 1 shown on diagram
    $9.99
  • 6

    BRACKET

    • Part No. T2155-13711ED
    • Compatibility No interchange
    • * multiple options for #6
    • 1 shown on diagram
    $9.99
  • 7

    BRACKET, HOLDER-RH dnr v

    • Part No. T2155-13721
    • * multiple options for #7
    • 1 shown on diagram
    $9.99
  • 7

    BRACKET, HOLDER

    • Part No. T2155-13721ED
    • Compatibility No interchange
    • * multiple options for #7
    • 1 shown on diagram
    $9.99
  • 8 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 4 shown on diagram
    $1.09
  • 9

    GUIDE, NET

    • Part No. T2155-13531
    • * multiple options for #9
    • 1 shown on diagram
    $29.99
  • 9

    GUIDE, WIRE-NET

    • Part No. T2155-13531ED
    • Compatibility No interchange
    • * multiple options for #9
    • 1 shown on diagram
    $29.99
  • 10

    GUIDE, NET dnr, v

    • Part No. T2155-13541
    • * multiple options for #10
    • 1 shown on diagram
    $33.99
  • 10

    GUIDE, WIRE-NET

    • Part No. T2155-13541ED
    • Compatibility No interchange
    • * multiple options for #10
    • 1 shown on diagram
    $33.99
  • 11 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 6 shown on diagram
    $1.09
  • 12

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 13 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50625
    • M6XP1.0
    • 2 shown on diagram
    $1.29
  • 14

    NET,RADIATOR

    • Part No. T2155-13111
    • * multiple options for #14
    • 1 shown on diagram
    $154.99
  • 14

    Wire-Net, Radiator Replaced by T2155-13111BB

    • Part No. T2155-13111ED
    • Compatibility No interchange
    • * multiple options for #14
    • 1 shown on diagram
    $0.00
  • 15

    BOLT, WING

    • Part No. 01811-50612
    • M6P1.0
    • 1 shown on diagram
    $2.49
  • 16

    RUBBER(RADIATOR)

    • Part No. T2155-13591
    • 1 shown on diagram
    $44.99
  • 17

    HOSE,WATER

    • Part No. T2155-13571
    • Applied Dates Up to 2008-08-26
    • * multiple options for #17
    • 1 shown on diagram
    $21.99
  • 17

    HOSE,WATER

    • Part No. T2155-13581
    • Compatibility Call for compat
    • Applied Dates 2008-10-25 and up
    • Serial No. G70200041 and up
    • * multiple options for #17
    • 1 shown on diagram
    $23.99
  • 18

    BAND

    • Part No. 15108-7287-3
    • Applied Dates 2007-02-11 to 2008-11-05
    • Serial No. G70200041 to G70200040
    • Wire #45
    • * multiple options for #18
    • 2 shown on diagram
    $3.99
  • 18

    HOSE_CLAMP dnr v

    • Part No. 09318-89045
    • Compatibility Interchngable
    • Applied Dates 2009-02-02 to 2010-01-09
    • Wire #46
    • * multiple options for #18
    • 2 shown on diagram
    $2.99
  • 18

    CLIP, HOSE

    • Part No. 09318-89048
    • Compatibility Interchngable
    • Applied Dates 2010-01-10 and up
    • Wire #48
    • * multiple options for #18
    • 2 shown on diagram
    $2.99
  • 19

    HOSE,WATER

    • Part No. T2155-13581
    • 1 shown on diagram
    $23.99
  • 20

    BAND

    • Part No. 15108-7287-3
    • Wire #45
    • * multiple options for #20
    • 2 shown on diagram
    $3.99
  • 20

    HOSE_CLAMP dnr v

    • Part No. 09318-89045
    • Compatibility Interchngable
    • Wire #46
    • * multiple options for #20
    • 2 shown on diagram
    $2.99
  • 20

    CLIP, HOSE

    • Part No. 09318-89048
    • Compatibility Interchngable
    • Wire #48
    • * multiple options for #20
    • 2 shown on diagram
    $2.99
  • 21

    WATER RETURN HOSE

    • Part No. T2155-73341
    • 1 shown on diagram
    $16.99
  • 22

    BAND HOSE

    • Part No. T4340-38241
    • Applied Dates 2007-02-11 to 2008-09-09
    • Serial No. G70200041 and up
    • Stainless steel #27
    • * multiple options for #22
    • 2 shown on diagram
    $4.49
  • 22

    BAND, HOSE

    • Part No. 66204-3623-1
    • Compatibility Call for compat
    • Applied Dates 2009-01-01 to 2014-12-23
    • * multiple options for #22
    • 2 shown on diagram
    $3.99
  • 23

    HOLDER, RESERVOIR TANK dnr v

    • Part No. T2185-72462
    • Applied Dates 2013-02-05 and up
    • Serial No. D70200051 to D70200151
    • * multiple options for #23
    • 1 shown on diagram
    $29.99
  • 23

    Tank Holder

    • Part No. T2185-72462ED
    • Compatibility No interchange
    • * multiple options for #23
    • 1 shown on diagram
    $27.99
  • 24 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 25

    Reservoir Tank, Replaced by T4710-72416

    • Part No. T4710-72412
    • Applied Dates 2007-01-31 to 2007-10-10
    • * multiple options for #25
    • 1 shown on diagram
    $0.00
  • 25

    Reservoir Tank, Replaced by T4710-72416

    • Part No. T4710-72413
    • Compatibility New repl old
    • Applied Dates 2007-10-11 to 2008-10-15
    • Serial No. G70200181 and up
    • * multiple options for #25
    • 1 shown on diagram
    $0.00
  • 25

    Reservoir Tank, Replaced by T4710-72416

    • Part No. T4710-72414
    • Compatibility Interchngable
    • Applied Dates 2008-10-16 to 2013-04-18
    • * multiple options for #25
    • 1 shown on diagram
    $0.00
  • 25

    Reservoir Tank, Replaced by T4710-72416

    • Part No. T4710-72415
    • Compatibility New repl old
    • Applied Dates 2013-04-19 to 2013-09-14
    • * multiple options for #25
    • 1 shown on diagram
    $0.00
  • 25

    Coolant Reservoir Tank

    • Part No. T4710-72416
    • Compatibility Interchngable
    • Applied Dates 2013-09-15 and up
    • * multiple options for #25
    • 1 shown on diagram
    $77.99
  • 26

    ASSY, TANK WATER

    • Part No. T4710-72432
    • Applied Dates Up to 2007-10-10
    • * multiple options for #26
    • 1 shown on diagram
    $33.99
  • 26

    Reservoir Tank, Replaced by T4710-72416

    • Part No. T4710-72433
    • Compatibility New repl old
    • Applied Dates 2007-10-11 to 2008-10-15
    • * multiple options for #26
    • 1 shown on diagram
    $0.00
  • 26

    Reservoir Tank, Replaced by T4710-72416

    • Part No. T4710-72434
    • Compatibility Interchngable
    • * multiple options for #26
    • 1 shown on diagram
    $0.00
  • 26

    Reservoir Tank Body, Replaced by T4710-72416

    • Part No. T5525-50711
    • Compatibility New repl old
    • * multiple options for #26
    • 1 shown on diagram
    $0.00
  • 27 Cap, Black Threaded

    Cap, Black Threaded

    • Part No. E7100-72411
    • * multiple options for #27
    • 1 shown on diagram
    $23.99
  • 27 CAP, DOUBLE BARB

    CAP, DOUBLE BARB

    • Part No. T5525-50721
    • Compatibility Call for compat
    • * multiple options for #27
    • 1 shown on diagram
    $7.99
  • 28 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 29

    Band Cord (T4520-82561)

    • Part No. T4520-82561
    • Applied Dates 2007-10-26 to 2009-03-12
    • Serial No. G70200151 and up
    • L200
    • * multiple options for #29
    • 1 shown on diagram
    $0.59
  • 29

    BAND, CORD

    • Part No. T2185-82561
    • Compatibility Interchngable
    • Applied Dates 2009-03-04 and up
    • Serial No. D70200001 and up
    • L200
    • * multiple options for #29
    • 1 shown on diagram
    $0.49
  • 30 Over Flow Hose 1

    Over Flow Hose 1

    • Part No. E5800-72711
    • Applied Dates Up to 2010-12-16
    • OD13*ID8*L580
    • * multiple options for #30
    • 1 shown on diagram
    $14.99
  • 30

    HOSE 1, OVER FLOW V

    • Part No. E6200-72711
    • Compatibility No interchange
    • Applied Dates 2010-12-17 and up
    • * multiple options for #30
    • 1 shown on diagram
    $13.99
  • 31

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • 2 shown on diagram
    $2.49
  • 32

    HOSE

    • Part No. T2185-70211
    • L=800
    • 1 shown on diagram
    $5.49
  • 33

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 1 shown on diagram
    $1.29
