FENDER GROUP - CK30M-T880-1A

Kioti TRACTOR | CK Series | CK25H

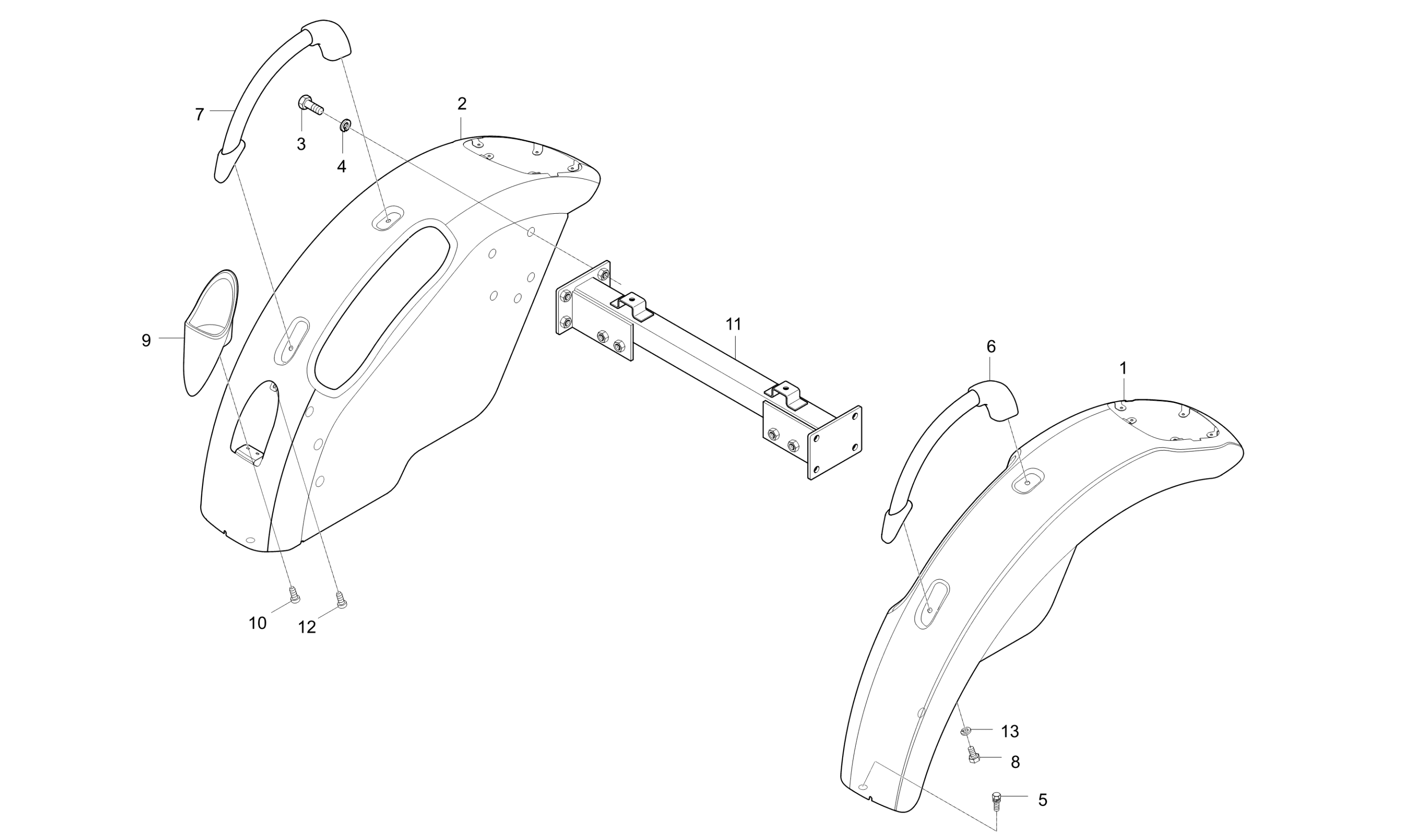

Diagram for FENDER GROUP - CK30M-T880-1A
  • 1

    ASSY FENDER LH

    • Part No. T2185-95013
    • Applied Dates 2004-01-16 and up
    • 1 shown on diagram
    $984.99
  • 2

    TRK – ASSY FENDER RH

    • Part No. T2185-95023
    • Applied Dates 2004-01-16 and up
    • 1 shown on diagram
    $844.99
  • 3

    Bolt (01173-51430)

    • Part No. 01173-51430
    • Applied Dates 2004-01-06 and up
    • M14P1.5*30
    • 8 shown on diagram
    $4.49
  • 4

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 8 shown on diagram
    $0.90
  • 5

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • Applied Dates 2004-01-15 and up
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 6 GRIP FENDER LH (T2350-95082)

    GRIP FENDER LH (T2350-95082)

    • Part No. T2350-95082
    • Applied Dates Up to 2009-05-28
    • * multiple options for #6
    • 1 shown on diagram
    $89.99
  • 6

    GRIP FENDER (T2360-95081)

    • Part No. T2360-95081
    • Compatibility Call for compat
    • Applied Dates 2009-05-29 and up
    • * multiple options for #6
    • 1 shown on diagram
    $59.99

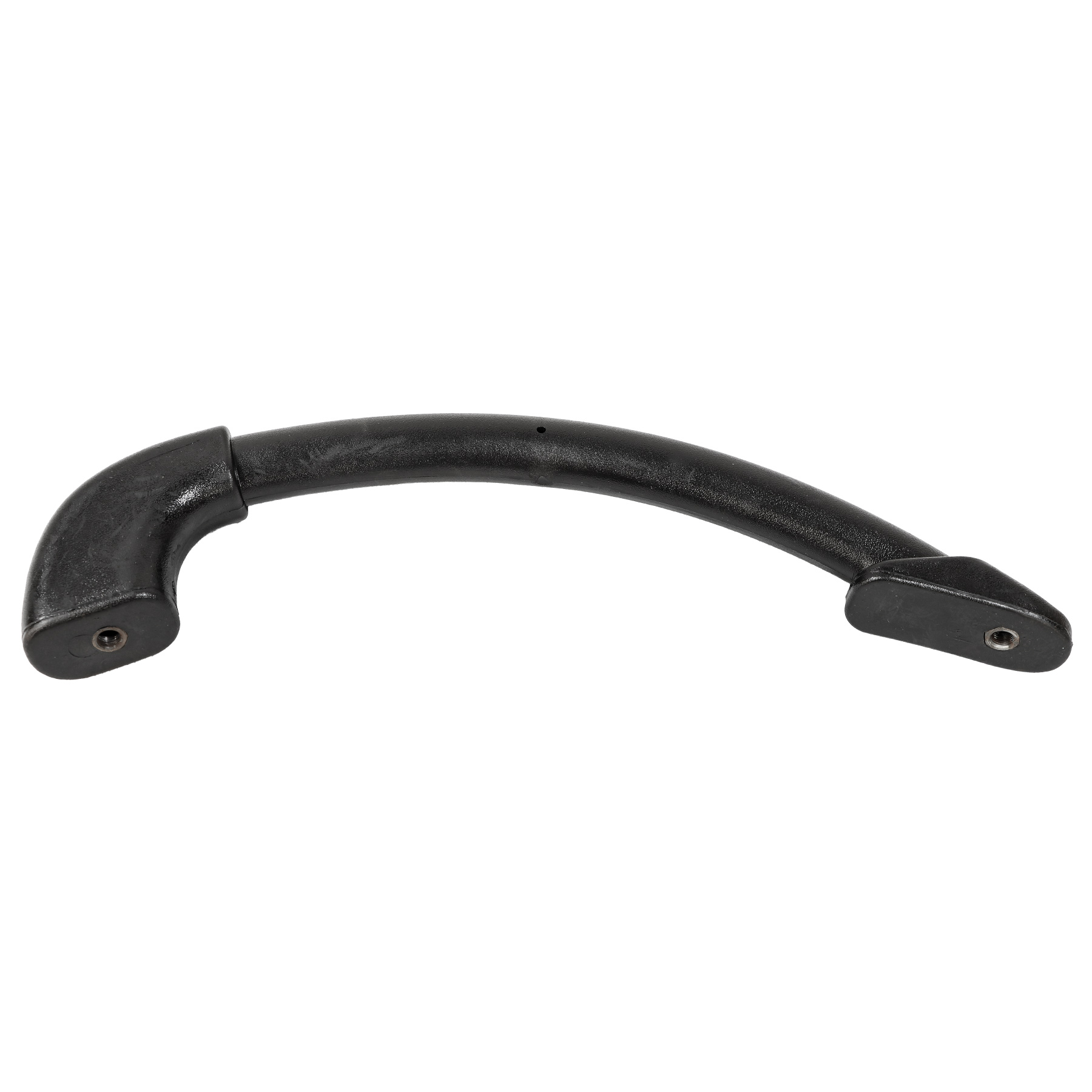

  • 6 GRIP FENDER (T2350-95082BB)

    GRIP FENDER (T2350-95082BB)

    • Part No. T2350-95082BB
    • Compatibility No interchange
    • * multiple options for #6
    • 1 shown on diagram
    $95.99
  • 6

    GRIP FENDER (T2360-95081)

    • Part No. T2360-95081
    • Compatibility Call for compat
    • * multiple options for #6
    • 1 shown on diagram
    $59.99

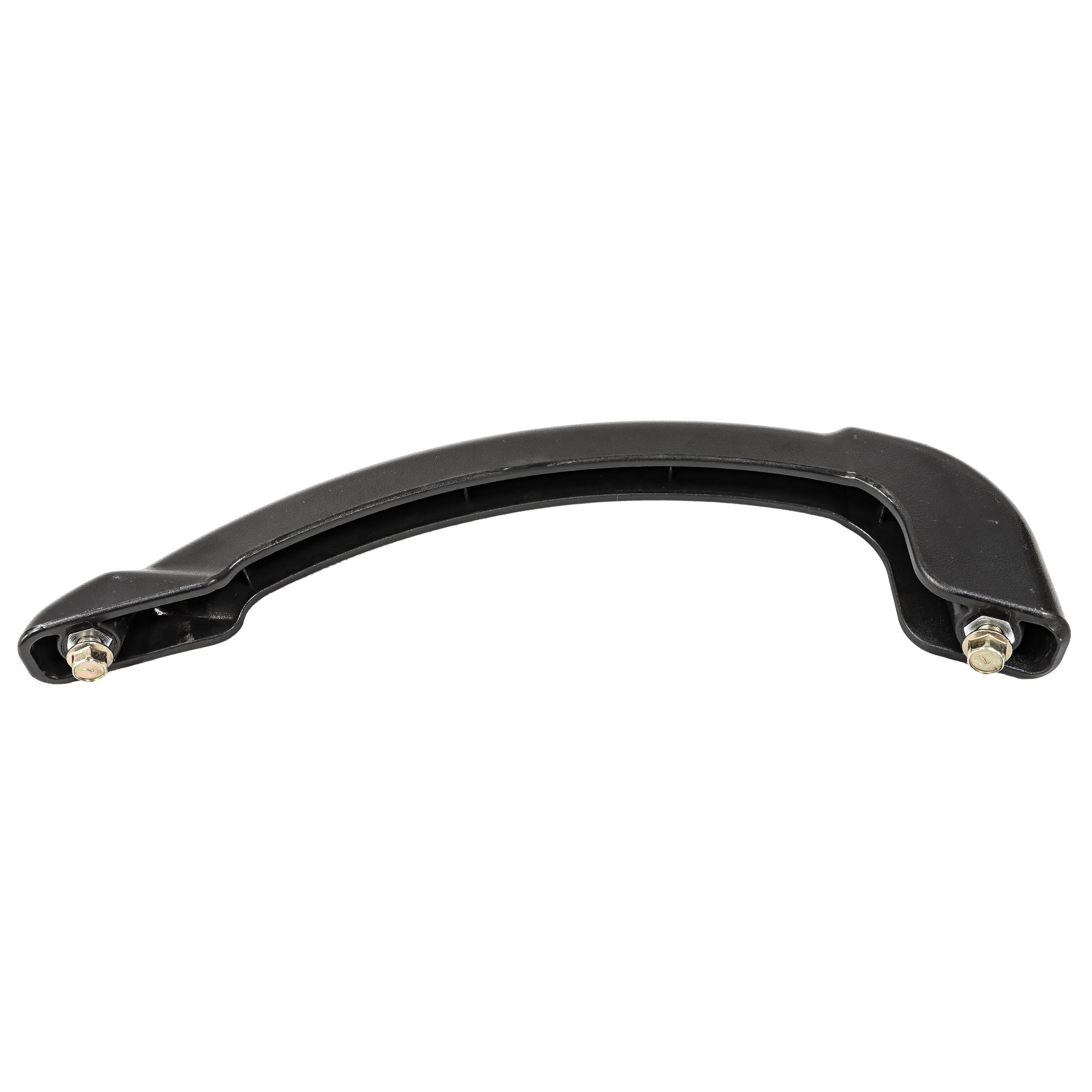

  • 7 GRIP-FENDER RH dnr v (T2350-95092)

    GRIP-FENDER RH dnr v (T2350-95092)

    • Part No. T2350-95092
    • Applied Dates Up to 2009-05-28
    • * multiple options for #7
    • 1 shown on diagram
    $59.99
  • 7

    (RH) Fender Grip (T2360-95091)

    • Part No. T2360-95091
    • Compatibility Call for compat
    • Applied Dates 2009-05-29 and up
    • * multiple options for #7
    • 1 shown on diagram
    $61.99
  • 7 GRIP-FENDER RH v (T2350-95092BB)

    GRIP-FENDER RH v (T2350-95092BB)

    • Part No. T2350-95092BB
    • Compatibility No interchange
    • * multiple options for #7
    • 1 shown on diagram
    $92.99
  • 7

    (RH) Fender Grip (T2360-95091)

    • Part No. T2360-95091
    • Compatibility Call for compat
    • * multiple options for #7
    • 1 shown on diagram
    $61.99
  • 8 Bolt M10 P1.25x16mm W/Lock Washer

    Bolt M10 P1.25x16mm W/Lock Washer

    • Part No. 01133-51016
    • Applied Dates Up to 2005-02-03
    • Serial No. Up to D70200151
    • M10*P1.25
    • * multiple options for #8
    • 4 shown on diagram
    $2.49
  • 8

    BOLT (76KP-1308-1)

    • Part No. 76KP-1308-1
    • Compatibility New repl old
    • Applied Dates 2005-02-04 and up
    • Serial No. E70200001 and up
    • DIA10*37
    • * multiple options for #8
    • 4 shown on diagram
    $2.99
  • 8

    Bolt, Washer

    • Part No. 01135-51020
    • Compatibility Call for compat
    • Applied Dates 2010-10-10 to 2010-10-17
    • M10*1.25
    • * multiple options for #8
    • 4 shown on diagram
    $1.99
  • 8 Flange Bolt M10 P1.25 x16 (01774-51016)

    Flange Bolt M10 P1.25 x16 (01774-51016)

    • Part No. 01774-51016
    • Compatibility Call for compat
    • Applied Dates 2010-10-18 and up
    • M10XP1.25
    • * multiple options for #8
    • 4 shown on diagram
    $2.49
  • 9

    CUP HOLDER v

    • Part No. T2185-95052
    • Applied Dates Up to 2008-10-22
    • * multiple options for #9
    • 1 shown on diagram
    $36.99
  • 9

    Cup Holder

    • Part No. T2185-95052BB
    • Compatibility No interchange
    • * multiple options for #9
    • 1 shown on diagram
    $36.99
  • 10

    SCREW

    • Part No. 38430-1827-1
    • Applied Dates 2004-04-07 and up
    • 2 shown on diagram
    $0.46
  • 11

    SUPPORT, FENDER

    • Part No. T2185-95214
    • Applied Dates 2004-02-23 and up
    • 1 shown on diagram
    $229.99
  • 12 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • Applied Dates 2004-04-07 and up
    • M4X16
    • 1 shown on diagram
    $0.79
  • 13 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • Applied Dates 2005-02-04 and up
    • M10
    • 4 shown on diagram
    $0.79
