BONNET 2 GROUP - CK35-T820A

Kioti TRACTOR | CK Series | CK25H

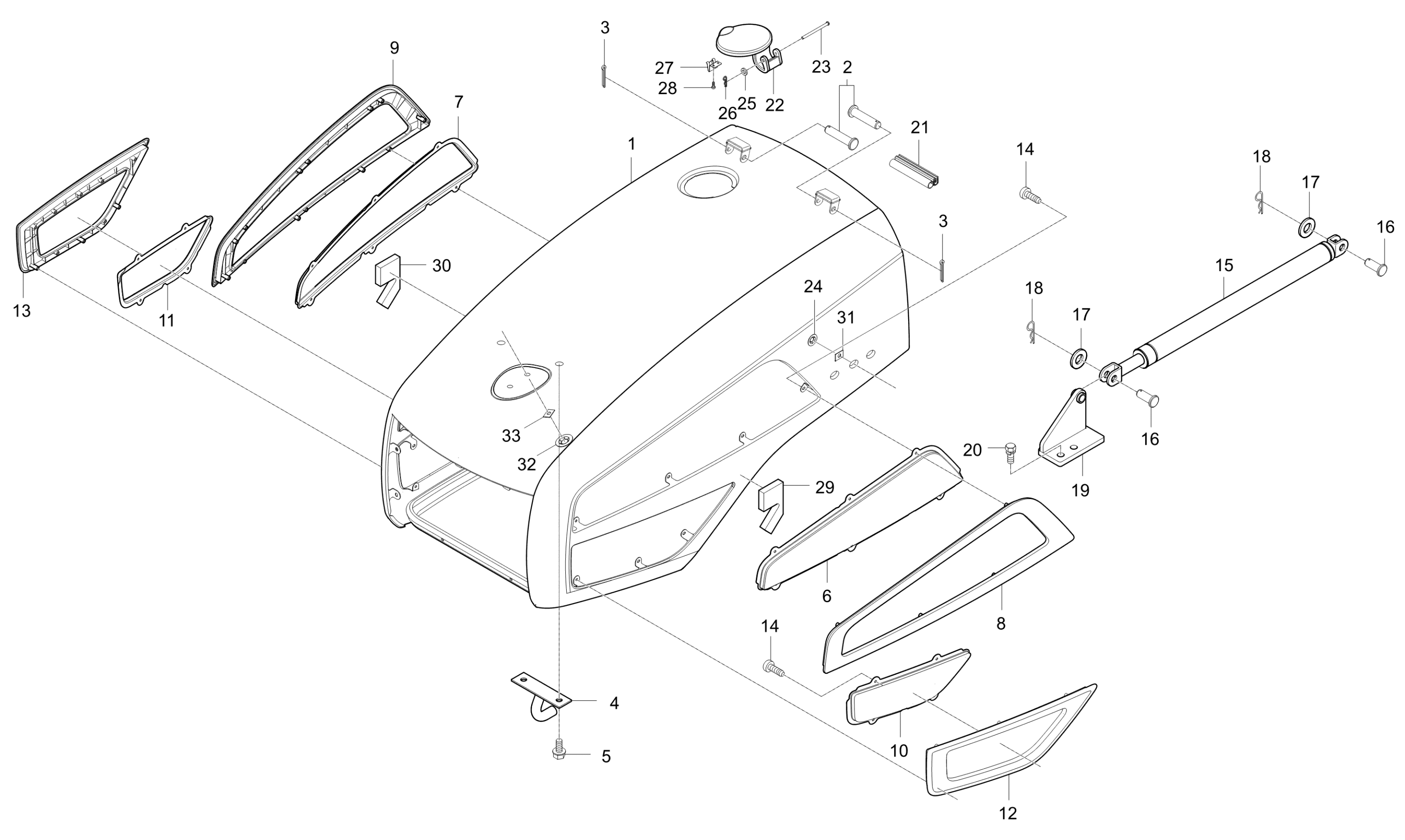

Diagram for BONNET 2 GROUP - CK35-T820A
  • 1

    ASS’Y,BONNET v

    • Part No. T2185-50706
    • Applied Dates Up to 2011-04-30
    • * multiple options for #1
    • 1 shown on diagram
    $1,119.99
  • 1

    TRK – ASSY BONNET obs

    • Part No. T2185-50707
    • Compatibility New repl old
    • Applied Dates 2011-05-01 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,649.99
  • 2

    Pin, Joint M10x50mm, Replaced by 05122-51055

    • Part No. 05122-51050
    • Applied Dates 2004-01-15 and up
    • 2 shown on diagram
    $0.00
  • 3

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 4

    HOLDER,BONNET v

    • Part No. T2155-50611
    • Applied Dates Up to 2007-01-29
    • * multiple options for #4
    • 1 shown on diagram
    $12.99
  • 4

    HOLDER BONNET

    • Part No. T2155-50612
    • Compatibility New repl old
    • Applied Dates 2007-01-30 to 2011-08-20
    • Serial No. G70200041 and up
    • * multiple options for #4
    • 1 shown on diagram
    $22.99
  • 4

    HOLDER, BONNET

    • Part No. T2155-50613
    • Compatibility No interchange
    • Applied Dates 2011-08-21 and up
    • * multiple options for #4
    • 1 shown on diagram
    $22.99
  • 5

    BOLT, FLANGE

    • Part No. 01774-51020
    • M10P1.25
    • 2 shown on diagram
    $2.99
  • 6 MATAL1 LH

    MATAL1 LH

    • Part No. T2185-51111
    • * multiple options for #6
    • 1 shown on diagram
    $119.99
  • 6

    NET 1 LH dnr v

    • Part No. T2185-51111BB
    • Compatibility No interchange
    • * multiple options for #6
    • 1 shown on diagram
    $119.99
  • 7

    MATAL1(RH) dnr v

    • Part No. T2185-51121
    • * multiple options for #7
    • 1 shown on diagram
    $98.99
  • 7

    NET 1 RH v

    • Part No. T2185-51121BB
    • Compatibility No interchange
    • * multiple options for #7
    • 1 shown on diagram
    $79.99
  • 8

    Grill1 (LH), Replaced by T2185-51132BB

    • Part No. T2185-51132
    • * multiple options for #8
    • 1 shown on diagram
    $49.99
  • 8 GRILL 1 LH v

    GRILL 1 LH v

    • Part No. T2185-51132BB
    • Compatibility No interchange
    • * multiple options for #8
    • 1 shown on diagram
    $53.99
  • 8

    (LH) Grill 1

    • Part No. T2185-51133
    • Compatibility No interchange
    • * multiple options for #8
    • 1 shown on diagram
    $44.99
  • 9

    GRILL1 (RH) dnr v

    • Part No. T2185-51142
    • * multiple options for #9
    • 1 shown on diagram
    $46.99
  • 9

    GRILL 1 RH

    • Part No. T2185-51142BB
    • Compatibility No interchange
    • * multiple options for #9
    • 1 shown on diagram
    $49.99
  • 9

    GRILL 1, RH

    • Part No. T2185-51143
    • Compatibility No interchange
    • * multiple options for #9
    • 1 shown on diagram
    $39.99

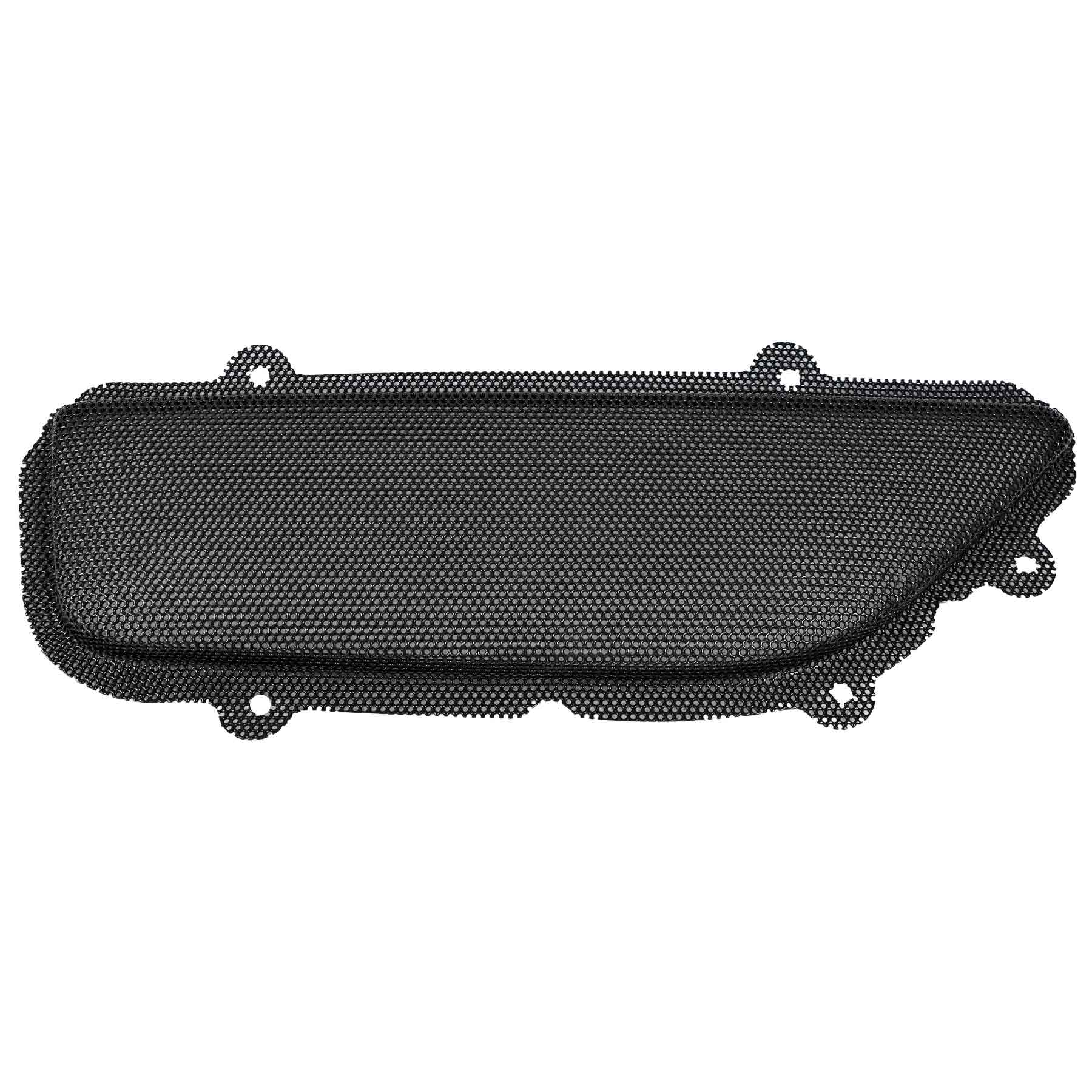

  • 10 METAL2 LH

    METAL2 LH

    • Part No. T2185-51151
    • T0.8
    • * multiple options for #10
    • 1 shown on diagram
    $69.99
  • 10 METAL 2 (LH) dnr v

    METAL 2 (LH) dnr v

    • Part No. T2185-51151BB
    • Compatibility No interchange
    • * multiple options for #10
    • 1 shown on diagram
    $68.99
  • 11 MATAL2 RH

    MATAL2 RH

    • Part No. T2185-51161
    • T0.8
    • * multiple options for #11
    • 1 shown on diagram
    $42.99

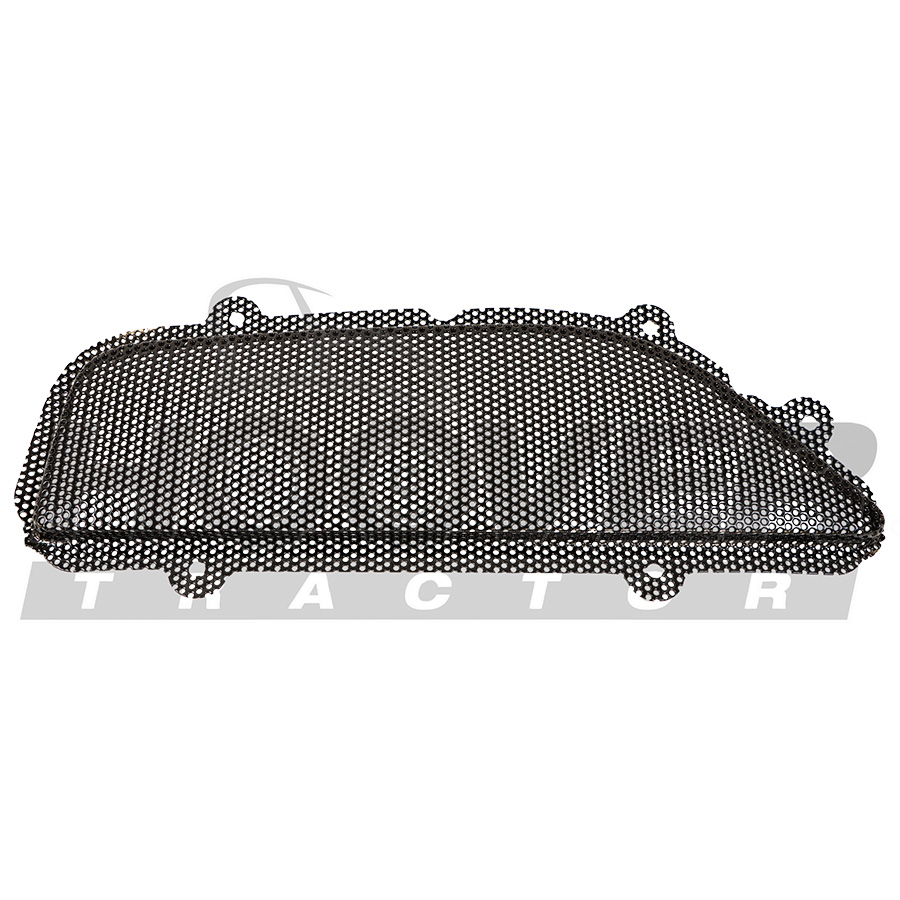

  • 11 METAL 2 (RH) v

    METAL 2 (RH) v

    • Part No. T2185-51161BB
    • Compatibility No interchange
    • * multiple options for #11
    • 1 shown on diagram
    $42.99
  • 12

    GRILL2 (LH)

    • Part No. T2185-51172
    • * multiple options for #12
    • 1 shown on diagram
    $37.99
  • 12

    GRILL 2 LH

    • Part No. T2185-51172BB
    • Compatibility No interchange
    • * multiple options for #12
    • 1 shown on diagram
    $42.99
  • 12

    GRILL 2, LH

    • Part No. T2185-51173
    • Compatibility No interchange
    • * multiple options for #12
    • 1 shown on diagram
    $31.99
  • 13

    GRILL2 (RH)

    • Part No. T2185-51182
    • * multiple options for #13
    • 1 shown on diagram
    $35.99
  • 13

    (RH) Grill 2

    • Part No. T2185-51182BB
    • Compatibility No interchange
    • * multiple options for #13
    • 1 shown on diagram
    $37.99
  • 13

    GRILL 2, RH

    • Part No. T2185-51183
    • Compatibility No interchange
    • * multiple options for #13
    • 1 shown on diagram
    $26.99
  • 14

    SCREW

    • Part No. 38430-1827-1
    • 48 shown on diagram
    $0.46
  • 15

    ASS’Y, AIR CYLINDER

    • Part No. T2185-50911
    • 1 shown on diagram
    $94.99
  • 16

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
    $2.99
  • 17 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 18

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 19

    Cylinder Support

    • Part No. T2185-50921
    • * multiple options for #19
    • 1 shown on diagram
    $36.99
  • 19

    SUPPORT, CYLINDER

    • Part No. T2185-50921ED
    • Compatibility No interchange
    • * multiple options for #19
    • 1 shown on diagram
    $41.99
  • 20 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 21

    Frame Rubber

    • Part No. T2185-52102
    • 1 shown on diagram
    $29.99
  • 22 COVER,FUEL

    COVER,FUEL

    • Part No. T2185-50641
    • 1 shown on diagram
    $43.99
  • 23

    Pin, Joint M6x45mm

    • Part No. 05122-50645
    • 1 shown on diagram
    $2.99
  • 24 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 6 shown on diagram
    $1.39
  • 25 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 26

    SNAP PIN

    • Part No. 05525-50060
    • 1 shown on diagram
    $1.09
  • 27

    CLIP

    • Part No. T2185-50651
    • T0.5
    • 1 shown on diagram
    $5.99
  • 28

    SCREW

    • Part No. 38430-1827-1
    • 2 shown on diagram
    $0.46
  • 29

    BONNET SPONG LH

    • Part No. T2185-50952
    • Applied Dates 2004-10-01 to 2010-04-15
    • * multiple options for #29
    • 1 shown on diagram
    $18.99
  • 29

    SPONGE, BONNET LH

    • Part No. T2185-50953
    • Compatibility New repl old
    • Applied Dates 2010-04-16 and up
    • * multiple options for #29
    • 1 shown on diagram
    $17.99
  • 30

    BONNET SPONG RH V

    • Part No. T2185-50962
    • Applied Dates 2004-10-01 to 2010-04-15
    • * multiple options for #30
    • 1 shown on diagram
    $18.99
  • 30

    SPONGE BONNET RH

    • Part No. T2185-50963
    • Compatibility New repl old
    • Applied Dates 2010-04-16 and up
    • * multiple options for #30
    • 1 shown on diagram
    $17.99
  • 31 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • 6 shown on diagram
    $1.19
  • 32 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 2 shown on diagram
    $1.39
  • 33 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • 2 shown on diagram
    $1.19
